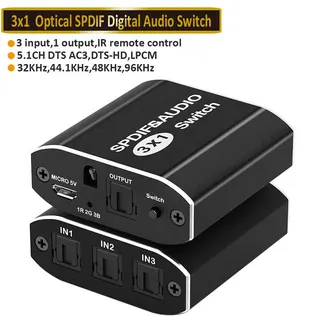

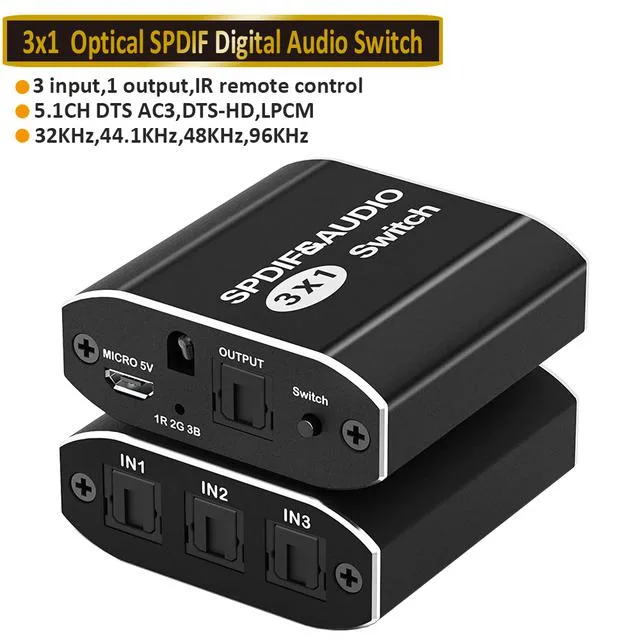

Small black rectangular box with three optical inputs one output and IR remote

ESTONE

ESTONE OZG2 3-Port SPDIF/Toslink Optical Switch

SKU CH-KA1C-YG8A8

A three-input, one-output SPDIF/Toslink optical switch that routes digital audio from multiple sources to a single receiver with IR remote control.

  • TypeSPDIF Switchers
  • Changer TypeSPDIF / Toslink Switch
  • ColorBlack
  • Ports3
  • SpecificationsSupport for audio formats: LPCM2.0 / DTS / Dolby Digital. Su
  • Input Connector3 x SPDIF
  • Connect three optical sources to one device with 3 inputs and 1 output
  • Control switching from your seat using the included IR remote
  • Transmit audio up to 40 m over fibre with .2 dB per metre loss
  • Hear 5.1 Dolby Digital, DTS and PCM up to 192 kHz sampling
  • Plug in the 5 V USB cable and start — no drivers needed

What the ESTONE OZG2 does

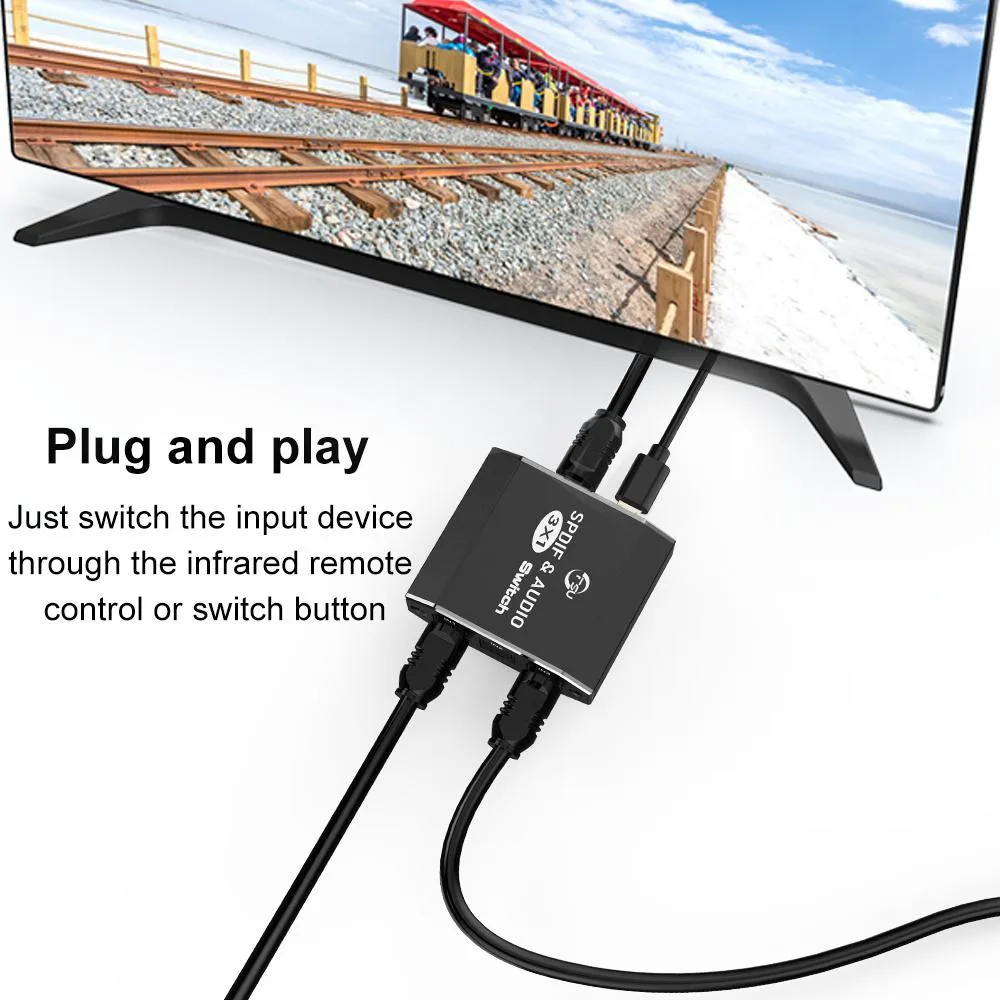

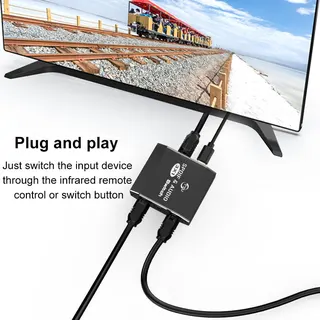

The ESTONE OZG2 is a three-input, one-output SPDIF/Toslink optical audio switch. It lets you connect up to three digital optical sources — such as a game console, Blu-ray player or streaming box — to a single optical input on a soundbar, AV receiver or amplifier. The unit is powered via an included 5V USB cable and can be operated by front-panel buttons or the supplied IR remote with extension cable.

Signal integrity over distance

Optical fibre attenuation is specified at 0.2 dB per metre, allowing a transmission distance up to 40 metres or 130 feet without audible degradation. Supported sampling rates reach 192 kHz for PCM stereo and 96 kHz for compressed formats. The switch passes Dolby Digital and DTS 5.1 bitstreams transparently but cannot carry 7.1-channel Dolby Digital Plus or Dolby TrueHD, as those formats require HDMI bandwidth.

Check your sources and sink

Verify that each source device outputs PCM stereo, Dolby Digital or DTS 5.1 over its optical port; 7.1-channel or high-bitrate codecs will not pass through. Confirm your receiving device has a single SPDIF/Toslink input and can decode the formats you intend to use. A free USB port or 5V USB charger is needed for power, and line-of-sight or the IR extension cable must reach the switch location for remote operation.

Highlights

  • Connect three optical sources to one device with 3 inputs and 1 output
  • Control switching from your seat using the included IR remote
  • Transmit audio up to 40 m over fibre with .2 dB per metre loss
  • Hear 5.1 Dolby Digital, DTS and PCM up to 192 kHz sampling
  • Plug in the 5 V USB cable and start — no drivers needed

Specifications

BrandESTONE
SeriesOZG2
ModelOZG2
Part NumberOZG2
TypeSPDIF Switchers
Changer TypeSPDIF / Toslink Switch
ColorBlack
Ports3
SpecificationsSupport for audio formats: LPCM2.0 / DTS / Dolby Digital.
Supports a transmission distance of up to 40 m via fibre optic cable.
Supports the last memory when power off.
Supports manual switching or IR control.
Support signal retiming
Surge protection
LED power status indicator.
No loss of sound quality.
Easy to set up, installed in minutes.
Dimensions: 6.2 x 5.8 x 2.4 cm
Weight:65g

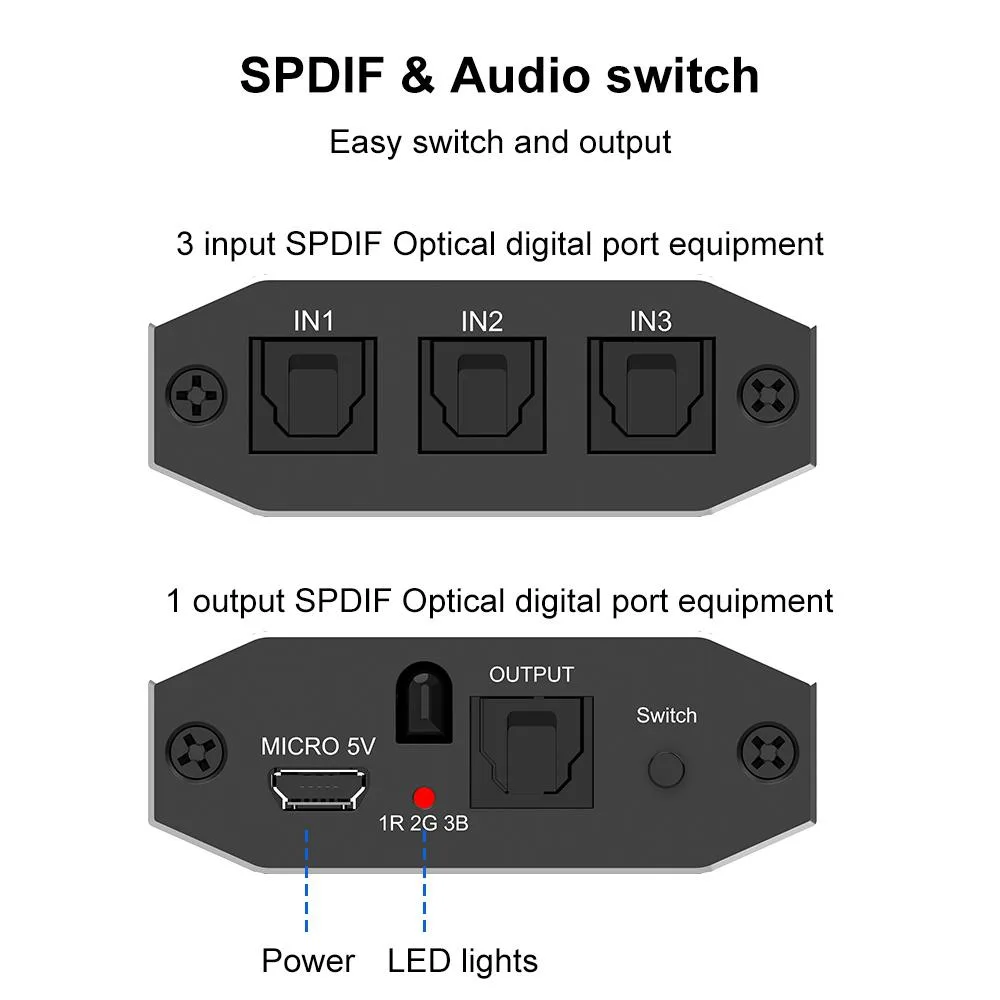

Input Connector3 x SPDIF
Output Connector1 x SPDIF
FeaturesOptical 3x1 audio switch: with these digital optical SPDIF / Toslink audio switches, 3 optical Toslink sources (PS3, PS4, Xbox One, Blu-ray player, Apple TV, cable boxes, etc.) can be easily connected to a SPDIF / Toslink signal receivers (home theater, speaker, amplifier, soundbar, AV receiver, etc.). Support last working status memory when power off.
Supports 3 audio formats: this SPDIF Toslink switch supports uncompressed audio: LPCM 2.0, compressed audio: DTS, Dolby-AC3, no distortion of audio and video, no delay in signal transmission, enjoy various high quality audio quality an
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 3x1 Toslink switch.
1 x 5V USB power cable.
1 x remote control.
1 x IR extension cable.
1 x user manual

Questions about this item

Does the ESTONE OZG2 generate any heat or noise when left on continuously?

The unit is a passive optical switch with no moving parts or active cooling, so it runs silently and produces no noticeable heat during all-day operation.

What cables and power source do I need to have on hand before the switch will work?

You need three Toslink optical cables for the inputs, one Toslink cable for the output, and a standard USB power adapter to supply the included 5 V USB power cable.

Will my older Dolby Digital 5.1 and DTS sources at 48 kHz pass through without conversion?

Yes, the switch transparently passes Dolby Digital, DTS 5.1 and PCM stereo at 32, 44.1, 48, 96 and 192 kHz, so legacy sources work unchanged.
