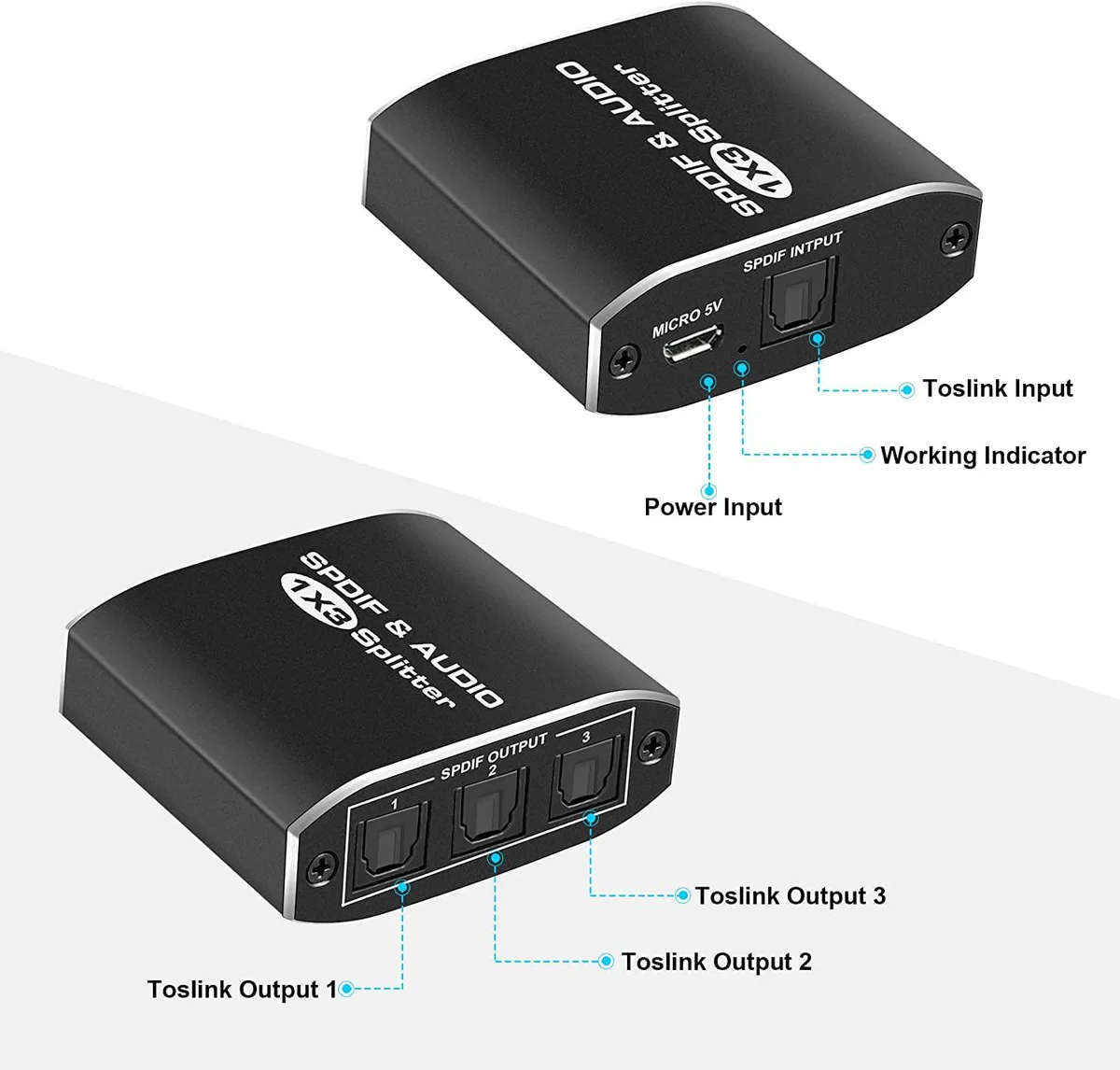

Small black rectangular box with one Toslink input and three Toslink outputs plus USB power port

ESTONE

ESTONE OZG1 1x3 SPDIF TOSLINK Optical Audio Splitter

SKU CH-VCX8-D8HDS

Splits one Toslink input into three outputs supporting LPCM 2.0, DTS and Dolby AC3 up to 40 m

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • One input splits to three optical outputs
  • Supports LPCM2.0, DTS and Dolby-AC3 audio formats
  • Signal retiming keeps transmission stable with no delay
  • Outputs reach up to 40 metres over fibre cable
  • Includes optical cable, USB power cable and manual

One-to-Three Optical Splitter

The ESTONE OZG1 takes a single SPDIF TOSLINK input and duplicates it to three optical outputs. It is built for anyone who needs the same digital audio stream sent to multiple receivers such as soundbars, AV amplifiers or recording devices at the same time.

Plug-and-Play Integration

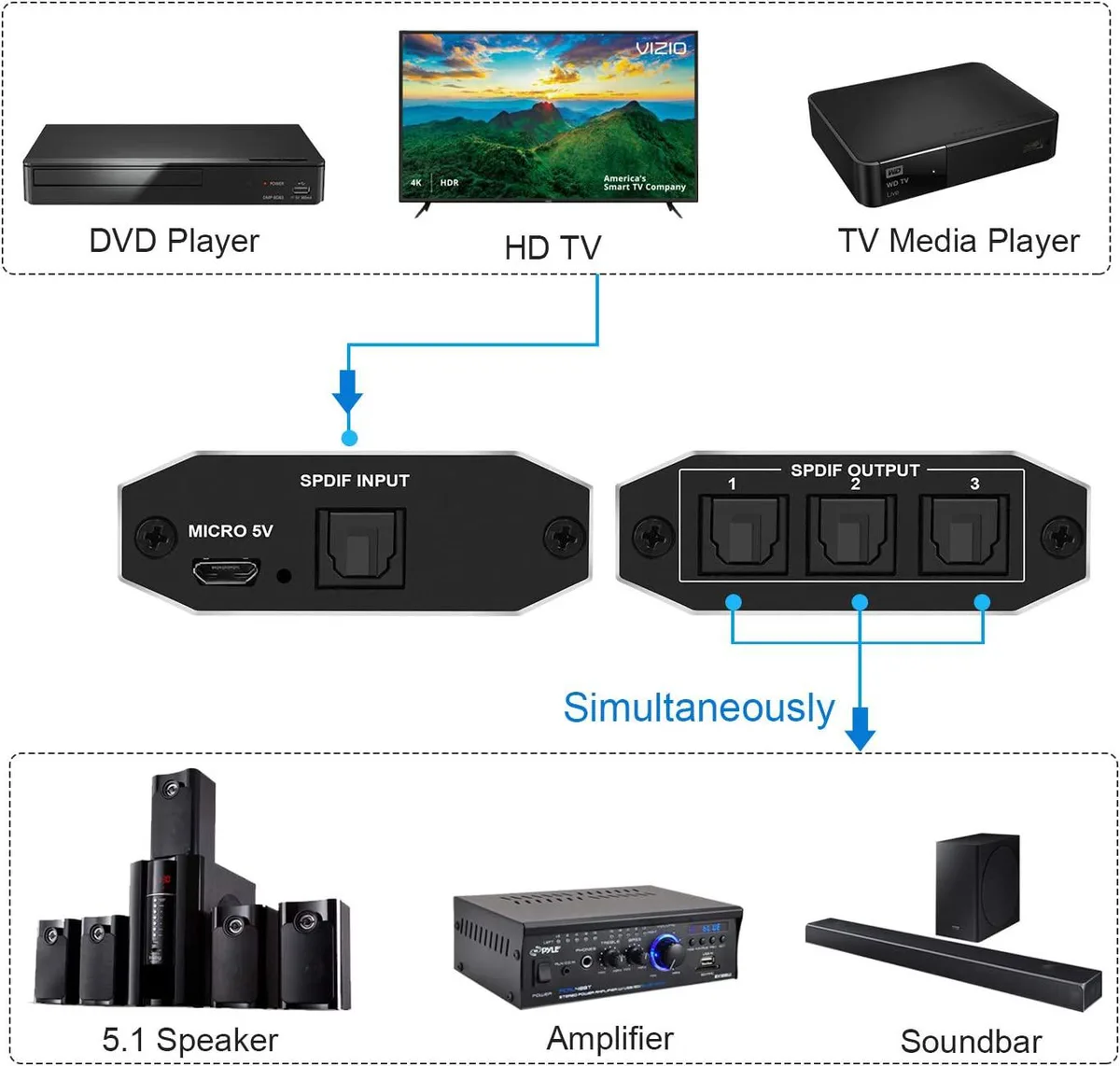

The unit accepts one Toslink cable from a source like a TV, console or media player and provides three Toslink ports for downstream gear. A USB power cable is included for the DC 5 V port so the active circuitry runs without an extra wall adapter.

Stable Long-Run Operation

Signal retiming and an automatic balance circuit keep the stream aligned during extended sessions. The spec lists a peak wavelength of 650 nm, a maximum baud rate of 16 Mbps and a working current of 100 mA. Output cables up to 40 m are supported when fibre loss stays below .2 dB per metre.

Highlights

  • One input splits to three optical outputs
  • Supports LPCM2.0, DTS and Dolby-AC3 audio formats
  • Signal retiming keeps transmission stable with no delay
  • Outputs reach up to 40 metres over fibre cable
  • Includes optical cable, USB power cable and manual

Specifications

BrandESTONE
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

What is the maximum baud rate the ESTONE OZG1 splitter can sustain during continuous operation?

The splitter supports a maximum baud rate of 16Mbps for sustained signal transmission.

How much power does the device draw when running all day?

It has a maximum working current of 100mA and is powered via the included USB power cable.

Which cables and power source must I already have to use this 1x3 optical splitter?

You need one Toslink cable for the input, up to three Toslink cables for the outputs, and a USB port or 5V USB charger for the supplied power cable.
