Black rectangular optical audio splitter with one input and three output ports, USB power cable included

ESTONE

ESTONE OZG1 1×3 TOSLINK SPDIF optical audio splitter

SKU CH-GAHE-B6BM9

Splits one optical audio signal into three SPDIF/TOSLINK outputs with support for LPCM 2.0, DTS and Dolby AC3 up to 40 metres

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical input to three outputs simultaneously
  • Supports LPCM 2.0, DTS and Dolby AC3 audio formats
  • Transmits up to 40 metres with loss below .2 dB/m
  • Plug-and-play with Apple TV, consoles, Blu-ray players and more
  • Powered via USB with built-in ESD protection circuit

Signal Distribution

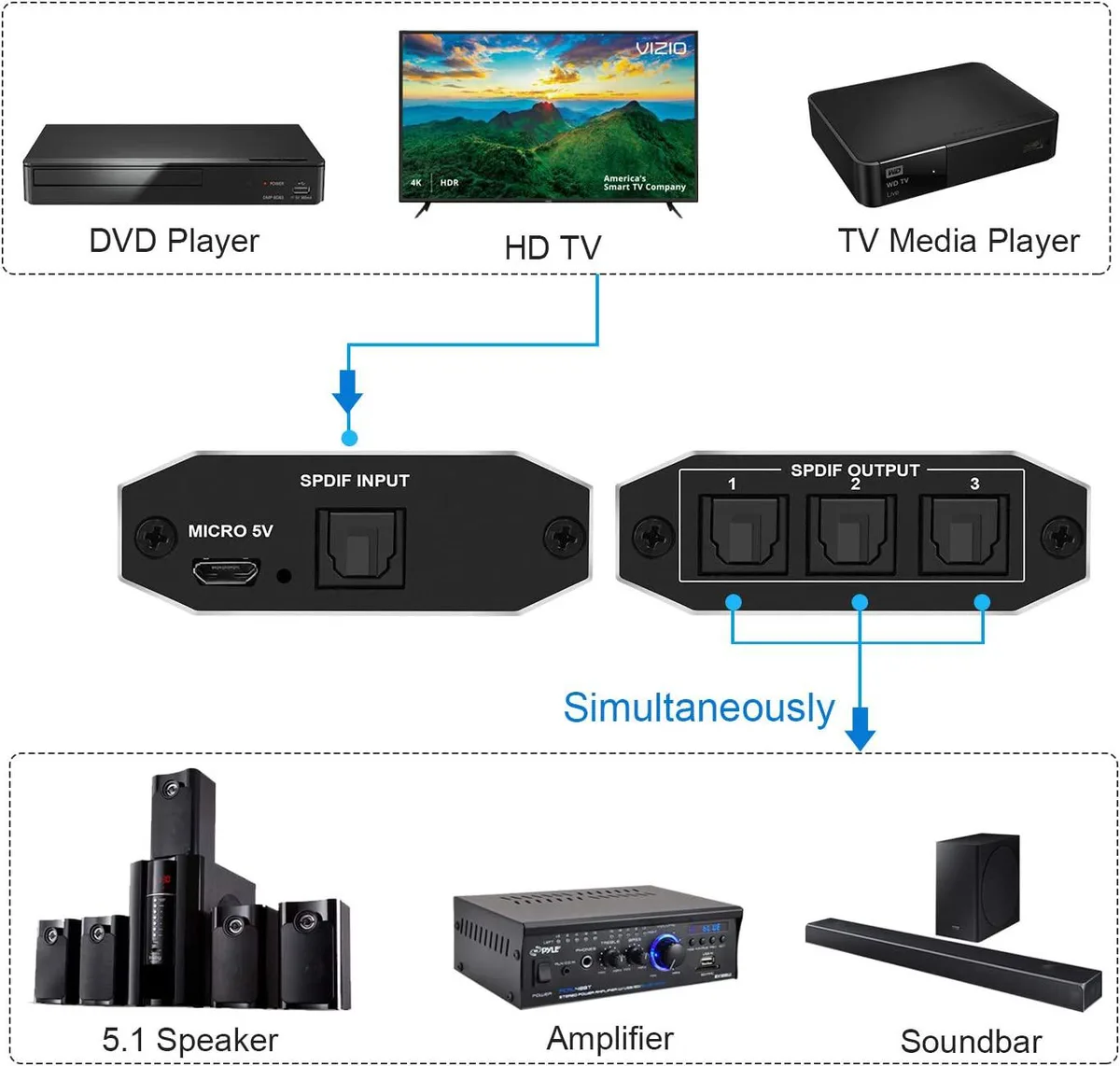

The ESTONE OZG1 is a digital optical audio splitter that takes a single TOSLINK input and duplicates it to three TOSLINK outputs. It suits installers who need to feed one source such as a set-top box or game console into multiple amplifiers, soundbars or recording devices simultaneously. The unit ships with a short optical cable and a USB power lead for the onboard electronics.

Format Compatibility

The splitter passes LPCM 2.0, DTS and Dolby AC3 bitstreams without decoding them, so each connected receiver gets an identical copy of the original surround mix. It does not support DTS-HD Master Audio, Dolby TrueHD or multichannel LPCM beyond stereo, so sources must be configured to output one of the three listed formats for reliable operation.

Sustained Operation

An automatic balance circuit and ESD protection maintain signal integrity during continuous use, while the 650 nm transmitter keeps attenuation below .2 dB per metre on cable runs up to 40 m. The device draws a maximum of 100 mA from its 5 V USB supply, so it remains stable even when all three outputs drive long fibres at the full 16 Mbps baud rate.

Highlights

  • Splits one optical input to three outputs simultaneously
  • Supports LPCM 2.0, DTS and Dolby AC3 audio formats
  • Transmits up to 40 metres with loss below .2 dB/m
  • Plug-and-play with Apple TV, consoles, Blu-ray players and more
  • Powered via USB with built-in ESD protection circuit

Specifications

BrandESTONE
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply

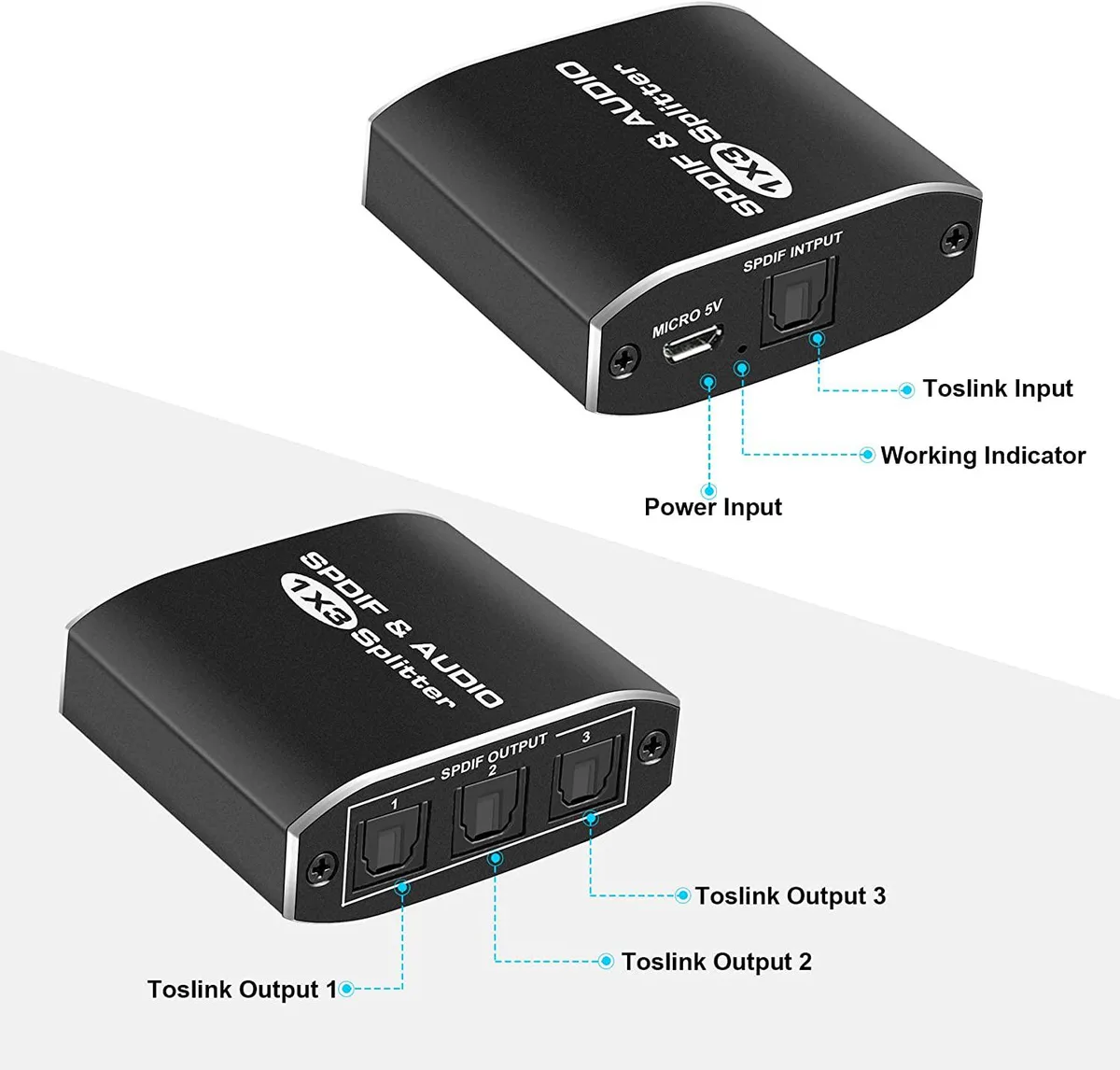

Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

Will this splitter pass 5.1 surround formats like Dolby Digital or DTS to all three outputs?

Yes, it supports LPCM 2.0, DTS and Dolby AC3 so multichannel bitstreams reach every connected device.

What is the maximum cable run I can use on each output without signal loss?

Each output runs up to 40 metres provided the fibre loss stays at .2 dB per metre or better.

Does the unit need external power and what connector does it use?

It requires a 5 V supply delivered through the included USB power cable.
