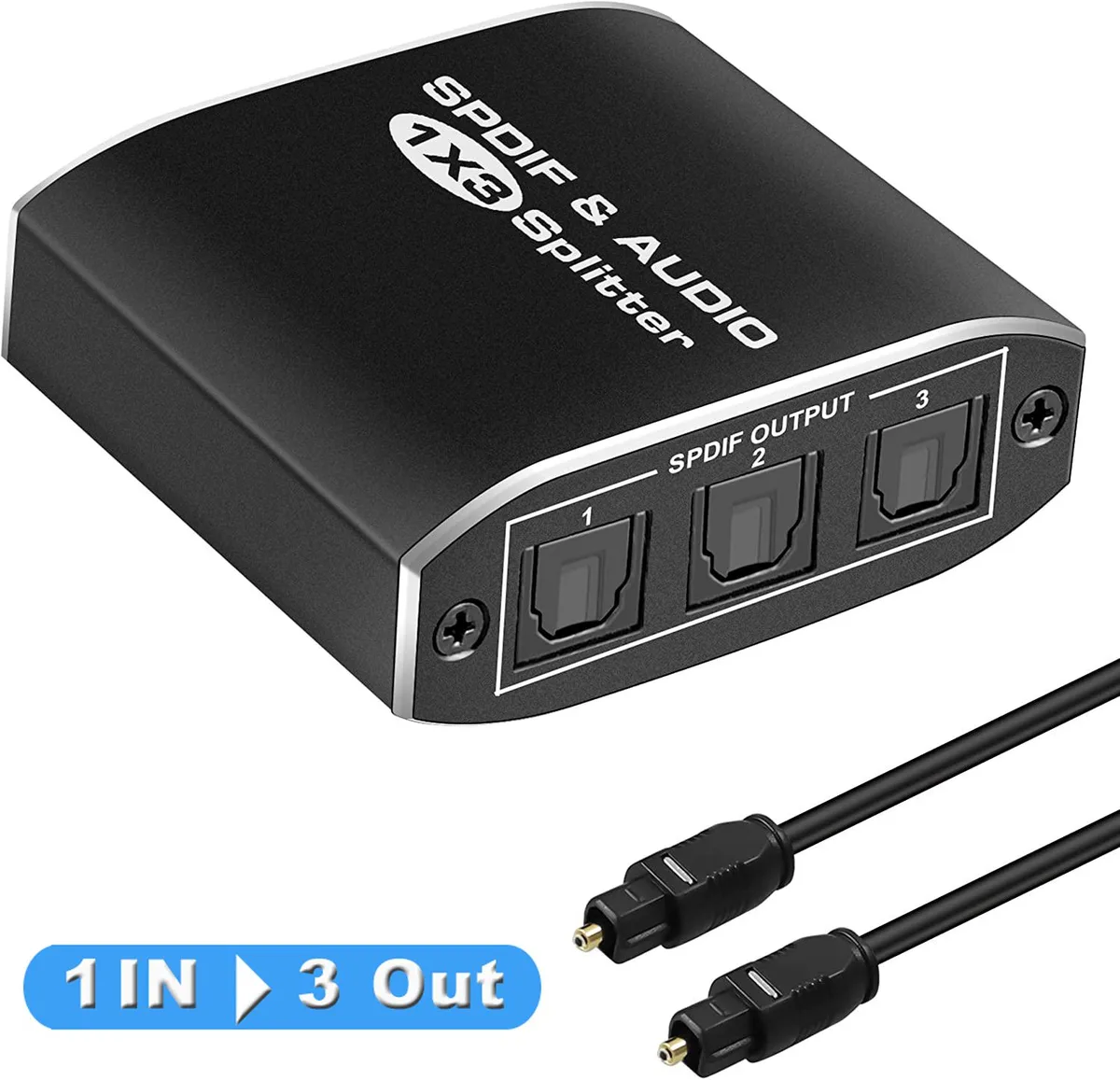

Black rectangular optical audio splitter with one Toslink input and three Toslink outputs plus USB power port

ESTONE

ESTONE OZG1 1×3 Toslink Optical Audio Splitter

SKU CH-7W2F-P1VJT

Splits one Toslink optical input into three outputs with support for LPCM 2.0, Dolby AC3 and DTS formats up to 40 metres

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical source to three devices via 1×3 Toslink ports
  • Supports LPCM 2.0, Dolby-AC3 and DTS audio formats
  • Signal reaches up to 40 m with loss below .2 dB/m
  • Peak wavelength 650 nm and 16 Mbps max baud rate
  • Powered by included USB cable with 100 mA max current

What this splitter does

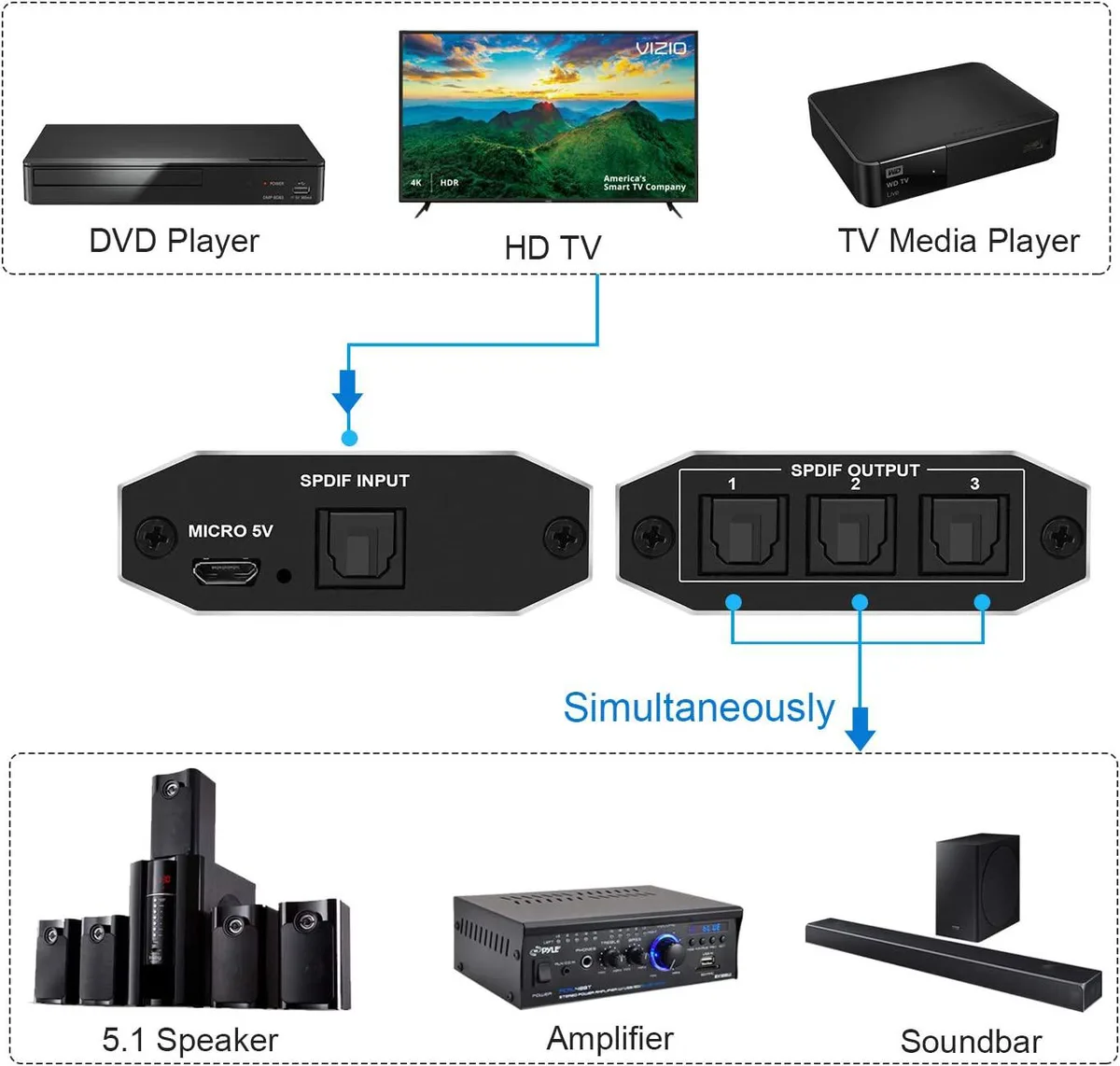

The ESTONE OZG1 takes a single Toslink optical audio input and duplicates it to three SPDIF outputs. It is built for anyone who needs to send the same digital audio stream to multiple devices such as a soundbar, an AV receiver and a headphone amplifier simultaneously.

Check your source and cables first

Verify that your source device has a Toslink output and that each destination device accepts a Toslink input. The splitter requires a USB 5 V power connection, so ensure a spare USB port or adapter is available. Optical cables must be rated for low loss if you plan runs approaching 40 m, as signal attenuation is specified at 0.2 dB per metre.

Steady operation over long runs

The unit retimes the incoming signal and includes ESD protection, keeping the digital stream stable during continuous playback. Maximum baud rate is 16 Mbps and the peak wavelength is 650 nm, supporting LPCM 2.0, DTS and Dolby AC3 without added latency. Under sustained load the working current stays at or below 100 mA, so the splitter remains cool and reliable for extended sessions.

Highlights

  • Splits one optical source to three devices via 1×3 Toslink ports
  • Supports LPCM 2.0, Dolby-AC3 and DTS audio formats
  • Signal reaches up to 40 m with loss below .2 dB/m
  • Peak wavelength 650 nm and 16 Mbps max baud rate
  • Powered by included USB cable with 100 mA max current

Specifications

BrandESTONE
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

What cables and accessories are included with the ESTONE OZG1 splitter?

The package contains the splitter, one optical cable, one USB power cable and a user manual.

Does this model come in any other port configurations or colour options?

The OZG1 is offered only as a 1-in 3-out black unit; no alternative port counts or colours are listed.

What audio formats and maximum cable length does the splitter support in practice?

It passes LPCM 2.0, DTS and Dolby-AC3 at up to 16 Mbps, and each output can run up to 40 m when using cable with loss below .2 dB/m.
