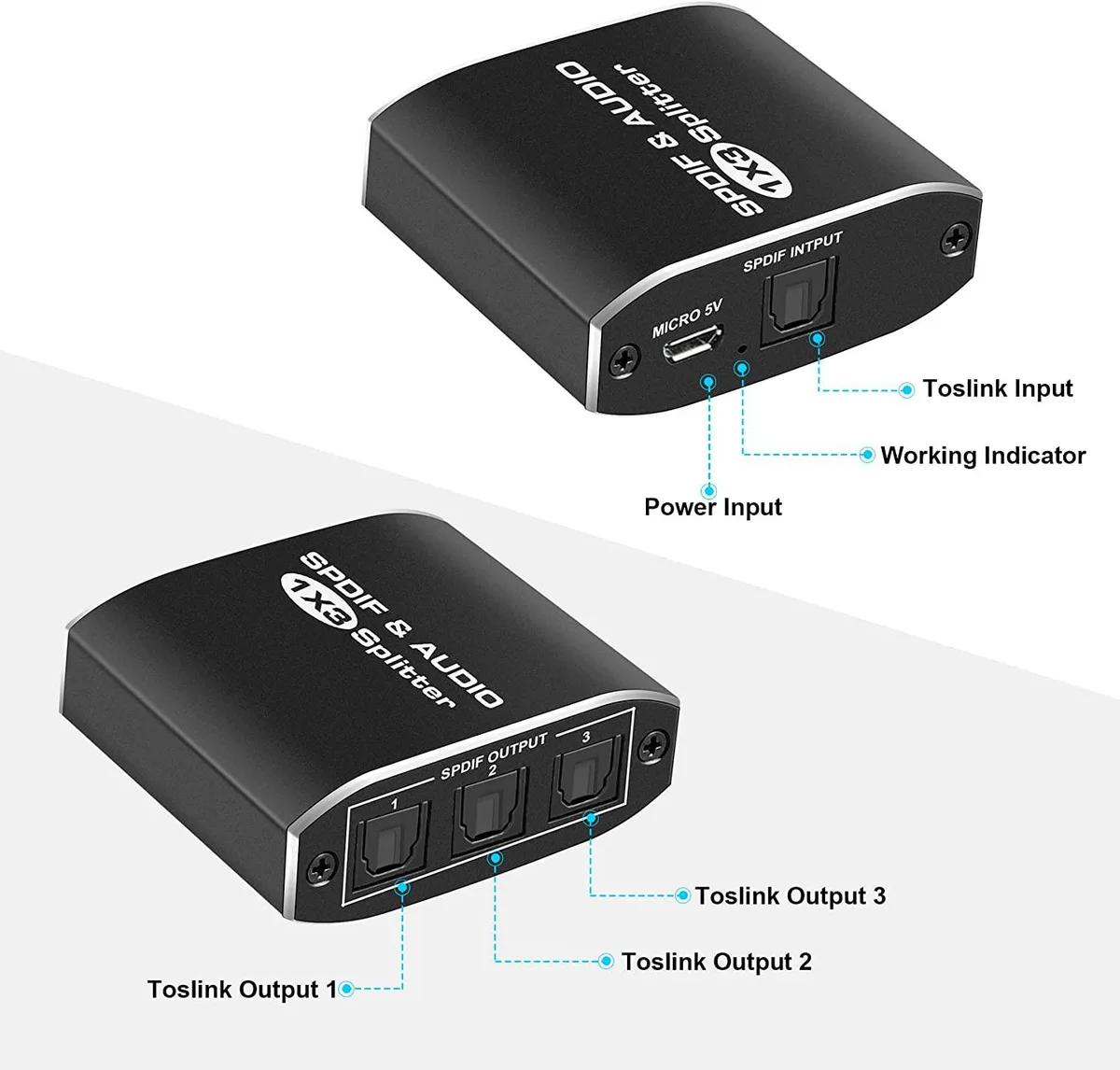

Small black rectangular box with one optical input and three optical outputs on the front face

ESTONE

ESTONE OZG1 1×3 SPDIF TOSLINK Optical Splitter

SKU CH-JMBZ-TMCSP

Splits one optical audio source into three TOSLINK outputs with LPCM 2.0, Dolby Digital and DTS 5.1 support up to 40 m

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical source to three devices
  • Supports LPCM 2.0, Dolby Digital and DTS 5.1
  • Transmits up to 40 metres with 0.2 dB/m loss
  • Plug-and-play with consoles, streamers and Blu-ray players
  • Includes optical cable, USB power cable and manual

1×3 SPDIF TOSLINK Optical Splitter

The ESTONE OZG1 splits a single optical audio input into three identical SPDIF TOSLINK outputs. It accepts LPCM2.0, Dolby Digital and DTS 5.1 formats at up to 16 Mbps. A USB power cable and one optical cable are included in the box.

Home-theatre owners needing one source to feed

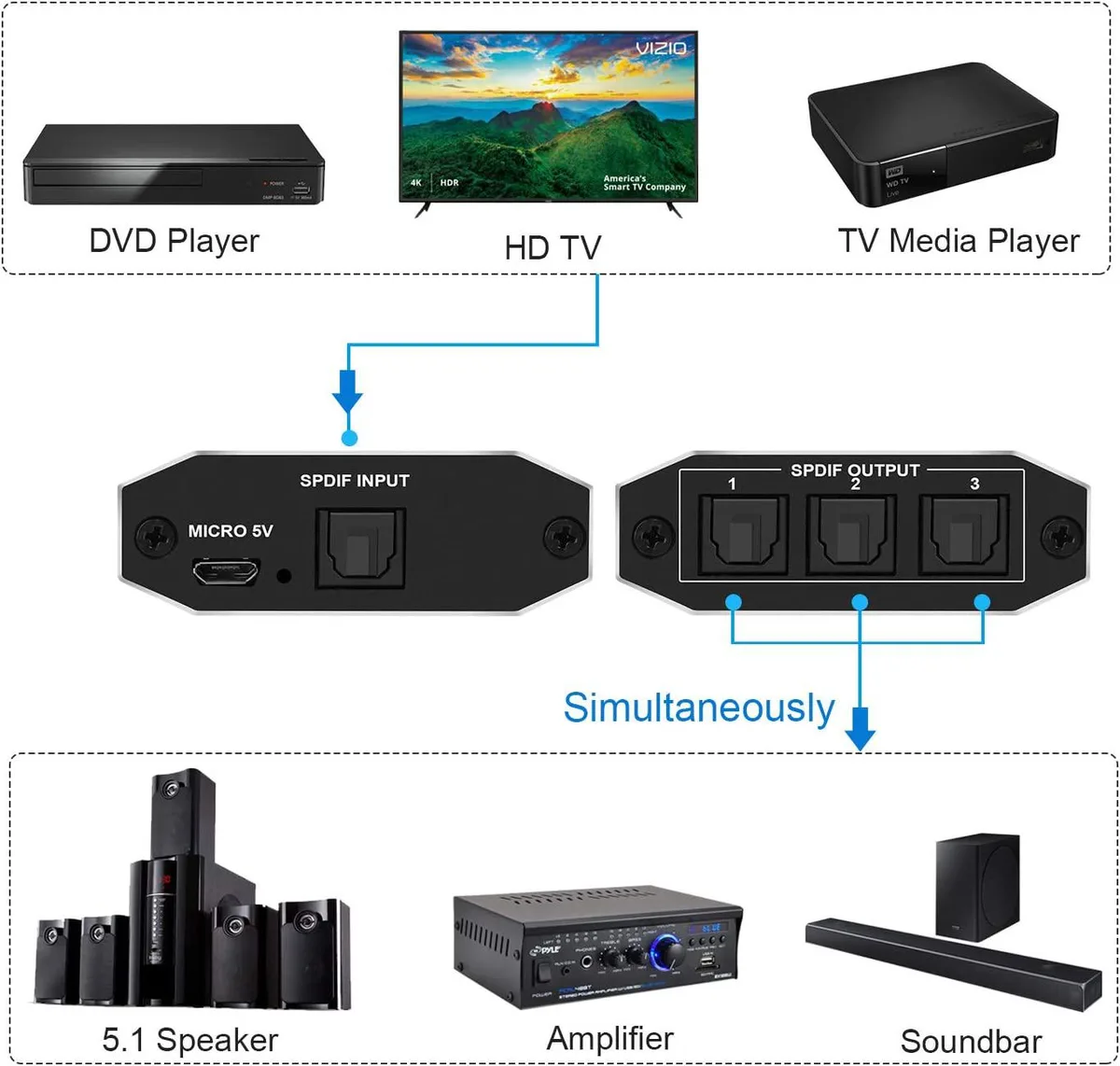

Installers who want to send audio from a TV, console or streamer to an amplifier, a soundbar and a second zone simultaneously will find this plug-and-play splitter convenient. Buyers who require more than three outputs or need format conversion beyond the listed codecs should look at a different device.

Sustained operation with signal retiming and ESD

The built-in retiming circuit keeps the digital stream stable over cable runs up to 40 m while maintaining loss below .2 dB per metre. Maximum working current is 100 mA from the 5 V USB supply, so the unit stays cool during continuous use. Peak wavelength is 650 nm for reliable fibre coupling.

Highlights

  • Splits one optical source to three devices
  • Supports LPCM 2.0, Dolby Digital and DTS 5.1
  • Transmits up to 40 metres with 0.2 dB/m loss
  • Plug-and-play with consoles, streamers and Blu-ray players
  • Includes optical cable, USB power cable and manual

Specifications

BrandESTONE
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

What source device with a TOSLINK output do I need to feed the splitter's single input?

Any device with a SPDIF TOSLINK output — such as a TV, Blu-ray player, or game console — connects to the single input port.

Will my older amplifier that only accepts stereo PCM work with the three TOSLINK outputs?

Yes, the splitter passes LPCM 2.0 unchanged to each output, so legacy stereo gear receives the same signal.

How can I verify the splitter is powered and passing audio after I connect everything?

The unit draws up to 100 mA from the included USB power cable; when powered, each output delivers a 650 nm optical signal at up to 16 Mbps.
