Small black square DisplayPort splitter with one input and two output ports

ESTONE

ESTONE OZFD DisplayPort Splitter 1 in 2 Out 4K 144Hz

SKU CH-PJQR-DE0DF

Splits one DisplayPort source into two 4K displays at 144 Hz with audio

  • TypeDisplayPort Splitters
  • Changer TypeDisplay Extenders
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications* Power Supply: 5V/2A *Video format: 3840x2160@144Hz *Using
  • Splits one DisplayPort source to two displays simultaneously
  • 4K 144Hz resolution on a single monitor via DisplayPort 1.4
  • MST extend mode at 4K 120Hz for dual monitors
  • Mirror mode duplicates content across both screens at 4K 144Hz
  • Includes 5V/2A power adapter and USB-C cable for stable operation

Splitter Type and Target User

The ESTONE OZFD is a DisplayPort 1.4 splitter that takes one DP input and sends it to two DP outputs. It is built for users who need to mirror or extend a single graphics-card signal across two monitors with audio carried through the same link.

MST Versus Splitter Mode

In MST extend mode the adapter drives dual displays up to 4K at 120Hz. In splitter mirror mode it delivers a single 4K 144Hz image to both screens. The jump is worth it when your source and both panels support DisplayPort 1.4 and DSC for the higher refresh rate.

Bandwidth and Resolution Headroom

The 32.4Gbps bandwidth handles 3840x2160 at 144Hz on one screen or 120Hz on two extended screens. It runs out when either monitor lacks DSC support or the source is limited to an older DP version, dropping the maximum achievable refresh rate.

Highlights

  • Splits one DisplayPort source to two displays simultaneously
  • 4K 144Hz resolution on a single monitor via DisplayPort 1.4
  • MST extend mode at 4K 120Hz for dual monitors
  • Mirror mode duplicates content across both screens at 4K 144Hz
  • Includes 5V/2A power adapter and USB-C cable for stable operation

Specifications

BrandESTONE
SeriesOZFD
ModelOZFD
Part NumberOZFD
TypeDisplayPort Splitters
Changer TypeDisplay Extenders
Ports2
AudioYes
ColorBlack
Specifications* Power Supply: 5V/2A
*Video format: 3840x2160@144Hz
*Using cable instance: 10 meter DisplayPort cable
* Length x Width x Height: 74 *74 *14 (mm)
* Weight: 35g

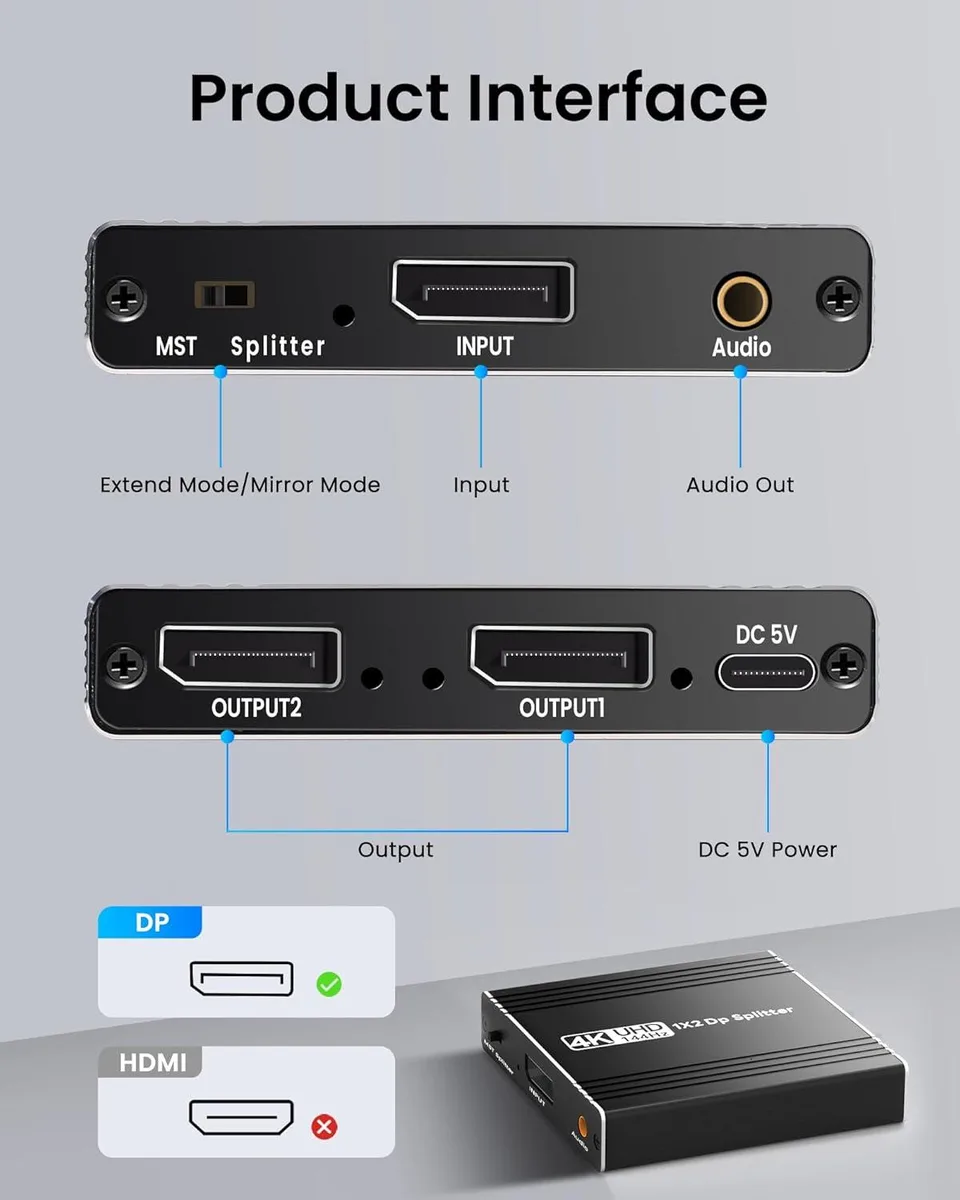

Input Connector1x DisplayPort female
Output Connector2x DisplayPort female
Maximum Resolutions3840 x 2160
Bandwidth32.4Gbps
Features1. 1 DP input and 2 DP output simultaneously;
2. DisplayPort 1.4 specification standard.
3. The highest video resolution is 3840x2160@144Hz.
4. Supports up to 3840x2160@120Hz for MST mode.
5. Transfer rates up to 32.4Gbps.
6. Can drive 10 meter DisplayPort cable.
Dimensions5.31 x 3.11 x 0.87 inches
Weight2.12 Ounces
Package Quantity1
Package Contents1* DisplayPort Splitter, 1x Power Adapter, 1* USB to Type-C Power cable (5V/2A), 1*User Manual.

Questions about this item

What power connection does the 5 V 2 A adapter use?

The splitter includes a USB-to-Type-C cable that delivers the required 5 V 2 A supply to the unit.

Which step do users often miss when setting up the 1 in 2 out DisplayPort 1.4 splitter?

Connecting the supplied USB-to-Type-C power cable; without it the 4K 144 Hz signal may not be stable.

When will the active DisplayPort 1.4 splitter need replacement?

Replace it if the 32.4 Gbps link fails, video drops at 3840×2160 144 Hz, or the unit no longer powers on.
