Small black rectangular HDMI splitter with multiple ports

ESTONE

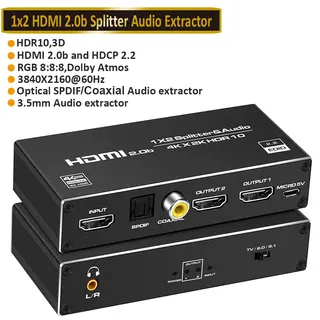

ESTONE OZF6A HDMI Splitter 1x2 4K60 Audio Extractor

SKU CH-XFYJ-8V316

Splits one HDMI source to two displays at 4K 60 Hz while extracting audio through 3.5 mm, coaxial and optical outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two displays simultaneously
  • 4K 60 Hz video with 18 Gbps bandwidth
  • Extracts audio to 3.5 mm, coaxial and optical outputs
  • Three audio modes: TV, 2.0 CH and 5.1 CH
  • Supports 1080p 120 Hz and deep colour up to 36 bit

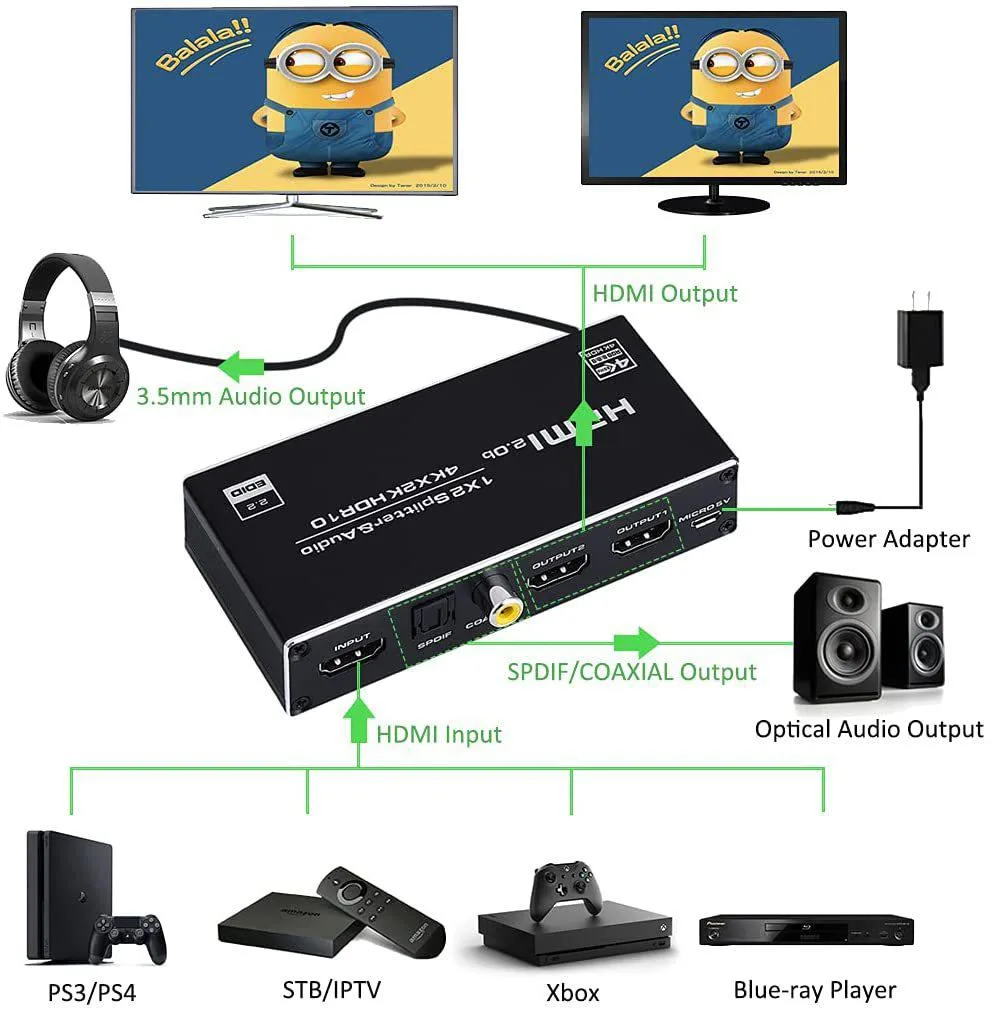

One input to two displays

This HDMI splitter takes a single source and mirrors it across two screens at the same time. It accepts resolutions up to 3840 x 2160 at 60 Hz and passes 1080p at 120 Hz for smoother motion. The unit also extracts the audio stream to separate 3.5 mm, coaxial and optical SPDIF outputs. Builders who need independent content on each display should choose a matrix switch instead.

Signal integrity over distance

The 18 Gbps bandwidth handles 4K 60 Hz 4:4:4 colour without compression when cables are kept within the rated reach. At 1080p the link remains stable up to 50 ft, while 4K signals hold to 26 ft using the specified AWG26 cable. Longer runs or higher refresh rates will introduce drop-outs that this device cannot correct.

HDMI 2.0b and HDCP 2.2 limits

HDCP 2.2 compliance lets protected 4K streams pass, but the splitter cannot down-convert a newer HDCP version for an older display. HDR10 metadata is forwarded unchanged, yet Dolby Vision or dynamic HDR formats are not supported. The three audio-mode settings cover TV stereo, 2.0 CH and 5.1 CH PCM; bit-stream formats such as Dolby Digital Plus are not decoded.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • 4K 60 Hz video with 18 Gbps bandwidth
  • Extracts audio to 3.5 mm, coaxial and optical outputs
  • Three audio modes: TV, 2.0 CH and 5.1 CH
  • Supports 1080p 120 Hz and deep colour up to 36 bit

Specifications

BrandESTONE
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

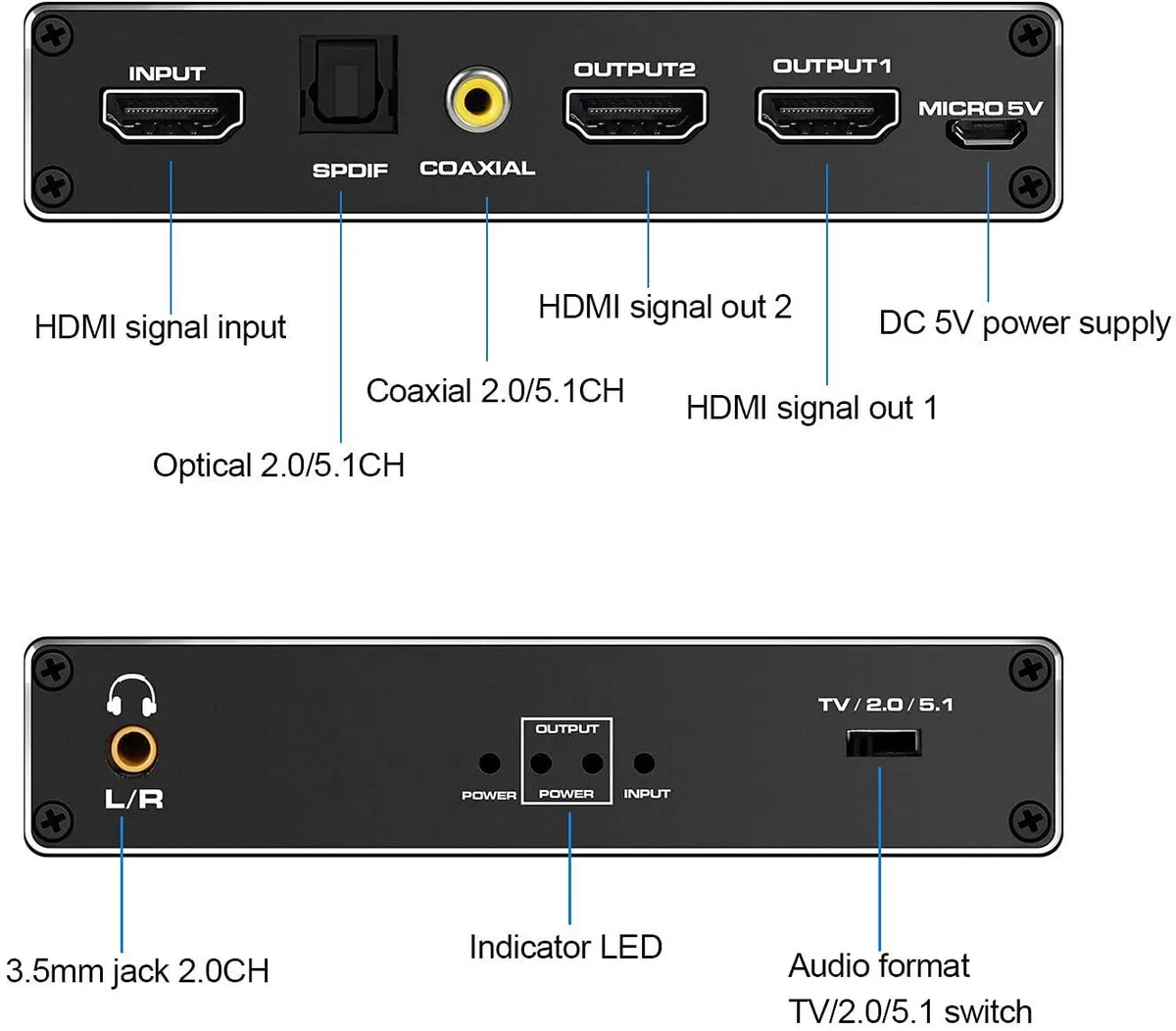

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

Does the ESTONE OZF6A generate noticeable heat or fan noise when powered continuously?

The unit has no fan and draws only 5 V DC from the supplied USB power adapter, so it runs silently with minimal warmth during all-day use.

Which cables and audio gear must I already have to use the splitter and its extractor ports?

You need one HDMI source cable, two HDMI display cables, and either a 3.5 mm stereo cable, a coaxial digital cable or an optical SPDIF cable for the extracted audio.

Will the OZF6A pass 1080p at 120 Hz from an older console to both screens without downscaling?

Yes, the splitter supports 1080p at 120 Hz on both HDMI outputs while also extracting audio to the 3.5 mm, coaxial or SPDIF ports.
