Black HDMI splitter box with one input and two HDMI outputs plus audio ports

ESTONE

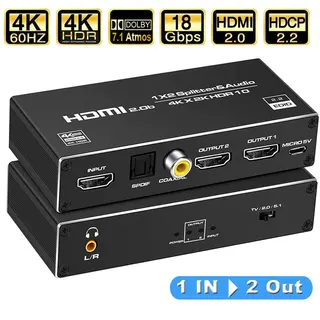

ESTONE OZF6A 1x2 HDMI Splitter Audio Extractor 4K60 HDR10 18Gbps

SKU CH-7CFJ-T3HTN

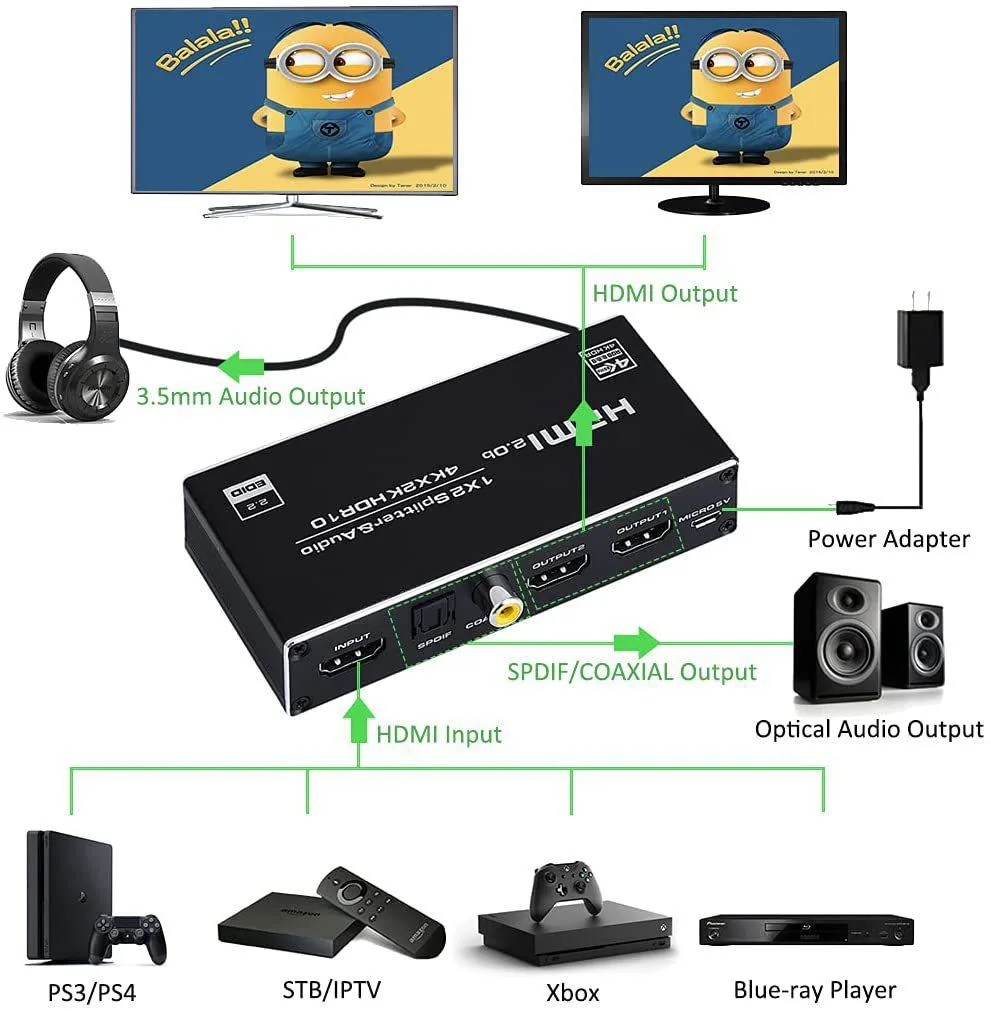

Splits one HDMI source to two displays at 4K 60 Hz while extracting audio through 3.5 mm, coaxial and optical SPDIF outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two displays simultaneously
  • Extracts audio to 3.5mm, coaxial and optical SPDIF outputs
  • Supports 4K resolution at 60Hz with HDR10
  • Handles 18Gbps bandwidth for uncompressed 4K signals
  • Offers TV, 2.0CH and 5.1CH audio mode selection

What this splitter does

The ESTONE OZF6A takes one HDMI source and sends identical 4K60 HDR10 video to two displays while extracting audio through 3.5 mm, coaxial and optical SPDIF outputs. It handles 18 Gbps bandwidth with HDMI 2.0b and HDCP 2.2 compliance for protected content.

Check your cables and sources first

Verify that your source device and both displays support the resolutions you need up to 3840 x 2160 at 60 Hz. With AWG26 standard cable the unit reaches 15 m at 1080p and 8 m at 4K, so measure your runs before ordering. The box includes a USB power adapter; ensure a 5 V USB port is available nearby.

Steady output over long sessions

Signal retiming keeps the picture stable during extended use without the dropouts that can appear in short-burst tests. The splitter maintains RGB 8:8:8 and 4:4:4 colour at full bandwidth while passing DTS-HD, Dolby TrueHD and LPCM 7.1 audio continuously. Three audio-mode presets let you match TV, stereo or 5.1-channel systems without reconfiguration.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • Extracts audio to 3.5mm, coaxial and optical SPDIF outputs
  • Supports 4K resolution at 60Hz with HDR10
  • Handles 18Gbps bandwidth for uncompressed 4K signals
  • Offers TV, 2.0CH and 5.1CH audio mode selection

Specifications

BrandESTONE
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

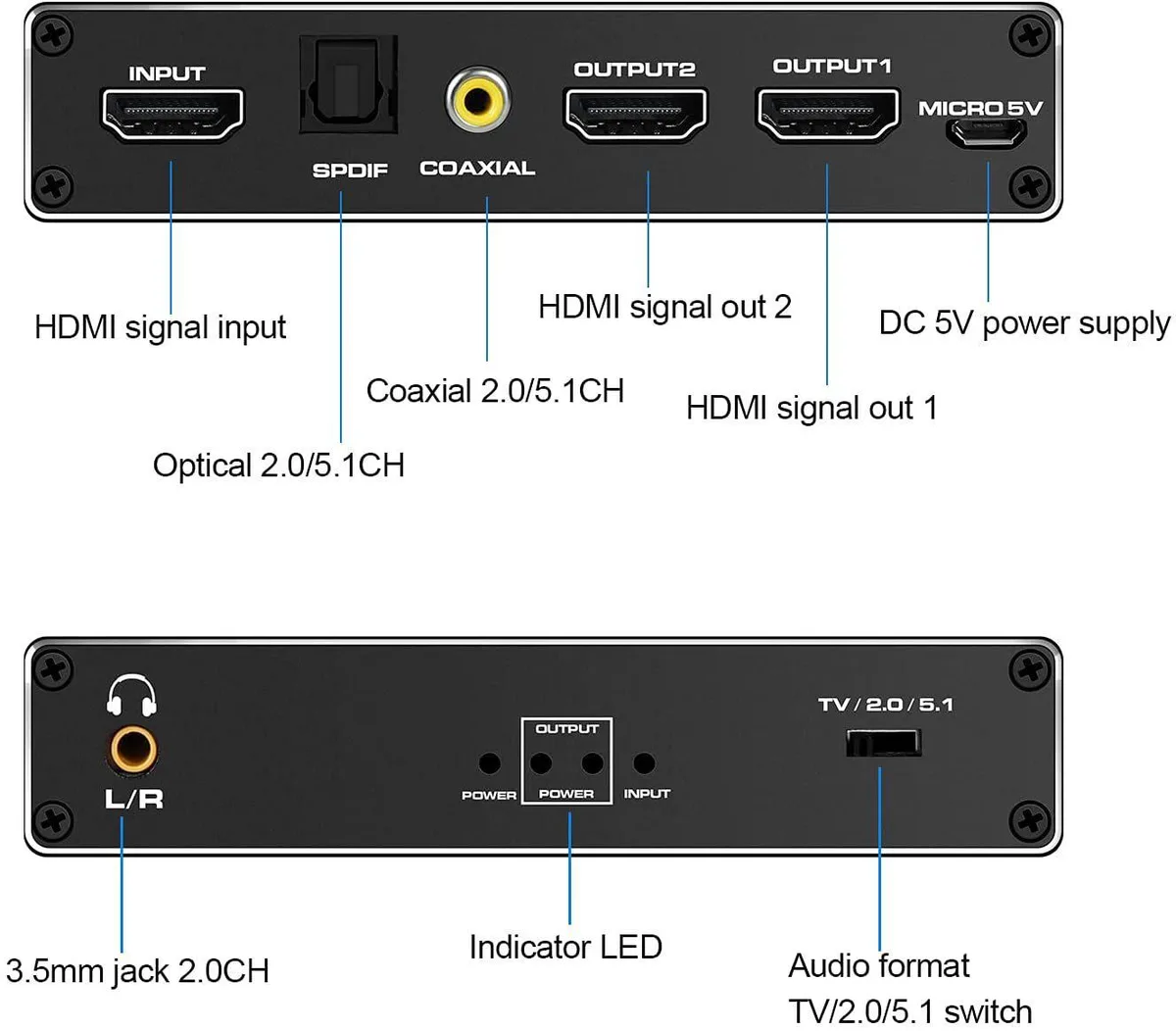

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

Does the splitter include a power supply or do I need to buy one separately?

The package contains the splitter, a USB power adapter and a user manual so no separate power supply is required.

Which audio output should I choose between the 3.5 mm jack, coaxial and optical SPDIF ports?

All three ports are active simultaneously; pick the one that matches your sound system — 3.5 mm for analogue speakers, coaxial or optical for digital receivers.

What does the 18 Gbps bandwidth mean for my 4K 60 Hz HDR source?

18 Gbps carries full 4K 60 Hz 4:4:4 HDR10 video without compression, so the picture reaches both displays at the source quality.
