Black rectangular HDMI splitter with one input and two outputs plus audio ports

ESTONE

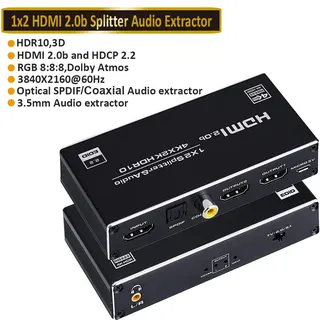

ESTONE OZF6A 1x2 HDMI Splitter Audio Extractor 4K60 18Gbps

SKU CH-8127-YA890

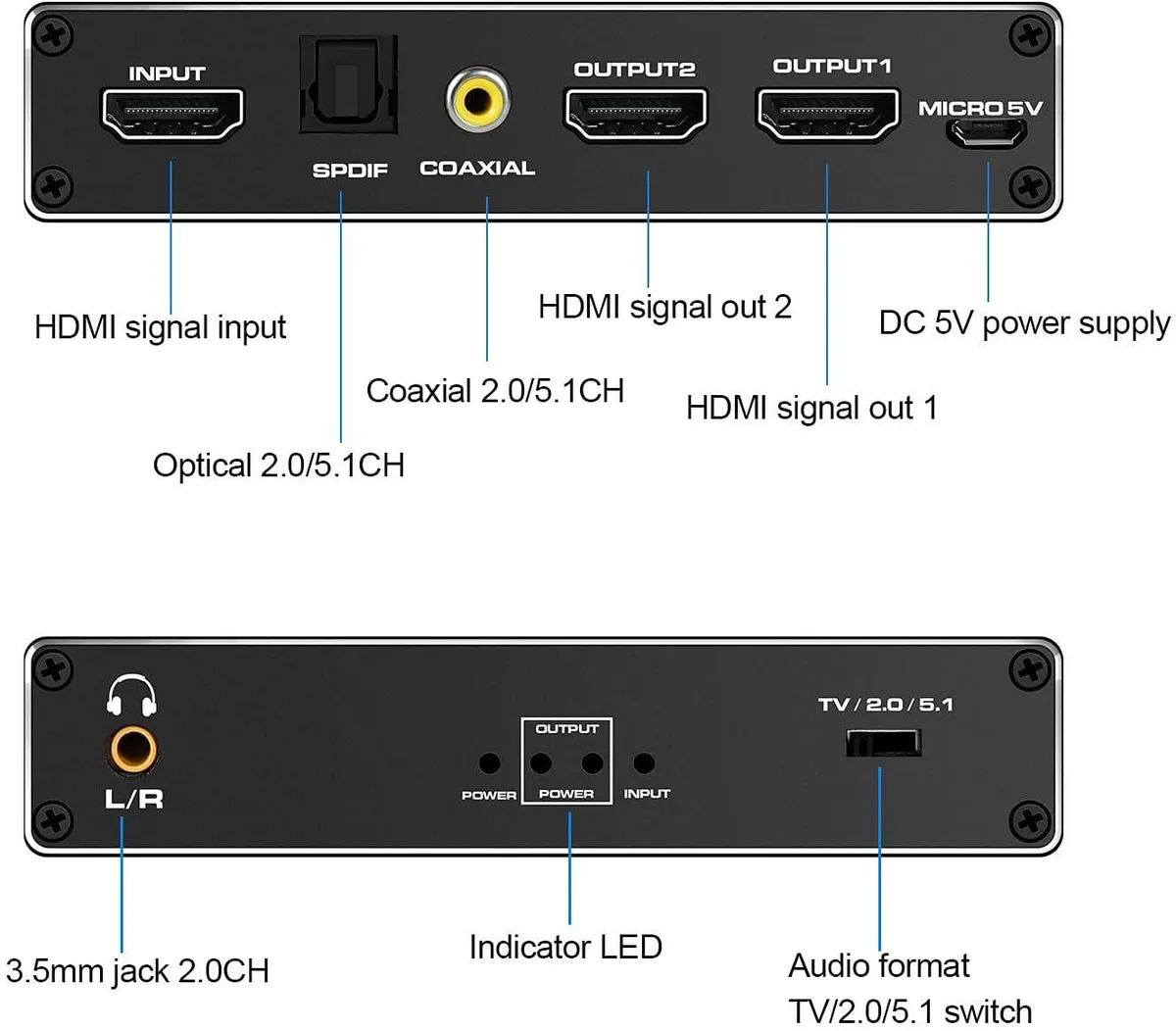

Splits one HDMI source to two displays at 4K 60 Hz with 18 Gbps bandwidth and extracts audio through 3.5 mm, coaxial and SPDIF outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two displays simultaneously
  • Extracts audio via 3.5mm, coaxial and SPDIF outputs
  • Supports 4K at 60 Hz with 18 Gbps bandwidth
  • Handles HDR10 and HDCP 2.2 for protected 4K content
  • Offers TV, 2.0 CH and 5.1 CH audio mode options

One-to-two HDMI distribution

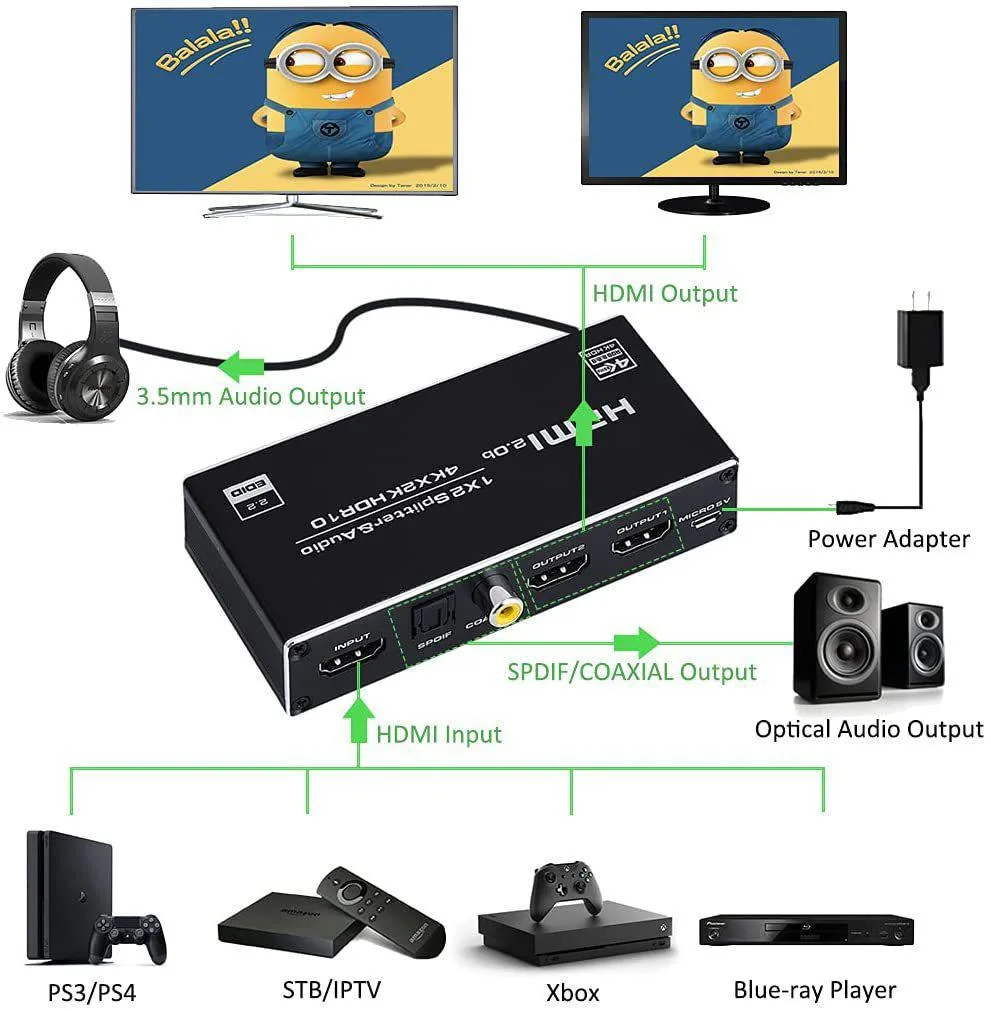

The ESTONE OZF6A takes a single HDMI source and sends identical video and audio to two displays at the same time. It is suited for installers or home users who need the same picture on two screens without running a second source device.

4K60 bandwidth and audio extraction

The splitter handles 3840 x 2160 at 60 Hz with 18 Gbps throughput and deep-colour support up to 36 bit. Audio can be pulled out through SPDIF, coaxial or 3.5 mm analogue outputs in TV, 2.0 CH or 5.1 CH modes. At 1080p the signal reaches 50 ft on standard cable; at 4K the reliable distance drops to 26 ft.

HDMI 2.0b limits and power requirement

HDCP 2.2 and HDR10 pass through, but the 18 Gbps ceiling means 4K at higher frame rates or 8K content cannot be carried. The unit requires the included DC 5 V USB power adapter to operate and does not function as a switch for multiple sources.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • Extracts audio via 3.5mm, coaxial and SPDIF outputs
  • Supports 4K at 60 Hz with 18 Gbps bandwidth
  • Handles HDR10 and HDCP 2.2 for protected 4K content
  • Offers TV, 2.0 CH and 5.1 CH audio mode options

Specifications

BrandESTONE
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g
Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

Will the ESTONE OZF6A pass 4K at 60 Hz to my older 1080p projector while also feeding a 4K TV?

Yes, the splitter duplicates the source to both HDMI outputs simultaneously; each display receives the same signal up to 3840 x 2160 at 60 Hz, so a 1080p projector will simply show its native resolution.

How do I verify the audio extractor is sending sound to my soundbar via the optical port?

Use the TV / 2.0CH / 5.1CH mode switch to select 5.1CH, then play Dolby TrueHD or DTS-HD content; the SPDIF port will output the bitstream and the soundbar should indicate the format.

Does the box include HDMI cables or only the splitter, manual and USB power adapter?

The package contains the 1x2 HDMI splitter audio extractor, a user manual and a USB power adapter; HDMI cables are not included and must be purchased separately.
