Black rectangular HDMI splitter with multiple ports

ESTONE

ESTONE OZF6A 1x2 HDMI Splitter Audio Extractor 4K@60Hz 18Gbps

SKU CH-1REM-SXQC2

One HDMI source feeds two displays at up to 4K 60 Hz while extracting audio through 3.5 mm, coaxial and SPDIF outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Sends one HDMI source to two displays simultaneously
  • Extracts audio to 3.5mm, coaxial and SPDIF outputs
  • Handles 4K at 60Hz with 18Gbps bandwidth
  • Supports 24-bit, 30-bit and 36-bit deep colour
  • Runs on included DC 5V USB power adapter

1x2 HDMI Splitter with Audio Extraction

The ESTONE OZF6A takes a single HDMI source and duplicates it to two displays simultaneously. It supports video resolutions up to 3840 x 2160 at 60 Hz and passes HDR10 metadata. The unit also extracts the audio stream to three separate outputs: 3.5 mm stereo, coaxial and optical SPDIF.

Connections and Daily Use

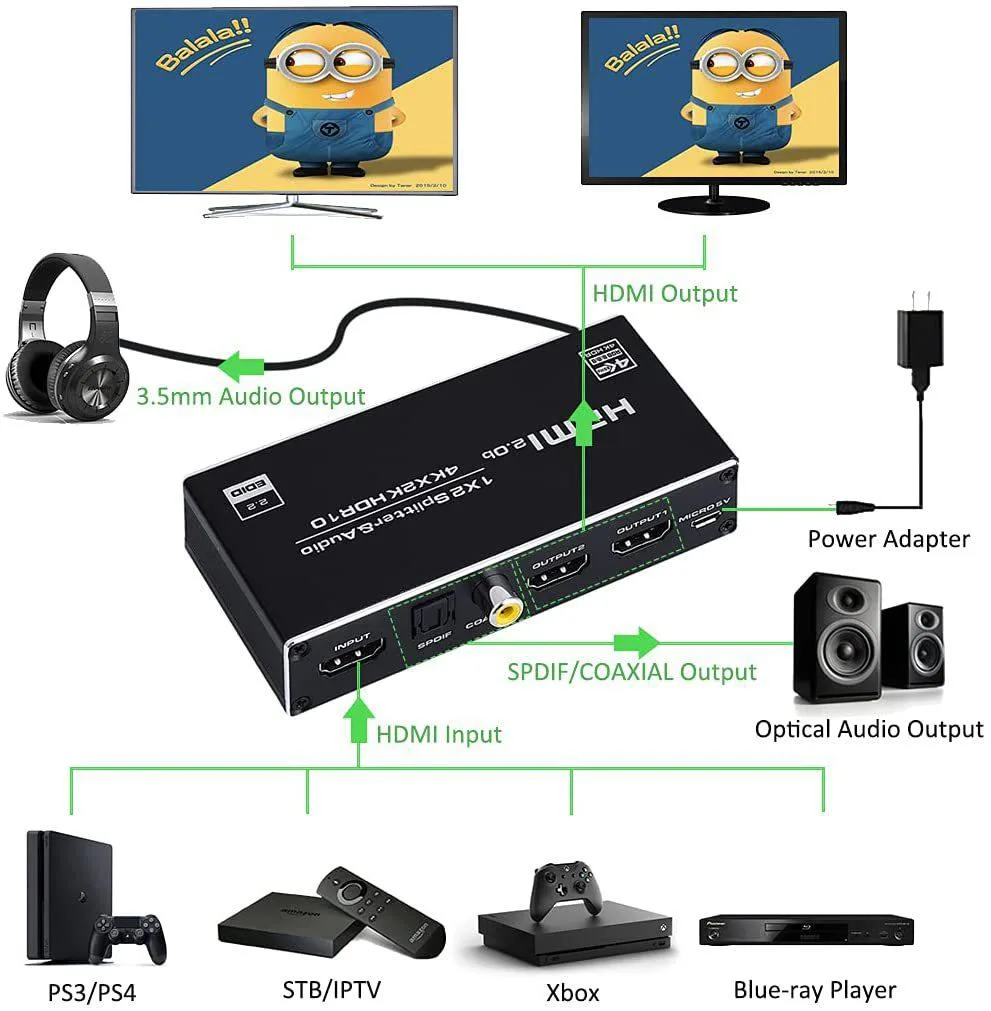

A single HDMI input feeds two HDMI outputs plus the three audio ports, letting you drive two screens while sending sound to a soundbar, AV receiver or headphones. Three audio-mode options (TV, 2.0 CH, 5.1 CH) let you match the downstream device without rewiring. The box measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, so it sits unobtrusively behind a display or in a rack. A USB power adapter is included for the required DC 5 V supply.

Bandwidth and Distance Limits

The splitter operates at 18 Gbps, matching the HDMI 2.0b specification and HDCP 2.2 compliance. With standard AWG26 cabling, 1080p signals can travel up to 50 ft on both input and output, while 4K signals are limited to 26 ft. The device duplicates only; it cannot switch between multiple sources or downscale one output independently of the other.

Highlights

  • Sends one HDMI source to two displays simultaneously
  • Extracts audio to 3.5mm, coaxial and SPDIF outputs
  • Handles 4K at 60Hz with 18Gbps bandwidth
  • Supports 24-bit, 30-bit and 36-bit deep colour
  • Runs on included DC 5V USB power adapter

Specifications

BrandESTONE
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

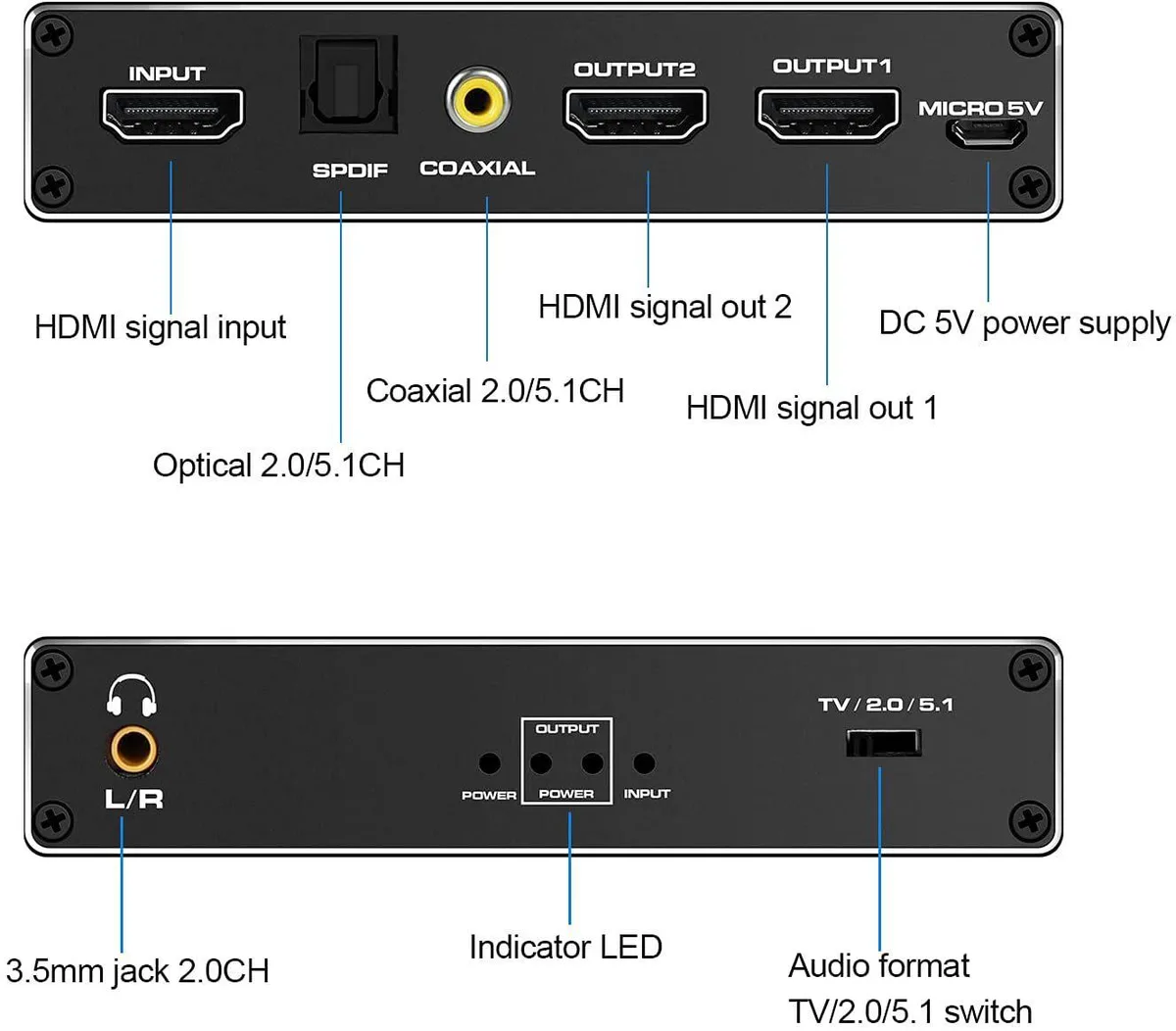

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

What does the 18 Gbps HDMI 2.0 bandwidth cap mean for 4K video?

It supports 4K at 60 Hz with RGB 4:4:4 or 8:8:8 colour, HDR10 and HDCP 2.2, but cannot carry 4K at 120 Hz or 8K signals.

What are the exact dimensions and weight for mounting this splitter?

The unit measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, so it fits on a shelf or behind a display with minimal space.

How do I power the splitter and select the correct audio mode?

Connect the included USB power adapter to the DC 5 V port, then use the TV/2.0CH/5.1CH switch to match your sound system — choosing 5.1CH enables DTS-HD, Dolby TrueHD or LPCM 7.1 pass-through.
