Small black HDMI splitter box with two HDMI outputs and a 3.5mm audio jack

ESTONE

ESTONE OZF6-1 HDMI Splitter 1x2 Audio Extractor 4K 60Hz

SKU CH-4BYN-FN9B0

Splits one HDMI source to two displays at 4K 60Hz while extracting stereo audio via a 3.5 mm jack

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor Int
  • Sends one source to two screens at 4K 60 Hz
  • Extracts stereo audio through a 3.5 mm jack
  • HDMI 2.0b and HDCP 2.2 keep protected content flowing
  • Auto down-scaling lets a 4K and a 1080p display run at native resolutions
  • Compact 52.2 × 58.4 × 15 mm unit powered by USB-C

1×2 HDMI Splitter with Audio Extraction

The ESTONE OZF6-1 takes a single HDMI source and mirrors it to two displays at once. It also provides a 3.5 mm stereo output for separate audio routing. The unit is powered through a USB-C connection and includes the required cable. This suits users who need identical content on two screens with an analogue audio feed.

HDMI 2.0b bandwidth and cable limits

The splitter operates within the 18 Gbps ceiling of HDMI 2.0b and supports HDCP 2.2 for protected material. Source and display cables must not exceed eight metres when using AWG 26 HDMI 2.0b leads. Only mirror mode is available; the device cannot extend a desktop across the two outputs.

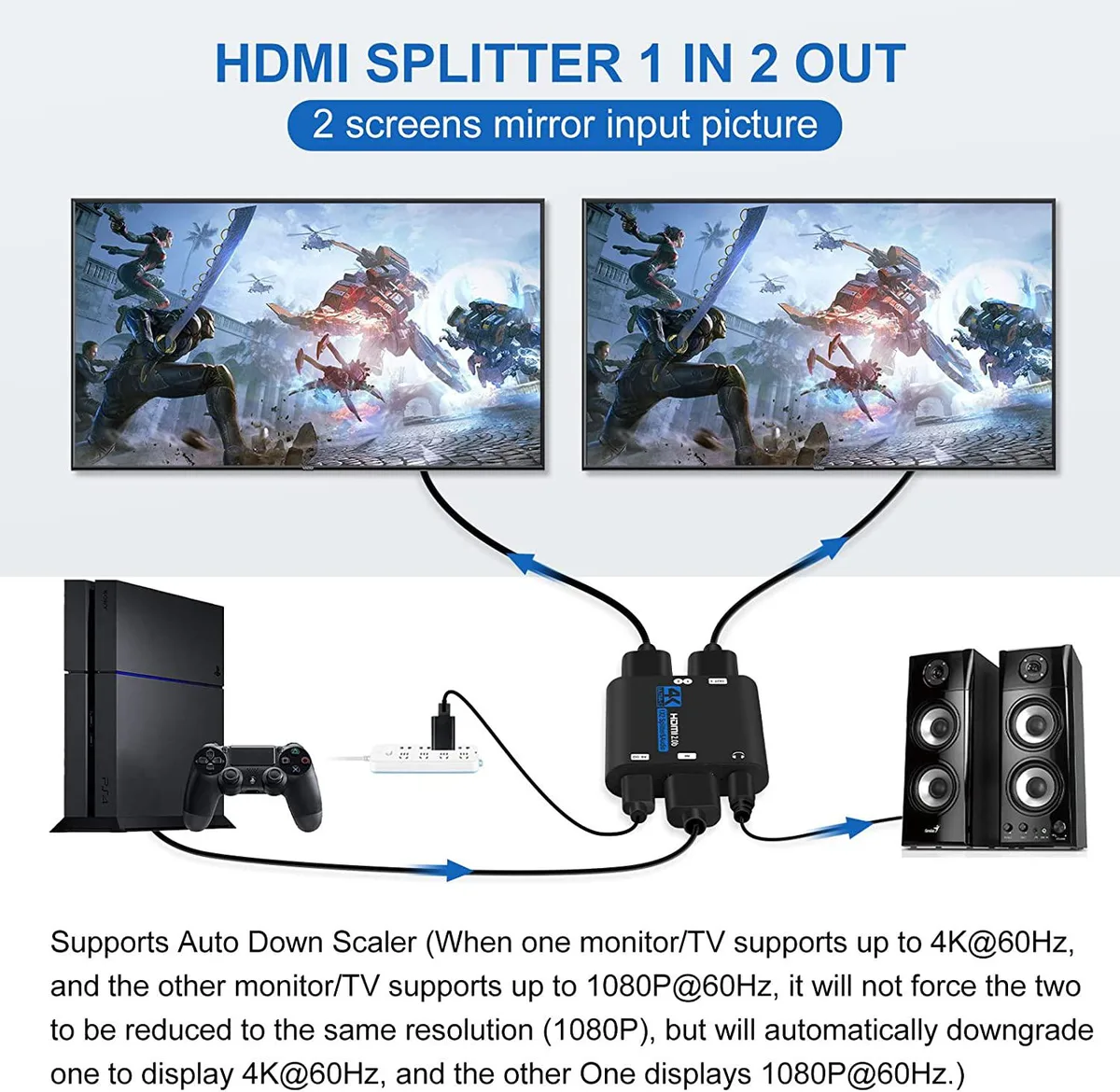

Auto down-scaling for mixed-resolution displays

When one display handles 4K at 60 Hz and the other tops out at 1080p, the splitter automatically sends each its native resolution instead of forcing both to the lower common denominator. This single behaviour decides whether the OZF6-1 fits a mixed-screen setup.

Highlights

  • Sends one source to two screens at 4K 60 Hz
  • Extracts stereo audio through a 3.5 mm jack
  • HDMI 2.0b and HDCP 2.2 keep protected content flowing
  • Auto down-scaling lets a 4K and a 1080p display run at native resolutions
  • Compact 52.2 × 58.4 × 15 mm unit powered by USB-C

Specifications

BrandESTONE
SeriesOZF6-1
ModelOZF6-1
Part NumberOZF6-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor
Interface Type: 1 HDMI in, 2 HDMI out, 1 Audio R/L out
Power Supply: DC 5V
Dimension(LxWxH): 52.2x58.4x15mm
Support HDMI2. 0b, HDCP2.2, Support HDR10, 18.5Gbps, 4KHDR
Support 4K x 2K@60Hz, RGB8:8:8, Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
HDMI Resolution: 4k/2k/3D/1080p/1080i/720p/480p
Support video color format: 24bit/30bit/36bit deep color
Support DVI/DP monitor
Digital audio format: DST-HD/Dolby-true-HD/LPCM7.1/DTS/Dolby-AC3/DSD(Not Support AlwaysDolby Digital plus)
I
Input Connector1 HDMI input
Output Connector2 HDMI + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2 with Audio Extrator: The converter allows distributes 1 HDMI source to 2 HDMI displays simultaneously, and adds extra one L+R audio out port.
High Resolution: Support 4K x 2K@60Hz (3860 x 2160p), backwards to 480p/ 720p/ 1080i/ 1080P and 3D. Support 24bit/30bit/36bit deep color.
Supported Audio: DTS-HD/ Dolby-true-HD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD.(Not Support Always Dolby Digital plus). Support blue-ray 24/50/60fs/hd-dvd/XVYCC.
Compatibility: HDCP support 2.2, compatible with HDMI 2.0b. Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. Ou
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 2 out with audio extractor, 1 x Charger, 1 x USB Cable, 1 x User Manual.

Questions about this item

Is there a version with more than two HDMI outputs?

This model provides exactly two HDMI outputs plus a 3.5 mm audio jack; no other port-count variants are listed.

What does the 4K 60 Hz rating mean when I connect two different displays?

The splitter mirrors the source to both screens and auto-downscales, so a 4K 60 Hz monitor and a 1080p 60 Hz monitor can each show their native resolution simultaneously.

Which HDMI standard limits the 18.5 Gbps bandwidth?

HDMI 2.0b caps the link at 18.5 Gbps, enabling 4K 60 Hz with HDR10 and HDCP 2.2.
