Small black HDMI splitter box with 3.5mm audio port

ESTONE

ESTONE OZF6-1 HDMI Splitter 1x2 3.5mm Audio 4K@60Hz

SKU CH-ZPPN-D4W1E

Splits one HDMI source to two displays at 4K 60 Hz with 3.5 mm audio extraction

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor Int
  • Splits one HDMI source to two displays simultaneously
  • Extracts stereo audio via 3.5 mm jack for external speakers

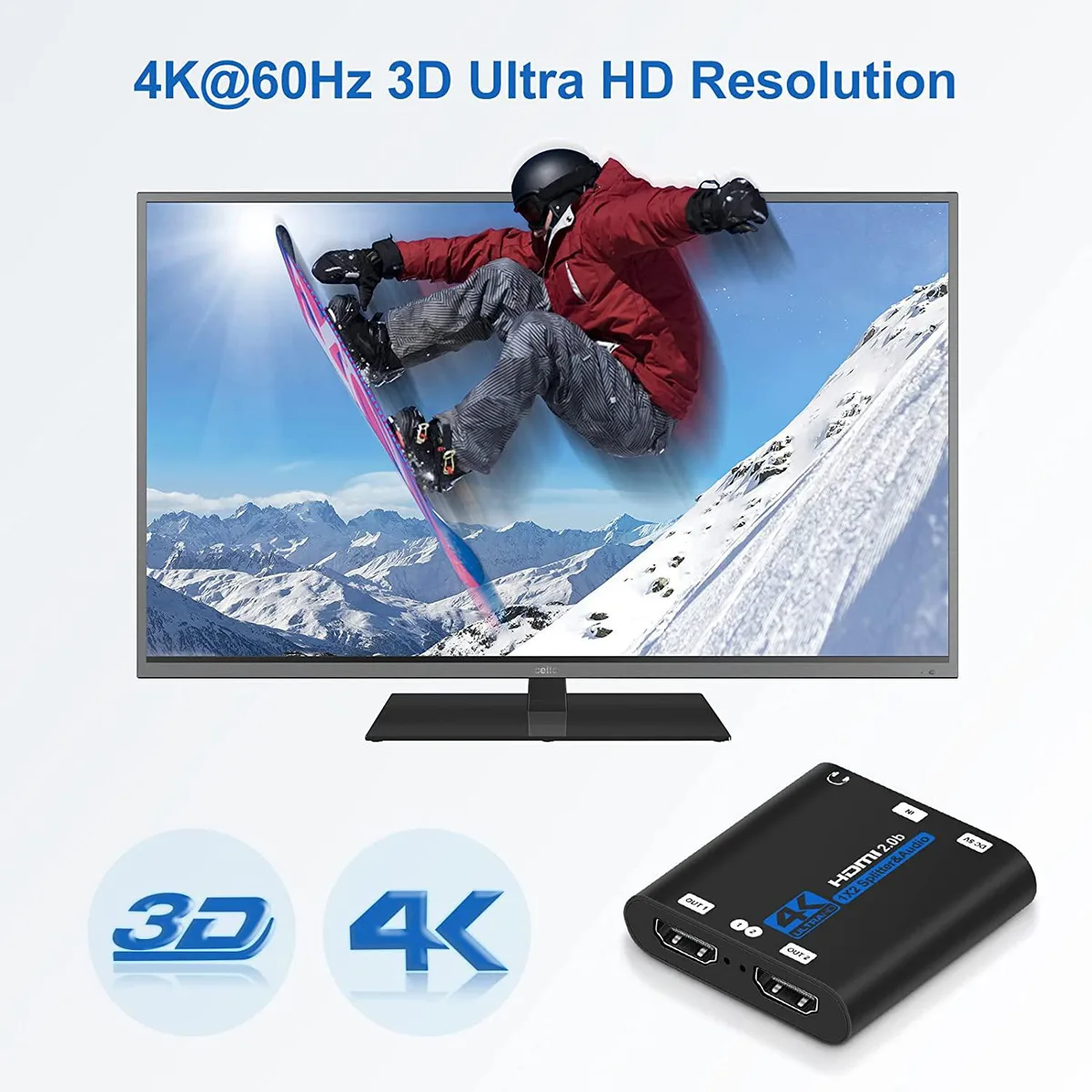

  • Handles 4K at 60 Hz with HDR10 support

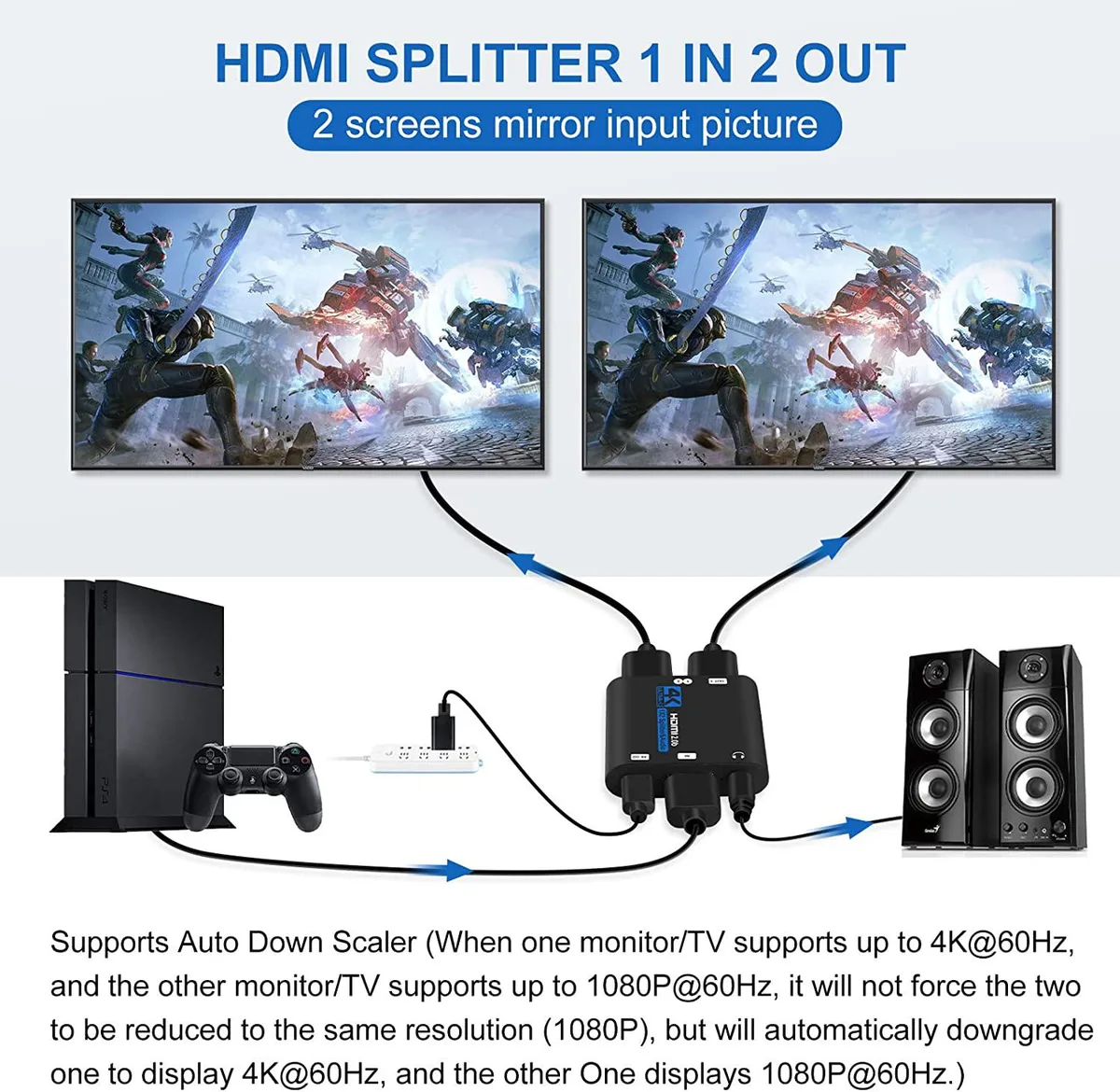

  • Auto-downscales when connected screens have different maximum resolutions
  • Compact 52.2 × 58.4 × 15 mm design powered by USB-C

ESTONE OZF6-1 HDMI Splitter 1x2

This powered HDMI 2.0b splitter distributes one source signal to two displays simultaneously with mirror mode only. It extracts stereo audio through a 3.5 mm jack for external speakers or headphones. The unit supports 4K at 60 Hz, HDR and HDCP 2.2 for protected content. A USB-C power cable is included while the power adapter is not.

Upgrading from passive splitters

Passive splitters often fail at 4K 60 Hz because they cannot maintain the 18 Gbps bandwidth required by HDMI 2.0b. This active unit adds signal amplification and an external 5 V supply to keep both outputs stable. The jump is worth it when you need reliable dual-screen mirroring with audio extraction at full 4K 60 Hz performance.

Practical limits of HDMI 2.0b

The 18 Gbps ceiling restricts 4K 60 Hz to 8-bit colour with standard chroma subsampling; higher bit depths or refresh rates are not possible. Input and output cables must stay under 8 metres using AWG 26 HDMI 2.0b rated wire to avoid signal loss. Only mirror mode is supported so extend or multi-stream configurations will not work.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • Extracts stereo audio via 3.5 mm jack for external speakers
  • Handles 4K at 60 Hz with HDR10 support
  • Auto-downscales when connected screens have different maximum resolutions
  • Compact 52.2 × 58.4 × 15 mm design powered by USB-C

Specifications

BrandESTONE
SeriesOZF6-1
ModelOZF6-1
Part NumberOZF6-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor
Interface Type: 1 HDMI in, 2 HDMI out, 1 Audio R/L out
Power Supply: DC 5V
Dimension(LxWxH): 52.2x58.4x15mm
Support HDMI2. 0b, HDCP2.2, Support HDR10, 18.5Gbps, 4KHDR
Support 4K x 2K@60Hz, RGB8:8:8, Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
HDMI Resolution: 4k/2k/3D/1080p/1080i/720p/480p
Support video color format: 24bit/30bit/36bit deep color
Support DVI/DP monitor
Digital audio format: DST-HD/Dolby-true-HD/LPCM7.1/DTS/Dolby-AC3/DSD(Not Support AlwaysDolby Digital plus)
I
Input Connector1 HDMI input
Output Connector2 HDMI + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2 with Audio Extrator: The converter allows distributes 1 HDMI source to 2 HDMI displays simultaneously, and adds extra one L+R audio out port.
High Resolution: Support 4K x 2K@60Hz (3860 x 2160p), backwards to 480p/ 720p/ 1080i/ 1080P and 3D. Support 24bit/30bit/36bit deep color.
Supported Audio: DTS-HD/ Dolby-true-HD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD.(Not Support Always Dolby Digital plus). Support blue-ray 24/50/60fs/hd-dvd/XVYCC.
Compatibility: HDCP support 2.2, compatible with HDMI 2.0b. Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. Ou
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 2 out with audio extractor, 1 x Charger, 1 x USB Cable, 1 x User Manual.

Questions about this item

How much space does the 52.2x58.4x15 mm splitter need behind my TV or monitor?

The unit measures 52.2 mm wide, 58.4 mm deep and 15 mm high, so allow at least that clearance plus room for the HDMI cables and the USB power lead.

Which cable do I plug in first to avoid a handshake failure?

Connect the USB power cable to the Type-C port and a 5 V source before attaching any HDMI cables; then link the source to the single HDMI input and the two displays to the HDMI outputs.

When should I replace the included USB power cable?

Swap the cable if the splitter loses signal, flickers or fails to power on, as a worn or damaged USB lead can no longer deliver the steady 5 V the device requires.
