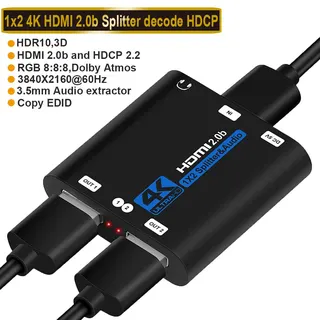

Small black HDMI splitter box with two HDMI outputs and a 3.5mm audio jack

ESTONE

ESTONE OZF6-1 HDMI 2.0b Splitter 1x2 Audio Extractor 4K60Hz

SKU CH-915Z-M5Y72

Splits one HDMI source to two displays at 4K60 with stereo audio extraction

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor Int
  • Split one source to two displays simultaneously via 1 HDMI input and 2 HDMI outputs
  • Extract stereo audio separately through 3.5 mm output for external speakers or headphones

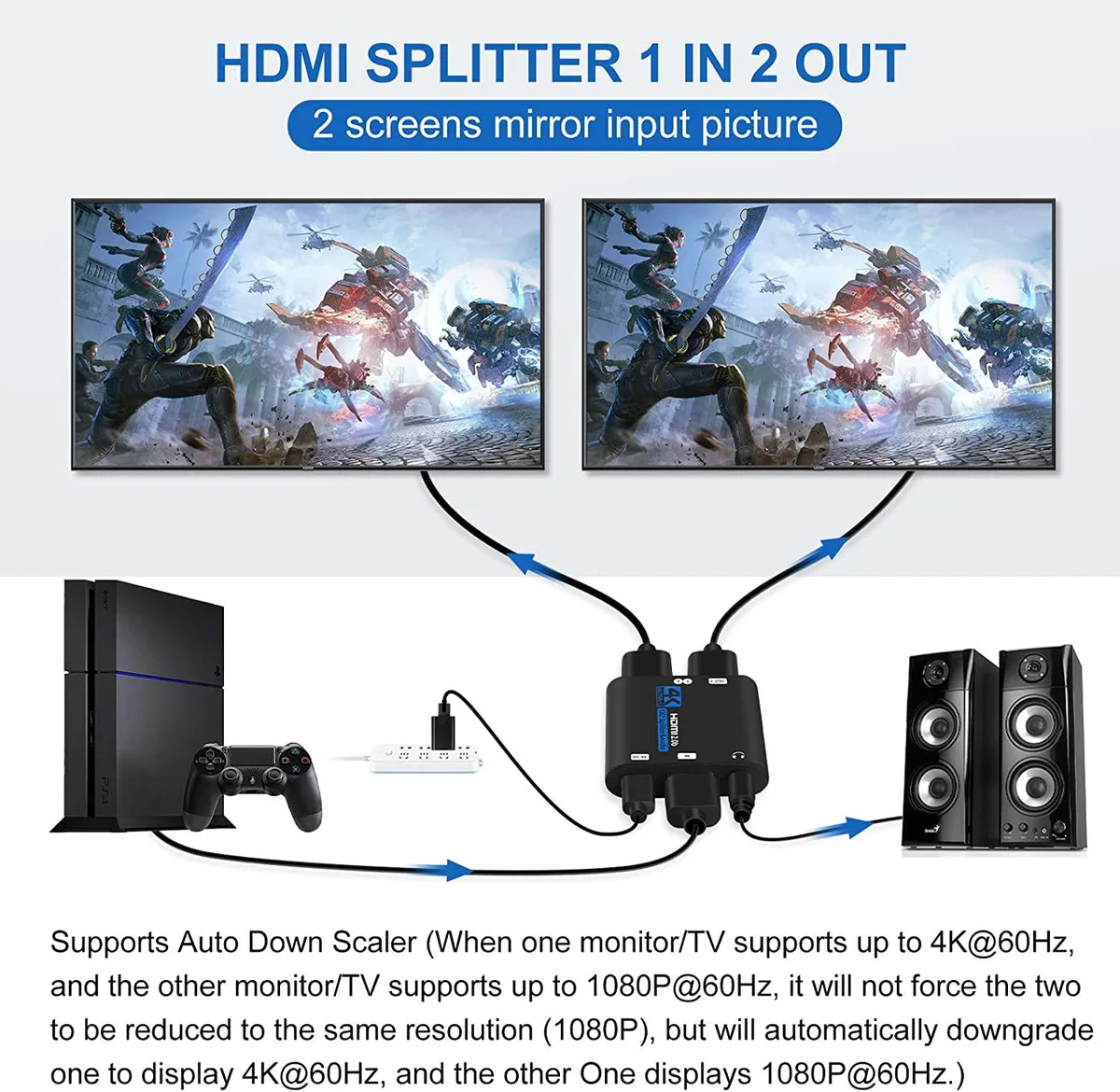

  • Auto down-scale lets one screen show 4K 60 Hz while the other shows 1080p 60 Hz
  • HDMI 2.0b and HDCP 2.2 support with HDR at 18 Gbps bandwidth
  • Compact 52.2 x 58.4 x 15 mm unit powered by DC 5 V USB-C

1x2 HDMI 2.0b Splitter with Audio Extraction

This new ESTONE OZF6-1 splitter takes one HDMI 2.0b source and mirrors it to two HDMI displays at up to 4K 60 Hz. It also provides a stereo analogue audio output for separate sound routing. The unit is powered via USB Type‑C and includes the required cable.

Suits mirror setups only; no extend mode

Ideal for users who need identical content on two screens such as a TV and a projector, or dual signage displays. The built‑in auto down‑scaler lets one display run at 4K 60 Hz while the other runs at 1080p 60 Hz. Not for buyers who want independent extended desktops or more than two outputs.

HDMI 2.0b 18.5 Gbps bandwidth decides fit

The 18.5 Gbps link supports 4K 60 Hz 4:4:4, HDR10 and HDCP 2.2. If your source or cables cannot meet that bandwidth, the splitter will fall back to lower resolutions. Verify your HDMI cables are rated for 18 Gbps before purchasing.

Highlights

  • Split one source to two displays simultaneously via 1 HDMI input and 2 HDMI outputs
  • Extract stereo audio separately through 3.5 mm output for external speakers or headphones
  • Auto down-scale lets one screen show 4K 60 Hz while the other shows 1080p 60 Hz
  • HDMI 2.0b and HDCP 2.2 support with HDR at 18 Gbps bandwidth
  • Compact 52.2 x 58.4 x 15 mm unit powered by DC 5 V USB-C

Specifications

BrandESTONE
SeriesOZF6-1
ModelOZF6-1
Part NumberOZF6-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsProduct Type:HDMI 2.0b Splitter 1x2 with Audio Extractor
Interface Type: 1 HDMI in, 2 HDMI out, 1 Audio R/L out
Power Supply: DC 5V
Dimension(LxWxH): 52.2x58.4x15mm
Support HDMI2. 0b, HDCP2.2, Support HDR10, 18.5Gbps, 4KHDR

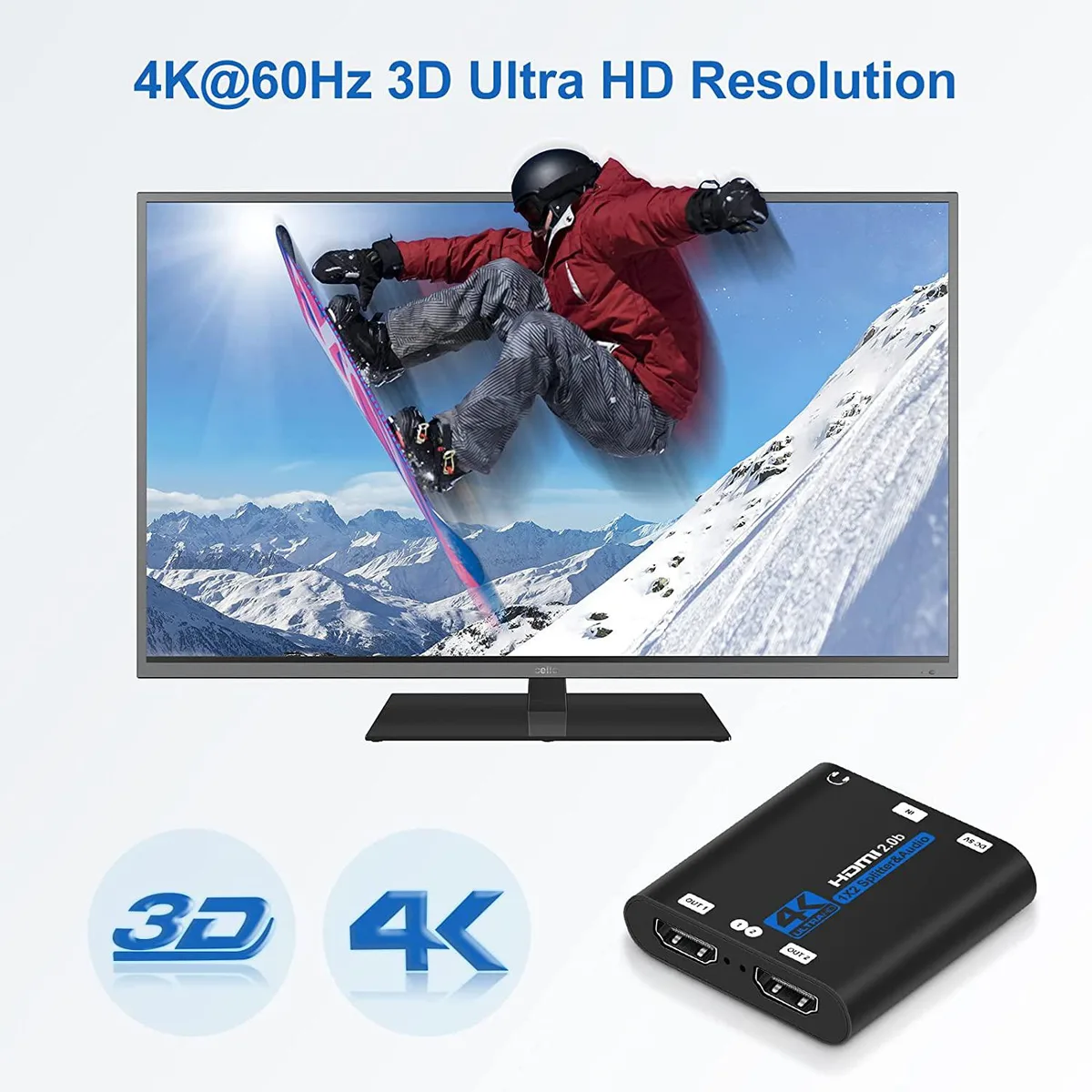

Support 4K x 2K@60Hz, RGB8:8:8, Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
HDMI Resolution: 4k/2k/3D/1080p/1080i/720p/480p
Support video color format: 24bit/30bit/36bit deep color
Support DVI/DP monitor
Digital audio format: DST-HD/Dolby-true-HD/LPCM7.1/DTS/Dolby-AC3/DSD(Not Support AlwaysDolby Digital plus)
I
Input Connector1 HDMI input
Output Connector2 HDMI + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2 with Audio Extrator: The converter allows distributes 1 HDMI source to 2 HDMI displays simultaneously, and adds extra one L+R audio out port.
High Resolution: Support 4K x 2K@60Hz (3860 x 2160p), backwards to 480p/ 720p/ 1080i/ 1080P and 3D. Support 24bit/30bit/36bit deep color.
Supported Audio: DTS-HD/ Dolby-true-HD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD.(Not Support Always Dolby Digital plus). Support blue-ray 24/50/60fs/hd-dvd/XVYCC.
Compatibility: HDCP support 2.2, compatible with HDMI 2.0b. Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. Ou
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 2 out with audio extractor, 1 x Charger, 1 x USB Cable, 1 x User Manual.

Questions about this item

What HDMI source do I need to feed the splitter's single input?

Any device with an HDMI 2.0b output such as a PC, laptop, PS3, PS4, PS5, Xbox, Blu-ray player or set-top box will drive the 1x2 splitter.

Will my older 1080p display work alongside a 4K60 screen on the two HDMI outputs?

Yes, the auto down-scaler lets one output run at 4K@60Hz while the other runs at 1080p@60Hz without forcing both to the lower resolution.

How can I confirm the audio extractor is active after connecting speakers to the 3.5mm jack?

Play content from the HDMI source; sound should come from the connected speakers while both displays show the mirrored 4K or 1080p picture.
