Black rectangular HDMI splitter with eight output ports

ESTONE

ESTONE OZF5-1 1x8 HDMI Video Splitter 4K@60Hz 18Gbps

SKU CH-R5ZA-AYS4Q

Splits one HDMI source to eight displays at up to 4K@60Hz with 18Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Split one source to eight displays simultaneously
  • 4K at 60 Hz with 18 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant
  • Mixed 4K and 1080p output via downscaling
  • Supports 7.1 audio formats including Dolby TrueHD

1x8 HDMI Splitter 4K@60Hz

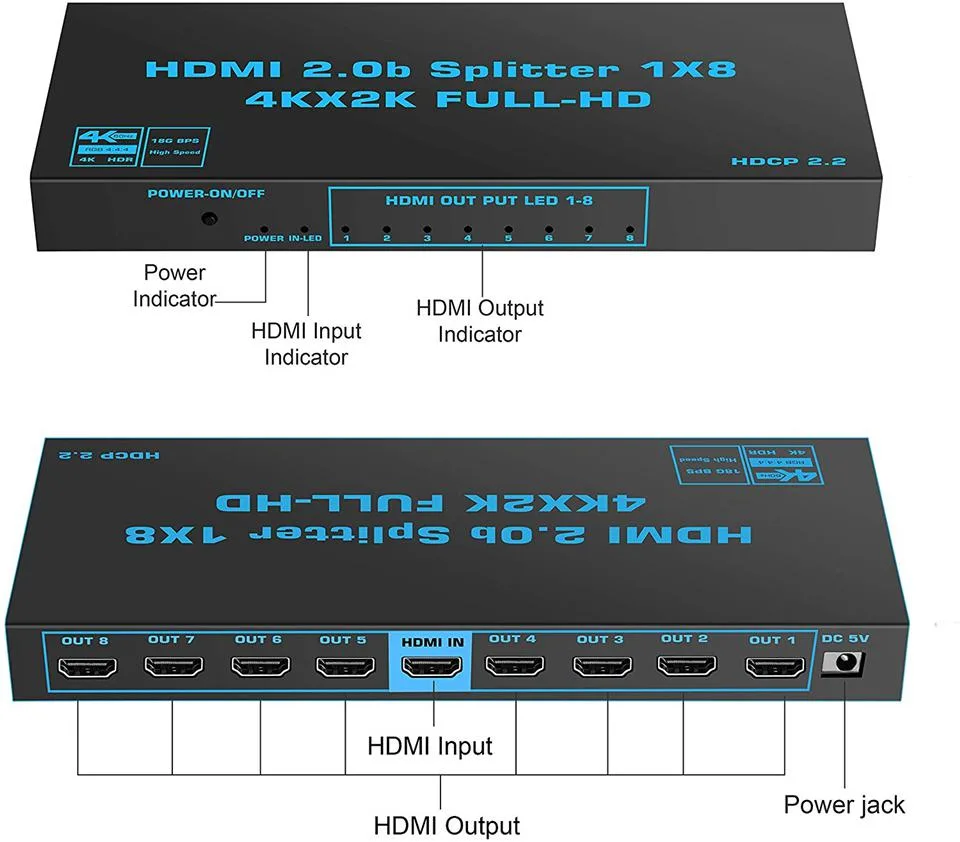

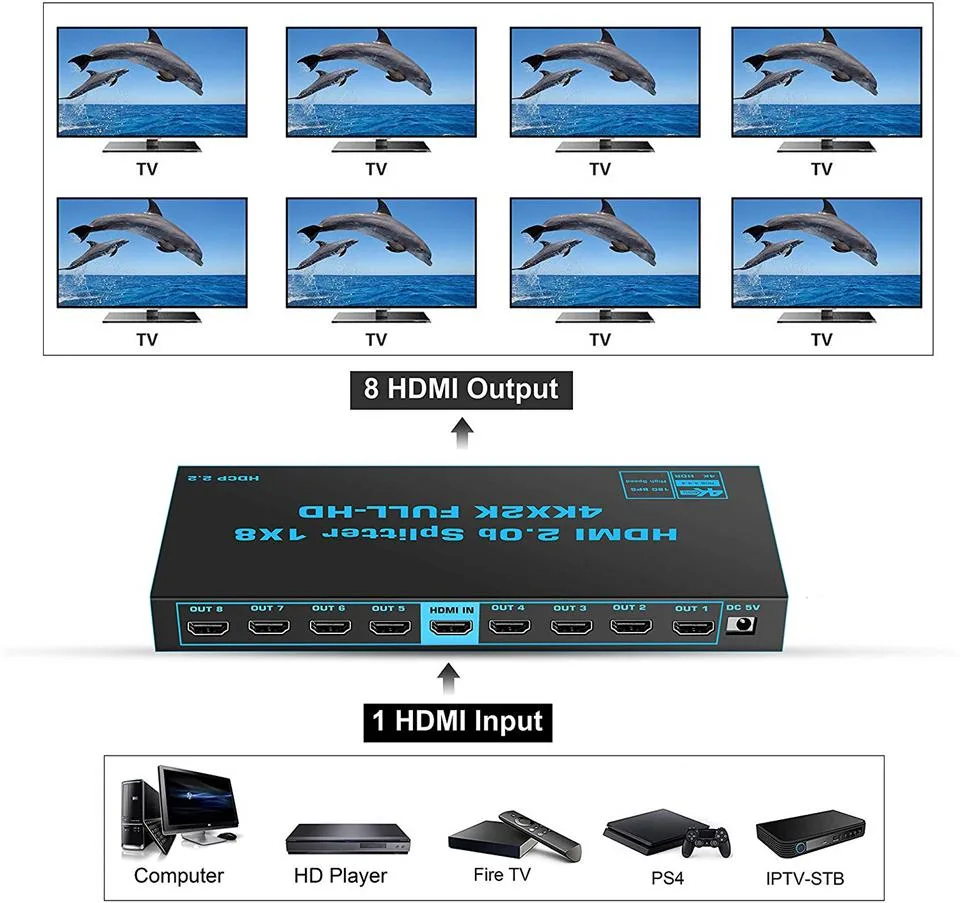

The ESTONE OZF5-1 is a powered HDMI 2.0b splitter that duplicates one source signal across eight displays. It supports 4K resolution at 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance. The unit handles video colour depths of 24, 30, 36 and 48 bit. Audio formats include LPCM 7.1, Dolby TrueHD and DTS-HD. It is built for installers and venues needing simultaneous mirrored output.

HDMI 2.0b bandwidth and downscaling limits

The 18 Gbps ceiling restricts 4K output to 60 Hz 4:4:4 or HDR without compression. Displays limited to YUV 4:2:0 will show 1080p instead of 4K even if the source is 4K. The splitter downscales 4K to 1080p per output independently, allowing mixed 4K and 1080p screens. It cannot extend a desktop across multiple monitors.

Mirror-only operation

This device duplicates the input to all eight outputs with no extension or matrix switching capability. Buyers who need independent content on each screen or multi-monitor desktop extension cannot use this splitter. It is designed strictly for identical mirrored distribution.

Highlights

  • Split one source to eight displays simultaneously
  • 4K at 60 Hz with 18 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant
  • Mixed 4K and 1080p output via downscaling
  • Supports 7.1 audio formats including Dolby TrueHD

Specifications

BrandESTONE
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op
Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

Should I pick the 1x8 model or a smaller splitter for my setup?

Choose the 1x8 when you need to mirror one source to eight displays; smaller splitters exist for fewer outputs.

What does the 18Gbps bandwidth mean when the splitter is connected to real displays?

It carries 4K at 60 Hz with 24, 30, 36 or 48 bit colour and HDCP 2.2 without compression.

How does the HDMI 2.0b interface limit what I can actually run?

It caps at 3840x2160 at 60 Hz, 600 MHz pixel clock and 18 Gbps total throughput.
