Black rectangular HDMI splitter with eight output ports and power adapter

ESTONE

ESTONE OZF5-1 1x8 HDMI Splitter 4K@60Hz HDCP 2.2 18Gbps

SKU CH-HPAB-N8E7S

Distributes one HDMI source to eight displays at 4K 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Distributes one HDMI source to eight displays simultaneously
  • 4K at 60 Hz with 18 Gbps bandwidth for smooth video
  • Supports deep colour up to 48 bit for richer gradients
  • Handles Dolby TrueHD and DTS-HD 7.1 audio formats
  • Regenerates signal at cable end to maintain quality over distance

1×8 HDMI Splitter for 4K Distribution

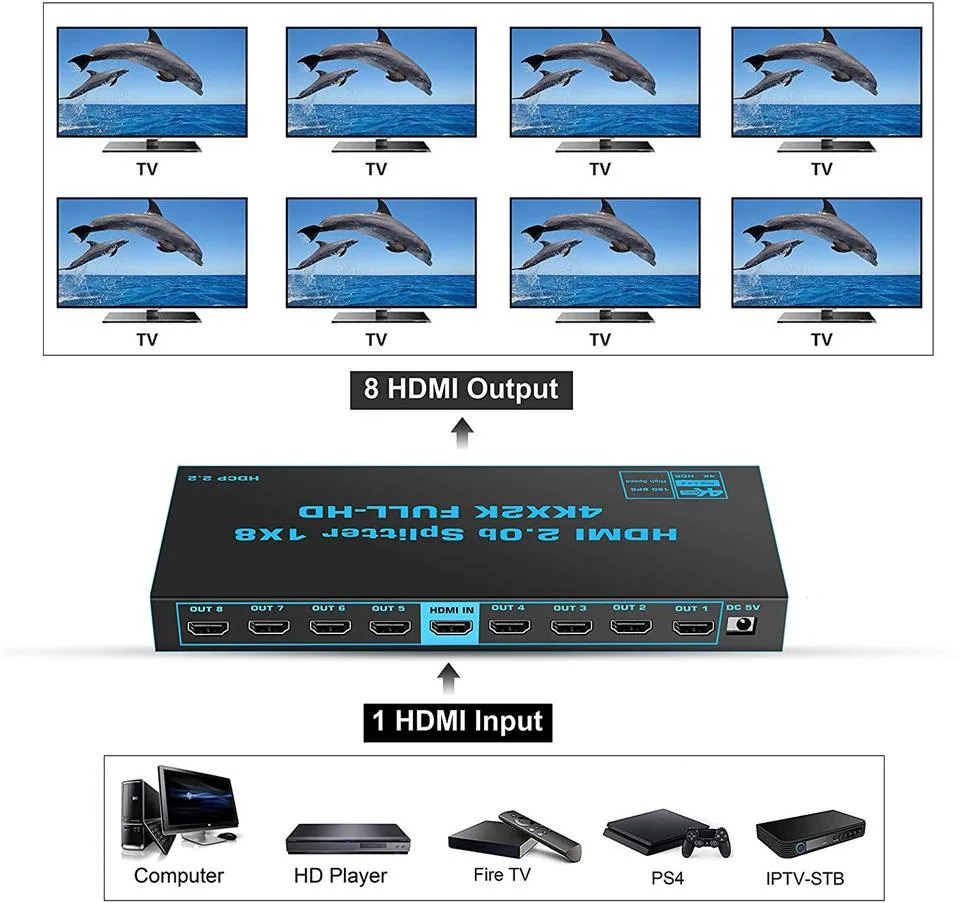

The ESTONE OZF5-1 duplicates a single HDMI source across eight displays at up to 3840×2160 at 60 Hz. It supports HDMI 2.0b and HDCP 2.2 with 18 Gbps bandwidth. The unit handles 24, 30, 36 and 48 bit deep colour and audio formats including LPCM 7.1, Dolby TrueHD and DTS-HD. It is built for installers and AV integrators who need reliable signal duplication without extension.

Included Power Adapter and Manual

The package supplies a 1×8 splitter, an AC power adapter and a user manual. External power ensures stable operation across all eight outputs and allows the device to regenerate the signal at the end of a long cable run. No software or drivers are required; the splitter is purely hardware-based and operates immediately on connection.

HDMI 2.0b Bandwidth and Downscaling Limits

The 18 Gbps ceiling restricts 4K output to 60 Hz at 4:4:4 chroma subsampling. Displays that only accept YUV 4:2:0 will show 1080p instead of 4K even when the source is 4K. The splitter cannot extend a desktop; it only mirrors the input. Mixed 4K and 1080p sinks are supported through automatic downscaling on the 1080p outputs.

Highlights

  • Distributes one HDMI source to eight displays simultaneously
  • 4K at 60 Hz with 18 Gbps bandwidth for smooth video
  • Supports deep colour up to 48 bit for richer gradients
  • Handles Dolby TrueHD and DTS-HD 7.1 audio formats
  • Regenerates signal at cable end to maintain quality over distance

Specifications

BrandESTONE
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op

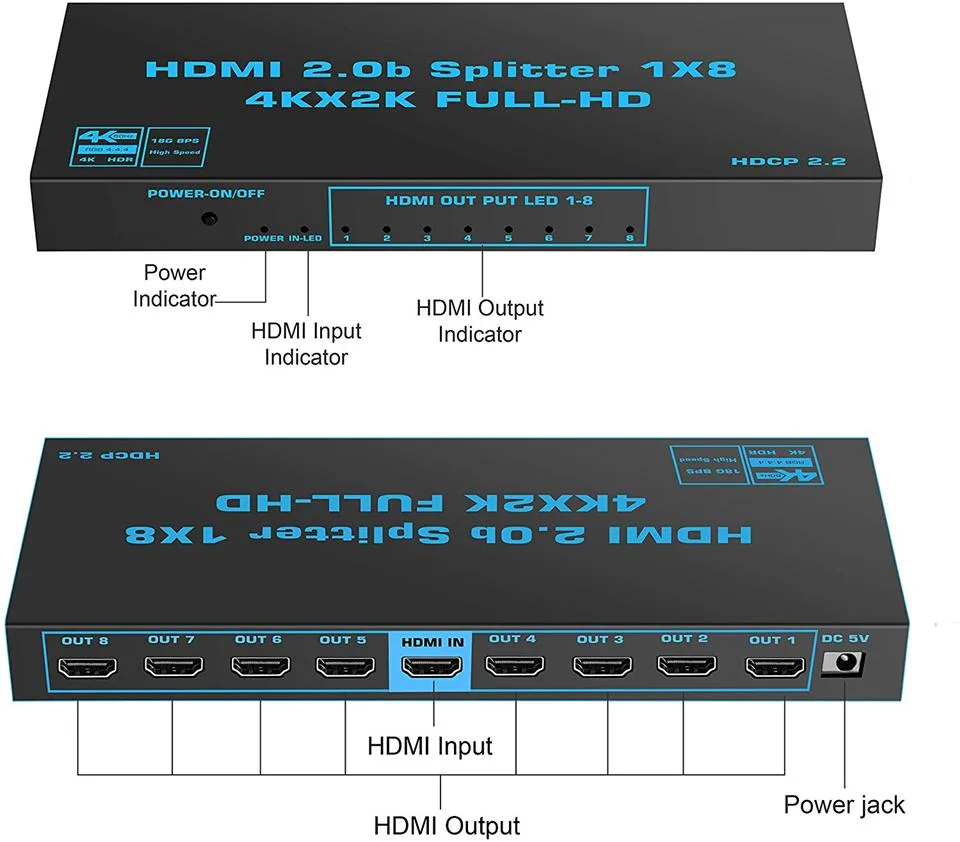

Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

Will the 18 Gbps bandwidth limit cause signal degradation on long cable runs?

The splitter regenerates the HDMI signal at the full 18 Gbps rate so long cables after the unit stay clean; keep source-to-splitter cables short for best results.

Does the 600 MHz pixel clock cap 4K 60 Hz 4:4:4 output on all eight ports?

Yes, the 600 MHz limit matches HDMI 2.0b 18 Gbps spec, so every port can deliver 4K 60 Hz 4:4:4 simultaneously.

How warm does the metal case get when all eight 4K 60 Hz outputs run continuously?

The aluminium enclosure acts as a heatsink; under full 18 Gbps load it stays warm to the touch but within normal operating temperature.
