Black rectangular HDMI splitter with eight output ports

ESTONE

ESTONE OZF5-1 1x8 HDMI Splitter 4K@60Hz 18Gbps

SKU CH-YVQP-NBZQ3

Splits one HDMI source to eight displays at 4K@60Hz with 18Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Distributes one HDMI source to eight displays simultaneously
  • Delivers 4K at 60 Hz with 18 Gbps bandwidth
  • Supports deep colour up to 48 bit for richer gradients
  • Passes Dolby TrueHD and DTS-HD audio formats intact
  • Regenerates the signal at the end of long cable runs

1×8 HDMI Splitter for 4K Multi-Display

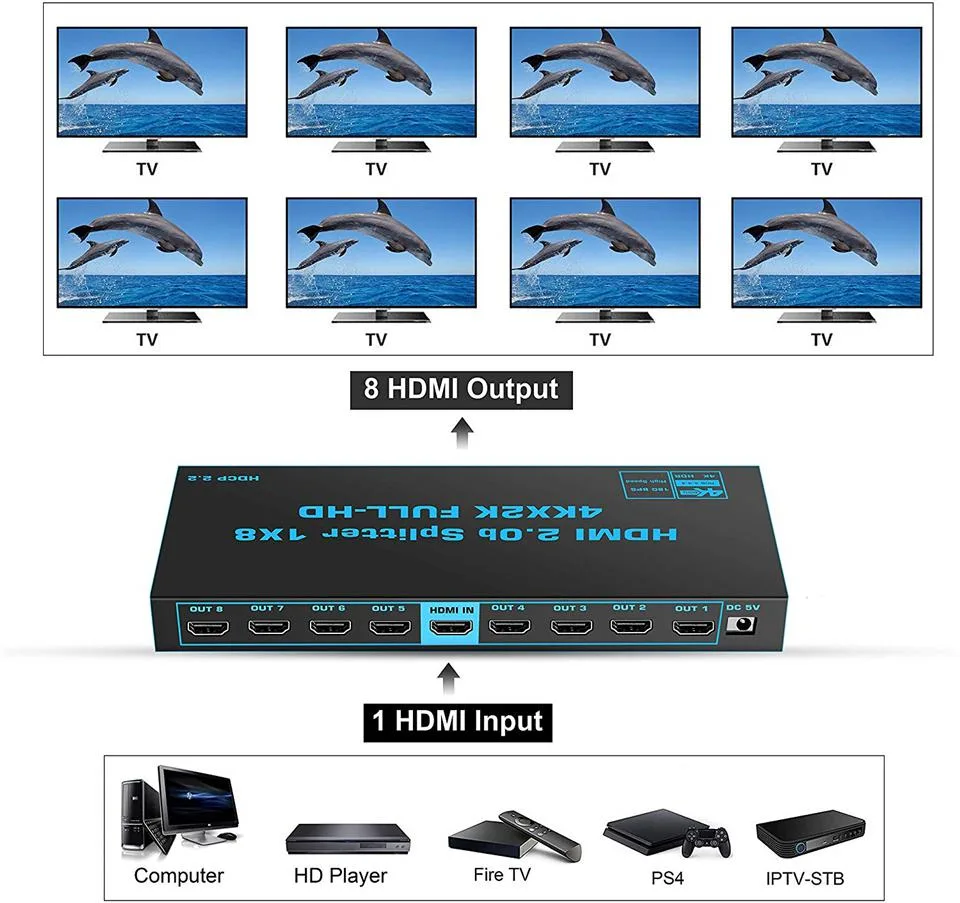

The ESTONE OZF5-1 duplicates a single HDMI source across eight displays at up to 3840×2160@60Hz. It supports HDMI 2.0b and HDCP 2.2 with 18Gbps bandwidth. The unit handles 24, 30, 36 and 48-bit deep colour plus audio formats including LPCM 7.1, Dolby TrueHD and DTS-HD. Powered operation ensures stable signal distribution to projectors, HDTVs or monitors.

Replaces Basic Switches or Daisy-Chained Splitters

A passive switch or chained 1×2 units cannot drive eight outputs at 4K 60Hz without signal loss. This splitter regenerates the signal at the end of long cable runs and maintains full 18.5Gbps throughput. The jump is worth it when you need simultaneous, identical 4K output to eight screens without frame drops or handshake failures. Mixed 4K and 1080p displays are supported through automatic downscaling.

Limited to Mirroring by HDMI 2.0b Bandwidth

The 18Gbps link cannot carry independent streams, so the device only mirrors content across all eight ports. It will not extend a desktop or show different sources on different screens. HDCP 2.2 compliance means protected 4K material passes through, but displays limited to YUV 4:2:0 will fall back to 1080p. No upscaling or format conversion beyond downscaling is performed.

Highlights

  • Distributes one HDMI source to eight displays simultaneously
  • Delivers 4K at 60 Hz with 18 Gbps bandwidth
  • Supports deep colour up to 48 bit for richer gradients
  • Passes Dolby TrueHD and DTS-HD audio formats intact
  • Regenerates the signal at the end of long cable runs

Specifications

BrandESTONE
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op
Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

What physical space does the 5.59 x 3.15 x 1.26 inch splitter need?

The unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, so it fits on a shelf or behind a display with only a few inches of clearance.

How is the HDMI 2.0b splitter installed, and what step is often missed?

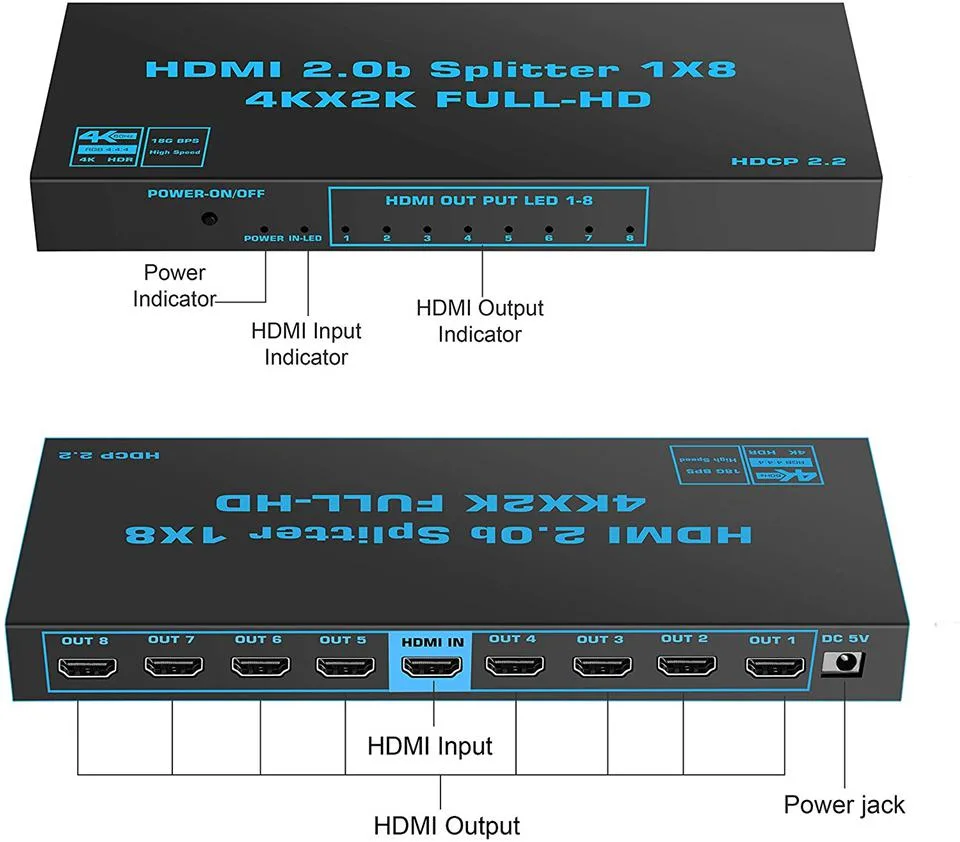

Connect the source to the single HDMI input, link up to eight displays to the HDMI outputs, then plug in the included AC adapter; the step often missed is powering the unit before expecting a signal.

What maintenance or replacement will the powered 1x8 splitter need later?

The splitter has no user-serviceable parts; if the AC adapter fails it can be replaced with a matching 5 V supply, otherwise the solid-state unit requires no routine maintenance.
