Black rectangular HDMI splitter box with eight output ports

ESTONE

ESTONE OZF5-1 1×8 HDMI Splitter 4K@60Hz 18Gbps

SKU CH-WT1W-A0QPF

Splits one HDMI source to eight displays at up to 4K 60 Hz with HDCP 2.2 and 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Split one source to eight 4K displays simultaneously
  • 4K@60Hz 18Gbps bandwidth keeps full video quality
  • HDCP 2.2 and HDMI 2.0b protect premium content
  • Deep-colour 30/36/48-bit plus 7.1 audio formats supported
  • Signal regeneration extends cable runs without quality loss

1×8 HDMI Splitter for Multi-Display Setups

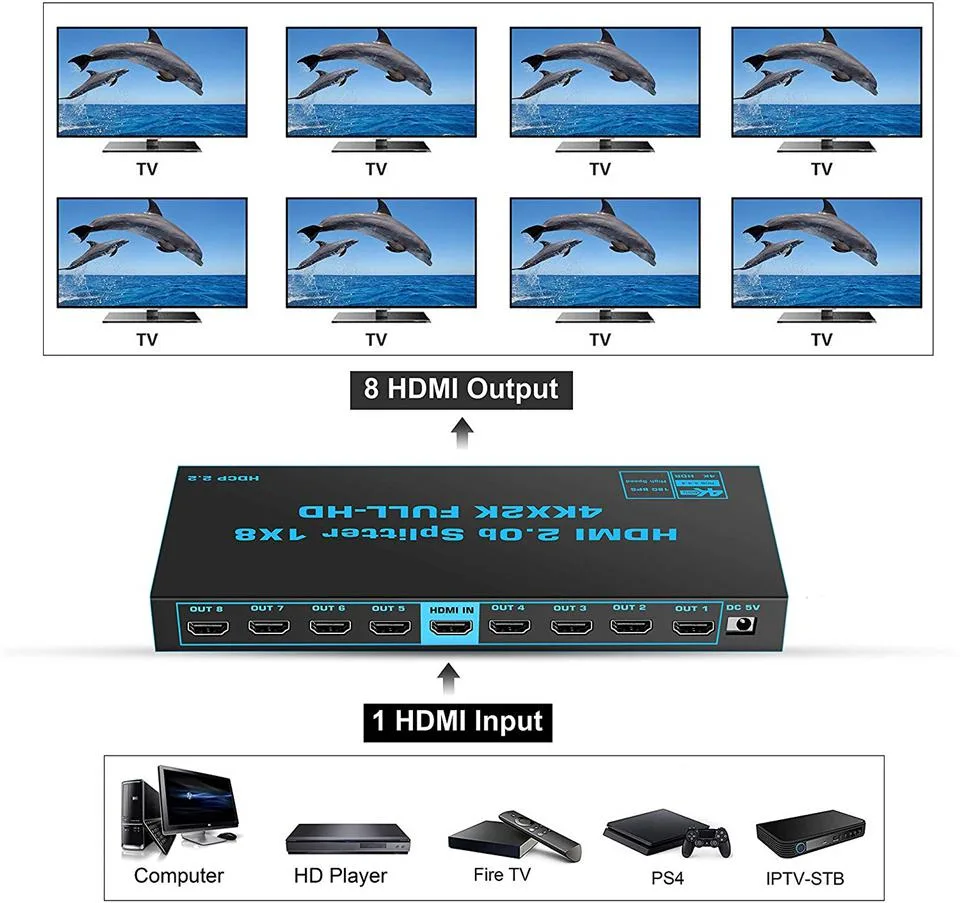

The ESTONE OZF5-1 duplicates a single HDMI source across eight displays at up to 3840×2160 resolution and 60 frames per second. It supports HDCP 2.2, deep colour up to 48-bit, and audio formats including DTS-HD and Dolby TrueHD. The unit is designed for distribution only and will not extend a desktop across multiple screens.

Installation Notes and Common Issues

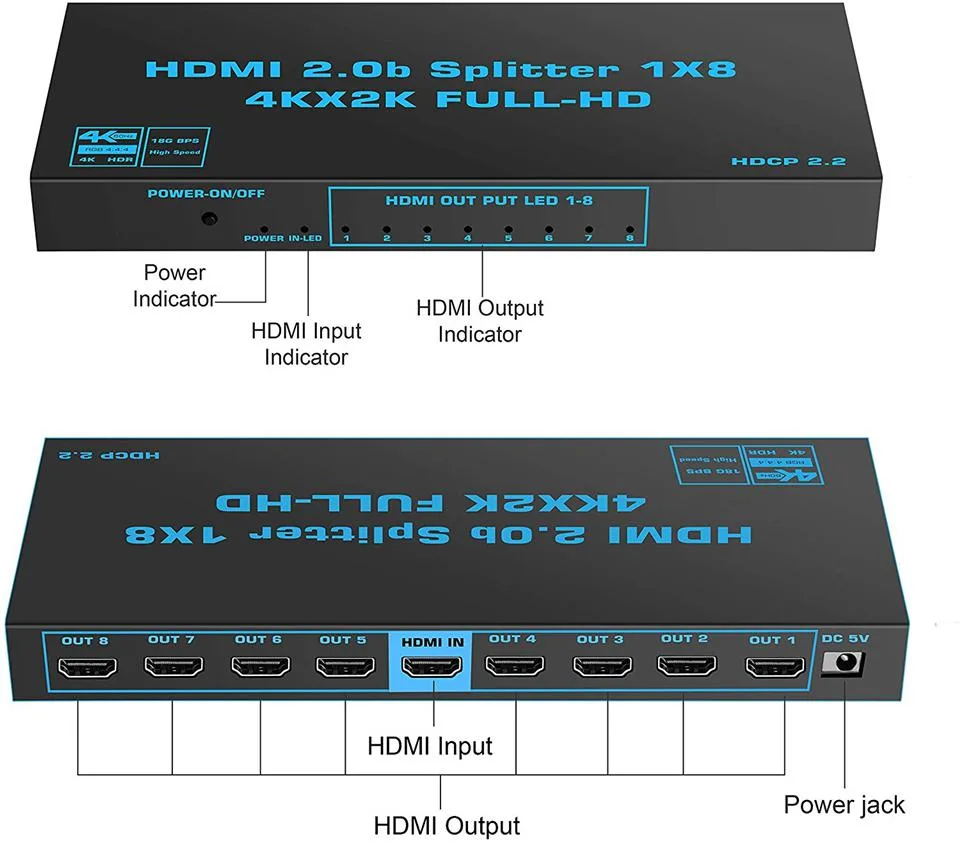

Connect the source to the single input and up to eight displays to the outputs, then attach the supplied AC adapter. The splitter regenerates the signal, which helps after long cable runs. A frequent issue arises when a connected display only accepts YUV 4:2:0; in that case the splitter downscales 4K content to 1080p on that output.

HDMI 2.0b Bandwidth and Format Limits

The 18 Gbps bandwidth caps video at 4K 60 Hz with RGB 4:4:4 or YUV 4:4:4 colour sampling. Higher refresh rates, 8K resolution, or uncompressed audio beyond the listed formats are not supported. Mixed 4K and 1080p displays work simultaneously through automatic downscaling on the lower-resolution outputs.

Highlights

  • Split one source to eight 4K displays simultaneously
  • 4K@60Hz 18Gbps bandwidth keeps full video quality
  • HDCP 2.2 and HDMI 2.0b protect premium content
  • Deep-colour 30/36/48-bit plus 7.1 audio formats supported
  • Signal regeneration extends cable runs without quality loss

Specifications

BrandESTONE
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op
Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

How can I confirm the ESTONE OZF5-1 is passing a 4K@60Hz signal to all eight displays after I connect everything?

Check each connected display's on-screen information menu; it should report 3840 x 2160 at 60 Hz with RGB 4:4:4 or YUV 4:4:4 colour, and audio should play in LPCM 7.1 or the selected bitstream format without dropouts.

What does the ESTONE OZF5-1 package include, and which cables must I provide myself?

The box contains the 1×8 splitter unit, an AC power adapter and a manual; you must supply one HDMI cable for the source and up to eight HDMI cables for the displays.

The specs list several colour depths — 24, 30, 36 and 48 bit — so which one should I choose for my setup?

Select the highest bit depth that both your source device and every connected display support; 24 bit works everywhere, while 30, 36 or 48 bit require compatible hardware on all ends to avoid a blank screen.
