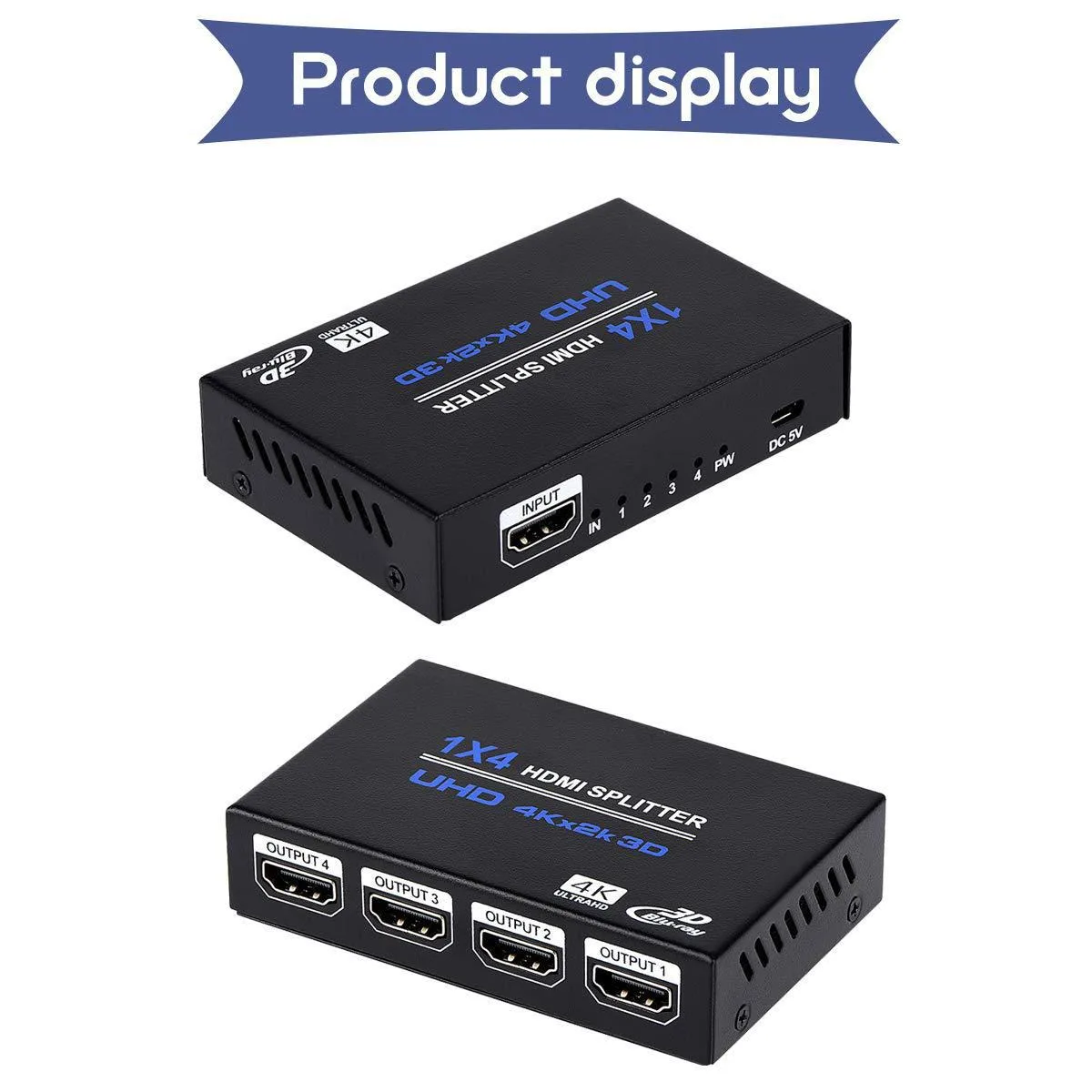

Black metal box with one HDMI input and four HDMI outputs

ESTONE

ESTONE OZF4 HDMI Splitter 1×4 4K@30Hz Metal Case

SKU CH-6NCH-FE23J

Splits one HDMI source to four identical 4K 30 Hz displays with audio pass-through and a metal case

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsQuadruple HDMI monitor splitter One HDMI input to Four HDMI
  • Splits one HDMI source to four identical displays
  • Supports Ultra HD 4K at 30 Hz refresh rate
  • Delivers DTS-HD and Dolby TrueHD audio formats
  • Extends signal up to 100 ft with AWG26 cable
  • Metal enclosure measures 5.59 by 3.15 by 1.26 inches

What it is and who it’s for

The ESTONE OZF4 is a 1×4 HDMI splitter that takes a single source and mirrors it to four identical displays. It suits installers who need the same 4K image on multiple screens in retail, office or home-theatre setups. A 5 V DC power supply is included for stable operation.

What it replaces and when to upgrade

It replaces daisy-chaining or manual cable swapping when one source must feed four TVs, monitors or projectors at once. The jump is worth it when you need simultaneous duplicate output without signal degradation across all four ports.

Practical limits of the HDMI 1.4b interface

The splitter tops out at 3840×2160 at 30 Hz with 8/10/12-bit deep colour and 3.4 Gbps bandwidth. It supports HDCP 1.4b and AWG26 cable runs up to 100 ft, but cannot pass higher refresh rates or later HDMI feature sets.

Highlights

  • Splits one HDMI source to four identical displays
  • Supports Ultra HD 4K at 30 Hz refresh rate
  • Delivers DTS-HD and Dolby TrueHD audio formats
  • Extends signal up to 100 ft with AWG26 cable
  • Metal enclosure measures 5.59 by 3.15 by 1.26 inches

Specifications

BrandESTONE
SeriesOZF4
ModelOZF4
Part NumberOZF4
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsQuadruple HDMI monitor splitter
One HDMI input to Four HDMI outputs
HDMI input: Computer, Chromecast, XBox, PS3, PS4, PS5, Fire Stick, Blu-Ray DVD Player, Satellite Receiver, Roku, PC etc.
HDMI output: Monitors, Projectors, HD TVs, VR etc.
HDMI audio output: HDMI Speaker, Soundbar etc.
HDCP 1.4b, HDCP 1.4, deep color 8/ 10/ 12bit..
Supports Ultra HD 4Kx2K@30HZ/ 1080P/ 1080i, 720p/ 720i, 480p/ 480i.
Audio format: DTS-HD/ Dobly-true HD/ DTS/ Dobly-AC3, DSD.
Input Connector1 HDMI input
Output Connector4 HDMI Output
Maximum Resolutions3840 x 2160
Features- Supported Audio: DTS-HD, Dolby-trueHD, DTS, Dolby-AC3, DSD etc.
- Support highest rate of 3.4Gbps and TMDS clock can be up to 340Mhz
- Support 8/10/12 bit deep color

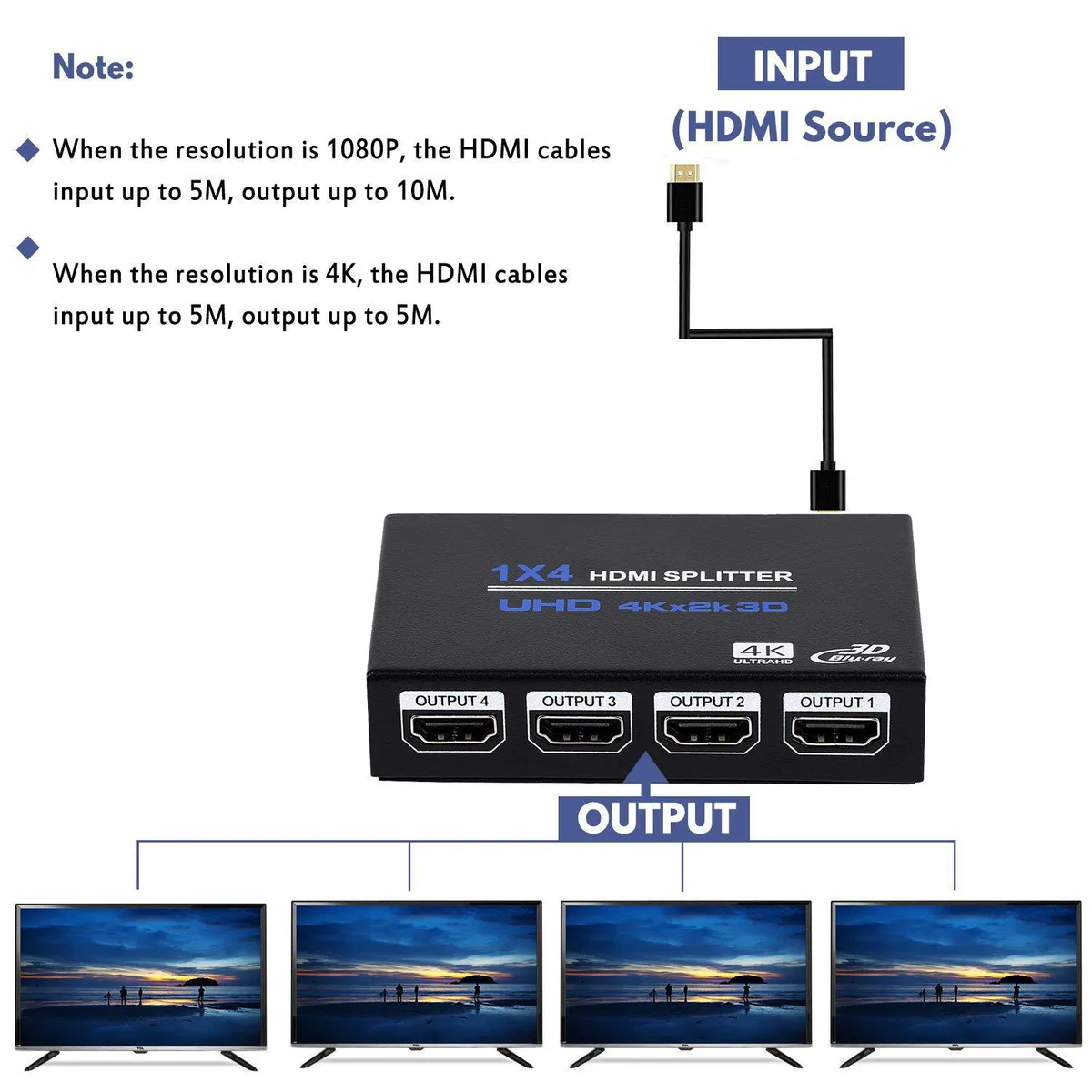

- Support AWG26 HDMI standard cable: input up to 15 meters, output up to 15 meters, (when the resolution is 4K, input up to 8 meters, output up to 8 meters.)
- Support one single HDMI source, accessing to multiple HDMI sknks, the source can be DVD player, A/V receiver, set top box and etc.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 4 out, 1x 5V DC Power Supply, 1 x User manual.

Questions about this item

How much space does the 5.59 x 3.15 x 1.26 inch metal case need on a shelf or rack?

The splitter measures 5.59 inches wide, 3.15 inches deep and 1.26 inches high, so allow at least that footprint plus a little clearance for the four HDMI cables and the 5 V DC power jack.

What is the correct order to connect the 5 V power supply, the source and the four displays so the splitter locks onto the EDID?

Plug the 5 V DC adapter into the splitter first, then connect the HDMI source to the single input, and finally attach up to four displays to the outputs; powering the unit before the source ensures stable 3.4 Gbps transmission.

When should the 5 V DC power adapter be replaced to keep 4K@30 Hz signal quality over long cables?

Replace the adapter if the output voltage drifts below 5 V or the unit shows intermittent signal loss, because the splitter relies on external power to maintain the 340 MHz TMDS clock over cable runs up to 100 ft.
