ESTONE OZF3 HDMI 2.0 1×4 Splitter 4K 60Hz 18.2Gbps HDR HDCP 2.2
Distributes one HDMI source to four displays at 4K 60Hz with HDR and 18.2Gbps bandwidth
- TypeHDMI Splitters
- Changer TypeHDMI
- Ports4
- AudioYes
- ColorBlack
- SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with
- Distributes one HDMI source to four displays simultaneously
- 4K resolution at 60 Hz with 18.2 Gbps bandwidth
- HDR10 and Dolby Vision support for vivid colour
- HDCP 2.2 and HDCP 1.4 conversion for broad compatibility
- 12-bit deep colour and full 3D capability at 4K 60 Hz
What this splitter does

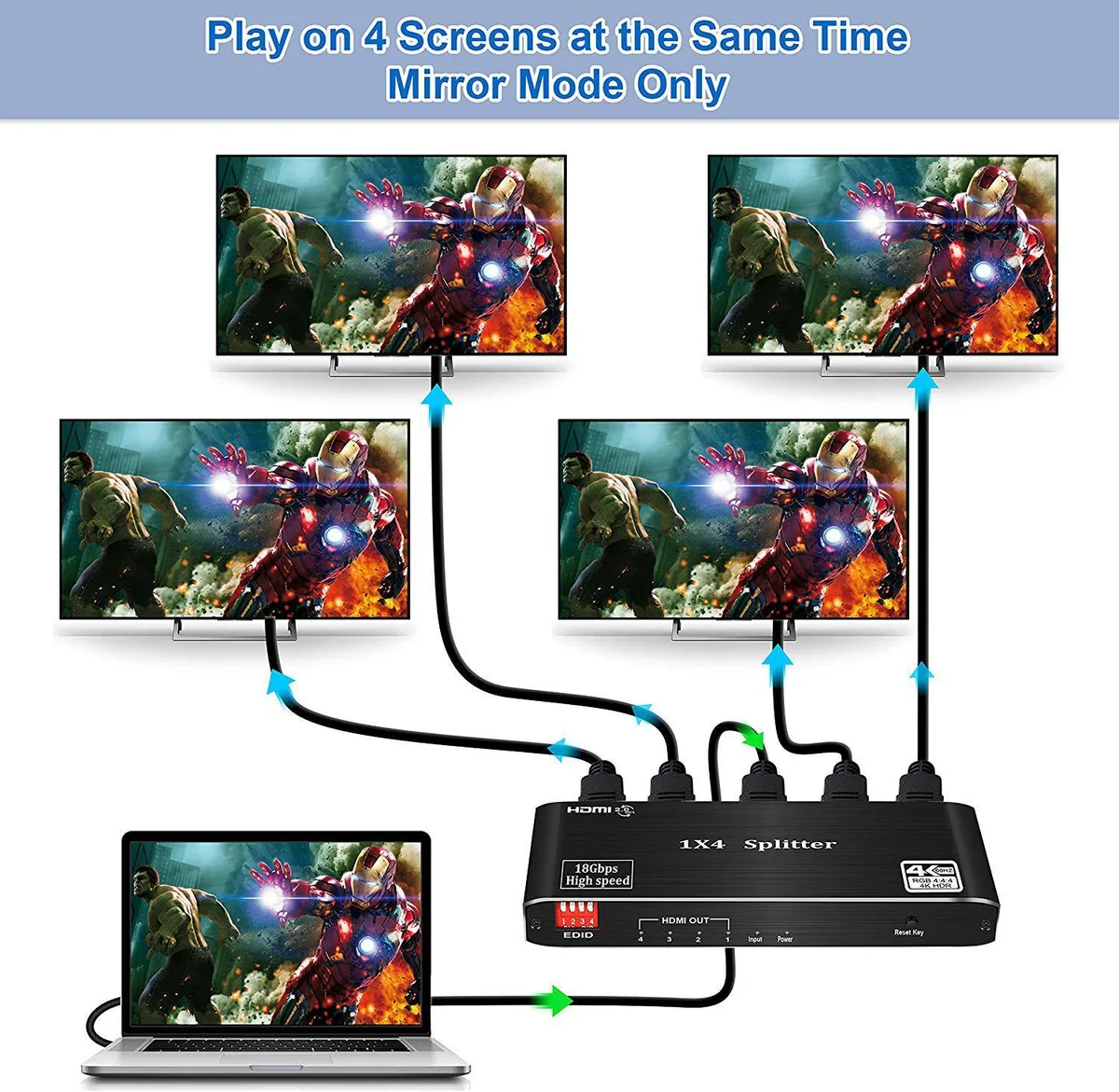

The ESTONE OZF3 takes one HDMI source and sends the same audio and video signal to four displays at once. It handles resolutions up to 4K at 60 Hz with 18.2 Gbps bandwidth and supports HDR10, Dolby Vision and 3D content. The unit is built for mirroring only, so extended desktop modes are not possible.
Build and connections

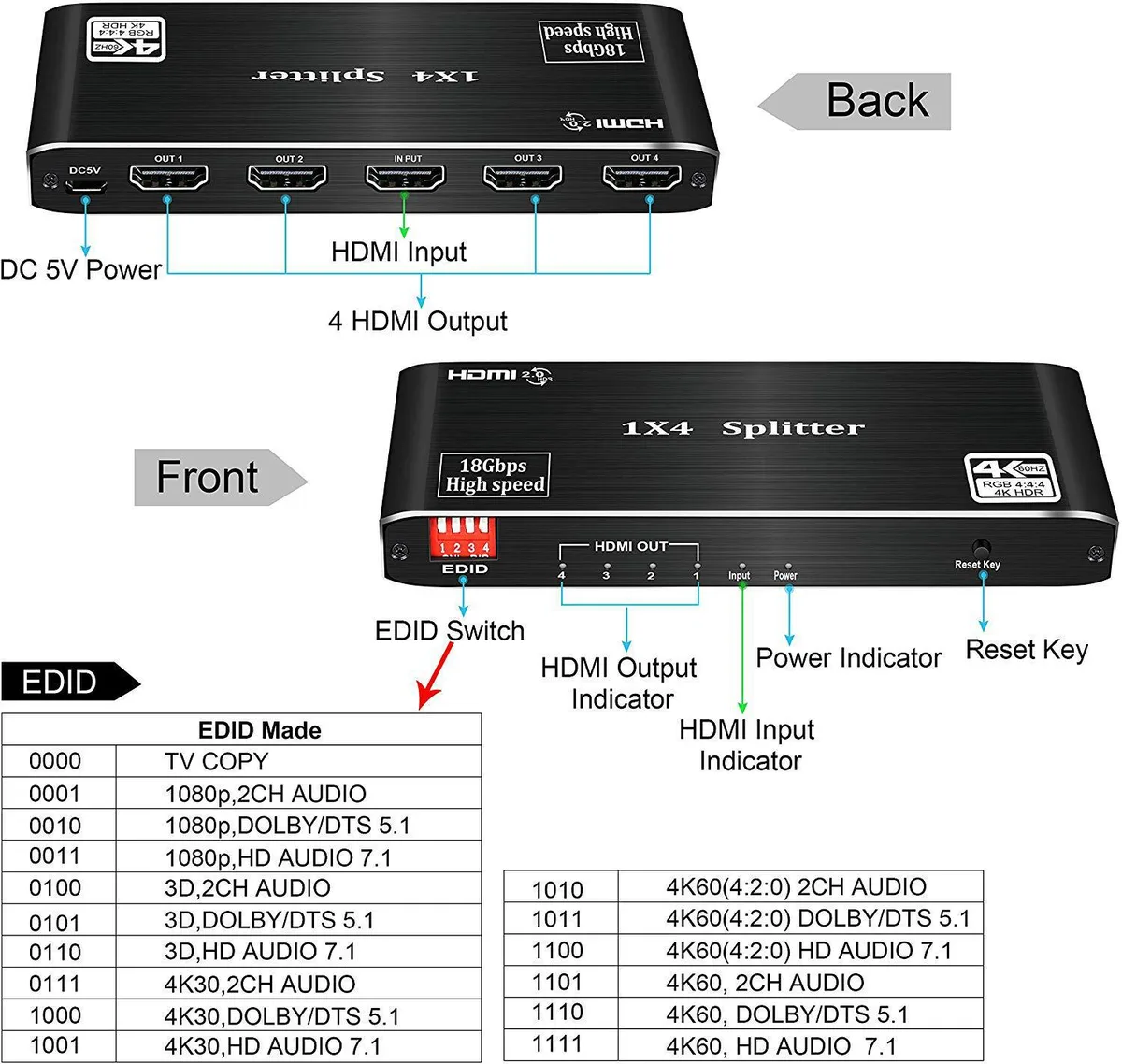

A compact black metal enclosure measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces. One HDMI input and four HDMI outputs sit on the same face, keeping cable runs tidy. An external power adapter is included, and the splitter handles HDCP 2.2 to 1.4 conversion for broad display compatibility.
The deciding spec
Maximum resolution is 3840 by 2160 at 60 Hz with 18.2 Gbps throughput. If your source or any connected display cannot match that resolution and refresh rate, the splitter will fall back to a lower common mode such as 1080p. Buyers who need independent images on each screen should look elsewhere.
Highlights
- Distributes one HDMI source to four displays simultaneously
- 4K resolution at 60 Hz with 18.2 Gbps bandwidth
- HDR10 and Dolby Vision support for vivid colour
- HDCP 2.2 and HDCP 1.4 conversion for broad compatibility
- 12-bit deep colour and full 3D capability at 4K 60 Hz
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZF3 |
| Model | OZF3 |
| Part Number | OZF3 |
| Type | HDMI Splitters |
| Changer Type | HDMI |
| Ports | 4 |
| Audio | Yes |
| Color | Black |
| Specifications | HDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode. Wide Frequency Range: 25MHz-600MHz. Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p. Supports jitter Clean capability for more cascadable stages. Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video. Supports standard Audio,DSD Audio and HD(HBR)Audio. Supports HDCP 1.4 to HDCP2.2 conversion. Supports HDCP 2.2 to HDCP1.4 conversion. Supports on-chip 512 byte E-DDC EDID RAM for input port. Supports hot plug-play. Support 18.5 Gbps rate |
| Input Connector | 1 HDMI |
| Output Connector | 4 HDMI |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18.2Gbps |
| Features | HDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images) 4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec |
| Dimensions | 5.59 x 3.15 x 1.26 inches |
| Weight | 3.2 ounces |
| Package Quantity | 1 |
| Package Contents | HDMI Splitter x1 User Instruction x1 Power Adapter x1 |
Questions about this item
What does the HDMI 2.0 interface and 18.2Gbps bandwidth cap in practice?
The HDMI 2.0 interface and 18.2Gbps bandwidth cap the maximum output resolution at 3840 x 2160 at 60Hz with 4:4:4 chroma, HDR10 and Dolby Vision support.
What physical space and power does the splitter need to fit and mount?
The unit measures 5.59 x 3.15 x 1.26 inches, weighs 3.2 ounces and requires the included power adapter for operation.
How is the splitter installed and what step do people often get wrong?
Connect the source to the single HDMI input, attach up to four displays to the HDMI outputs, plug in the power adapter and ensure all displays share the same resolution because extended desktop is not supported.
