Black rectangular HDMI splitter with one input and four output ports

ESTONE

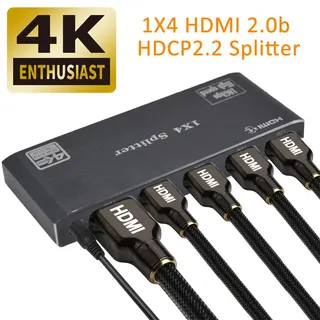

ESTONE OZF3 4K 60Hz HDMI 1x4 Splitter 18.2 Gbps

SKU CH-H5GW-Z57JC

Splits one HDMI source to four displays at 4K 60 Hz with 18.2 Gbps bandwidth, HDCP 2.2 and HDR10 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with
  • Distributes one HDMI source to four displays simultaneously
  • 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • Supports HDR10, Dolby Vision and 12-bit deep colour
  • HDCP 2.2 compliant with EDID management
  • Transmits 1080p up to 82 ft and 4K up to 50 ft

What this splitter does

The ESTONE OZF3 takes one HDMI source and mirrors it to four displays at the same time. It handles video up to 4K at 60 Hz with 18.2 Gbps bandwidth and passes standard, DSD and high-bit-rate audio. The unit is powered and ships with a power adapter.

Bandwidth and cable limits

The 18.2 Gbps link follows the HDMI 2.0 specification and requires HDCP 2.2 compliance on every device in the chain. At 1080p the input cable can reach 50 ft and each output 82 ft with AWG26 cable; at 4K those distances drop to 26 ft input and 50 ft output. All four screens must share the same resolution for stable operation.

The deciding specification

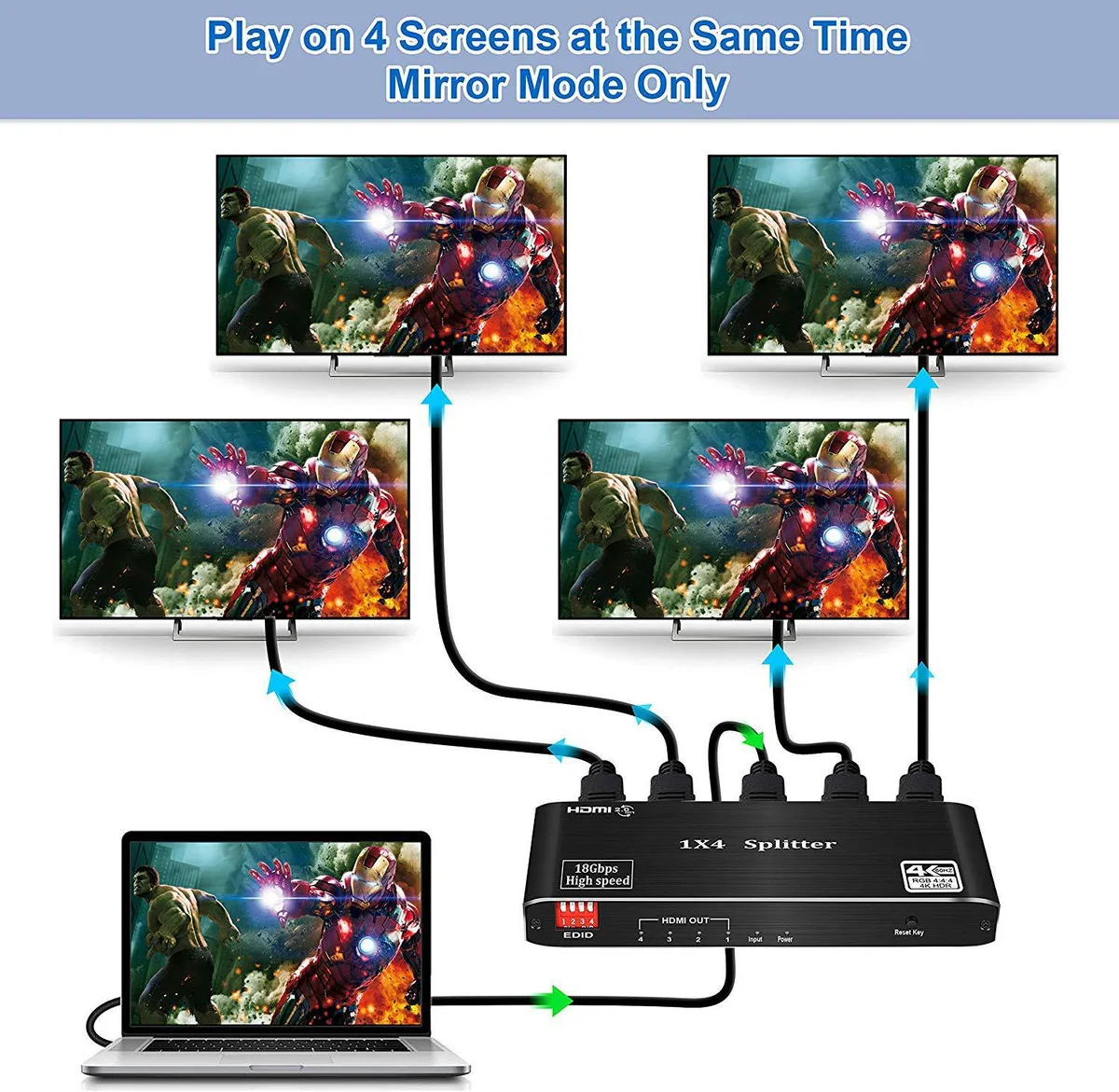

This is a 1-to-4 mirror device only — it cannot extend a desktop across multiple monitors. If the installation needs independent content on each screen, a different type of distributor or a multi-output graphics card is required.

Highlights

  • Distributes one HDMI source to four displays simultaneously
  • 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • Supports HDR10, Dolby Vision and 12-bit deep colour
  • HDCP 2.2 compliant with EDID management
  • Transmits 1080p up to 82 ft and 4K up to 50 ft

Specifications

BrandESTONE
SeriesOZF3
ModelOZF3
Part NumberOZF3
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
Supports standard Audio,DSD Audio and HD(HBR)Audio.
Supports HDCP 1.4 to HDCP2.2 conversion.
Supports HDCP 2.2 to HDCP1.4 conversion.

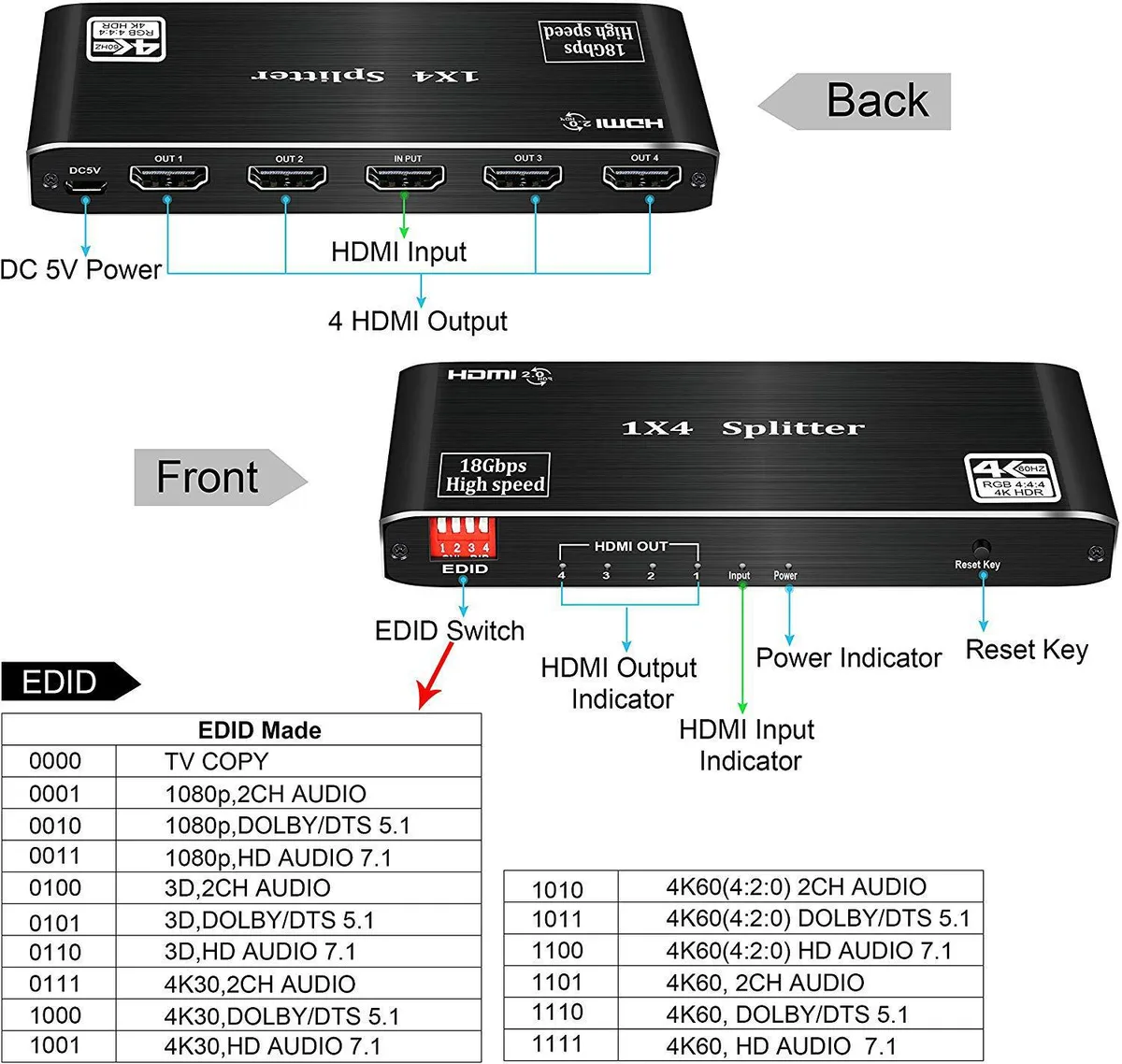

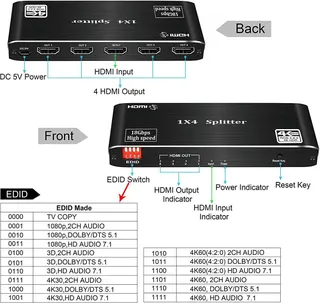

Supports on-chip 512 byte E-DDC EDID RAM for input port.
Supports hot plug-play.
Support 18.5 Gbps rate
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images)
4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsHDMI Splitter x1
User Instruction x1
Power Adapter x1

Questions about this item

Should I choose this 1x4 model or a different port count?

The OZF3 is a 1x4 splitter with one HDMI input and four HDMI outputs, so pick it when you need to mirror one source to four displays.

What does the 18.2 Gbps bandwidth mean for my 4K 60 Hz setup?

It carries full 4K 60 Hz 4:4:4 HDR video without compression, matching the HDMI 2.0 spec ceiling.

Which HDMI version and HDCP level does the splitter use, and what does that limit?

It uses HDMI 2.0 and HDCP 2.2, capping video at 4K 60 Hz 18.2 Gbps and requiring HDCP 2.2 sources for protected 4K content.
