Black rectangular HDMI splitter with four output ports

ESTONE

ESTONE OZF3 1x4 HDMI 2.0 Splitter 4K 60Hz 18Gbps HDR HDCP 2.2

SKU CH-3KGR-BM6BH

Splits one HDMI source to four displays at 4K 60 Hz with 18.2 Gbps bandwidth and HDCP 2.2 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with
  • Distributes one HDMI source to four displays simultaneously
  • Delivers 4K 60 Hz video with 18.2 Gbps bandwidth
  • Supports HDR10 and 12-bit deep colour for vivid picture
  • Handles HDCP 2.2 and converts between HDCP 1.4 and 2.2
  • Transmits 4K up to 26 ft input and 50 ft output with standard cable

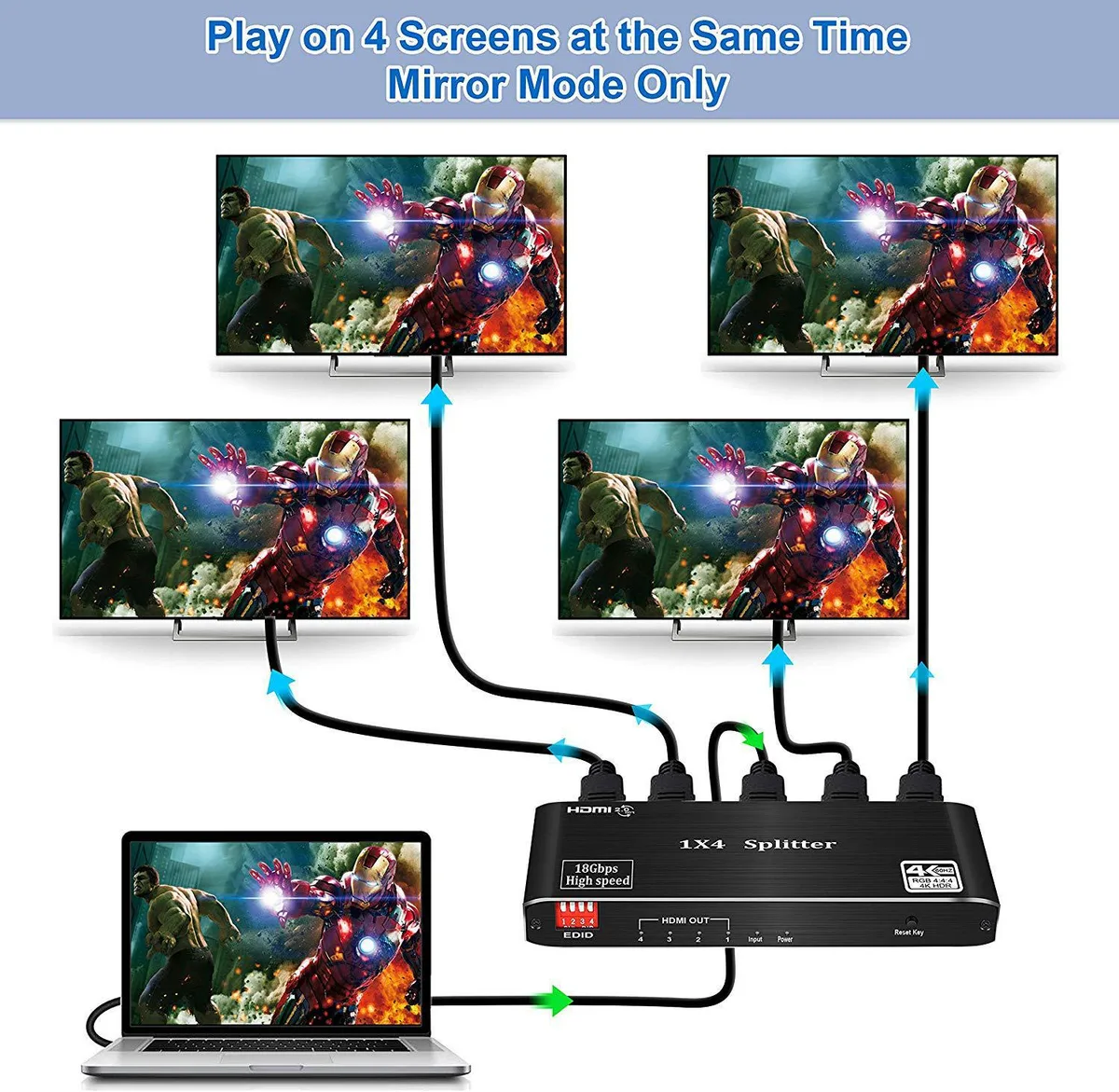

One-to-four HDMI 2.0 splitter

The ESTONE OZF3 splits a single HDMI source across four displays at the same time. It handles video resolutions up to 3840 x 2160 at 60 Hz and passes audio including DSD and HBR formats. HDCP 2.2 and 1.4 conversion is built in, so protected content plays on mixed-generation sinks. Extended desktop mode is not supported; every screen mirrors the same image.

Sustained 18.2 Gbps bandwidth with jitter cleaning

The splitter maintains the full 18.2 Gbps data rate across all four outputs without signal degradation during long sessions. Jitter clean capability allows multiple units to be cascaded while preserving timing integrity. With AWG26 cables the 1080p signal travels up to 50 ft on the input side and 82 ft on the output side, while 4K signals reach 26 ft in and 50 ft out. EDID copy and preset modes (4K5.1, 4K7.1) keep the handshake stable over time.

HDMI 2.0 18.2 Gbps bandwidth decides fit

This single figure determines whether the splitter can carry your 4K 60 Hz 4:4:4 or HDR10 content without compression. If your source demands more than 18.2 Gbps — such as 4K 120 Hz or 10-bit 4K 60 Hz — this unit will not pass the signal. For standard 4K 60 Hz, 1080p 120 Hz and lower resolutions the bandwidth is sufficient.

Highlights

  • Distributes one HDMI source to four displays simultaneously
  • Delivers 4K 60 Hz video with 18.2 Gbps bandwidth
  • Supports HDR10 and 12-bit deep colour for vivid picture
  • Handles HDCP 2.2 and converts between HDCP 1.4 and 2.2
  • Transmits 4K up to 26 ft input and 50 ft output with standard cable

Specifications

BrandESTONE
SeriesOZF3
ModelOZF3
Part NumberOZF3
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
Supports standard Audio,DSD Audio and HD(HBR)Audio.
Supports HDCP 1.4 to HDCP2.2 conversion.
Supports HDCP 2.2 to HDCP1.4 conversion.

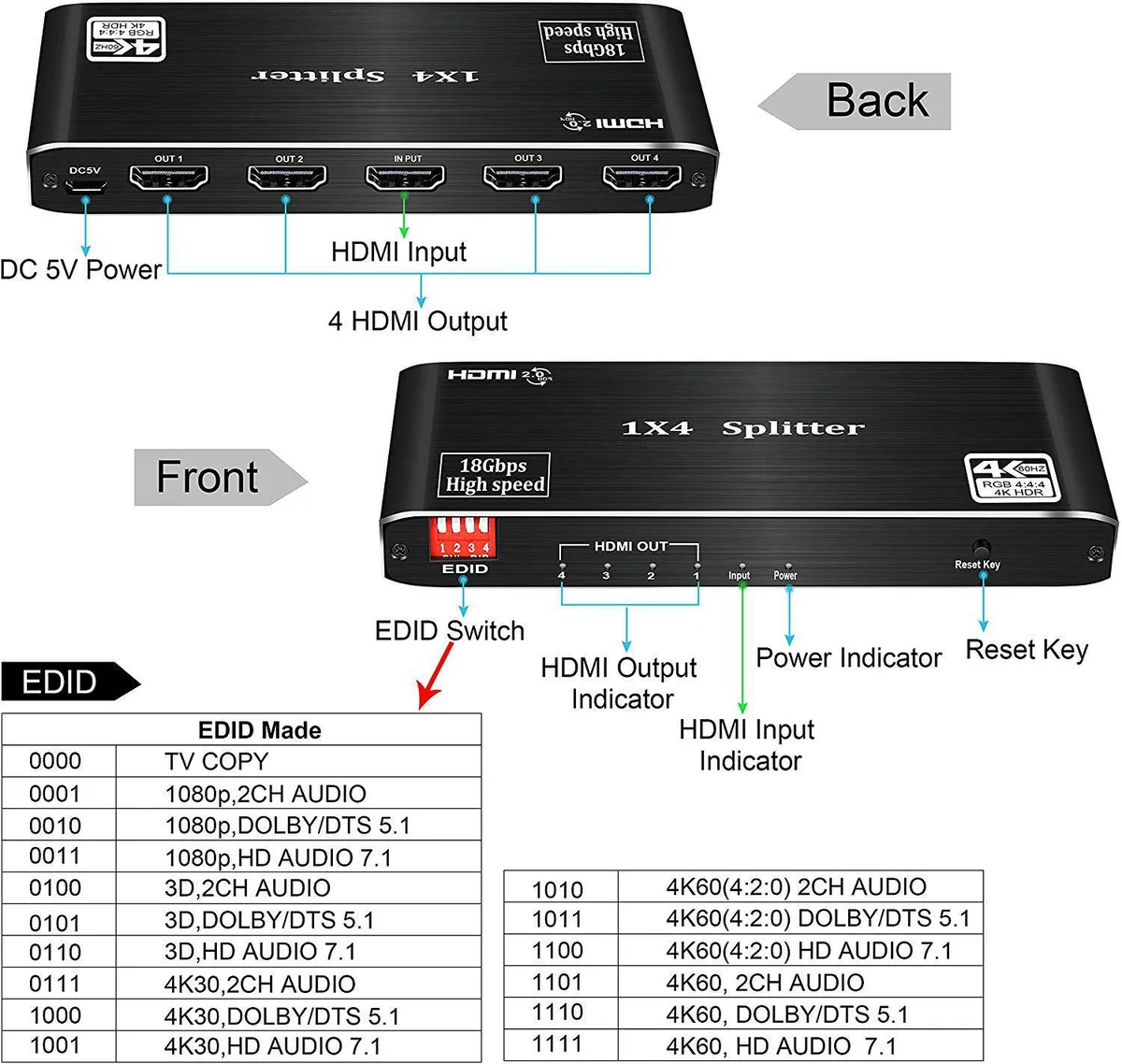

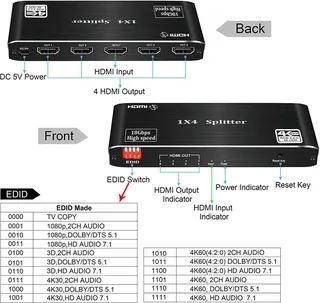

Supports on-chip 512 byte E-DDC EDID RAM for input port.
Supports hot plug-play.
Support 18.5 Gbps rate
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images)
4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsHDMI Splitter x1
User Instruction x1
Power Adapter x1

Questions about this item

How much power does the OZF3 splitter draw when running all day?

The unit ships with a dedicated power adapter, so it does not rely on the HDMI source for power and will run continuously without drawing current from your player or console.

Which cables must I already have to connect four displays?

You need one HDMI cable from the source to the splitter input and four more HDMI cables from the splitter outputs to each display; none are included in the box.

Will a 1080p 120 Hz monitor work alongside 4K 60 Hz screens on the same splitter?

All four outputs show the same signal, so every connected display must share a common resolution and refresh rate; mixing 1080p 120 Hz with 4K 60 Hz is not supported.
