Black rectangular HDMI splitter with four output ports

ESTONE

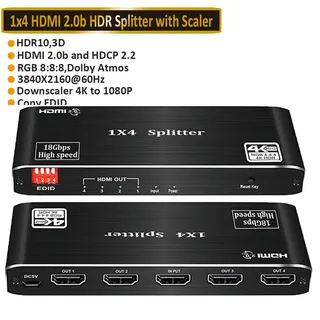

ESTONE OZF3 1×4 HDMI Splitter 4K 60Hz HDR10 HDCP 2.2 18Gbps

SKU CH-YD2J-AQSN6

Distributes one HDMI source to four displays at 4K 60Hz with HDR10 and 18.2Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with
  • Distributes one HDMI source to four displays simultaneously
  • 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • HDR10 and HDCP 2.2 for protected 4K content
  • 12-bit deep colour and full 3D video support
  • Transmits 4K up to 26 ft in and 50 ft out

1×4 HDMI Splitter

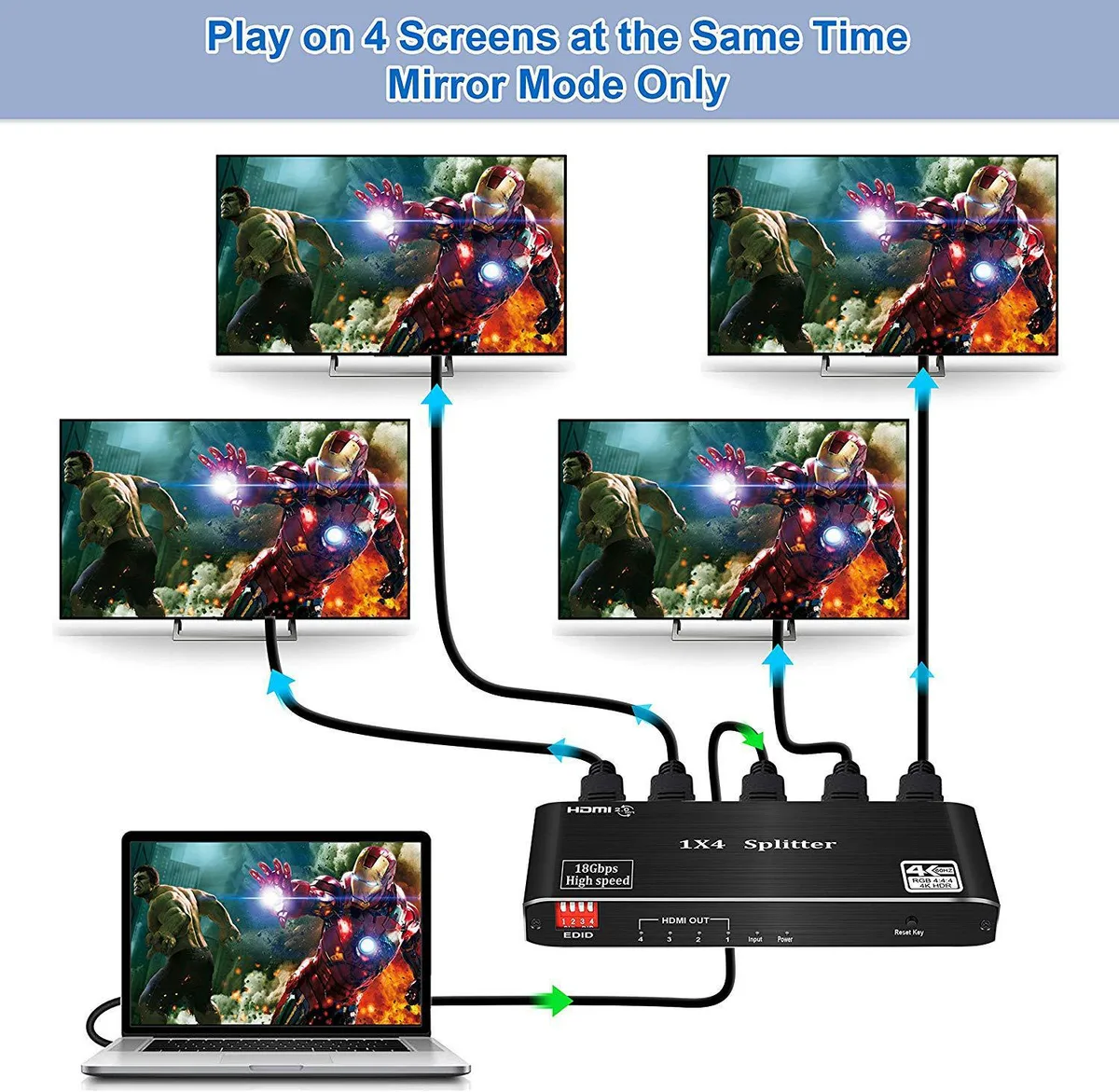

The ESTONE OZF3 takes one HDMI source and duplicates it across four displays simultaneously. It supports video and audio pass-through for laptops, consoles, media players and projectors. The unit requires all connected screens to share the same resolution for correct operation. Extended desktop modes are not available.

4K 60Hz capacity and cable limits

The splitter handles resolutions up to 3840 x 2160 at 60 Hz with 18.2 Gbps bandwidth and HDCP 2.2 compliance. At 1080p the input cable can reach 15 m and each output 25 m using AWG26 cable. At 4K the input limit drops to 8 m and outputs to 15 m. HDR10, 3D and 12-bit deep colour are supported within this headroom.

HDCP 2.2 conversion decides fit

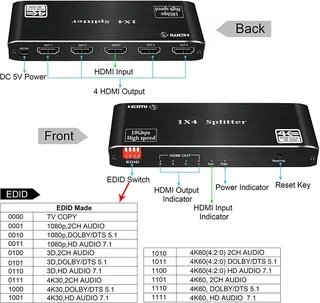

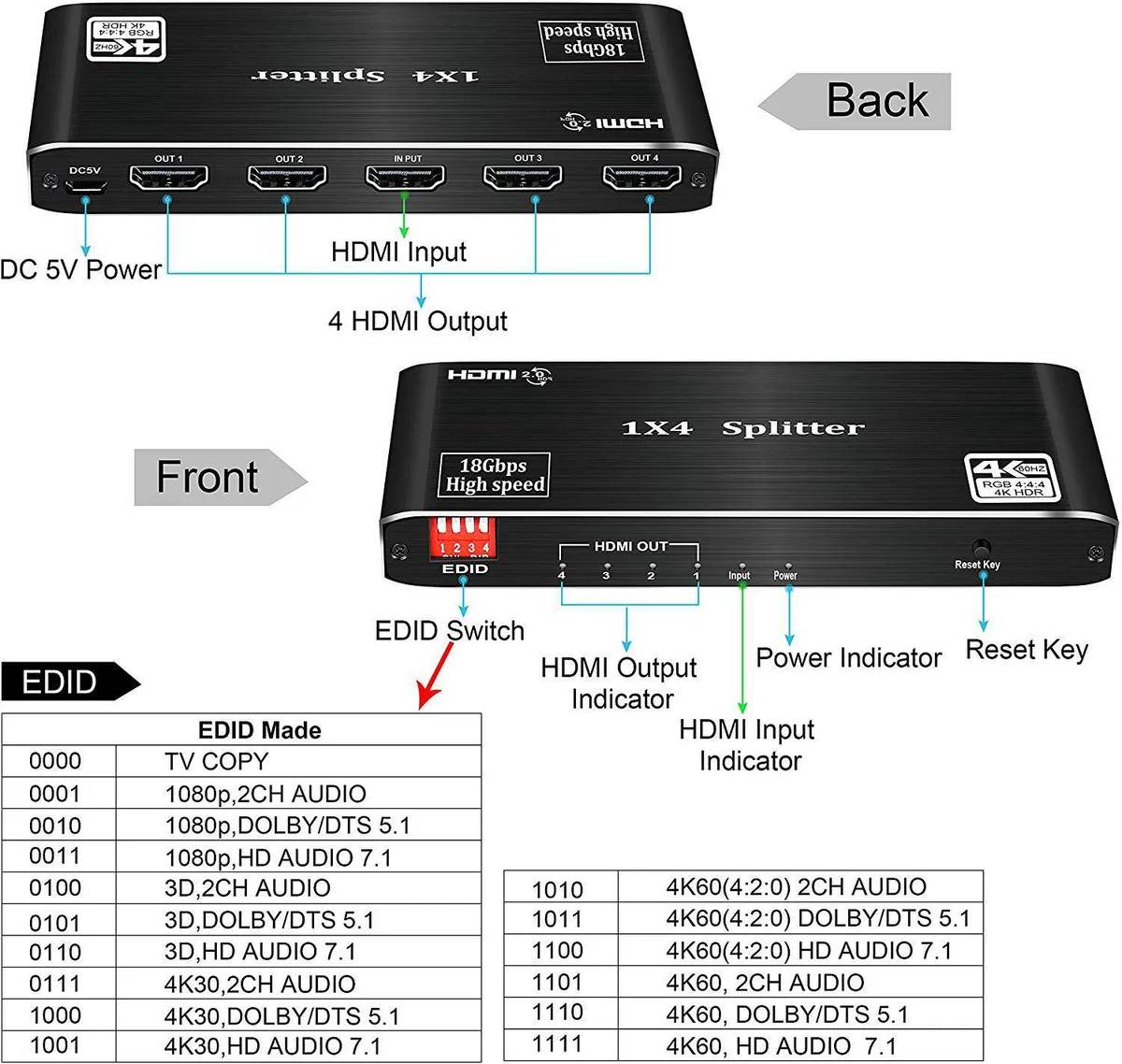

The device converts between HDCP 1.4 and 2.2 in either direction, letting newer 4K sources work with older displays and vice versa. EDID management ensures the source receives a single, compatible capability set from the four sinks. If your installation needs independent screen content or mixed resolutions, this is not the right part.

Highlights

  • Distributes one HDMI source to four displays simultaneously
  • 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • HDR10 and HDCP 2.2 for protected 4K content
  • 12-bit deep colour and full 3D video support
  • Transmits 4K up to 26 ft in and 50 ft out

Specifications

BrandESTONE
SeriesOZF3
ModelOZF3
Part NumberOZF3
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
Supports standard Audio,DSD Audio and HD(HBR)Audio.
Supports HDCP 1.4 to HDCP2.2 conversion.
Supports HDCP 2.2 to HDCP1.4 conversion.
Supports on-chip 512 byte E-DDC EDID RAM for input port.
Supports hot plug-play.
Support 18.5 Gbps rate
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images)
4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsHDMI Splitter x1
User Instruction x1
Power Adapter x1

Questions about this item

Will the splitter pass 4K 60 Hz 4:4:4 from my laptop to four monitors without downscaling?

Yes, the unit supports 4K×2K at 60 Hz with RGB 4:4:4 chroma subsampling and 18.2 Gbps bandwidth across all four HDMI outputs.

How can I verify the splitter is maintaining HDCP 2.2 handshake on all four ports?

Each connected display should show protected 4K content without flicker or green screens; if any screen drops to 1080p or blanks, the HDCP chain on that port has failed.

Which cables and power supply are included, and do I need to buy anything else?

The box contains the splitter, a user instruction sheet, and a power adapter; four HDMI cables are not included and must be purchased separately.
