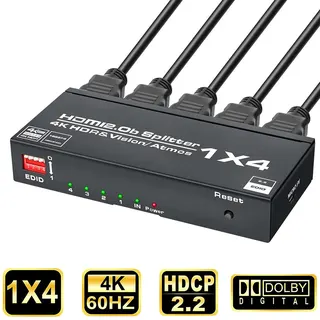

Black rectangular HDMI splitter with four output ports

ESTONE

ESTONE OZF3-1 1x4 HDMI 2.0 Splitter 4K@60Hz Amplifier Support Xbox PS4 PS3 Fire Stick Roku Blu-Ray

SKU CH-NK2A-JCY7K

Distributes one HDMI source to four displays at 4K 60 Hz with HDR 10, 3D and HDCP 2.2 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • Specifications1x4 HDMI splitter with EDID Supports 4K 60Hz HDCP 2.2 and HD
  • One source drives four displays simultaneously
  • 2 Gbps bandwidth carries 4K at 60 Hz
  • 1080p at 120 Hz for fast motion clarity
  • 16 EDID modes ensure wide sink compatibility
  • 8/10/12-bit deep colour with HDR 10 and 3D support

ESTONE OZF3-1 HDMI 2.0 Splitter

The ESTONE OZF3-1 is a 1x4 HDMI 2.0b splitter that duplicates one source signal to four displays simultaneously. It supports resolutions up to 3840 x 2160 at 60Hz with HDR 10 and 3D video formats. The unit handles 8, 10 and 12 bit deep colour and RGB 4:4:4 sampling for accurate image reproduction.

Build integration with EDID and HDCP

The splitter includes 16 EDID modes to maintain compatibility with varied display combinations and supports HDCP 1.1 through 1.4 plus HDCP 2.2 for protected content. It requires USB power via the included adapter and accepts AWG26 standard cables. At 1080p the signal reaches 50ft, while 4K signals travel up to 26ft without degradation.

Suited for multi-display duplication

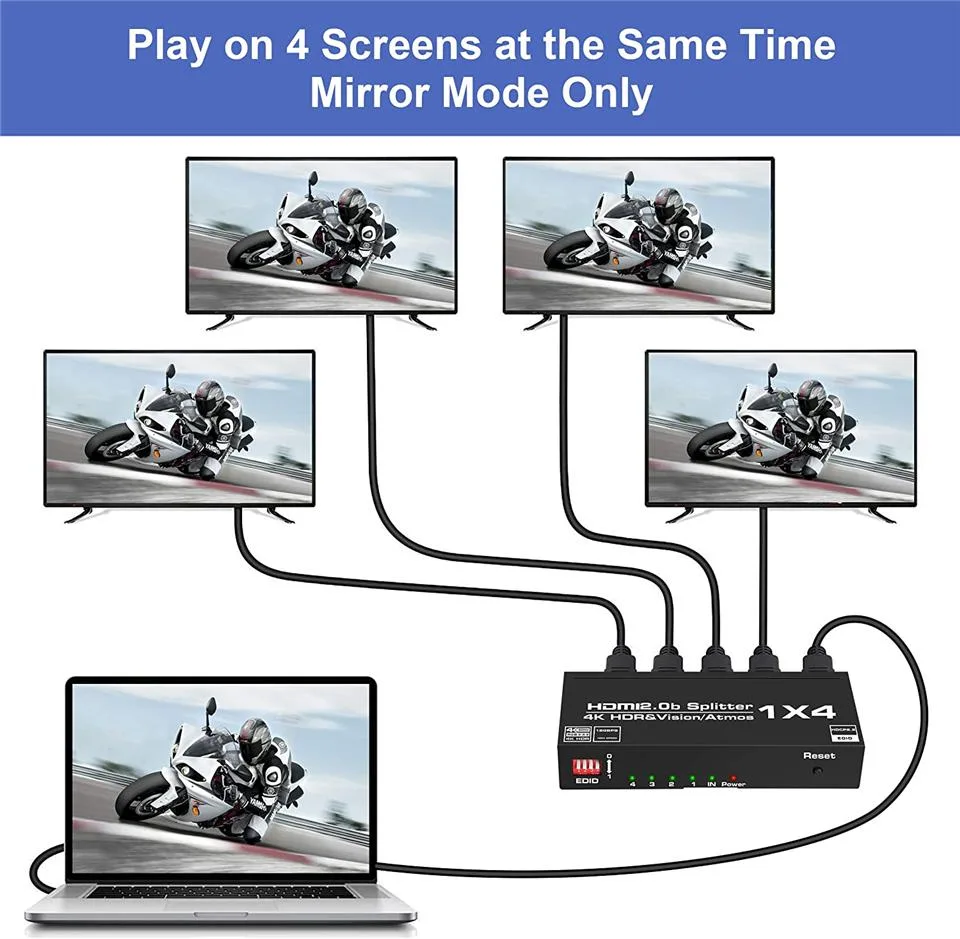

This unit suits installers needing identical output across four screens for signage, education or home theatre distribution. It does not switch between sources, so buyers who need to select from multiple inputs should look at a switcher instead. Users requiring longer 4K cable runs beyond 26ft will need active extenders or fibre solutions.

Highlights

  • One source drives four displays simultaneously
  • 2 Gbps bandwidth carries 4K at 60 Hz
  • 1080p at 120 Hz for fast motion clarity
  • 16 EDID modes ensure wide sink compatibility
  • 8/10/12-bit deep colour with HDR 10 and 3D support

Specifications

BrandESTONE
SeriesOZF3-1
ModelOZF3-1
Part NumberOZF3-1
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
Specifications1x4 HDMI splitter with EDID
Supports 4K 60Hz
HDCP 2.2 and HDMI 2.0b
HDMI resolution: up to 3840 * 2160 @ 60HZ
Supported video format: 8/10/12 bit deep color
Supports 3D video format
4K 60Hz gives you a high definition visual experience
(Note: With a resolution of 4K, the input is up to 8 m and the output up to 15 m)
Support EDID

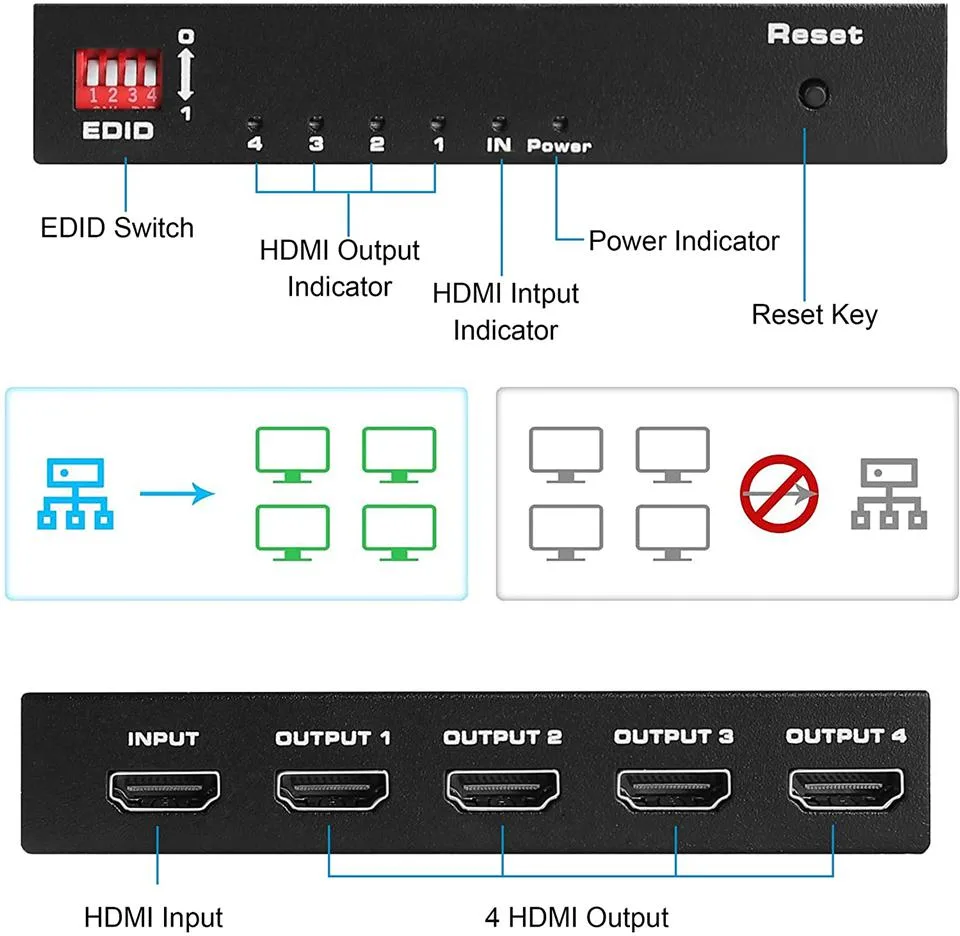

The 4 HDMI output ports all support 4K downscaling to 1080P. To do this, you need to use the EDID switch or the scaler switch on the front.
For more information on EDID and scaler settings, please refer to the images and instructions for our products
Please n
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI cable splitter 4K@60hz allows you to display ONE HDMI Source on FOUR screens, Support RGB 4:4:4/RGB8:8:8, 4K@60HZ/1080P@120Hz super clear screen, make the picture clearer and more realistic. With the AWG26(19+1) HDMI standard cable, When the resolution is 1080P or below, input and output up to 50ft(15m), When the resolution is 4K, input up and output to 26ft(8m). Note: this 4K@60Hz HDMI splitter is not a HDMI switcher, it will not let you switch multiple HDMI source on 1 TV.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x4 HDMI 2.0 Splitter
USB Power adapter x1
User Manual x1

Questions about this item

How far can I run 4K 60 Hz signals over HDMI cables from the OZF3-1 splitter?

At 4K 60 Hz the splitter supports input and output cables up to 26 ft (8 m); at 1080p or below the distance extends to 50 ft (15 m).

Does the ESTONE OZF3-1 need a separate power supply for continuous operation?

Yes, the unit ships with a USB power adapter that must be connected for the splitter to function.

What source device and cables are required to use the 1×4 HDMI 2.0b splitter?

You need one HDMI 2.0b source (such as a console, streamer or Blu-ray player) and up to four HDMI cables to connect the displays.
