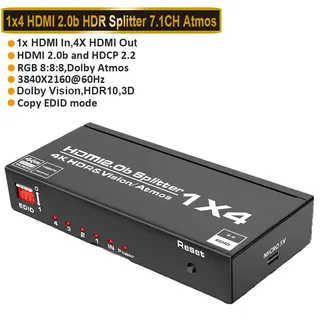

Black rectangular HDMI splitter with one input and four output ports

ESTONE

ESTONE OZF3-1 1x4 HDMI 2.0 Splitter 4K@60Hz

SKU CH-RAQR-ATEGN

Splits one HDMI source to four displays at 4K 60 Hz with HDR 10, 3D and 18.2 Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • Specifications1x4 HDMI splitter with EDID Supports 4K 60Hz HDCP 2.2 and HD
  • Distributes one source to four displays with HDMI 2.0b
  • Delivers 4K at 60 Hz with HDR 10 and 3D support
  • Handles 18.2 Gbps bandwidth for RGB 4:4:4 at 4K 60 Hz
  • Supports 16 EDID modes for broad display compatibility
  • Runs 50 ft at 1080p or 26 ft at 4K with standard cable

1x4 HDMI 2.0 Splitter for 4K@60Hz Distribution

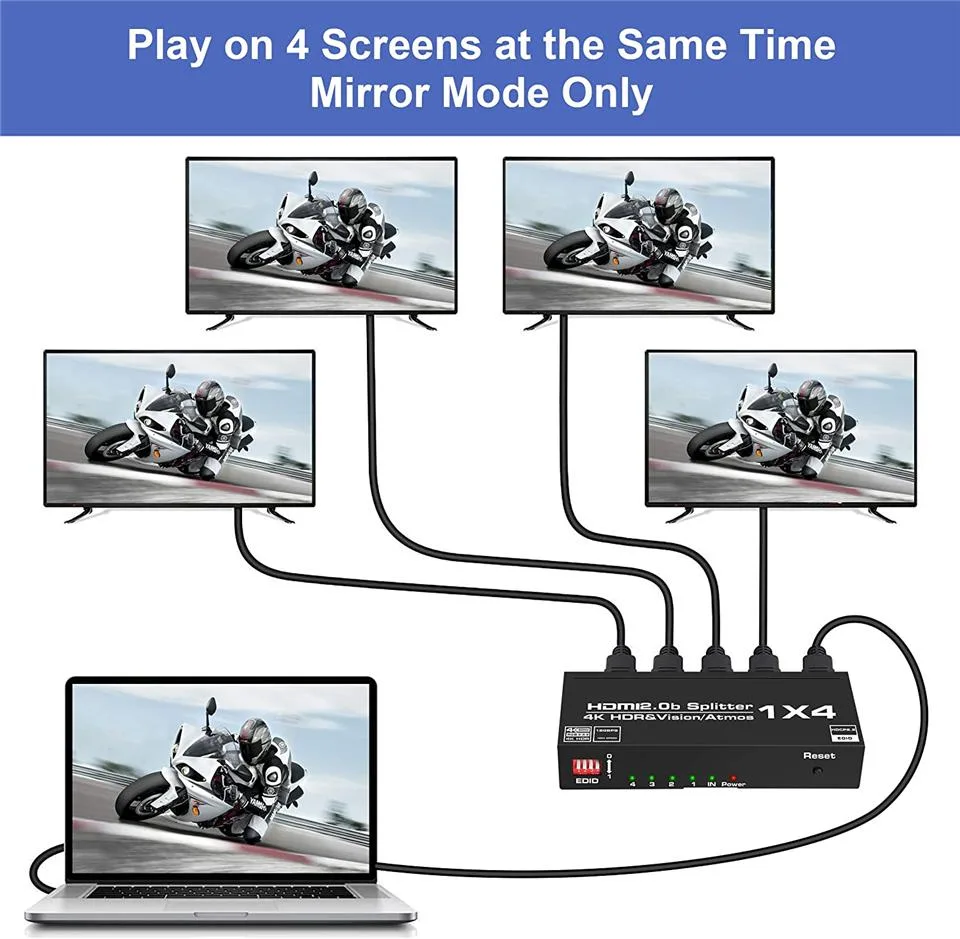

The ESTONE OZF3-1 takes a single HDMI source and duplicates it across four displays simultaneously. It supports HDMI 2.0b and HDCP 2.2 for protected 4K content at 60Hz. The unit handles 8, 10 and 12 bit deep colour plus HDR10 and 3D video formats. Audio pass-through covers LPCM, Dolby TrueHD and DTS-HD Master Audio up to 7.1 channels.

18.2Gbps Bandwidth Enables 4K@60Hz 4:4:4 Output

An 18.2Gbps bandwidth ceiling allows full 4:4:4 chroma sampling at 3840 x 2160 resolution and 60Hz refresh. Lower resolutions such as 1080p can reach 120Hz or 144Hz on compatible displays. The splitter includes sixteen EDID modes to stabilise handshakes with varied sinks. HDCP 1.1 through 1.4 are also supported alongside 2.2.

Suits Multi-Display Signage and Simulcast Setups

Installers needing one source mirrored to four screens in lobbies, classrooms or control rooms will find the 1x4 topology a direct fit. The package includes a USB power adapter for stable operation. Buyers who need to switch between several sources on one display should look at a matrix or switcher instead. Users requiring cable runs beyond 26ft at 4K or 50ft at 1080p will need active fibre extenders.

Highlights

  • Distributes one source to four displays with HDMI 2.0b
  • Delivers 4K at 60 Hz with HDR 10 and 3D support
  • Handles 18.2 Gbps bandwidth for RGB 4:4:4 at 4K 60 Hz
  • Supports 16 EDID modes for broad display compatibility
  • Runs 50 ft at 1080p or 26 ft at 4K with standard cable

Specifications

BrandESTONE
SeriesOZF3-1
ModelOZF3-1
Part NumberOZF3-1
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
Specifications1x4 HDMI splitter with EDID
Supports 4K 60Hz
HDCP 2.2 and HDMI 2.0b
HDMI resolution: up to 3840 * 2160 @ 60HZ
Supported video format: 8/10/12 bit deep color
Supports 3D video format
4K 60Hz gives you a high definition visual experience
(Note: With a resolution of 4K, the input is up to 8 m and the output up to 15 m)
Support EDID

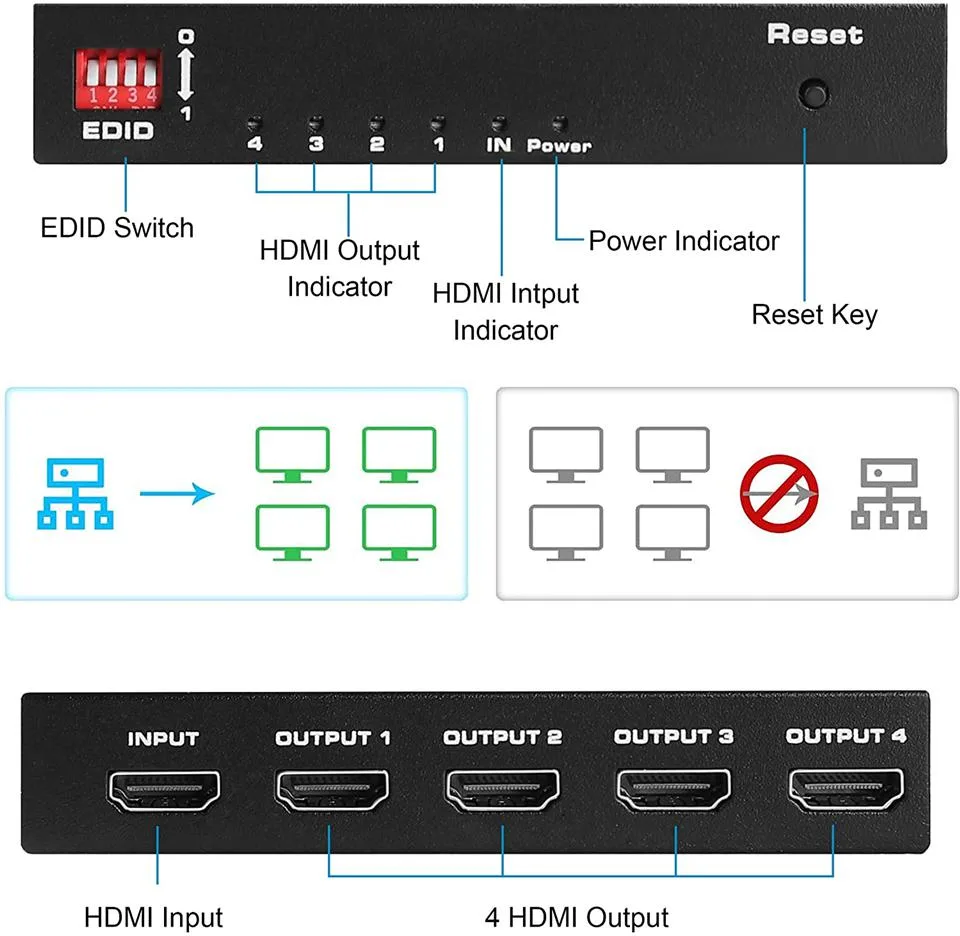

The 4 HDMI output ports all support 4K downscaling to 1080P. To do this, you need to use the EDID switch or the scaler switch on the front.
For more information on EDID and scaler settings, please refer to the images and instructions for our products
Please n
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI cable splitter 4K@60hz allows you to display ONE HDMI Source on FOUR screens, Support RGB 4:4:4/RGB8:8:8, 4K@60HZ/1080P@120Hz super clear screen, make the picture clearer and more realistic. With the AWG26(19+1) HDMI standard cable, When the resolution is 1080P or below, input and output up to 50ft(15m), When the resolution is 4K, input up and output to 26ft(8m). Note: this 4K@60Hz HDMI splitter is not a HDMI switcher, it will not let you switch multiple HDMI source on 1 TV.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x4 HDMI 2.0 Splitter
USB Power adapter x1
User Manual x1

Questions about this item

What does 4K@60Hz actually deliver when the splitter is connected to four displays?

Each of the four outputs can show 3840 x 2160 at 60 Hz with HDR 10 and 8/10/12-bit deep colour, all fed from the same source simultaneously.

How does the HDMI 2.0b interface and 18.2 Gbps bandwidth limit the signal in practice?

The 18.2 Gbps ceiling caps video to 4K@60Hz 4:4:4 or 1080p@120Hz; higher refresh rates or 8K resolutions are not supported.

What physical space and power does the unit need to fit and run?

The box measures 5.59 x 3.15 x 1.26 inches, weighs 3.2 ounces, and draws power from the included USB adapter.
