Small black rectangular HDMI splitter with one input and two outputs

ESTONE

ESTONE OZF2-1 4K@60Hz HDMI Splitter 1x2

SKU CH-MGTY-48BXY

Splits one HDMI source to two displays at 4K 60 Hz with audio, duplicate mode only

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI-compatible version:HDMI-compatible 2.0b HDMI-compatible

Style 2 port - 4K 60Hz

  • 4K@60Hz mirror on two screens from one HDMI source
  • 5Gbps bandwidth carries 24 to 36-bit deep colour and HDR
  • Auto or forced downscale lets 4K and 1080p displays work together
  • Plug-and-play with USB power, no drivers or software needed
  • Compact 5.59×3.15×1.26 inch metal case fits any setup

Signal distribution and duplication

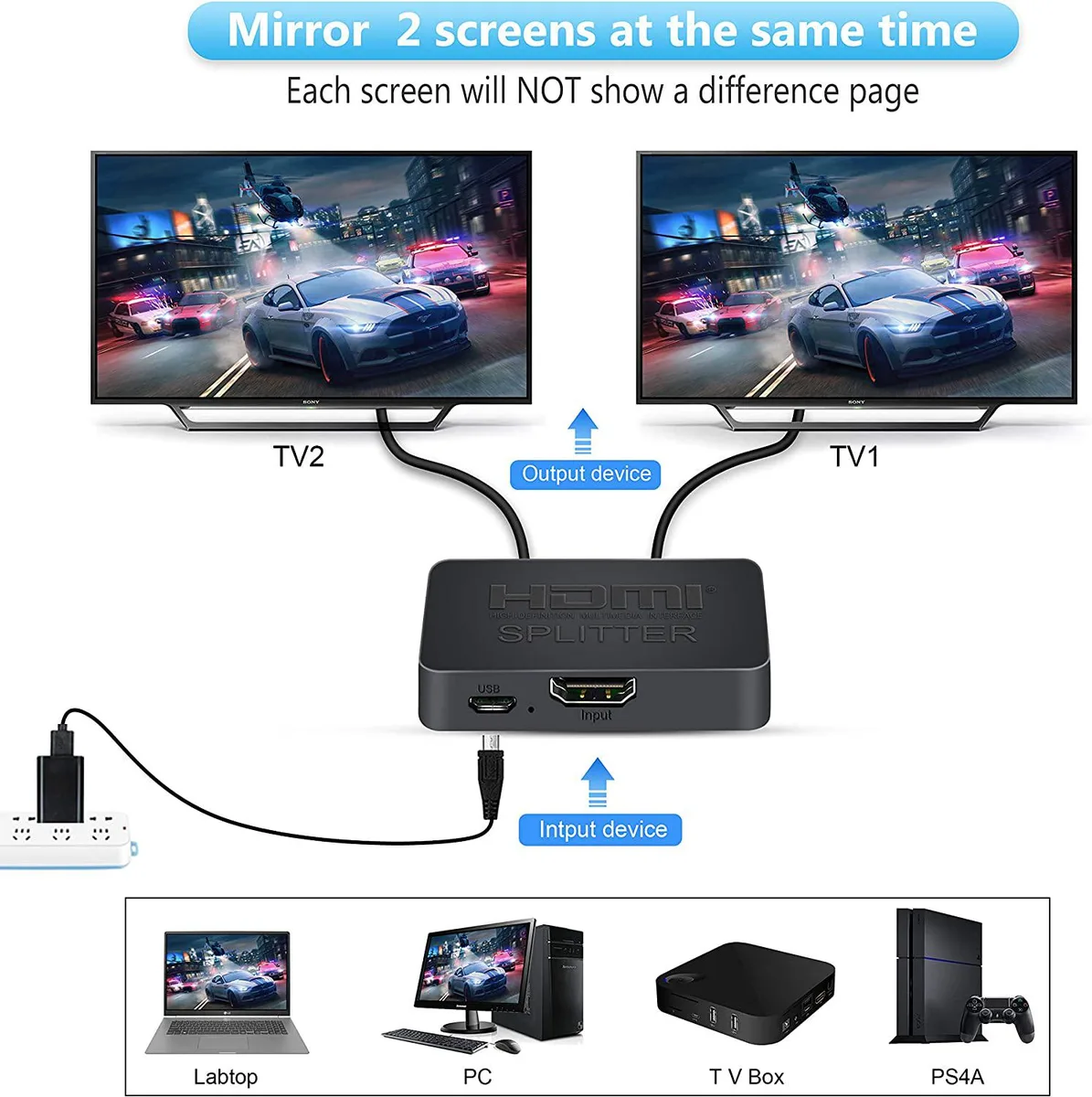

The ESTONE OZF2-1 is a 1x2 HDMI splitter that takes one HDMI 2.0b source and sends the same signal to two displays. It is built for users who need identical output on a pair of screens, such as digital signage, classroom duplication or home-theatre mirroring. The unit handles video and audio together without adding latency. It does not support extended desktop modes or CEC control.

Capacity and headroom

Maximum resolution reaches 3840 x 2160 at 60 Hz with RGB 4:4:4 colour and 24, 30 or 36-bit deep colour. Bandwidth is rated at 18.5 Gbps, so 1080p at 120 Hz also passes through. Mixed output is possible: a 4K source can drive one 4K display and one 1080p display via automatic or forced downscaling. Downscaling from 4K 4:2:2 at 60 Hz to 1080p is not supported. Legacy formats down to 480i are accepted.

Build integration

The splitter measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, making it easy to tuck behind equipment. Power comes from the included USB cable, so no separate mains adapter is required. Connect any standard HDMI source — consoles, PCs, streamers or Blu-ray players — and two HDMI displays. The package includes the splitter, USB cable and user manual.

Highlights

  • 4K@60Hz mirror on two screens from one HDMI source
  • 5Gbps bandwidth carries 24 to 36-bit deep colour and HDR
  • Auto or forced downscale lets 4K and 1080p displays work together
  • Plug-and-play with USB power, no drivers or software needed
  • Compact 5.59×3.15×1.26 inch metal case fits any setup

Specifications

BrandESTONE
SeriesOZF2-1
ModelOZF2-1
Part NumberOZF2-1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI-compatible version:HDMI-compatible 2.0b
HDMI-compatible resolution:UP TO 4K/60Hz
Support video color format:24bit/deep color 30bit,36bit
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:225MHz
Max baud rate:18.5Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG26 HDMI-compatible standard cable
Output cable distance:20m AWG26 HDMI-compatible standard cable
Max working current:350mA
Operating Temperature range:(-15 to +55)
Operating Humidity range:5 to 90%RH (No Condensation)
Dim

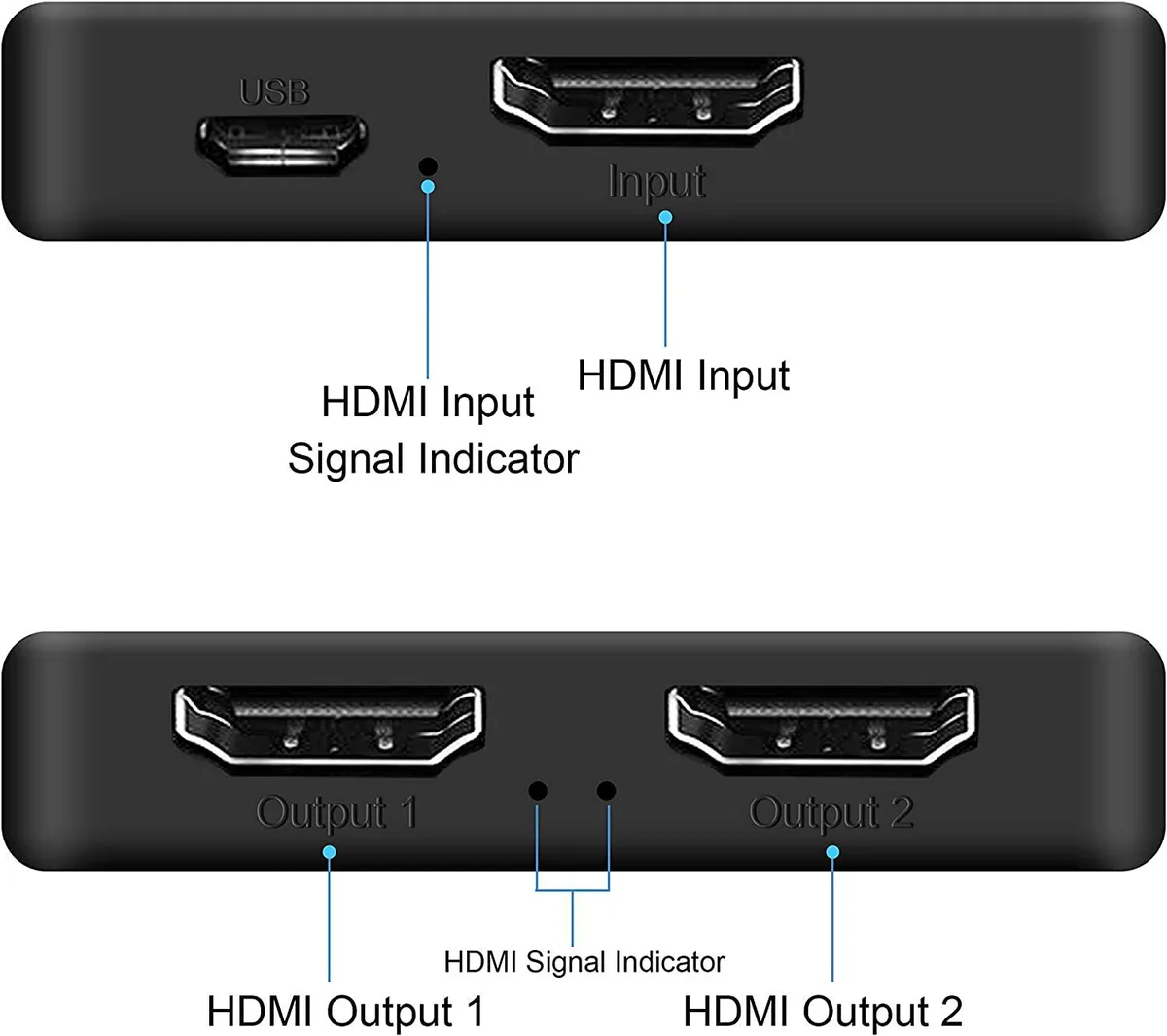

Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth2.25Gbps
FeaturesPortable, slim design
Supports 4K@60Hz, 3D, and HDMI
4K@60Hz resolution, Full HD 1080p
One HDMI input signal splits into two HDMI sink devices
Support Full HD (1080p) and 3D images
Support Blue-Ray and DVD
Support signal retiming
Support input up to 15metres with AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Splitter 1x2
1 X USB Cable
1 X User Manual

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the ESTONE OZF2-1 pass 4K@60Hz from my new source to an older 1080p display without manual switching?

Yes, the splitter supports mixed outputs and auto downscales the 4K signal to 1080p for the older display while keeping 4K@60Hz on the other output.

How can I confirm the splitter is transmitting 4K@60Hz HDR correctly after connecting both displays?

Check each display's on-screen info for 3840 x 2160 at 60 Hz with HDR active, and verify audio formats like DTS-HD or Dolby TrueHD are detected by your receiver.

Does the package include HDMI cables for the two outputs, or only the splitter and USB power cable?

The box contains the 1x2 splitter, one USB power cable, and a user manual; HDMI cables for the input and both outputs must be purchased separately.
