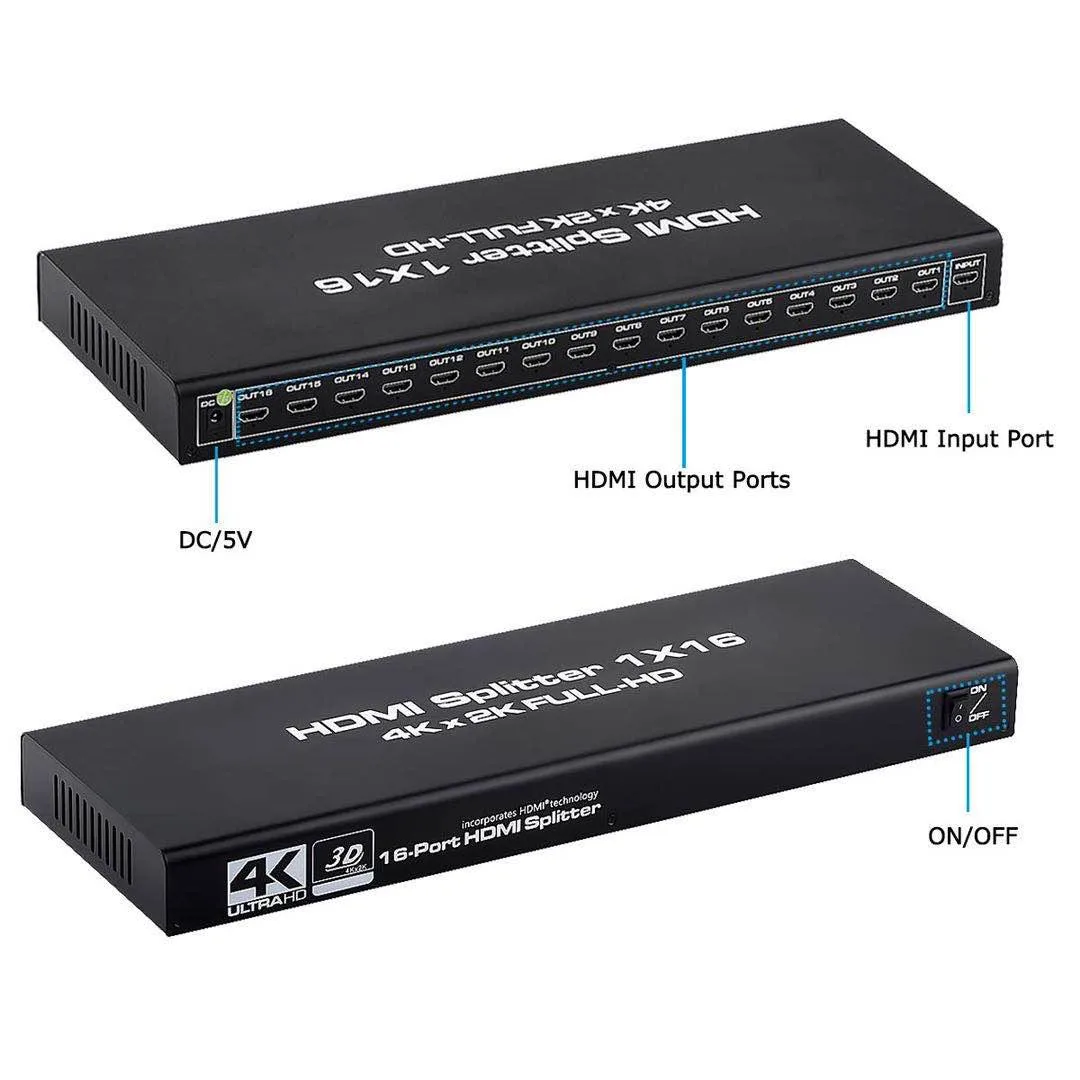

Black rectangular HDMI splitter with 16 output ports and power adapter

ESTONE

ESTONE OZF13 1x16 HDMI video splitter 4K 30Hz

SKU CH-5F41-Q1S08

Distributes one HDMI source to 16 displays at 4K 30 Hz with included power supply

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports16
  • AudioYes
  • ColorBlack
  • SpecificationsMax Bandwidth:320MHz Max Transmission Bandwidth:3.2Gbps HDMI
  • Distributes one HDMI source to 16 displays simultaneously
  • Delivers 4K resolution at 30 Hz via HDMI 1.4b
  • Supports 12-bit deep colour and full 3D video
  • Handles audio formats including DTS-HD and Dolby TrueHD
  • Includes 12 V 5 A power adapter for stable operation

One-to-sixteen HDMI splitter

The ESTONE OZF13 takes a single HDMI source and mirrors it to sixteen displays simultaneously. It is built for venues such as trade shows, conference rooms, classrooms and home theatres where identical content must reach many screens. The unit handles video resolutions up to 3840 x 2160 at 30 Hz and passes multi-channel audio formats including DTS-HD and Dolby TrueHD. It is not a matrix switch, so it cannot show different images on each output.

Power supply and manual included

A 12 V 5 A DC adapter ships in the box, providing the splitter with its own power source so it does not draw current from the HDMI source. The bundled user manual walks through basic hookup and LED status indicators. No driver installation or software configuration is required on the host device. The external brick eliminates the common issue of under-powered splitters that fail when long cables are attached.

Plug-and-play with cable-length limits

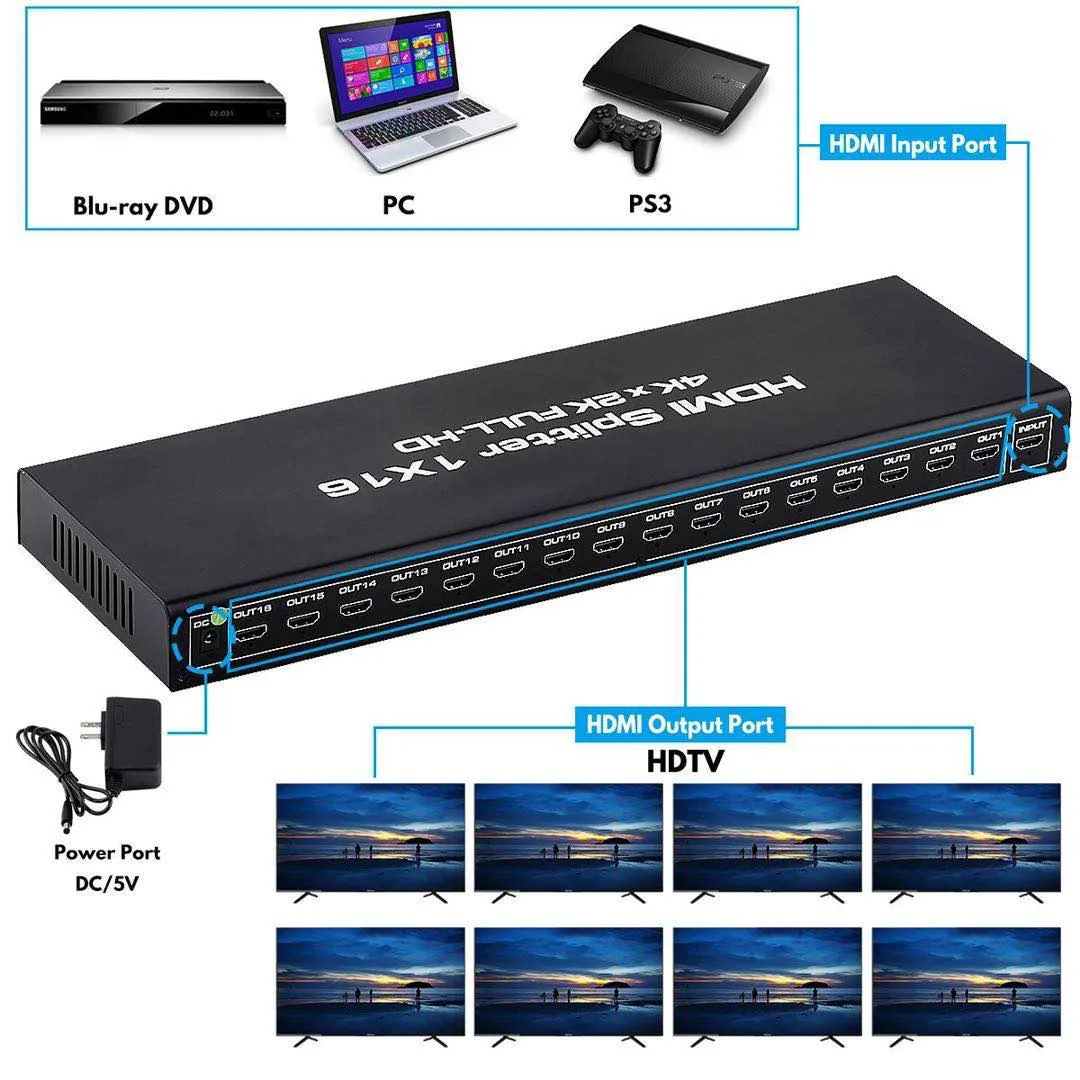

Connect the source to the single input, attach up to sixteen displays to the outputs, then apply power. The unit negotiates EDID automatically and begins mirroring within seconds. Installers should keep total cable runs within the bandwidth capability of HDMI 1.4b to avoid signal drop-out at 4K resolution. Long passive cables beyond the spec limit are the most frequent cause of blank screens or intermittent flicker.

Highlights

  • Distributes one HDMI source to 16 displays simultaneously
  • Delivers 4K resolution at 30 Hz via HDMI 1.4b
  • Supports 12-bit deep colour and full 3D video
  • Handles audio formats including DTS-HD and Dolby TrueHD
  • Includes 12 V 5 A power adapter for stable operation

Specifications

BrandESTONE
SeriesOZF13
ModelOZF13
Part NumberOZF13
TypeHDMI Splitters
Changer TypeHDMI
Ports16
AudioYes
ColorBlack
SpecificationsMax Bandwidth:320MHz
Max Transmission Bandwidth:3.2Gbps
HDMI Version: HDMI 1.4b
Power Adapter Format: DC 12V/5A
Support audio format: DTS-HD/Dolby-trueHD/ DTS/Dolby-AC3/DSD
Input Connector1 HDMI input
Output Connector16 HDMI Output
Maximum Resolutions3840 x 2160
FeaturesSupports high resolutions up to ultra HD 4Kx2K, including 480i/p, 576i/p, 720i/p, 1080i, 1080p;
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K video;
Supports audio format such as LPCM7.1, Dolby True HD, Dolby DTS Plus and DTS-HD Audio;
Input support: Computer, PS3, PS4, Xbox, Blu-ray DVD player, STB etc;
Output support: projectors, Full HDTVs, TV, monitor, etc.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 4K 16 Port HDMI Splitter
1 x 12V DC Power Supply
1 x User Manual

Questions about this item

Does the OZF13 1x16 HDMI splitter need any user-serviceable parts replaced over time?

The unit has no user-serviceable parts; if the included 12 V 5 A power adapter fails it can be swapped with an equivalent DC supply.

What bandwidth ceiling limits the ESTONE OZF13 when driving all sixteen outputs continuously?

The HDMI 1.4b chipset caps total throughput at 3.2 Gbps, so 4K at 30 Hz is the highest sustained format across every port.

How much heat or fan noise does the ESTONE OZF13 produce during all-day operation?

The aluminium enclosure runs passively; it stays warm but silent with the supplied 12 V 5 A adapter.
