Black rectangular HDMI splitter with 16 output ports and power adapter

ESTONE

ESTONE OZF13 16-port HDMI video splitter 4K 30Hz

SKU CH-J6BH-CHXGA

Distributes one HDMI source to sixteen displays at up to 4K 30 Hz with included 12 V power adapter

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports16
  • AudioYes
  • ColorBlack
  • SpecificationsMax Bandwidth:320MHz Max Transmission Bandwidth:3.2Gbps HDMI
  • Mirror one source to sixteen screens simultaneously
  • 4K resolution at 30 Hz for sharp ultra HD detail
  • HDMI 1.4b with 3.2 Gbps bandwidth handles high-quality video
  • Supports 12-bit deep colour and full 3D formats
  • Includes 12 V 5 A power adapter for stable operation

ESTONE OZF13 16-port HDMI splitter 4K 30Hz

The ESTONE OZF13 splits one HDMI source across 16 displays at up to 3840 x 2160 resolution and 30Hz refresh rate. It handles 12-bit deep colour and 3D video formats while passing through audio such as DTS-HD and Dolby TrueHD. The unit draws power from an included 12V 5A adapter for reliable distribution in commercial and home installations.

Replaces smaller 1-in-4 or 1-in-8 splitters

Moving to a 16-output unit is justified when a single source must feed many screens simultaneously, such as digital signage walls, lecture halls or security monitoring stations. The 3.2 Gbps bandwidth and HDMI 1.4b compliance maintain 4K 30Hz across all ports without the signal degradation that daisy-chaining lesser splitters would introduce. It is not suited for extending a desktop across independent displays.

Rack or shelf mounting with supplied power supply

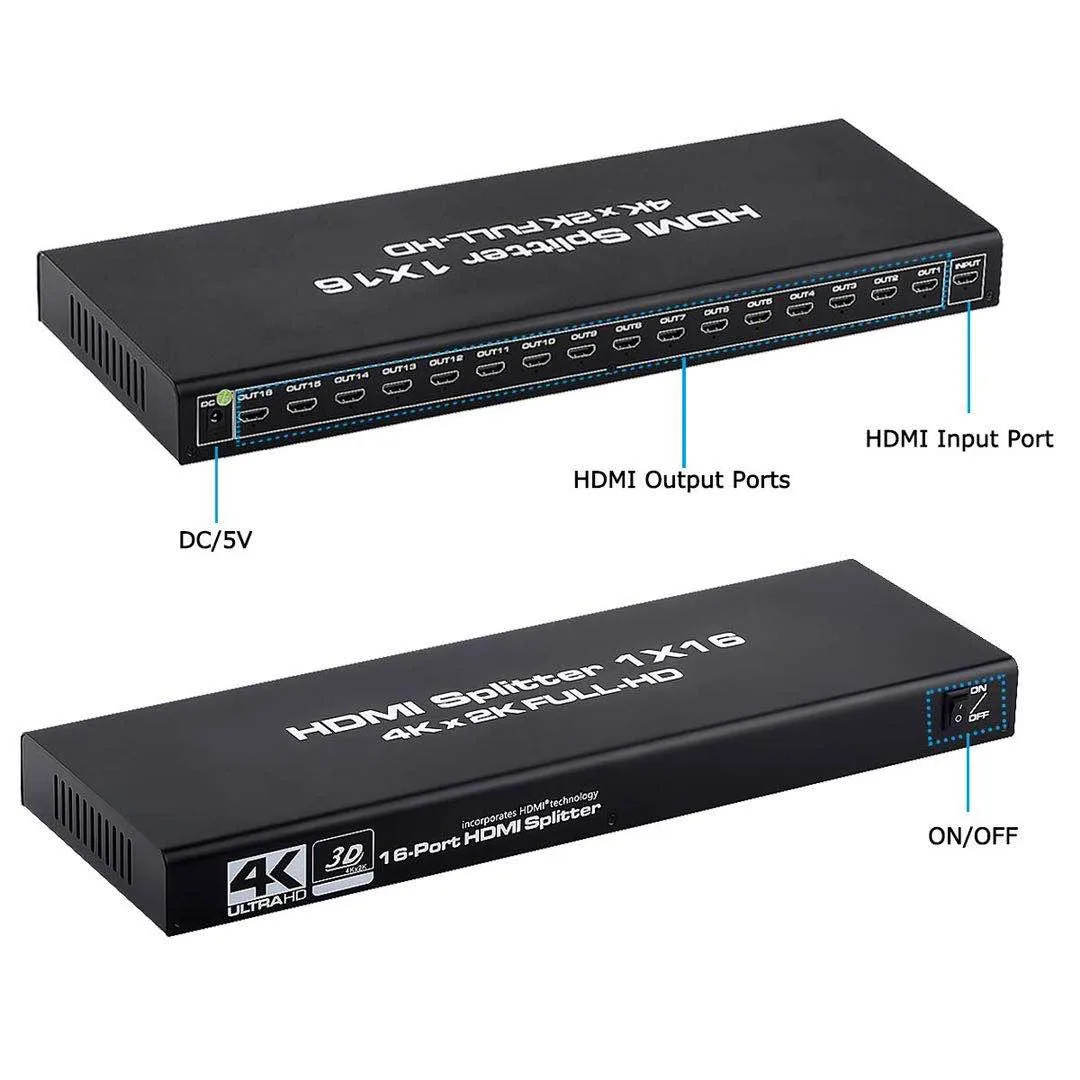

Connect the source to the single input, attach up to 16 displays to the outputs, and plug in the DC adapter; no drivers or configuration are required. Ensure cables are certified for the desired resolution and length, as excessive runs or low-grade leads are the most common cause of drop-outs or HDCP handshake failures on multi-output installations.

Highlights

  • Mirror one source to sixteen screens simultaneously
  • 4K resolution at 30 Hz for sharp ultra HD detail
  • HDMI 1.4b with 3.2 Gbps bandwidth handles high-quality video
  • Supports 12-bit deep colour and full 3D formats
  • Includes 12 V 5 A power adapter for stable operation

Specifications

BrandESTONE
SeriesOZF13
ModelOZF13
Part NumberOZF13
TypeHDMI Splitters
Changer TypeHDMI
Ports16
AudioYes
ColorBlack
SpecificationsMax Bandwidth:320MHz
Max Transmission Bandwidth:3.2Gbps
HDMI Version: HDMI 1.4b
Power Adapter Format: DC 12V/5A
Support audio format: DTS-HD/Dolby-trueHD/ DTS/Dolby-AC3/DSD
Input Connector1 HDMI input
Output Connector16 HDMI Output
Maximum Resolutions3840 x 2160
FeaturesSupports high resolutions up to ultra HD 4Kx2K, including 480i/p, 576i/p, 720i/p, 1080i, 1080p;
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K video;
Supports audio format such as LPCM7.1, Dolby True HD, Dolby DTS Plus and DTS-HD Audio;
Input support: Computer, PS3, PS4, Xbox, Blu-ray DVD player, STB etc;
Output support: projectors, Full HDTVs, TV, monitor, etc.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 4K 16 Port HDMI Splitter
1 x 12V DC Power Supply
1 x User Manual

Questions about this item

What are the dimensions of the ESTONE OZF13 splitter so I can check if it fits my rack or shelf?

The unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, making it compact enough for most desktop or rackmount setups.

How do I power the ESTONE OZF13 and which step is often missed during setup?

Connect the included 12V/5A DC adapter to the splitter before linking any HDMI cables; forgetting to power it first is the most common reason for no signal on the 16 outputs.

What maintenance or replacement should I plan for with the ESTONE OZF13 over time?

The external 12V/5A power supply is the only replaceable component; keep a spare adapter on hand in case the original fails after extended use.
