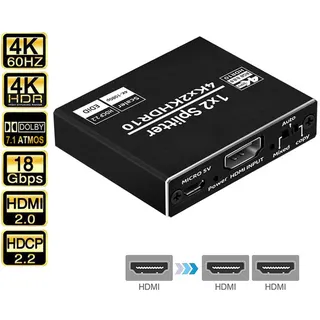

Black metal box with one HDMI input and two HDMI outputs, gold-plated ports, 5.59 by 3.15 by 1.26 inches

ESTONE

ESTONE OZF12 HDMI Splitter 1 in 2 Out 4K@60Hz Metal Case

SKU CH-3DM8-PKJCH

Splits one HDMI source to two identical displays at 4K@60Hz with HDCP 2.2 support and 18Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • One source drives two identical displays simultaneously
  • 4K at 60 Hz with 18 Gbps bandwidth and 4:4:4 colour
  • Metal enclosure dissipates heat for stable long-distance signal up to 49 ft
  • HDCP 2.2 decryption on input with non-encrypted output for broad compatibility
  • Supports 7.1-channel lossless audio including DTS-HD and Dolby TrueHD

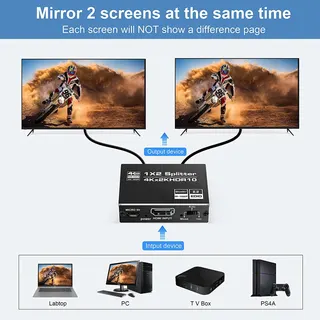

One Source to Two Identical Displays

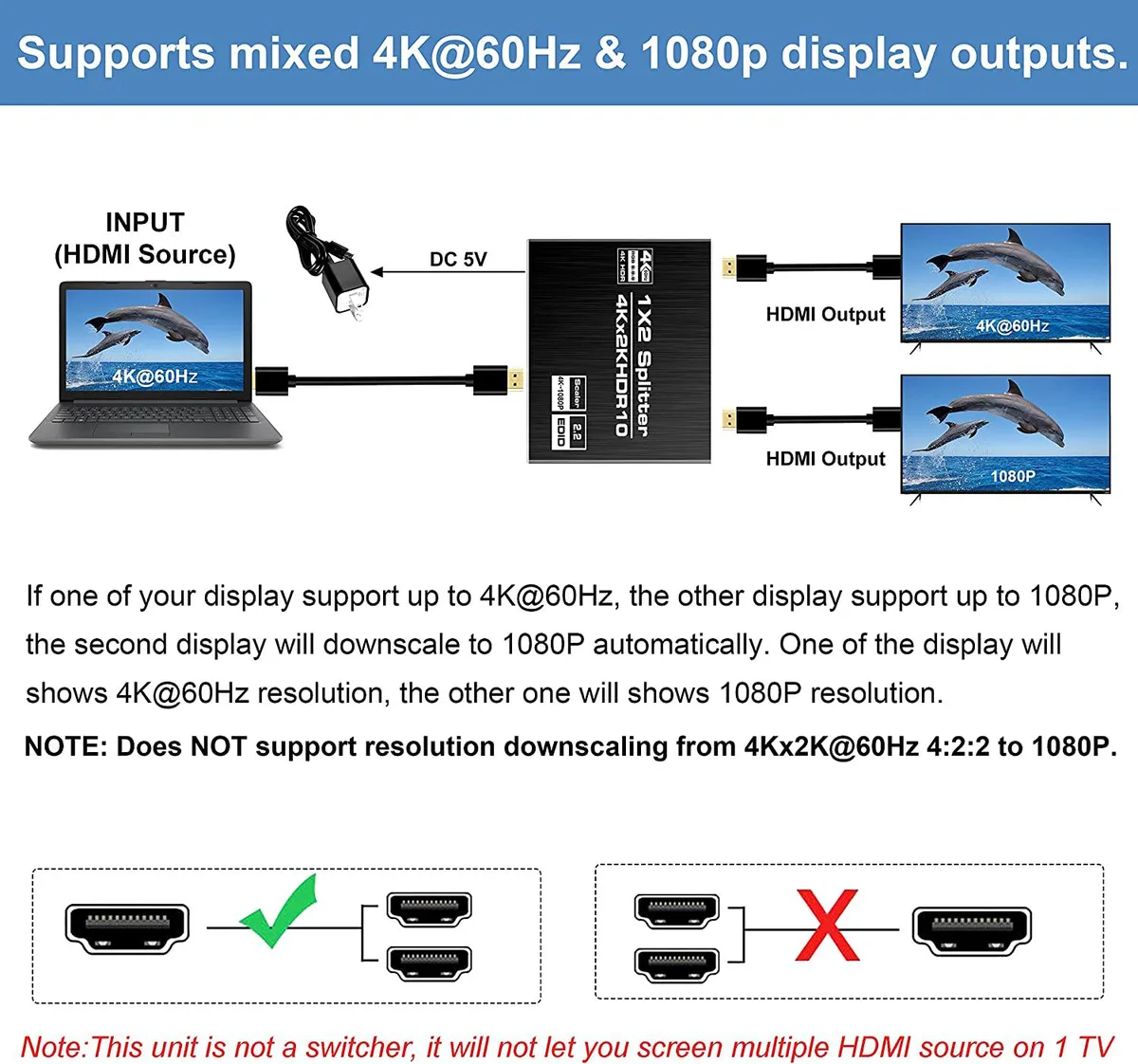

The ESTONE OZF12 takes a single HDMI input and mirrors it to two HDMI outputs at up to 4K@60Hz. It supports HDMI 2.0b and HDCP 2.2, handling 24-bit, 30-bit, 36-bit and 48-bit deep colour along with audio formats such as DTS-HD, Dolby TrueHD and LPCM 7.1. The splitter is designed for duplicate mode only and does not extend desktops across screens.

Metal Enclosure with Powered Operation

A black metal case provides durability and passive heat dissipation for stable signal transfer. The unit requires the included 5V/2A power adapter to operate. With standard AWG22 HDMI cables, input and output runs can each reach 49ft without degradation. Gold-plated connectors resist corrosion during repeated plugging and unplugging.

Upgrade from Passive or Lower-Bandwidth Splitters

Replaces basic 1080p or 4K@30Hz splitters that cannot carry full 18Gbps bandwidth or HDR metadata. The jump is worth it when a 4K@60Hz source such as a modern console, Blu-ray player or streaming box must feed two displays simultaneously without downscaling. It is not for users who need independent content on each screen or signal extension beyond the stated cable lengths.

Highlights

  • One source drives two identical displays simultaneously
  • 4K at 60 Hz with 18 Gbps bandwidth and 4:4:4 colour
  • Metal enclosure dissipates heat for stable long-distance signal up to 49 ft
  • HDCP 2.2 decryption on input with non-encrypted output for broad compatibility
  • Supports 7.1-channel lossless audio including DTS-HD and Dolby TrueHD

Specifications

BrandESTONE
SeriesOZF12
ModelOZF12
Part NumberOZF12
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Video color format: 24bit/deep color 30bit, 36bit, 48bit
Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth: 600MHz
Max baud rate: 18.5Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: <17ft AWG28 HDMI standard cable
Output cable distance: <17ft AWG28 HDMI standard cable
Max working current: 1200mA
Power adapter format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesFully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.
specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP 2.2 specification.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 3840×2160 @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4K@ 60Hz video.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x2 HDMI Splitter 4K@60Hz*1, 5V/2A Power adapter*1

Questions about this item

What HDMI version and bandwidth does the ESTONE OZF12 support?

It complies with HDMI 2.0b and provides 18Gbps bandwidth for 4K@60Hz 4:4:4 signals.

What are the exact dimensions and weight of the metal enclosure?

The unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces.

How is the splitter powered and what cable gauge is recommended for 49ft runs?

A 5V/2A adapter is included; use AWG22 (19+1) HDMI cables to reach 49ft on both input and output.
