Small black box with one HDMI input and two HDMI outputs

ESTONE

ESTONE OZF12-2 HDMI Splitter 1x2 Audio Video Distributor Box PS4 Xbox STB Blu-ray

SKU CH-TJ9V-PXAYH

Splits one HDMI source to two displays at 3840×2160@60Hz with HDCP 2.2 and 18Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version:HDMI 2.0 HDMI resolution:up to 3840x2160P/60Hz
  • Sends one source to two 4K displays at 60 Hz
  • 18 Gbps bandwidth keeps 4:4:4 colour pure at 3840 x 2160
  • HDCP 2.2 lets protected 4K streams play on both screens
  • Handles 30, 36 and 48 bit deep colour plus DTS-HD and Dolby TrueHD audio
  • Four EDID modes adapt the signal for consoles, PCs, streamers and Blu-ray players

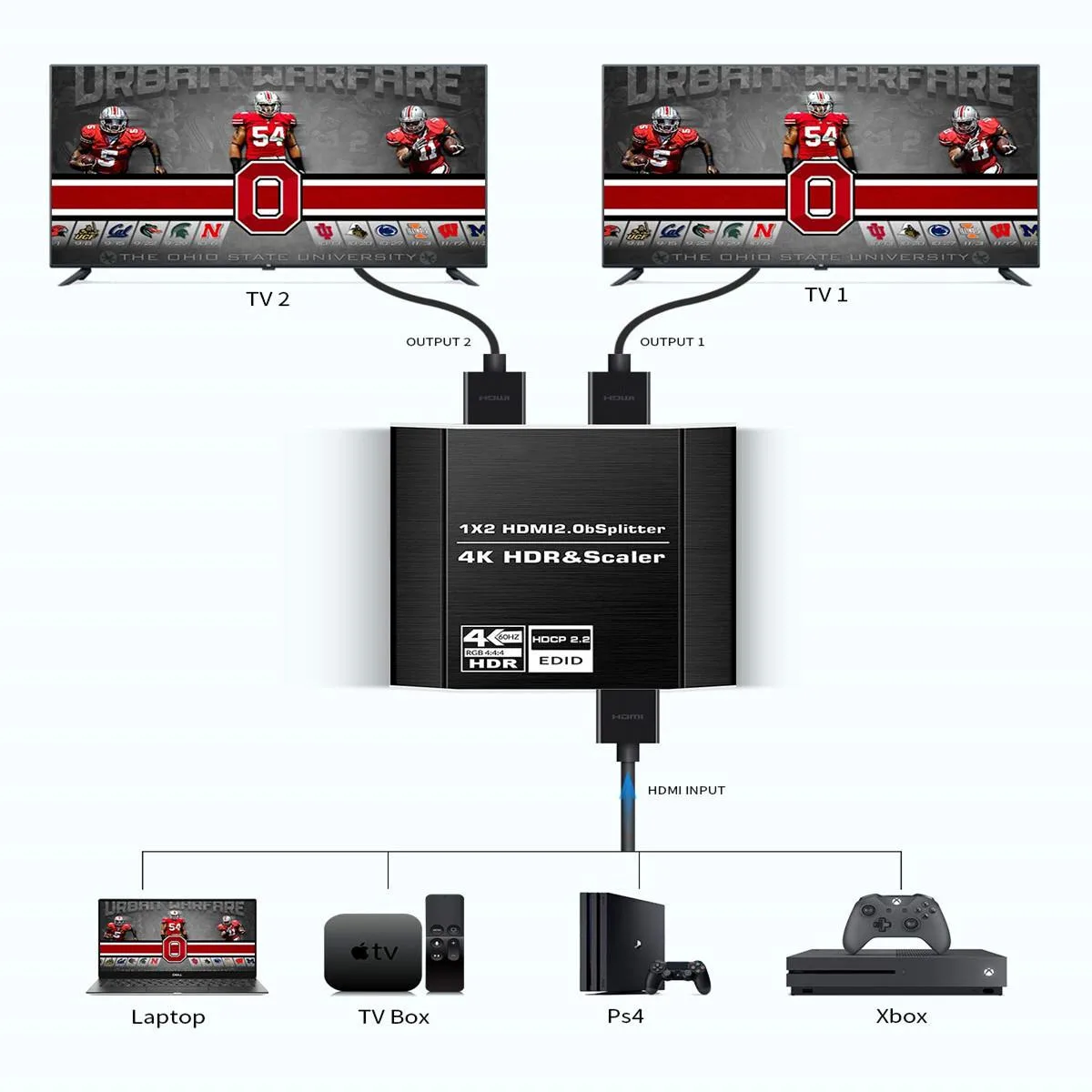

HDMI Splitter 1×2 for Dual Displays

The ESTONE OZF12-2 takes one HDMI source and duplicates it to two screens at up to 3840x2160P/60Hz. It handles 18Gbps bandwidth with HDCP 2.2 compliance and supports deep color up to 48 bit. Audio formats including DTS-HD and Dolby TrueHD pass through unchanged.

Powered Splitter for Home Theatre Builds

The unit requires the included AC power adaptor and standard HDMI cables for each run. It frees the source device from driving multiple cable lengths directly and maintains signal integrity over longer distances. Both outputs show the same picture in either mirror or extend mode.

Replaces Basic Passive Y-Cables

Passive splitters often drop bandwidth or fail with protected content; this active chipset keeps 18Gbps throughput and HDCP 2.2 handshakes stable. The upgrade is worth it when driving two 4K@60Hz displays from a single console, PC or media player. Buyers needing independent images on each screen cannot use this device.

Highlights

  • Sends one source to two 4K displays at 60 Hz
  • 18 Gbps bandwidth keeps 4:4:4 colour pure at 3840 x 2160
  • HDCP 2.2 lets protected 4K streams play on both screens
  • Handles 30, 36 and 48 bit deep colour plus DTS-HD and Dolby TrueHD audio
  • Four EDID modes adapt the signal for consoles, PCs, streamers and Blu-ray players

Specifications

BrandESTONE
SeriesOZF12-2
ModelOZF12-2
Part NumberOZF12-2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version:HDMI 2.0
HDMI resolution:up to 3840x2160P/60Hz
Support video color format:30/36/48 bit deep color
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:1536MHz
Max baud rate:18Gbps
Input cable distance:<5m AWG26 HDMI standard cable
Output cable distance:<5m AWG26 HDMI standard cable
Max working current:1200mA
Power Adapter Format:output: DC5V/1A
Dimension :58x49x11mm
Weight:130g
4K HDMI Splitter 1x2 2160P 60HZ HDMI2.

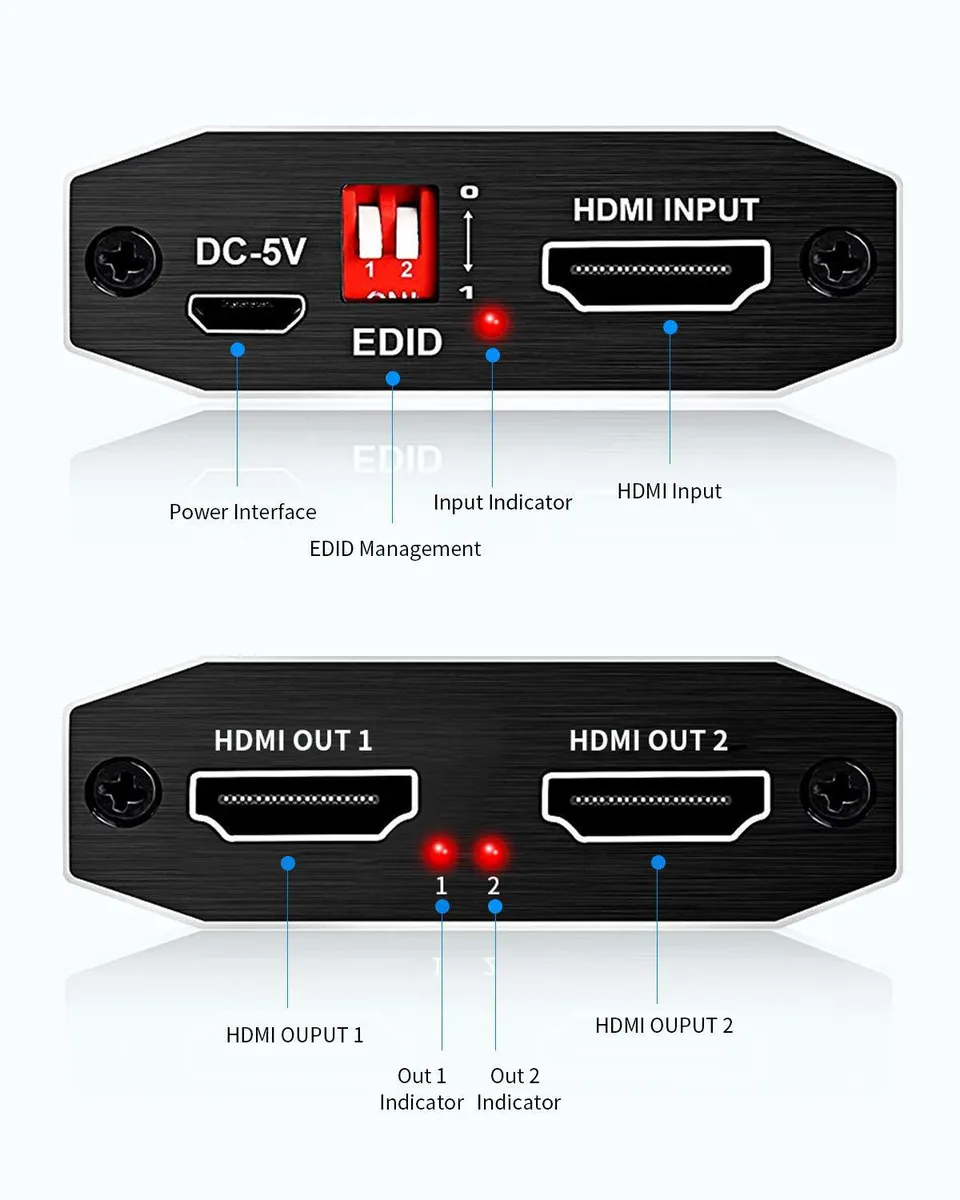

Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2: 4k 1x2 HDMI Splitter distributes 1 HDMI source duplicate to 2 different HDMI displays simultaneously. Transfer impressive and high-definition video and audio without loss and delay. (Duplicate input signal only, NOT support Extend)
High-grade Configuration: The 4K HDMI splitter supports HDCP2.2, HDMI2.0b, EDID, 3D, RGB 4:4:4, Ultra HD Max Resolution 3840*2160 4k@60Hz. The most high-grade configuration gives you the most extreme enjoyment. It support doby vision, but it requires your display device support doby vision, too.
Wide Compability: This 4k HDMI splitter 1
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1.1x2 HDMI 2.0 Splitter HDCP 2.2 x1
2.AC Power Adaptor x1
3.User Manual x1

Questions about this item

Does the 18 Gbps bandwidth handle 4K at 60 Hz without dropping frames during long sessions?

The splitter supports up to 3840 x 2160 at 60 Hz over its 18 Gbps link, so sustained 4K 60 Hz playback stays within the rated bandwidth.

How warm does the unit get and does it need a fan when powered all day?

The box is passively cooled with no fan; it draws power from the included AC adaptor and runs silently, though the metal case will become warm to the touch after extended use.

Which cables and power source must I already have to connect a source and two displays?

You need three HDMI cables — one from the source to the single input and one from each of the two outputs to the displays — plus a mains outlet for the supplied AC adaptor.
