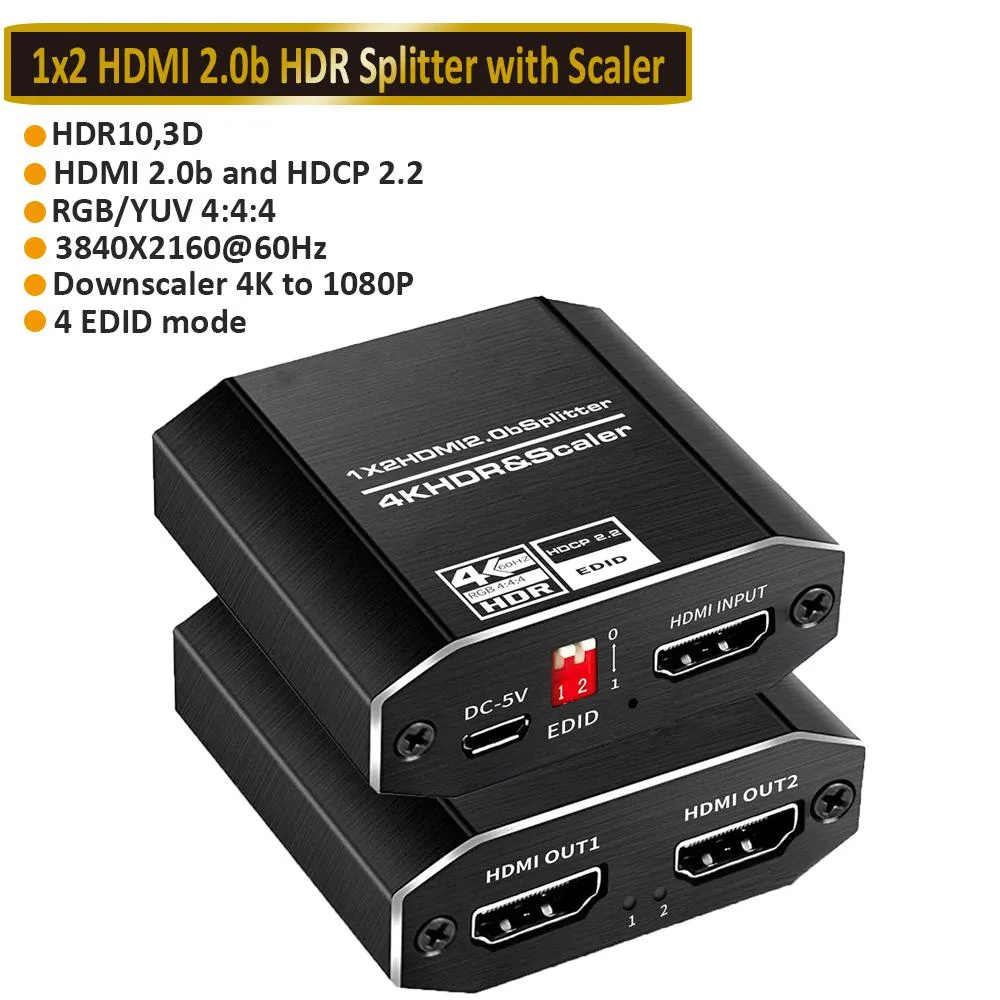

Compact black HDMI splitter box with one input and two output ports

ESTONE

ESTONE OZF12-2 HDMI Splitter 1x2 4K 60Hz 18Gbps

SKU CH-6P5W-EK7DK

Splits one HDMI source to two displays at 3840x2160 60 Hz with 18 Gbps bandwidth, HDCP 2.2, deep colour up to 48 bit and multi-channel audio

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version:HDMI 2.0 HDMI resolution:up to 3840x2160P/60Hz
  • Distributes one source to two 4K displays simultaneously
  • Delivers 4K 60 Hz video with 18 Gbps bandwidth
  • Supports deep colour up to 48 bit for richer gradients
  • Passes high-resolution audio including DTS-HD and Dolby TrueHD

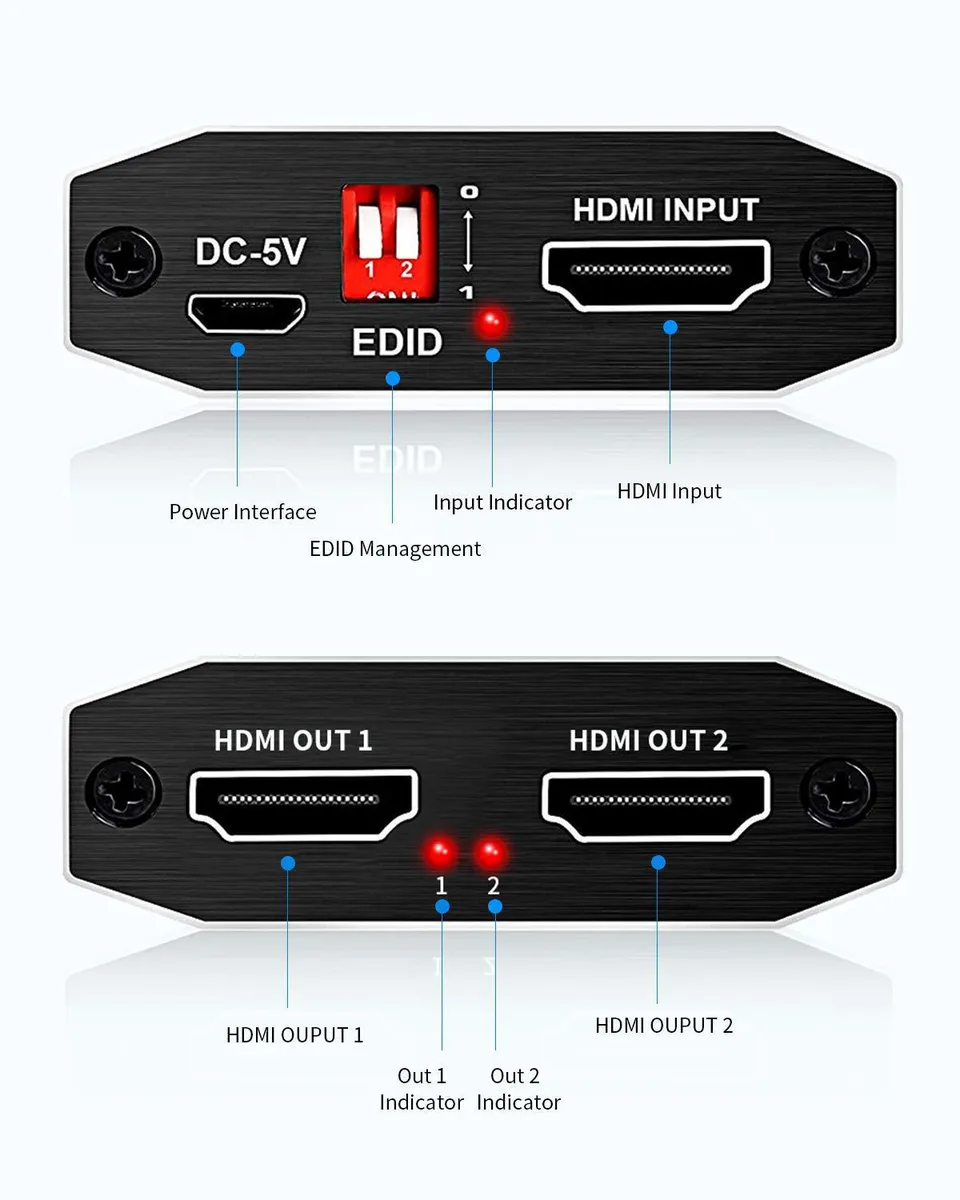

  • Offers four EDID modes for broad device compatibility

4K 60 Hz HDMI 1×2 Splitter

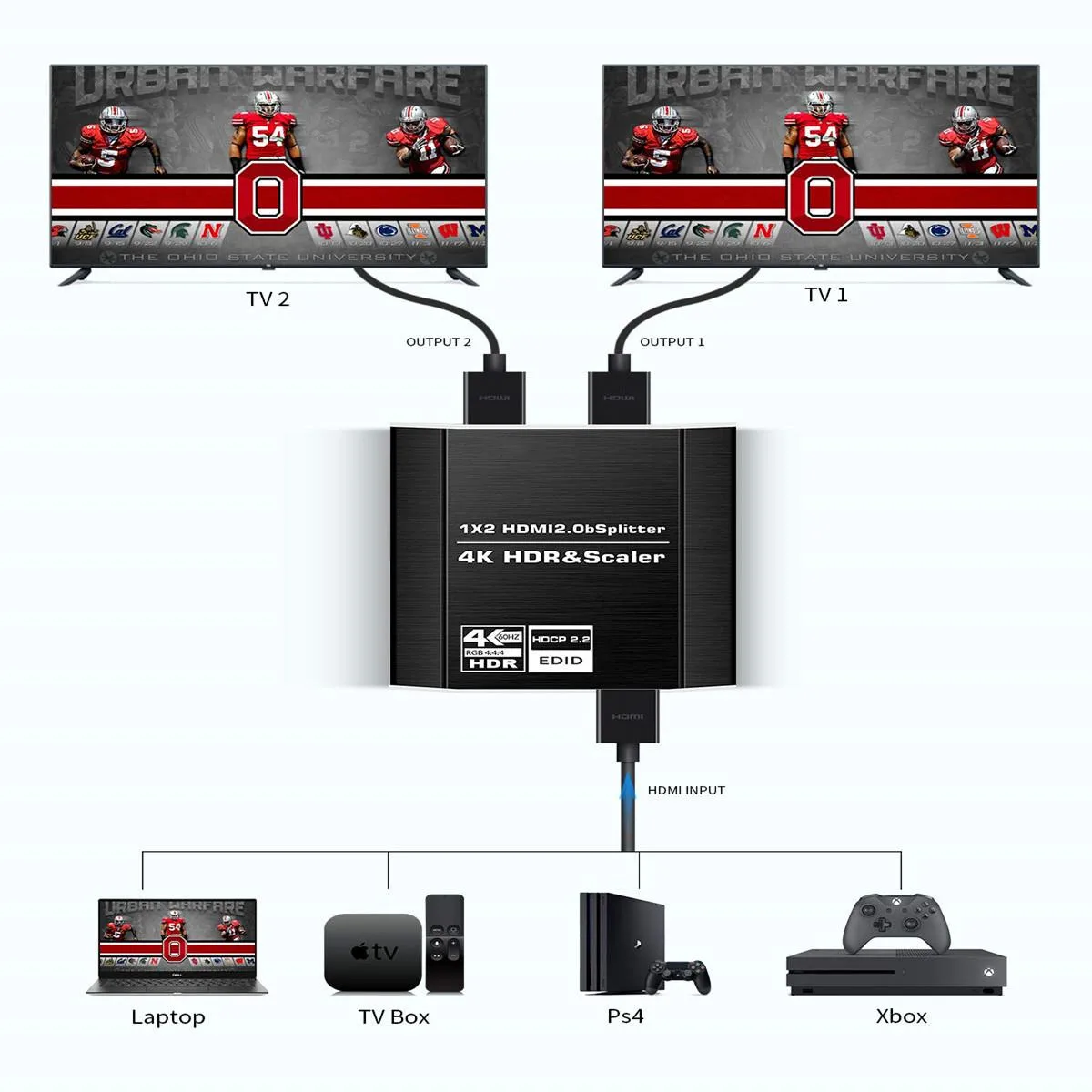

The ESTONE OZF12-2 takes one HDMI source and duplicates the signal to two displays at up to 3840×2160 at 60 Hz. It supports 18 Gbps bandwidth, HDCP 2.2 and deep colour up to 48 bit. Audio formats including DTS-HD and Dolby TrueHD are passed through without loss. The unit is powered by an included AC adaptor and measures 5.59 by 3.15 by 1.26 inches.

Check HDMI version and cable length

Verify that your source device and both displays have HDMI ports and can operate at the resolution and refresh rate you need. The splitter follows the HDMI 2.0 specification, so 4K at 60 Hz requires compatible cables rated for 18 Gbps. Ensure the AC adaptor can reach a mains socket near the installation point. EDID mode selection is handled by the unit, but both outputs show the same picture.

Replaces basic 1×2 splitters limited to 30 Hz

If your current splitter caps 4K at 30 Hz or lacks HDCP 2.2, this model removes those limits for modern consoles, streaming sticks and UHD Blu-ray players. The jump is worth it when you need simultaneous 4K 60 Hz output on two screens with full HDR and high-bitrate audio support. It does not extend the desktop across two monitors with independent content.

Highlights

  • Distributes one source to two 4K displays simultaneously
  • Delivers 4K 60 Hz video with 18 Gbps bandwidth
  • Supports deep colour up to 48 bit for richer gradients
  • Passes high-resolution audio including DTS-HD and Dolby TrueHD
  • Offers four EDID modes for broad device compatibility

Specifications

BrandESTONE
SeriesOZF12-2
ModelOZF12-2
Part NumberOZF12-2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version:HDMI 2.0
HDMI resolution:up to 3840x2160P/60Hz
Support video color format:30/36/48 bit deep color
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:1536MHz
Max baud rate:18Gbps
Input cable distance:<5m AWG26 HDMI standard cable
Output cable distance:<5m AWG26 HDMI standard cable
Max working current:1200mA
Power Adapter Format:output: DC5V/1A
Dimension :58x49x11mm
Weight:130g
4K HDMI Splitter 1x2 2160P 60HZ HDMI2.
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2: 4k 1x2 HDMI Splitter distributes 1 HDMI source duplicate to 2 different HDMI displays simultaneously. Transfer impressive and high-definition video and audio without loss and delay. (Duplicate input signal only, NOT support Extend)
High-grade Configuration: The 4K HDMI splitter supports HDCP2.2, HDMI2.0b, EDID, 3D, RGB 4:4:4, Ultra HD Max Resolution 3840*2160 4k@60Hz. The most high-grade configuration gives you the most extreme enjoyment. It support doby vision, but it requires your display device support doby vision, too.
Wide Compability: This 4k HDMI splitter 1
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1.1x2 HDMI 2.0 Splitter HDCP 2.2 x1
2.AC Power Adaptor x1
3.User Manual x1

Questions about this item

Does the ESTONE OZF12-2 package include HDMI cables or only the splitter and power supply?

The box contains the 1×2 HDMI 2.0 splitter, one AC power adaptor and a user manual; HDMI cables are not included and must be purchased separately.

How do the four EDID modes on the OZF12-2 affect the choice between duplicate and extended desktop modes?

The four EDID modes let the splitter report different display capabilities to the source; select the mode that matches both connected screens so Windows + P can correctly offer Mirror or Extend options.

What does the 18 Gbps bandwidth figure mean for 4K 60 Hz HDR content on this splitter?

18 Gbps is the maximum signalling rate of the HDMI 2.0 chip, allowing 3840×2160 at 60 Hz with 4:4:4 colour and HDR, provided both displays and cables support the same specification.
