Black rectangular HDMI splitter with ports on both sides

ESTONE

ESTONE OZF12-2 1x2 HDMI Splitter 4K 60Hz 18Gbps

SKU CH-14JG-8ZQZ8

Splits one HDMI source to two 4K 60 Hz displays with 18 Gbps bandwidth and HDCP 2.2

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version:HDMI 2.0 HDMI resolution:up to 3840x2160P/60Hz
  • Sends one source to two 4K displays at 60 Hz
  • 18 Gbps bandwidth carries 30/36/48 bit deep colour without loss
  • HDCP 2.2 lets protected 4K content play on both screens
  • Handles DTS-HD, Dolby TrueHD and other high-resolution audio formats
  • Four EDID modes keep compatibility with consoles, streamers and PCs

1x2 HDMI Splitter for 4K 60 Hz Sources

This new ESTONE OZF12-2 duplicates one HDMI input to two displays at up to 3840 x 2160 resolution and 60 Hz refresh. It handles 18 Gbps bandwidth with HDCP 2.2 compliance and supports 30, 36 or 48 bit deep colour plus DTS-HD, Dolby TrueHD and other high-bit-rate audio formats. The compact black unit ships with an AC power adaptor and manual.

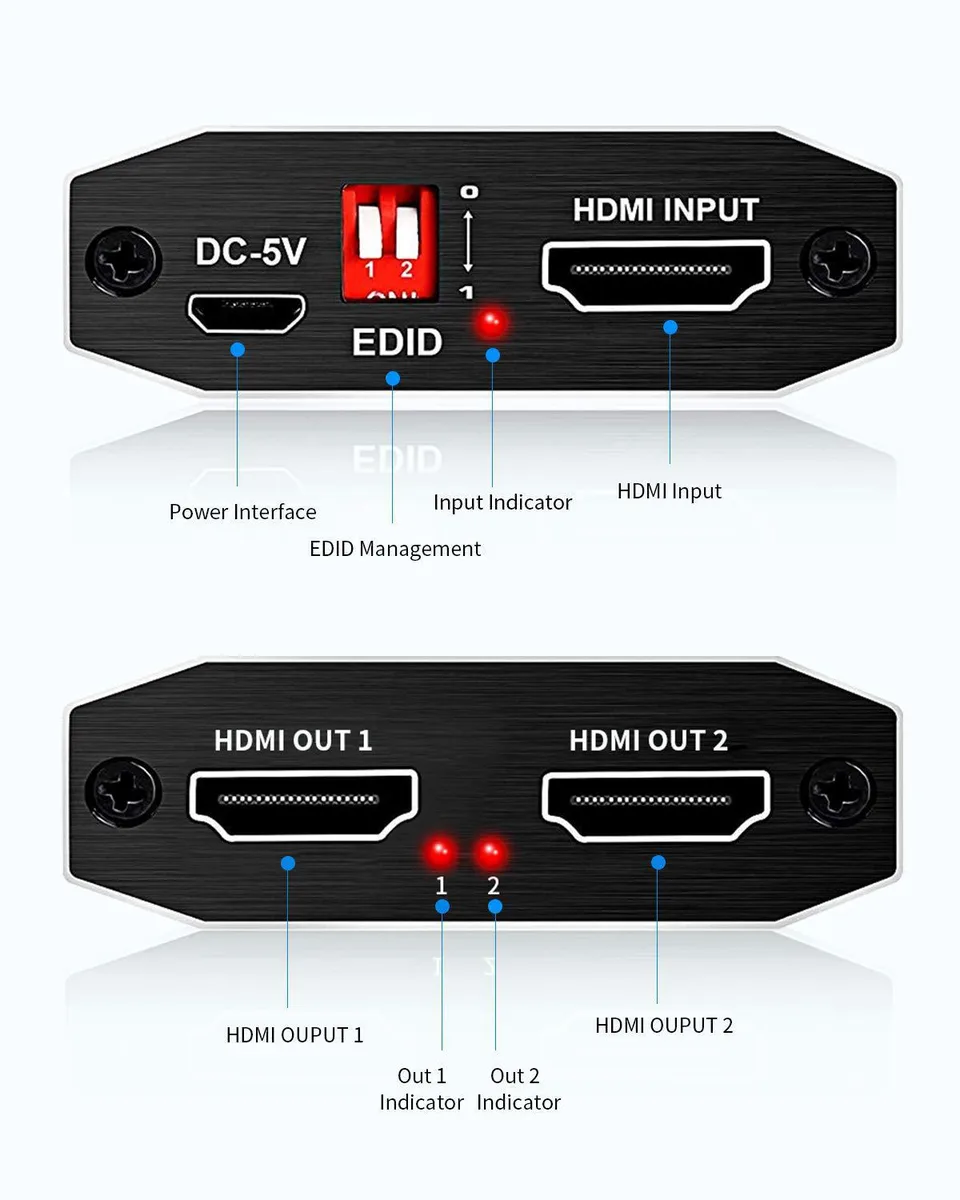

EDID Mode Selection Determines Compatibility

Four selectable EDID modes let the splitter report the correct display capabilities to the source, which is the single setting that decides whether a particular source and monitor combination will handshake at 4K 60 Hz. Choosing the wrong mode can limit the link to lower resolutions or cause no signal at all, so match the mode to the least capable display in the chain.

Plug-and-Play with Power Required

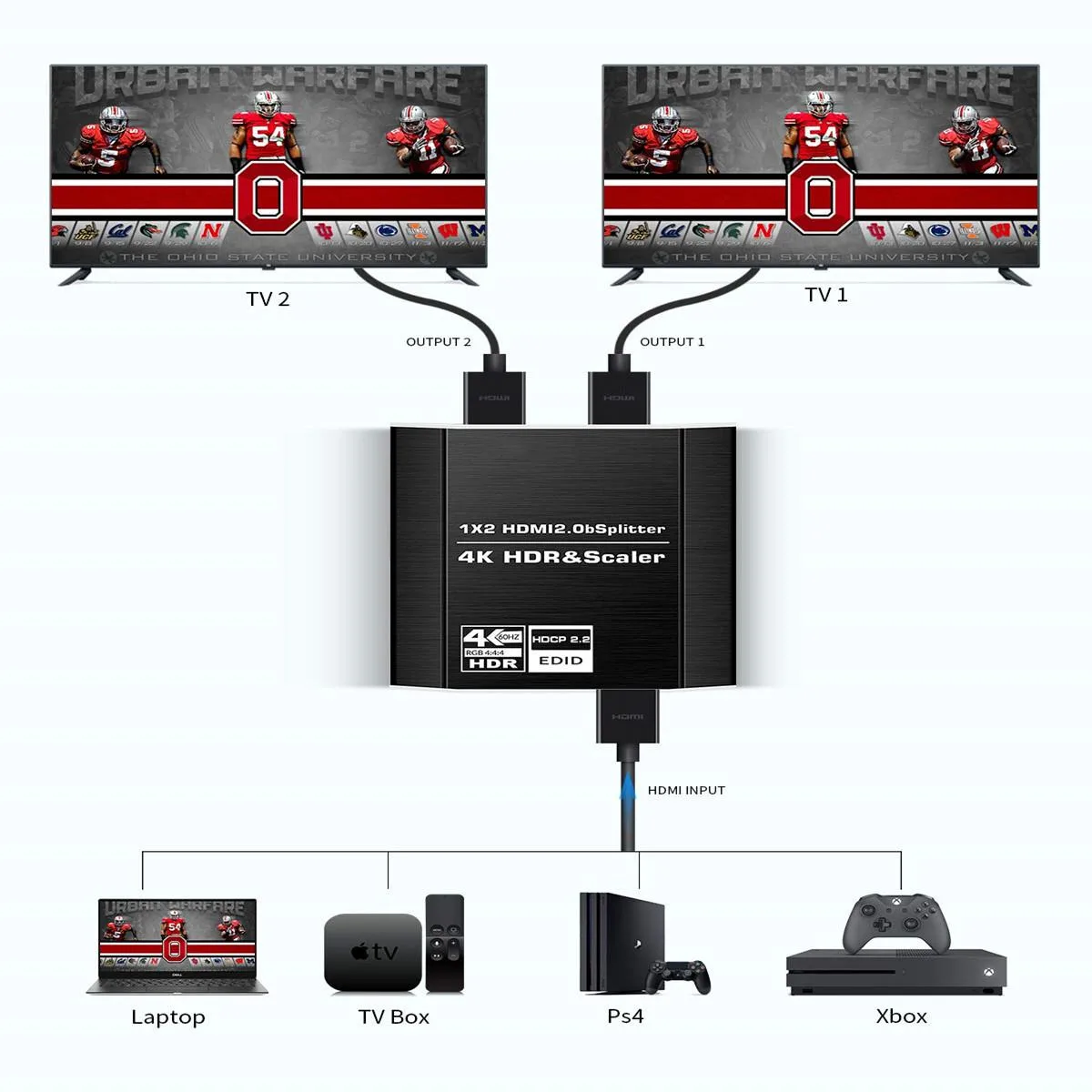

Connect the source to the single HDMI input and two displays to the outputs, then attach the supplied AC adaptor; the splitter draws external power and has no software drivers. The most common issue is forgetting the power supply or using cables longer than the 18 Gbps specification allows, which can drop the link to 30 Hz or produce sparkles on screen.

Highlights

  • Sends one source to two 4K displays at 60 Hz
  • 18 Gbps bandwidth carries 30/36/48 bit deep colour without loss
  • HDCP 2.2 lets protected 4K content play on both screens
  • Handles DTS-HD, Dolby TrueHD and other high-resolution audio formats
  • Four EDID modes keep compatibility with consoles, streamers and PCs

Specifications

BrandESTONE
SeriesOZF12-2
ModelOZF12-2
Part NumberOZF12-2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version:HDMI 2.0
HDMI resolution:up to 3840x2160P/60Hz
Support video color format:30/36/48 bit deep color
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:1536MHz
Max baud rate:18Gbps
Input cable distance:<5m AWG26 HDMI standard cable
Output cable distance:<5m AWG26 HDMI standard cable
Max working current:1200mA
Power Adapter Format:output: DC5V/1A
Dimension :58x49x11mm
Weight:130g
4K HDMI Splitter 1x2 2160P 60HZ HDMI2.
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2: 4k 1x2 HDMI Splitter distributes 1 HDMI source duplicate to 2 different HDMI displays simultaneously. Transfer impressive and high-definition video and audio without loss and delay. (Duplicate input signal only, NOT support Extend)
High-grade Configuration: The 4K HDMI splitter supports HDCP2.2, HDMI2.0b, EDID, 3D, RGB 4:4:4, Ultra HD Max Resolution 3840*2160 4k@60Hz. The most high-grade configuration gives you the most extreme enjoyment. It support doby vision, but it requires your display device support doby vision, too.
Wide Compability: This 4k HDMI splitter 1
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1.1x2 HDMI 2.0 Splitter HDCP 2.2 x1
2.AC Power Adaptor x1
3.User Manual x1

Questions about this item

What does the 18Gbps bandwidth mean for my 4K setup?

The 18Gbps bandwidth supports 4K at 60Hz with RGB 4:4:4 chroma and up to 48-bit deep colour, plus high-bitrate audio formats such as DTS-HD and Dolby TrueHD.

How does the HDMI 2.0b interface limit what I can send to both displays?

HDMI 2.0b caps the signal at 3840x2160 at 60Hz with 4:4:4 sampling and HDCP 2.2; it cannot pass higher refresh rates or wider colour spaces.

What space and power does the 5.59 x 3.15 x 1.26 inch unit need?

The splitter fits in a 5.59 by 3.15 by 1.26 inch footprint and requires the included AC power adaptor to operate.
