Small black metal box with one HDMI input and two HDMI outputs

ESTONE

ESTONE OZF1 4K HDMI Splitter 1x2 Metal Case

SKU CH-NDH2-32YSH

Distributes one HDMI source to two identical displays at up to 4K 30 Hz with 36-bit deep colour and HDCP 1.4 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsSupport signal amplify Support deep color 36bit Support Blue
  • Mirrors one source to two displays simultaneously
  • Supports 4K at 30 Hz and 1080p at 60 Hz with 3D
  • Handles deep colour up to 48 bit per pixel
  • Carries Dolby True HD and DTS-HD 7.1 audio
  • Extends signal up to 110 ft total distance

What the ESTONE OZF1 splitter does

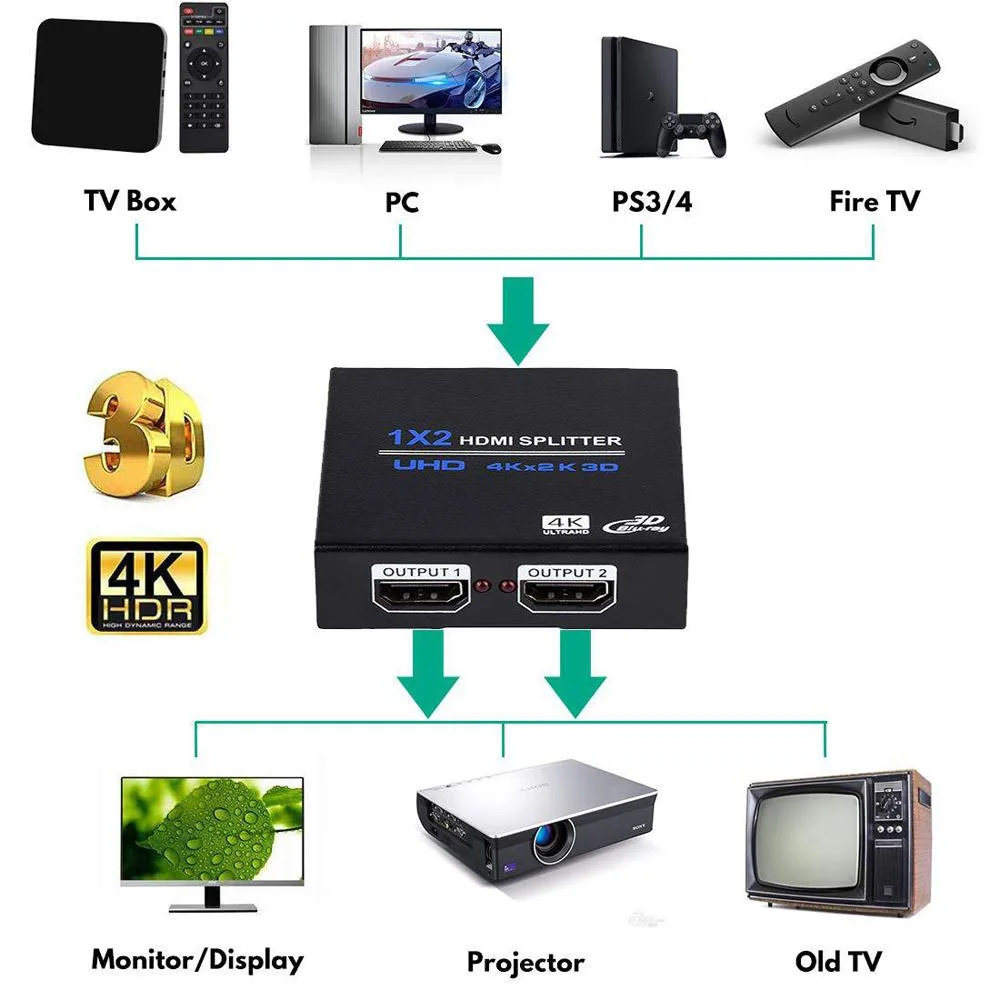

The ESTONE OZF1 is a 1×2 HDMI splitter that takes a single source and sends an identical signal to two displays at the same time. It supports 4K at 30 Hz, 1080p at 60 Hz and 3D formats. The metal case houses an amplifier that extends cable runs up to 110 ft total. It is suited for installers who need mirrored output on two screens.

Installation and common issues

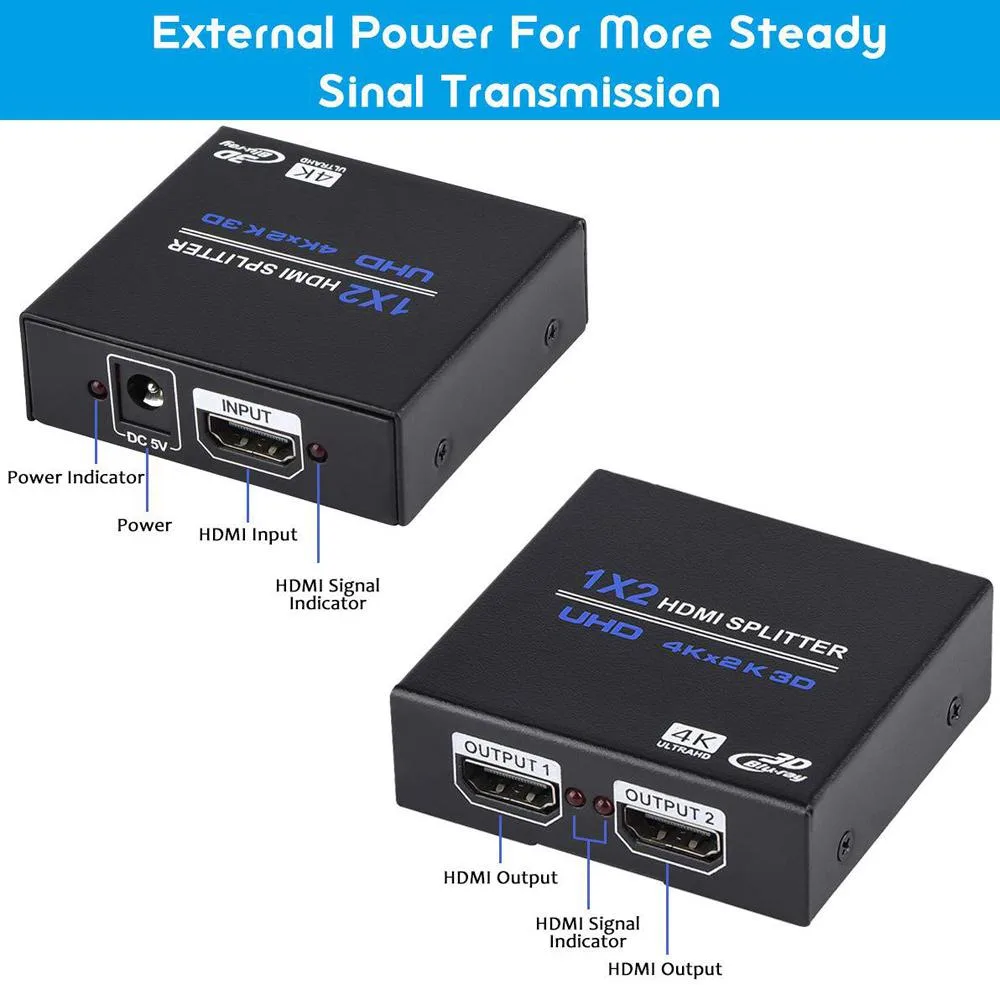

The unit is powered by an included adapter and works plug-and-play with no drivers required. Connect the source to the single input and the two displays to the outputs. EDID negotiation takes about four seconds. The most frequent issue is a mismatch when the two displays have different native resolutions; the splitter can only mirror, so the lower-resolution display dictates the output for both.

The specification that decides fit

Maximum resolution is 3840 × 2160 at 30 Hz with a bandwidth of 6.75 Gbps and HDCP 1.0 through 1.3 compliance. If your source or displays require 4K at 60 Hz or higher bandwidth, this splitter will not pass that signal. It is built for HDMI 1.4b mirror applications only.

Highlights

  • Mirrors one source to two displays simultaneously
  • Supports 4K at 30 Hz and 1080p at 60 Hz with 3D
  • Handles deep colour up to 48 bit per pixel
  • Carries Dolby True HD and DTS-HD 7.1 audio
  • Extends signal up to 110 ft total distance

Specifications

BrandESTONE
SeriesOZF1
ModelOZF1
Part NumberOZF1
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsSupport signal amplify
Support deep color 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
HDMI resolution: Up to 4K/30HZ 1080P/60HZ, 3D
Supports distance up to 110ft (50ft from splitter to moitor, 60ft to PC/ps4
Support daisy chain for more monitors
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth6.75Gps
Features1)HDMI TM (1.4b with 3D & 1080p)
2)Distributes 1 HDMI source to 2 HDMI Displays simultaneously.
3)Supports all the mandatory and several optional 3D formats
4)Supports High Definition Resolutions : 3D 4K @ 30HZ,1080p@24Hz,1080p @ 60HZ
5) Compatible blue-ray,PS3 media format,fully support 3D display
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1* hdmi splitter 1x2
1* Power adapter
1* User manual

Questions about this item

How can I confirm the OZF1 splitter is passing a 4K 30 Hz signal to both displays after setup?

Connect a 4K source and verify both screens show 3840 x 2160 at 30 Hz with matching 36-bit deep colour and HDCP 1.3 handshake.

What accessories are included with the OZF1 and which cables must I provide?

The box contains the splitter, a power adapter and a user manual; you must supply three HDMI cables — one for the source and one for each display.

Which OZF1 configuration should I choose for a 1080p 60 Hz gaming setup versus a 4K 30 Hz movie setup?

The single OZF1 model handles both: it supports 1080p at 60 Hz and 4K at 30 Hz simultaneously on its two outputs.
