Small black aluminium box with three HDMI ports and a switch button

ESTONE

ESTONE OZAB 4K@60Hz Bi-Directional HDMI Switch 2-Port UHD Black

SKU CH-Z3ZR-ZQWV6

Bi-directional HDMI switch connects two sources to one display or one source to two displays, supporting 4K at 60 Hz, 1080p at 120 Hz, 18 Gbps bandwidth, HDR and HDCP 2.2 with manual button switching

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2-Port UHD
  • SpecificationsWork as HDMI switch and HDMI splitter (only one screen dipla
  • Input Connector2 x HDMI
  • Bi-directional design connects two sources to one display or one source to two displays
  • Manual push-button switching selects the active signal path without automatic handshake delays
  • 18 Gbps bandwidth carries 4K at 60 Hz and 1080p at 120 Hz for smooth gaming and video
  • Supports HDR and HDCP 2.2 for protected 4K content from consoles and streaming devices
  • Aluminium alloy housing dissipates heat in a slim 5.91 x 2.36 x 0.79 inch form factor

ESTONE OZAB 4K@60Hz Bi-Directional HDMI Switch

The ESTONE OZAB is a bi-directional HDMI switch that connects two sources to one display or one source to two displays. It supports 4K at 60Hz and 1080p at 120Hz with 18Gbps bandwidth. The unit handles HDR and HDCP 2.2 for protected content. It is suited for home cinema, gaming consoles and media players.

Manual switching with external power option

Switching between ports is performed by pressing the button on the unit; automatic switching is not supported. The package includes a 5V DC power cable for devices that need extra current. A 4K@60Hz HDMI cable is also supplied. The aluminium enclosure aids heat dissipation during use.

Check port layout and resolution needs before

Verify that your sources and display use standard HDMI connectors compatible with the 2-input, 1-output or 1-input, 2-output configurations. Only one screen can be active at a time in splitter mode. Confirm that 4K@60Hz, 1080p@120Hz and the listed audio formats meet your requirements.

Highlights

  • Bi-directional design connects two sources to one display or one source to two displays
  • Manual push-button switching selects the active signal path without automatic handshake delays
  • 18 Gbps bandwidth carries 4K at 60 Hz and 1080p at 120 Hz for smooth gaming and video
  • Supports HDR and HDCP 2.2 for protected 4K content from consoles and streaming devices
  • Aluminium alloy housing dissipates heat in a slim 5.91 x 2.36 x 0.79 inch form factor

Specifications

BrandESTONE
SeriesOZAB
ModelOZAB
Part NumberOZAB
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2-Port UHD
SpecificationsWork as HDMI switch and HDMI splitter (only one screen diplay at a time)
Support resolution: 4K@60HZ, 4K@30hz, 2160p, 480i, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p
Support audio: DTS-HD/Dolby-trueHD /LPCM7.1 /DTS/DOLBY-AC3/DSD.
Ideal for home entertainment, set up a home theater, work efficiently and more.
Support HDR, HDCP 2.2: Help you solve HDCP issues with Cable boxes, Firestick, Playstation and more.
Input Connector2 x HDMI
Output Connector1 x HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps

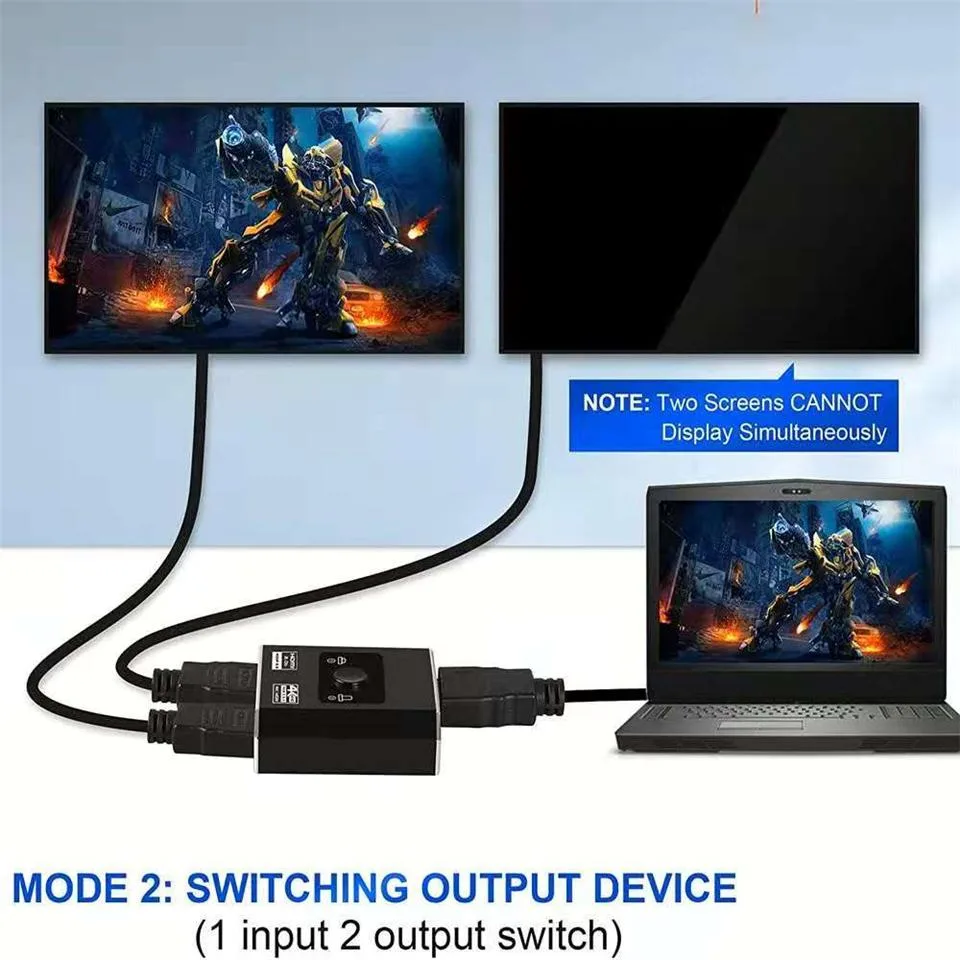

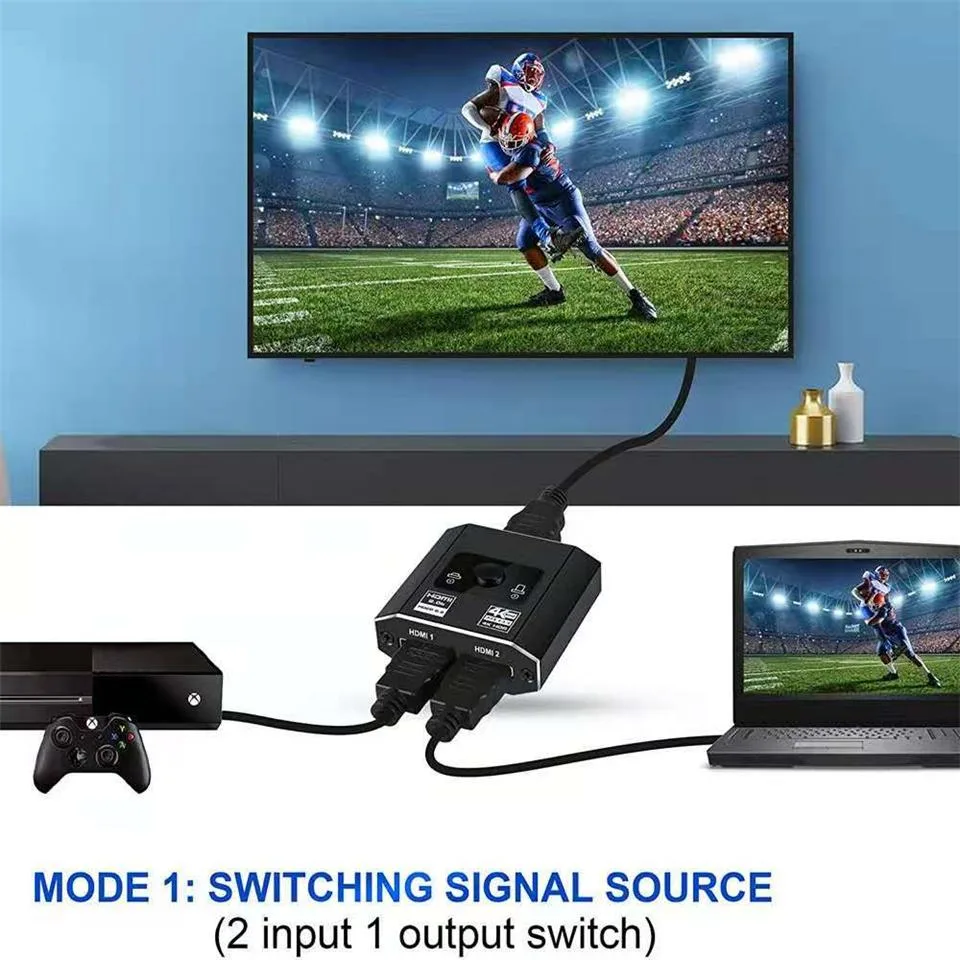

Features· This is a 2 in 1 out switcher, and 1 in 2 Out a HDMI Splitter (2 Output CANNOT display simultaneously).
· Does not support automatic switching, only supports manual switching. For some high-power devices, it may take 3-6 seconds to manually switch the signal source.
· It can well work with xbox or PS5 to achieve 4K@60hz in your tvs or relatively monitors.
· If you need to output 4K@60Hz and 1080p@120Hz, we recommend using high-quality HDMIl 2.1 standard cables that not over 3Meters (We do not include HDMI cables).
· For 4K@60hz resolution, the length of the HDMl cables connecting t
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K HDMI AB Switch, 1 x DC 5V Power cable,1 x 4K@60Hz HDMI cable, 1 x User manual.

Questions about this item

How can I confirm the ESTONE OZAB is passing a 4K@60Hz signal after I connect it?

Check that the source and display both report 3840 x 2160 at 60 Hz in their on-screen menus and that HDR or HDCP 2.2 indicators appear if the content uses them.

What cables and accessories come in the box with the ESTONE OZAB, and what must I provide myself?

The package includes the switch, a DC 5 V power cable, one 4K@60Hz HDMI cable and a user manual; you must supply any additional HDMI cables for the second source or second display.

Should I choose the 2-port UHD model or a different capacity for switching between a PS5 and a Blu-ray player on one monitor?

The 2-port UHD version provides exactly two HDMI inputs and one output, which matches a two-source, one-display setup; no other capacity is offered for this model.
