Small black aluminium box with three HDMI ports and a button

ESTONE

ESTONE OZAB 4K 60 Hz HDMI Switch Splitter 2 Port Bi-Directional Aluminium Black

SKU CH-KKED-5AZG0

Bi-directional 4K@60 Hz HDMI switch and splitter toggles two sources on one display or one source across two screens with 18 Gbps bandwidth, HDR and HDCP 2.2 support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2-Port UHD
  • SpecificationsWork as HDMI switch and HDMI splitter (only one screen dipla
  • Input Connector2 x HDMI
  • Bi-directional 2-port HDMI switch and splitter in one aluminium unit
  • Manual button switching between two sources or two displays with no auto-sensing
  • 4K at 60 Hz and 1080p at 120 Hz via 18 Gbps bandwidth
  • HDR and HDCP 2.2 support for protected 4K content
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 audio formats

Two-port bi-directional HDMI switch

The ESTONE OZAB is a compact aluminium switch that lets you route two HDMI sources to one display or one source to two displays. Only one screen shows an image at a time. It suits home-theatre owners who need to swap consoles, streaming sticks or a Blu-ray player without unplugging cables.

Manual switching with 18 Gbps bandwidth

The unit supports 4K at 60 Hz, 1080p at 120 Hz and lower resolutions down to 480i. It passes HDR and HDCP 2.2 signals through its HDMI 2.0b interface. Switching is manual via a button; there is no automatic detection. Audio formats up to LPCM 7.1, DTS-HD and Dolby TrueHD are supported.

Check power needs and port layout before buying

Some high-power sources may require the included DC 5 V cable for stable operation. Verify that your source and display both use standard HDMI connectors and that you do not need simultaneous output on two screens. The package includes a 4K 60 Hz HDMI cable and a user manual.

Highlights

  • Bi-directional 2-port HDMI switch and splitter in one aluminium unit
  • Manual button switching between two sources or two displays with no auto-sensing
  • 4K at 60 Hz and 1080p at 120 Hz via 18 Gbps bandwidth
  • HDR and HDCP 2.2 support for protected 4K content
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 audio formats

Specifications

BrandESTONE
SeriesOZAB
ModelOZAB
Part NumberOZAB
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2-Port UHD
SpecificationsWork as HDMI switch and HDMI splitter (only one screen diplay at a time)
Support resolution: 4K@60HZ, 4K@30hz, 2160p, 480i, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p
Support audio: DTS-HD/Dolby-trueHD /LPCM7.1 /DTS/DOLBY-AC3/DSD.
Ideal for home entertainment, set up a home theater, work efficiently and more.
Support HDR, HDCP 2.2: Help you solve HDCP issues with Cable boxes, Firestick, Playstation and more.
Input Connector2 x HDMI
Output Connector1 x HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps

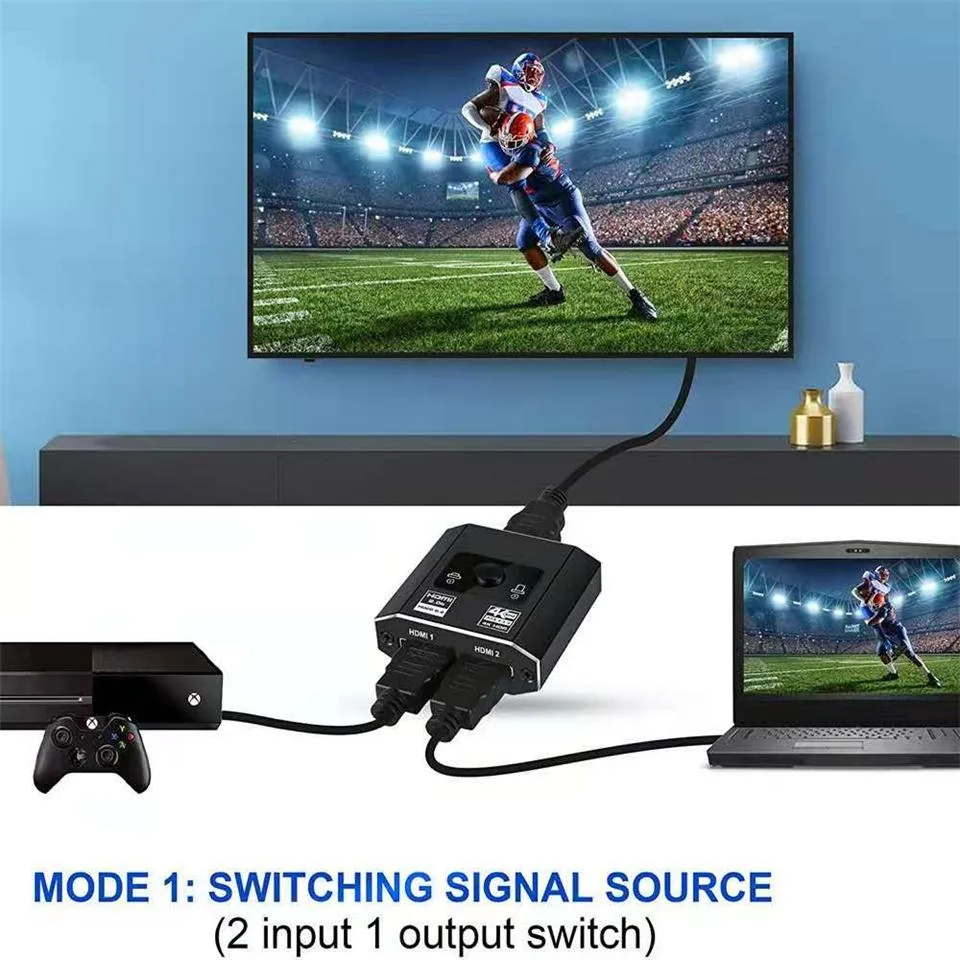

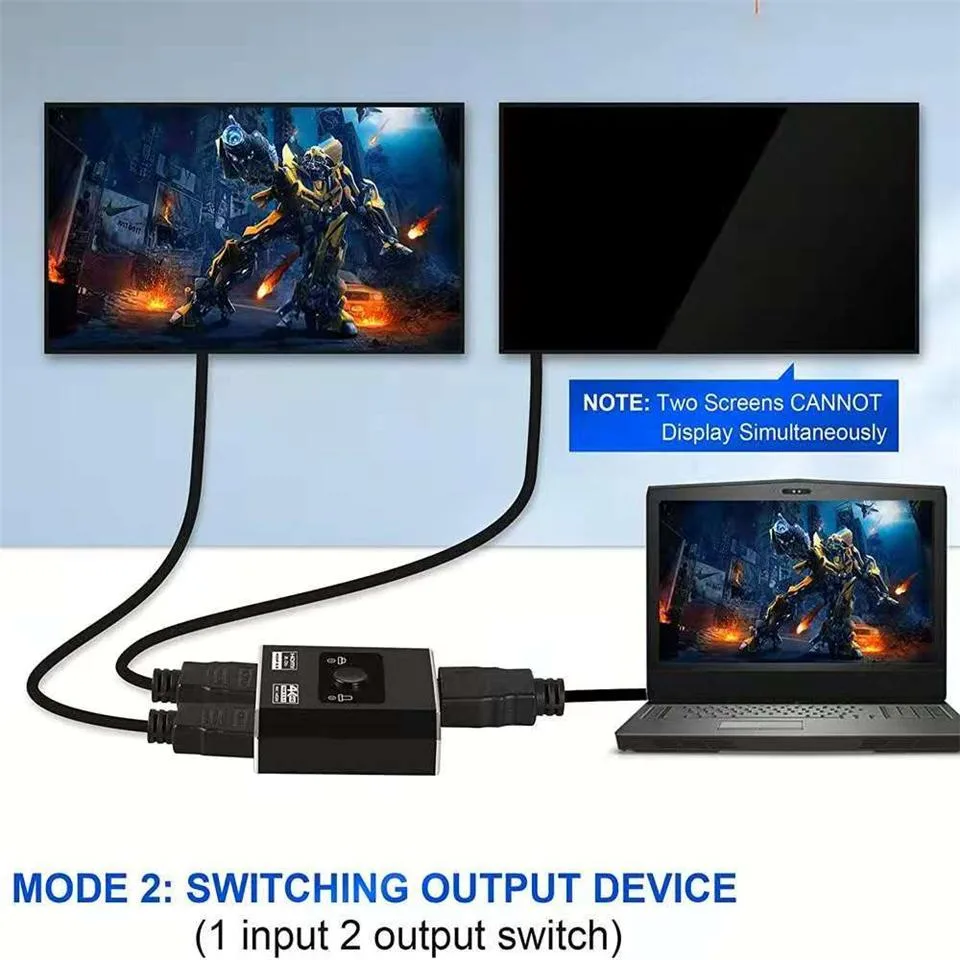

Features· This is a 2 in 1 out switcher, and 1 in 2 Out a HDMI Splitter (2 Output CANNOT display simultaneously).
· Does not support automatic switching, only supports manual switching. For some high-power devices, it may take 3-6 seconds to manually switch the signal source.
· It can well work with xbox or PS5 to achieve 4K@60hz in your tvs or relatively monitors.
· If you need to output 4K@60Hz and 1080p@120Hz, we recommend using high-quality HDMIl 2.1 standard cables that not over 3Meters (We do not include HDMI cables).
· For 4K@60hz resolution, the length of the HDMl cables connecting t
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K HDMI AB Switch, 1 x DC 5V Power cable,1 x 4K@60Hz HDMI cable, 1 x User manual.

Questions about this item

Should I use this as a 2-in-1-out switch or a 1-in-2-out splitter?

It works both ways — connect two sources to one display or one source to two displays, but only one screen shows an image at a time.

What does 4K@60Hz actually deliver on my TV?

You get 3840 x 2160 resolution at 60 frames per second with HDR and HDCP 2.2 support for protected content.

How does the HDMI 2.0b interface limit what I can do?

The 18 Gbps bandwidth caps you at 4K 60 Hz or 1080p 120 Hz; higher refresh rates at 4K are not possible.
