Small black box with HDMI, optical, coaxial and 3.5mm ports

ESTONE

ESTONE OZ8V1 HDMI 2.1 Audio Extractor 8K 60Hz 48Gbps 7.1CH

SKU CH-1K9H-S7N4M

Extracts 7.1‑channel audio via HDMI, optical, coaxial and 3.5 mm while passing 8K 60 Hz video at 48 Gbps

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extracts 7.1-channel audio via HDMI, 5.1-channel via optical or coaxial
  • Passes 8K 60 Hz and 4K 120 Hz RGB 4:4:4 video at 48 Gbps
  • Supports Dolby Atmos, HDR10+ and dynamic HDR with CEC control
  • Includes IR remote, 5 V power supply and 3.5 mm stereo output
  • Compact 5.59 × 3.15 × 1.26 in enclosure weighs 3.2 oz

HDMI 2.1 Audio Extractor 8K 60Hz

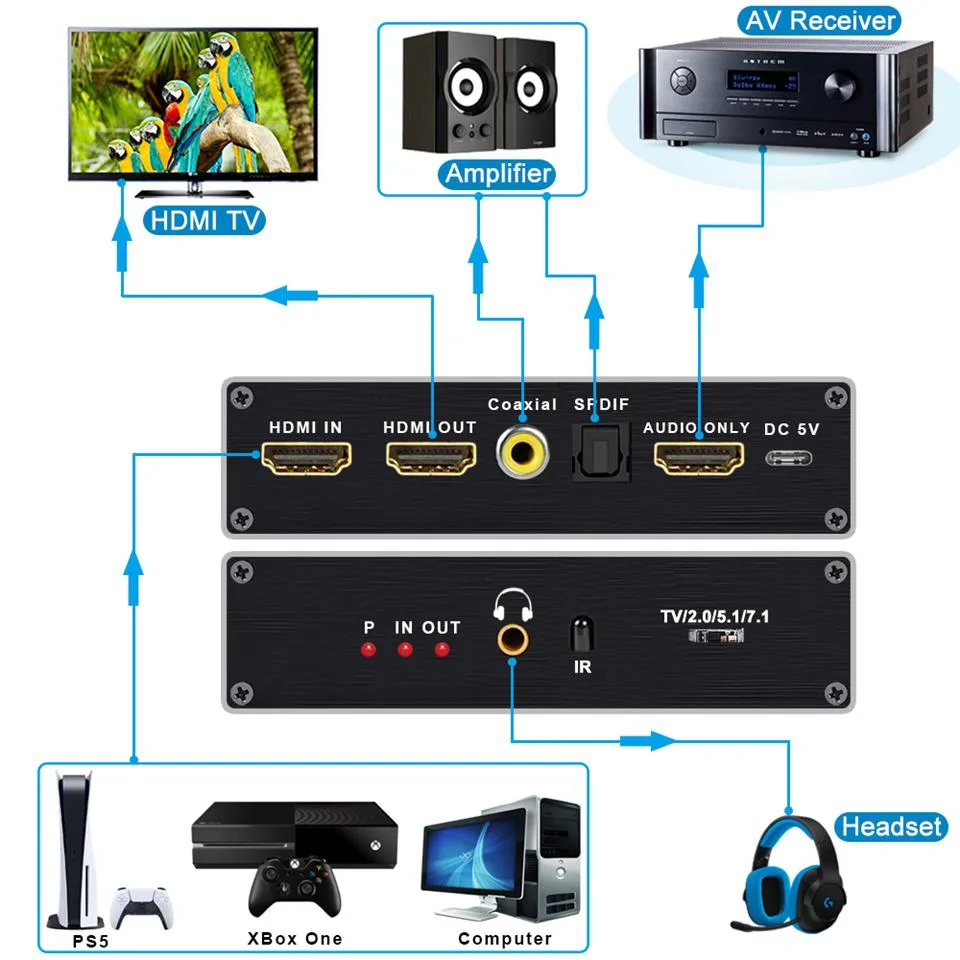

The ESTONE OZ8V1 is an HDMI 2.1 audio extractor that accepts one HDMI input and provides one HDMI loop-through output plus four separate audio outputs. It supports video up to 8K at 60 Hz and 4K at 120 Hz with 48 Gbps bandwidth. Gamers and home-theatre users who need to split audio from a console, PC or media player to an external sound system will find it suitable.

Bundled remote power and manual

The package includes an IR remote control for switching EDID or audio modes without reaching behind the rack, a 5 V 1 A DC power adapter for stable operation, and a user manual. These accessories let you change audio extraction settings on the fly and ensure the extractor receives consistent power for 48 Gbps throughput.

Check HDMI version and audio format needs

Verify that your source device and display both support HDMI 2.1 if you require 8K 60 Hz or 4K 120 Hz RGB 4:4:4 passthrough. Confirm your amplifier or soundbar accepts the audio format you plan to use — 7.1-channel via HDMI audio out, 5.1-channel via Toslink or coaxial, or stereo via the 3.5 mm jack. The extractor does not decode audio formats beyond what the connected sink supports.

Highlights

  • Extracts 7.1-channel audio via HDMI, 5.1-channel via optical or coaxial
  • Passes 8K 60 Hz and 4K 120 Hz RGB 4:4:4 video at 48 Gbps
  • Supports Dolby Atmos, HDR10+ and dynamic HDR with CEC control
  • Includes IR remote, 5 V power supply and 3.5 mm stereo output
  • Compact 5.59 × 3.15 × 1.26 in enclosure weighs 3.2 oz

Specifications

BrandESTONE
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack

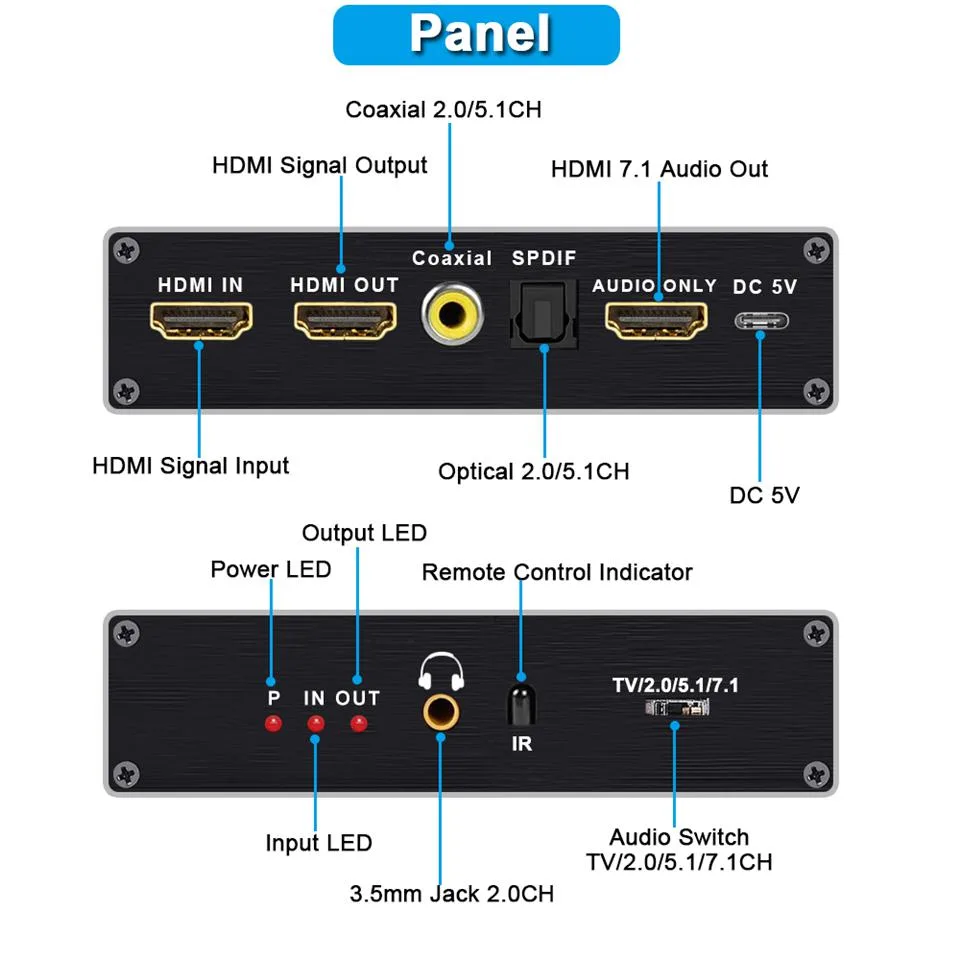

SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

Will the IR remote's battery need replacing over time?

The IR remote is supplied without a battery, so you will need to provide a compatible cell and replace it when it runs out.

Does the 48Gbps bandwidth ceiling limit 8K 60Hz RGB 4:4:4 pass-through?

The 48Gbps maximum transmission speed supports 8K at 60Hz and 4K at 120Hz RGB 4:4:4 without compression.

Does the unit get hot or draw much power when running continuously?

It ships with a 5V/1A DC power adapter, indicating low power draw and minimal heat during all-day operation.
