Black rectangular HDMI audio extractor with multiple output ports

ESTONE

ESTONE OZ8V1 8K HDMI Audio Extractor Splitter 48Gbps 7.1Ch

SKU CH-6PBA-K9P0P

Extracts audio from an 8K 60 Hz HDMI 2.1 signal to HDMI, optical, coaxial and 3.5 mm outputs with 7.1-channel support

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extract 7.1-channel audio via HDMI output for immersive surround sound
  • Send 5.1-channel audio through optical Toslink to legacy AV receivers
  • Output stereo audio to 3.5mm jack for headphones or powered speakers
  • Provide coaxial digital audio for older soundbars and processors
  • Pass 8K 60Hz and 4K 120Hz video at 48Gbps bandwidth unchanged

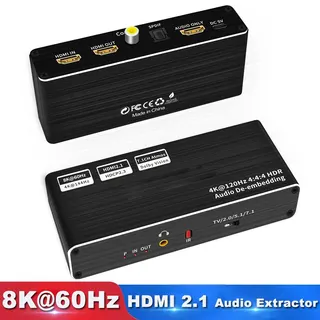

8K HDMI 2.1 Audio Extractor Splitter

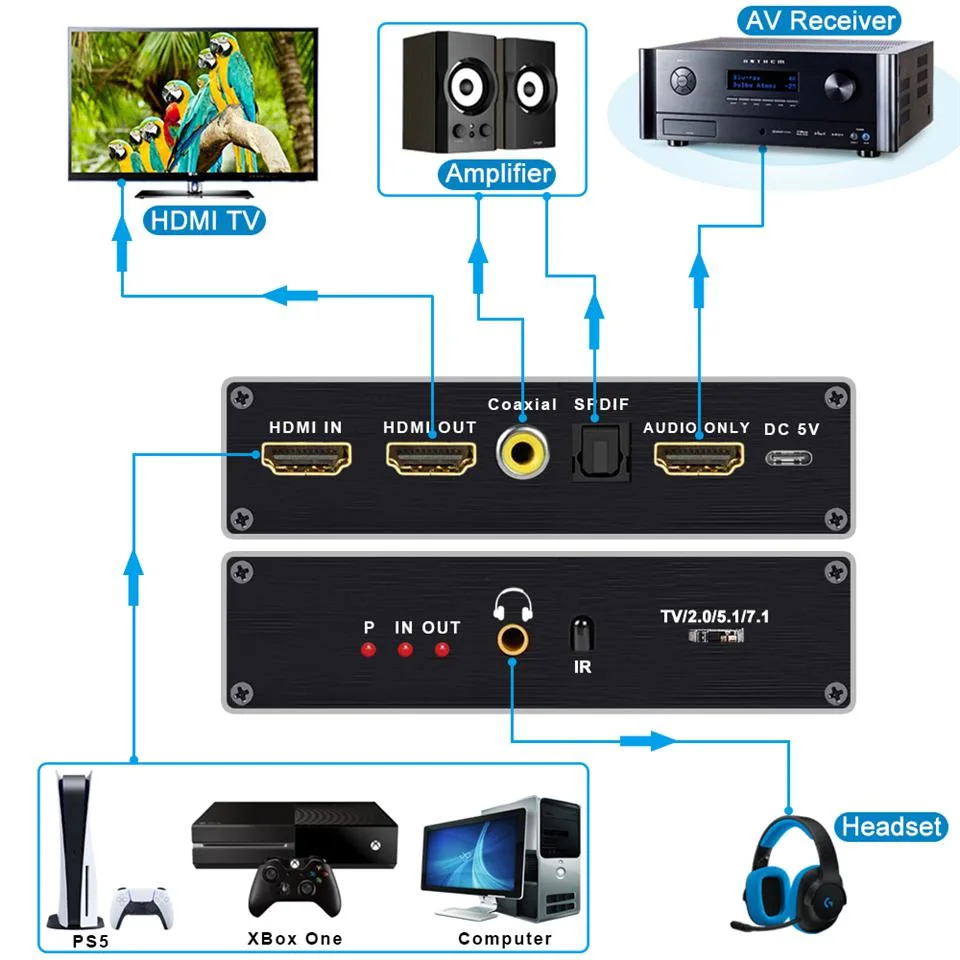

The ESTONE OZ8V1 extracts audio from an HDMI 2.1 source and routes it to multiple outputs. It accepts one HDMI input at up to 8K 60 Hz or 4K 120 Hz and passes the video through an HDMI output while providing separate Toslink, coaxial, 3.5 mm and HDMI audio ports. Gamers and home-theatre users who need to send multichannel sound to a receiver or soundbar can use this unit.

Bandwidth and format limits of the HDMI 2.1 path

The splitter handles a maximum bandwidth of 48 Gbps and supports resolutions up to 5120x1440 at 120 Hz. It is compatible with Dolby Vision, HDR10+ and Dynamic HDR, and passes CEC commands through the HDMI link. HDCP 2.3, 2.2 and earlier versions are supported for protected content. The HDMI audio output carries up to 7.1 channels, while Toslink and coaxial are limited to 5.1 channels.

Check your source and audio gear before ordering

Verify that your source device can output HDMI 2.1 at the desired resolution and refresh rate, and that it uses an HDCP version listed in the specifications. Confirm your receiver or soundbar accepts the audio format you plan to use — 7.1 channels over HDMI or 5.1 channels over optical or coaxial. The unit requires the included 5 V 1 A power adapter to operate.

Highlights

  • Extract 7.1-channel audio via HDMI output for immersive surround sound
  • Send 5.1-channel audio through optical Toslink to legacy AV receivers
  • Output stereo audio to 3.5mm jack for headphones or powered speakers
  • Provide coaxial digital audio for older soundbars and processors
  • Pass 8K 60Hz and 4K 120Hz video at 48Gbps bandwidth unchanged

Specifications

BrandESTONE
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack

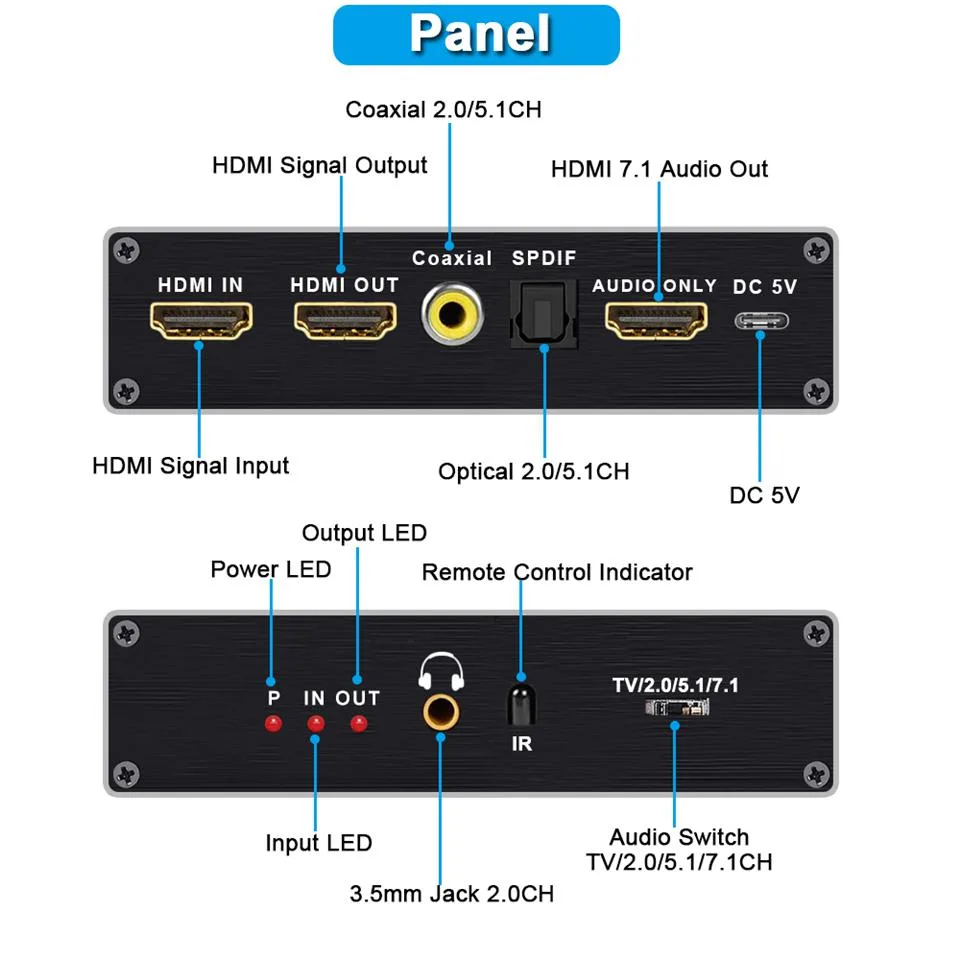

SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

Should I pick the HDMI audio output or the Toslink port for 7.1 surround?

Use the HDMI audio output for 7.1 channels; the Toslink port is limited to 5.1 channels.

What does the 48 Gbps bandwidth mean for my 4K 120 Hz display?

It carries 4K at 120 Hz with full 4:4:4 colour and 24-bit depth without compression.

Which HDMI version and HDCP level does the extractor support?

It complies with HDMI 2.1 and passes HDCP 2.3, 2.2 and earlier versions.
