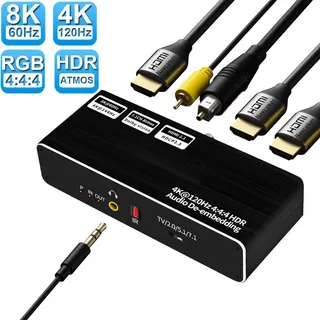

Small black box with HDMI, optical, coaxial and 3.5 mm audio ports

ESTONE

ESTONE OZ8V1 8K 60Hz HDMI Audio Extractor Splitter

SKU CH-HKH4-J92R9

Extracts audio from an 8K 60 Hz HDMI 2.1 signal to HDMI, optical, coaxial and 3.5 mm outputs with 7.1-channel support and 48 Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extracts 7.1-channel audio via HDMI for immersive surround sound
  • Outputs 5.1-channel audio through optical Toslink for legacy receivers
  • Provides 5.1-channel coaxial output for digital audio systems
  • Includes 3.5mm stereo jack for direct headphone or speaker connection
  • Passes 8K 60Hz video with 48Gbps bandwidth for high-resolution gaming

HDMI 2.1 Audio Extractor 8K 60Hz

The ESTONE OZ8V1 takes a single HDMI 2.1 input and provides one HDMI video output plus four separate audio outputs. It extracts multi-channel sound to optical Toslink, coaxial, 3.5 mm stereo jack and an HDMI audio-only port while passing the video signal through unchanged.

Installers needing 7.1-channel HDMI audio extraction

This unit suits setups that require 7.1-channel extraction over HDMI and simultaneous 5.1-channel output via Toslink or coaxial for an AV receiver or soundbar. It is not intended for users who only need basic stereo audio breakout or who have no external decoder or amplifier to connect to the extracted audio ports.

48 Gbps bandwidth with 8K 60 Hz support

The extractor handles up to 48 Gbps throughput and supports resolutions including 8K at 60 Hz, 5120x1440 at 120 Hz and 4K at 120 Hz RGB 4:4:4, making the bandwidth ceiling the key specification for matching source and display capabilities.

Highlights

  • Extracts 7.1-channel audio via HDMI for immersive surround sound
  • Outputs 5.1-channel audio through optical Toslink for legacy receivers
  • Provides 5.1-channel coaxial output for digital audio systems
  • Includes 3.5mm stereo jack for direct headphone or speaker connection
  • Passes 8K 60Hz video with 48Gbps bandwidth for high-resolution gaming

Specifications

BrandESTONE
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack
SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input

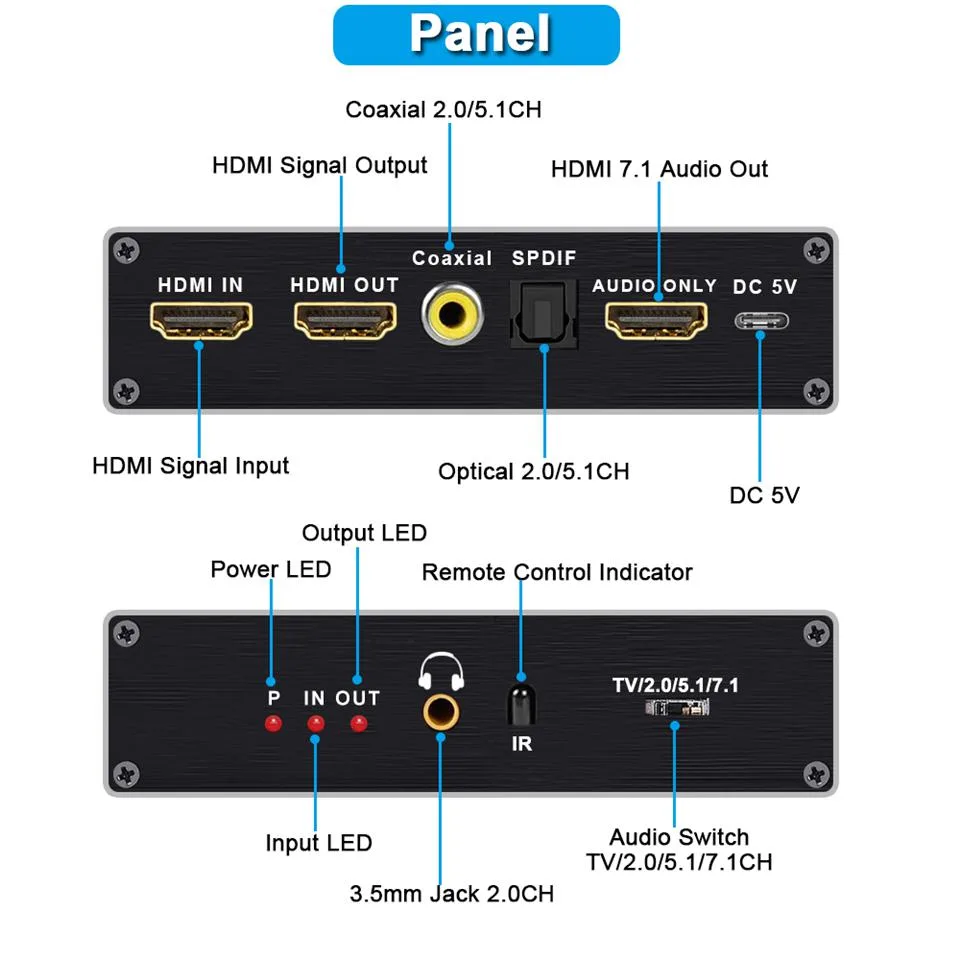

Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

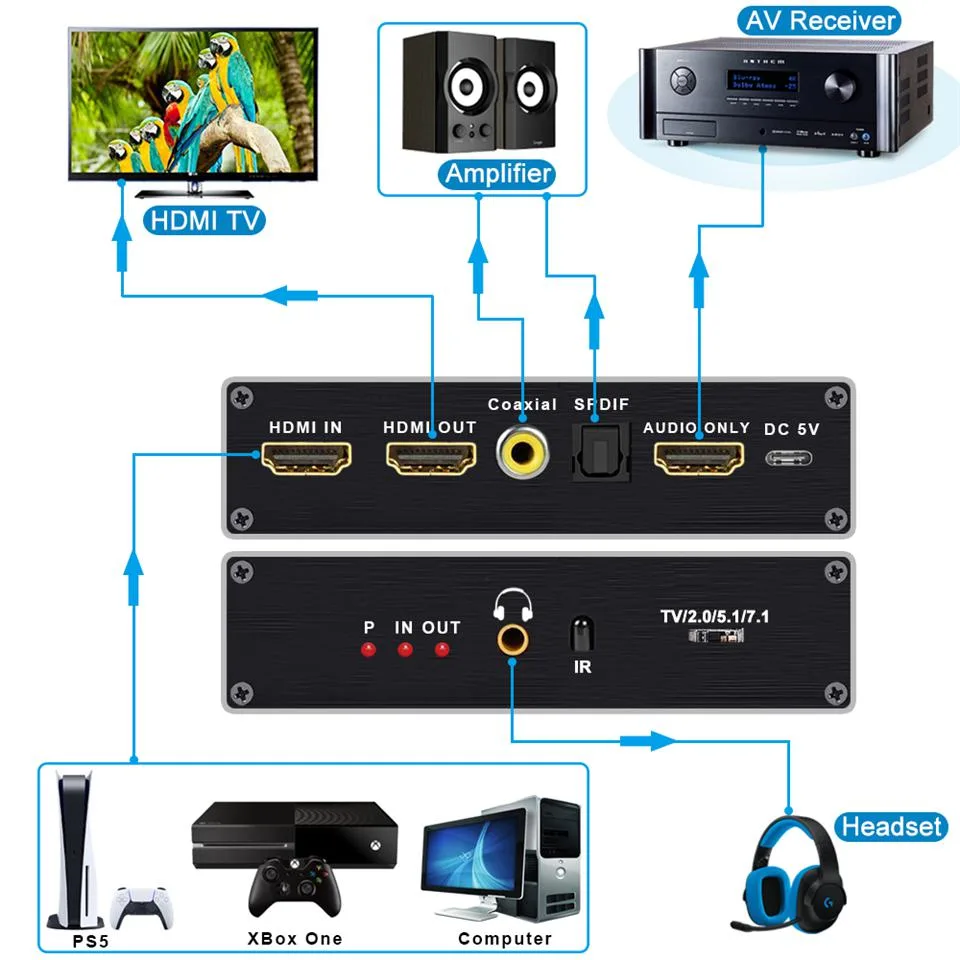

What cables do I need to connect both a soundbar and headphones to the extractor at the same time?

Use one Toslink cable for the soundbar on the optical port and one 3.5 mm cable for the headphones on the stereo jack; both ports output audio simultaneously.

Will my older 1080p 60 Hz monitor still display a picture when placed between a PS5 and this unit?

Yes, the extractor passes 1080p at 60 Hz through its HDMI output while extracting audio to the optical, coaxial or 3.5 mm ports.

How can I confirm the extractor is sending 7.1-channel audio to my AV receiver via the HDMI audio output?

Play a Dolby Atmos or 7.1 test file; the receiver should indicate a 7.1 or Atmos bitstream and all eight speakers should produce sound.
