Small black box with HDMI ports and audio jacks on front and back

ESTONE

ESTONE OZ8V1 8K 60Hz HDMI Audio Extractor 48Gbps 7.1CH Dolby Atmos

SKU CH-KHF6-TDZVF

Extracts 7.1-channel Dolby Atmos audio via HDMI, optical, coaxial and 3.5 mm jack while passing 8K 60 Hz video at 48 Gbps

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extract 7.1-channel Dolby Atmos audio via HDMI output while passing 8K 60 Hz video
  • Send 5.1-channel sound to legacy AV gear through optical Toslink or coaxial ports
  • Connect headphones or powered speakers directly using the 3.5 mm analogue jack
  • Maintain full 48 Gbps bandwidth for 4K 120 Hz RGB 4:4:4 and 5120×1440 120 Hz gaming
  • Switch EDID modes with the included IR remote to match any display or capture device

8K 60Hz HDMI 2.1 Audio Extractor

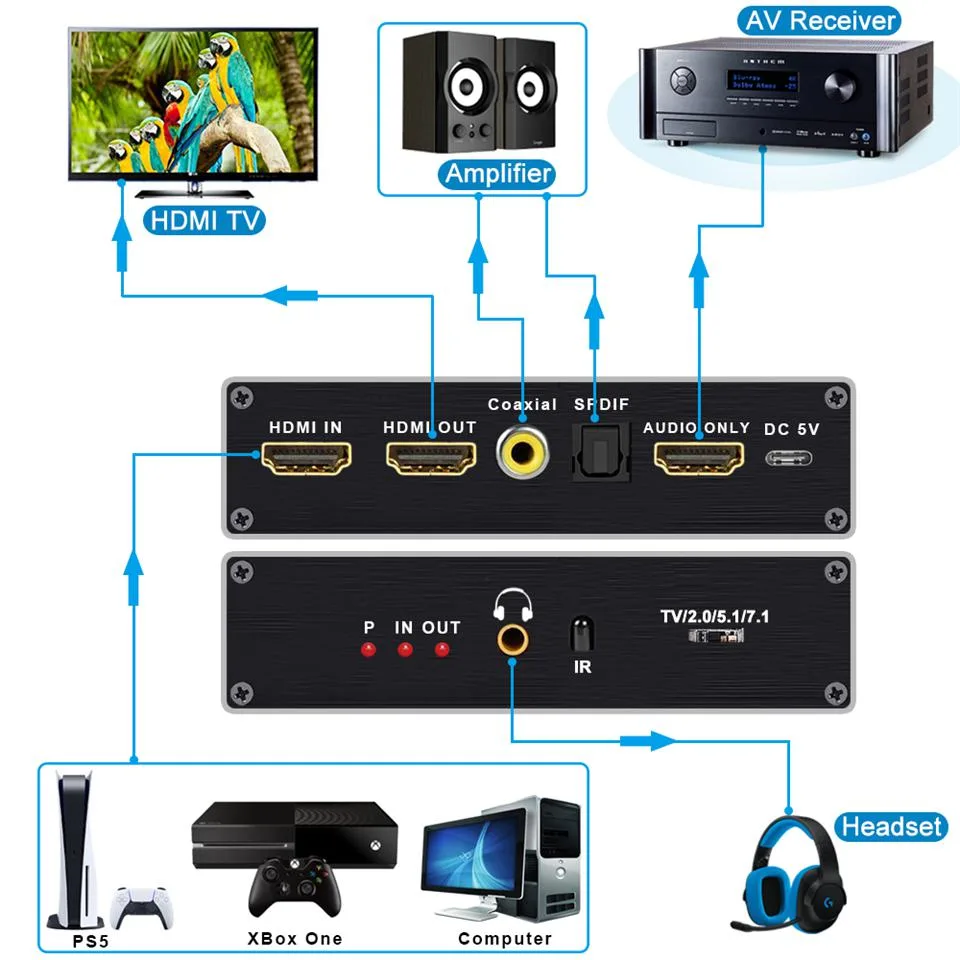

The ESTONE OZ8V1 splits one HDMI source to an HDMI display while extracting audio to Toslink, coaxial, 3.5 mm jack or HDMI audio output. It passes 8K at 60 Hz and 4K at 120 Hz with 48 Gbps bandwidth and supports Dolby Vision, HDR10+ and Dolby Atmos.

Upgrade from basic splitters without audio breakout

Replaces a simple HDMI cable or passive switch when you need separate sound paths for a soundbar, AV receiver or headphones. The jump is worth it if your display handles video but your audio gear requires optical, coaxial or analogue input.

Check your source and sink capabilities

Verify the source device can output the desired resolution and refresh rate over HDMI 2.1. Confirm your audio equipment accepts Toslink, coaxial or 3.5 mm signals at 5.1 or 7.1 channels. Ensure a 5 V DC power outlet is available for the included adapter.

Highlights

  • Extract 7.1-channel Dolby Atmos audio via HDMI output while passing 8K 60 Hz video
  • Send 5.1-channel sound to legacy AV gear through optical Toslink or coaxial ports
  • Connect headphones or powered speakers directly using the 3.5 mm analogue jack
  • Maintain full 48 Gbps bandwidth for 4K 120 Hz RGB 4:4:4 and 5120×1440 120 Hz gaming
  • Switch EDID modes with the included IR remote to match any display or capture device

Specifications

BrandESTONE
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack

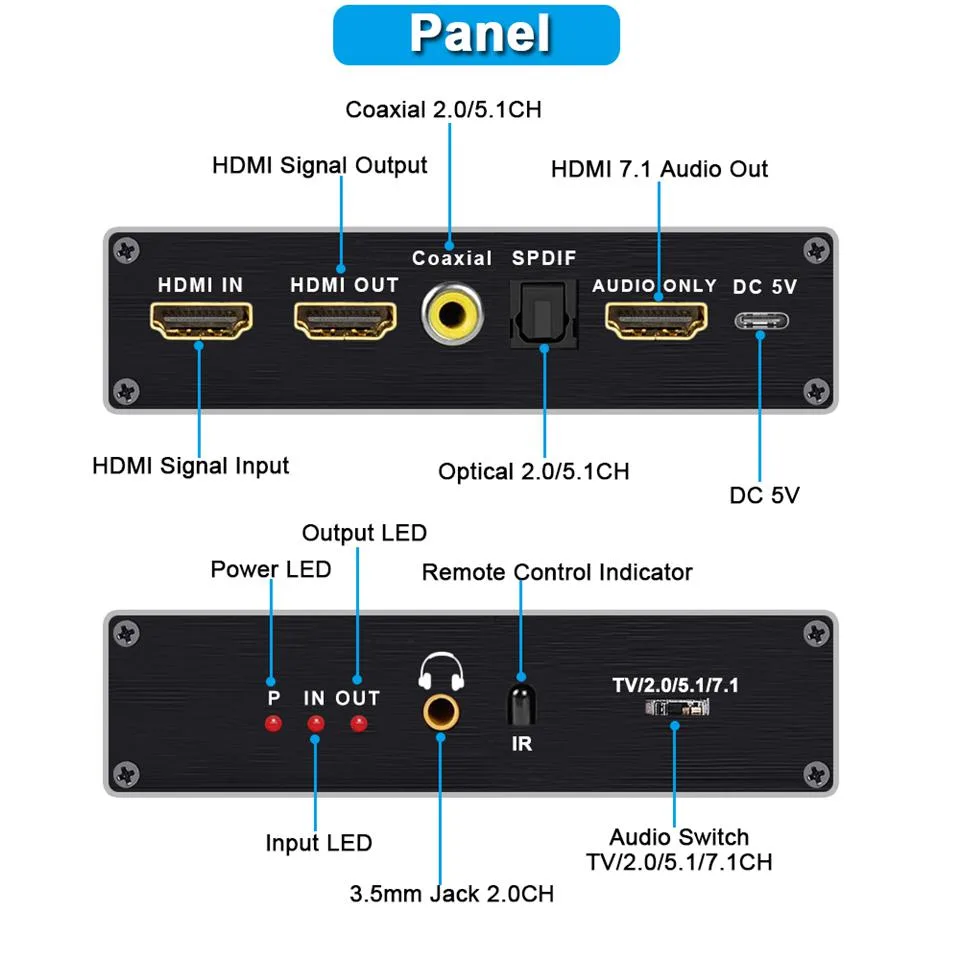

SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

What physical space and power connection does the 5.59 x 3.15 x 1.26-inch extractor need?

The unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces; it requires the included 5V/1A DC adapter plugged into a nearby mains socket.

Which cable must be connected first during installation so the EDID switch can read the display capabilities?

Connect the HDMI source to the input and the display to the HDMI output before powering the unit; only then will the EDID switch negotiate 8K 60 Hz or 4K 120 Hz modes correctly.

What ongoing maintenance does the IR remote and power adapter need?

The IR remote ships without a battery; insert a compatible coin cell before first use and replace it when range drops. The 5V/1A adapter requires no service unless the extractor loses power or the LED fails to light.
