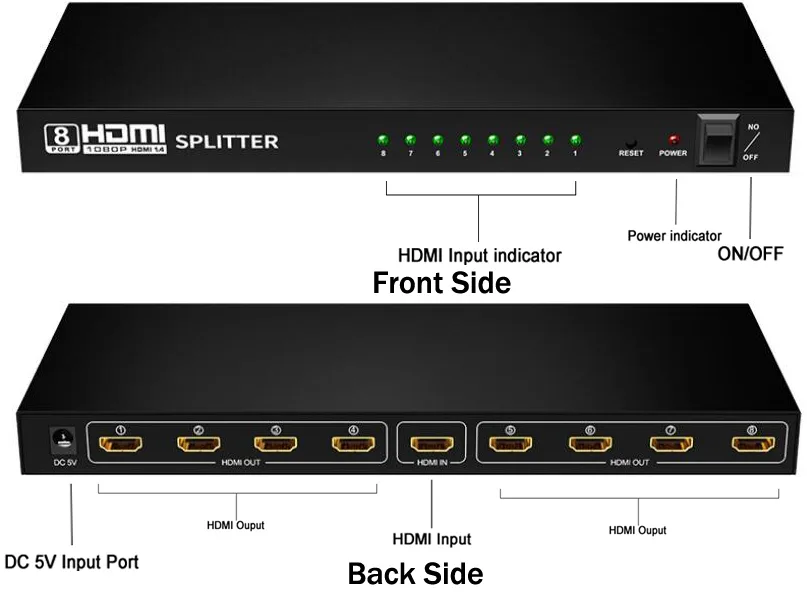

Black rectangular HDMI splitter with one input and eight output ports

ESTONE

ESTONE HW-HD1080P 1×8 HDMI Splitter 1080P

SKU CH-0S85-M80QN

Distributes one HDMI source to eight displays at up to 1920 x 1080 resolution with audio support including DTS 7.1 and Dolby TrueHD

  • TypeHDMI Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports8
  • ColorBlack
  • Cable Length5 in.
  • Input Connector1x HDMI female

Style 1080p

  • Distributes one HDMI source to eight displays simultaneously
  • Supports Full HD 1080p resolution at 1920 x 1080
  • Handles Dolby TrueHD and DTS-HD Master Audio 7.1
  • Amplifies signal for extended transmission distance
  • Compatible with PS3, PS4, Xbox 360 and Xbox One

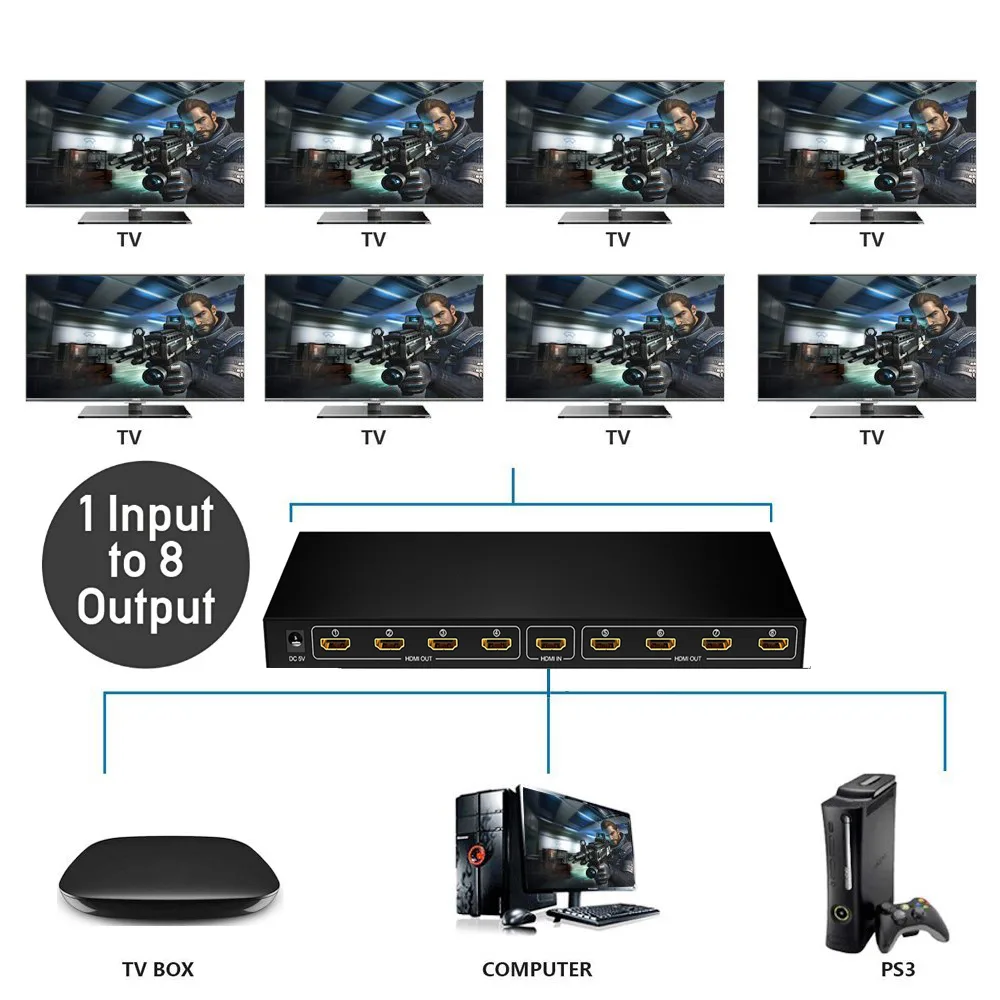

8-Port HDMI Splitter for Multi-Display Setups

The ESTONE HW-HD1080P takes a single HDMI source and distributes it to eight identical outputs. It supports video resolutions up to 1920 x 1080 and 1440p at 1.3 specification. Audio formats including LPCM, Dolby-AC3, DTS7.1 and DSD are passed through without change. The unit is suited for conference rooms, digital signage or home theatre installations requiring simultaneous display.

Replaces Single-Output Connections

This splitter removes the need to swap cables between multiple screens or to daisy-chain extenders that degrade the signal. It buffers and amplifies the input so longer cable runs remain stable at supported resolutions. The upgrade is worthwhile when one source must drive several displays at once, such as a Blu-ray player feeding a wall of monitors or a games console mirrored across a training suite. Buyers who need independent content on each screen should consider a matrix switch instead.

HDMI 1.3 Bandwidth Limits Resolution

The 1.3 interface caps video at 1080p and 1440p, so 4K sources will downscale or fail to handshake. Deep colour and high-bitrate audio such as Dolby TrueHD are supported within that bandwidth, but newer formats requiring 1.4 or 2.0 throughput are not available. Cable quality and length affect reliability at the upper end of the supported modes. Users needing 4K60 or HDR must select a splitter built to a later specification.

Highlights

  • Distributes one HDMI source to eight displays simultaneously
  • Supports Full HD 1080p resolution at 1920 x 1080
  • Handles Dolby TrueHD and DTS-HD Master Audio 7.1
  • Amplifies signal for extended transmission distance
  • Compatible with PS3, PS4, Xbox 360 and Xbox One

Specifications

BrandESTONE
ModelHW-HD1080P
TypeHDMI Splitters
Changer TypeHDMI Switch/Extender
Ports8
ColorBlack
Cable Length5 in.
Input Connector1x HDMI female
Output Connector8x HDMI female
Connector StyleStandard
Maximum Resolutions1920 x 1080

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much rack or shelf space does the 5 in. cable length and eight HDMI ports require?

The unit has a 5 in. cable and eight standard HDMI female outputs, so allow room for the cable bend radius and eight side-by-side connectors on your rack or shelf.

Which step do installers often skip when connecting the 1×8 HDMI splitter to a 1080P source and eight displays?

Power the splitter first, then connect the single HDMI input, and finally attach all eight HDMI outputs; skipping the power-first sequence can prevent signal detection on some displays.

When should the gold-finger high-temperature tape used in the build be inspected or replaced?

Inspect the polyimide insulation tape during any service that exposes the internal wiring; replace it if the gold fingers show discoloration, cracking, or loss of adhesion after prolonged high-temperature operation.
