Small black rectangular HDMI splitter with ports visible

ESTONE

ESTONE HDMI698352 1x2 HDMI Splitter Converter HD 1.4 Amplifier HDCP 4K/1080P Dual Display Black

SKU CH-162X-XP8CA

Splits one HDMI source to two identical displays at up to 3840 x 2160 @30Hz with HDCP 1.4 and multi-format audio support

  • TypeHDMI Splitters
  • Changer TypeHDMI splitter
  • Ports2
  • ColorBlack
  • Specifications1.Multi-format input, Support PAL, NTSC3.58, NTSC4.43, SECAM
  • Input Connector1x HDMI female

Ports 2

  • 2
  • 4
  • Duplicate one HDMI source to two displays simultaneously
  • Supports 3840 x 2160 at 30 Hz and 1080p at 60 Hz
  • Carries LPCM, Dolby-AC3, DTS 7.1 and high-definition audio formats
  • Transmits up to 110 ft total with standard AWG26 cable
  • HDMI 1.4 compliant with HDCP 1.4 bypass for protected content

What it does

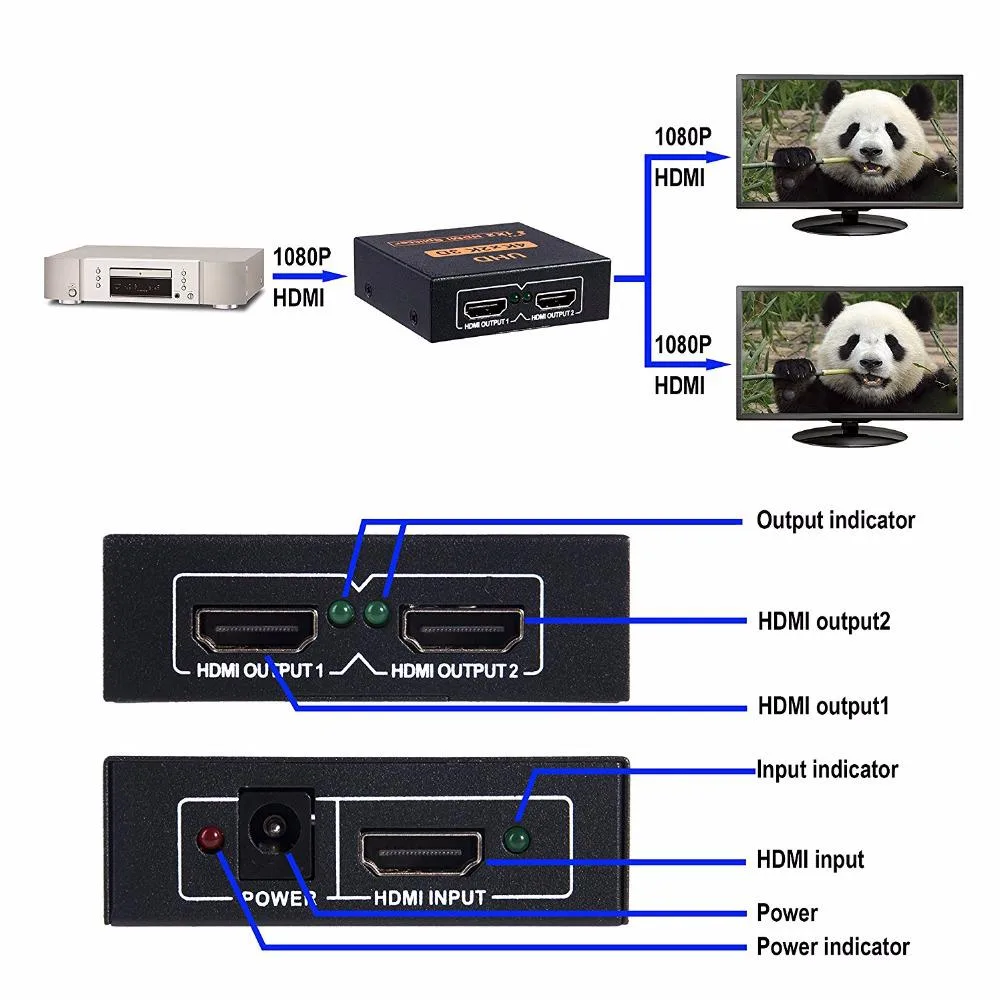

The ESTONE HDMI698352 is a 1x2 HDMI splitter that duplicates one HDMI source to two identical displays. It accepts a single HDMI input and drives two HDMI outputs simultaneously, mirroring video and audio without extending the desktop. The unit supports HDMI 1.4 and earlier standards, HDCP 1.4 bypass, and multi-format TV standards including PAL and NTSC variants. It ships with a 5V/2A power adapter and user manual.

The resolution limit that matters

Maximum output resolution is 3840 x 2160 at 30 Hz, with 1080p at 60 Hz and 720p at 60 Hz also supported. The device does not support 4K at 60 Hz or HDMI 2.0/2.1 bandwidth. Transmission distance reaches 100 ft using AWG26 cable, split as 40 ft input and 60 ft output. Audio formats include LPCM, Dolby-AC3, DTS7.1, DSD, Dolby TrueHD and DTS-HD master audio.

Who it suits and who should look elsewhere

Ideal for users who need to mirror a console, Blu-ray player, streaming stick or PC to two TVs or monitors at 4K 30 Hz or 1080p 60 Hz. Not suitable for anyone requiring 4K 60 Hz output, HDMI 2.0 features, extended desktop mode, or switching between multiple sources. Builders needing longer runs than 100 ft or daisy-chaining beyond the specified distance should consider other solutions.

Highlights

  • Duplicate one HDMI source to two displays simultaneously
  • Supports 3840 x 2160 at 30 Hz and 1080p at 60 Hz
  • Carries LPCM, Dolby-AC3, DTS 7.1 and high-definition audio formats
  • Transmits up to 110 ft total with standard AWG26 cable
  • HDMI 1.4 compliant with HDCP 1.4 bypass for protected content

Specifications

BrandESTONE
SeriesHDMI698352
ModelHDMI698352
Part NumberHDMI698352
TypeHDMI Splitters
Changer TypeHDMI splitter
Ports2
ColorBlack
Specifications1.Multi-format input, Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input
2.Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio.
3.One Input ports: Supports with computer, XBox 360, XBox one, PS3, PS4 Pro, Fire Stick, Blu-Ray DVD player,
Satellite Receiver, Route Roku, Chromecast, PC, Projectors etc.
4.4 Output ports: Supports with HD-Ready, Full HsD TVs, monitors etc
5.Output Video: HDMI+HDCP1.0/1.1/1.2/1.2a/1.3/1.4
6.Input Video Signal: 0.5 ~ 1.0 volts p-p ;Input DDC Signal: 5 volts p-p
Input Connector1x HDMI female
Output Connector4x HDMI female
Maximum Resolutions3840 x 2160
Features1x2 Hdmi Splitter: This Hdmi splitter 1 input 2 output duplicate 1 HDMI input signal to 2 identical HDMI output signals, transmit video and audio simultaneously without any quality loss. NOT hdmi switch 2 input 1 output, can't switch 2 signal source on one display.
High Compability: 2 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@30Hz, deep color 408i/576i/576p/720p/1080i/1080P, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of both output devices is the same

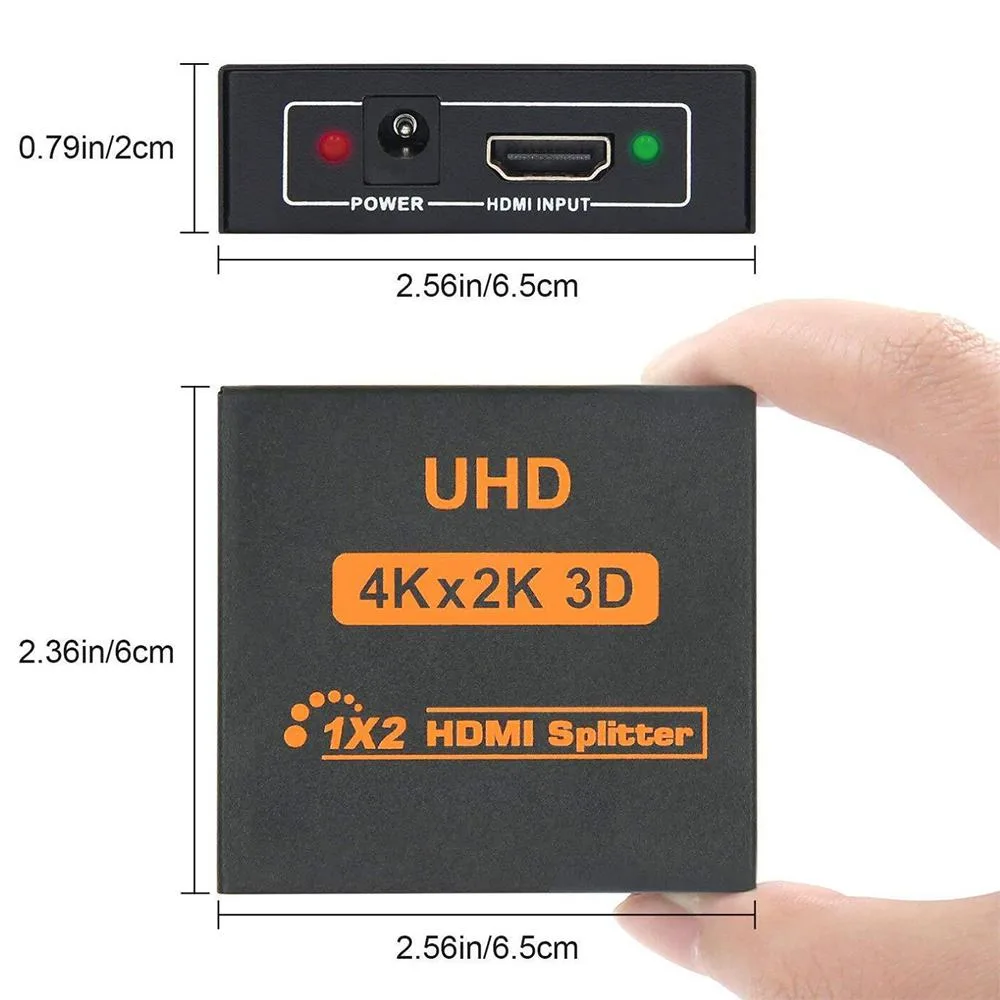

Dimensions3.15 x 1.18 x 2.36 inches
Weight7.8 ounces
Package Contents2 output ports hdmi splitter box X1
5V/2A AC adapter X1
User manual X1

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 4K x 2K @30 Hz headline resolution mean when the splitter is connected to a TV?

It means the splitter can pass a 3840 x 2160 picture at 30 frames per second to both screens simultaneously; 4K at 60 Hz is not supported.

Which HDMI version does the splitter use and what bandwidth does that limit?

The unit complies with HDMI 1.4, which caps the data rate at 10.2 Gbps and prevents 4K 60 Hz or HDMI 2.0/2.1 features.

How much space and power does the metal enclosure need for installation?

The box measures 3.15 x 1.18 x 2.36 inches, weighs 7.8 ounces and requires the included 5V/2A AC adapter to operate.
