Small black aluminium box with HDMI input and three RCA plus 3.5 mm audio outputs

ESTONE

ESTONE HDMI to 3RCA CVBS Converter with 3.5 mm Audio Black

SKU CH-0870-NDXDA

Converts HDMI to CVBS composite video and 3.5 mm audio with NTSC/PAL switching and USB power

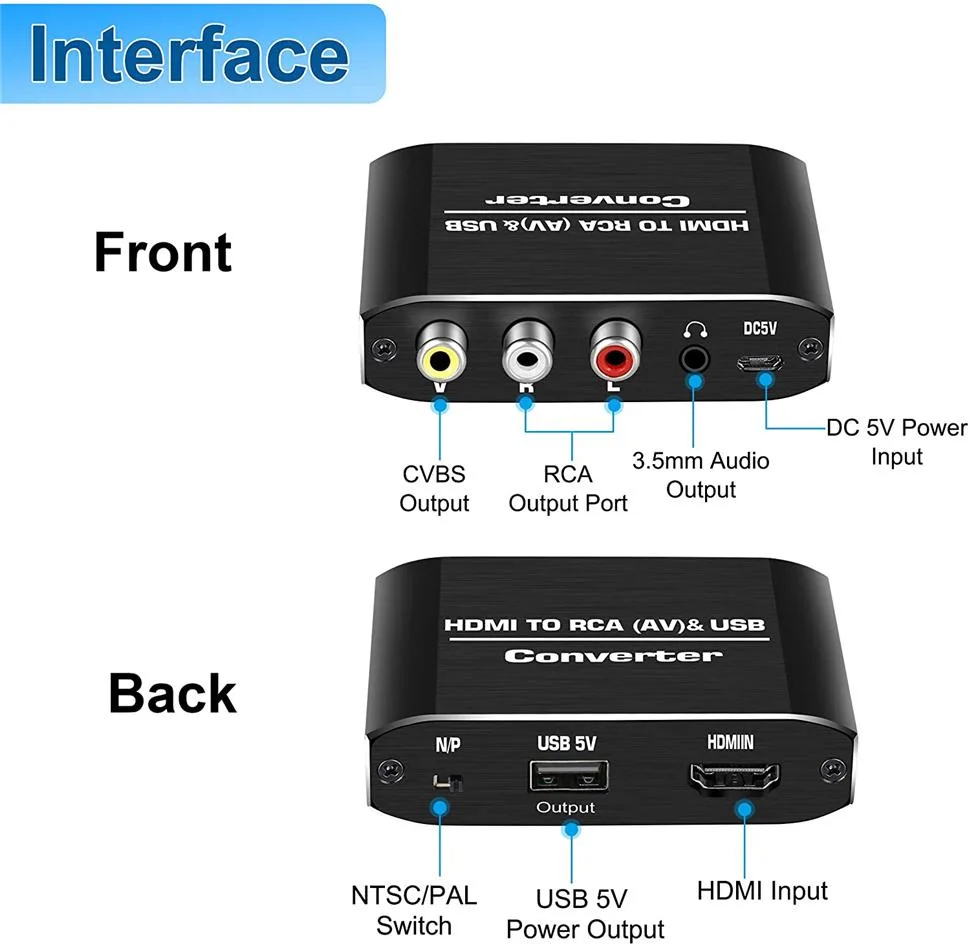

  • TypeHDMI to RCA Converter
  • Connector A1x HDMI
  • Connector B1 x 3RCA
  • AudioYes
  • Package Contents1 x HDMI to RCA Converter, 1 x USB Power Adapter and cable,
  • Converts HDMI to composite CVBS 480i and 576i for legacy displays
  • Separate 3.5 mm stereo audio output alongside RCA connectors
  • Selectable NTSC or PAL output via built-in switch
  • Powered by 5 V USB so compatible streaming sticks stay powered
  • Aluminium housing weighs 150 g for portable plug-and-play use

HDMI to CVBS Converter with 3.5 mm Audio

This ESTONE adapter converts an HDMI source into composite CVBS video at 480i or 576i and provides stereo audio through both 3RCA and a 3.5 mm jack. It accepts HDMI 1.3 input up to 1080p at 60 Hz and draws power from an included 5 V USB supply. The aluminium housing weighs 150 g and requires no driver installation.

Suits legacy displays and capture gear

Buyers connecting a TV stick, Roku, Chromecast, Apple TV, PC, laptop, Xbox or DVD player to an older TV, VHS VCR or DVD recorder will find this unit useful. It does not work in reverse, so anyone needing RCA to HDMI conversion should look elsewhere. Mobile phones are not supported, and 3D signals are not passed through.

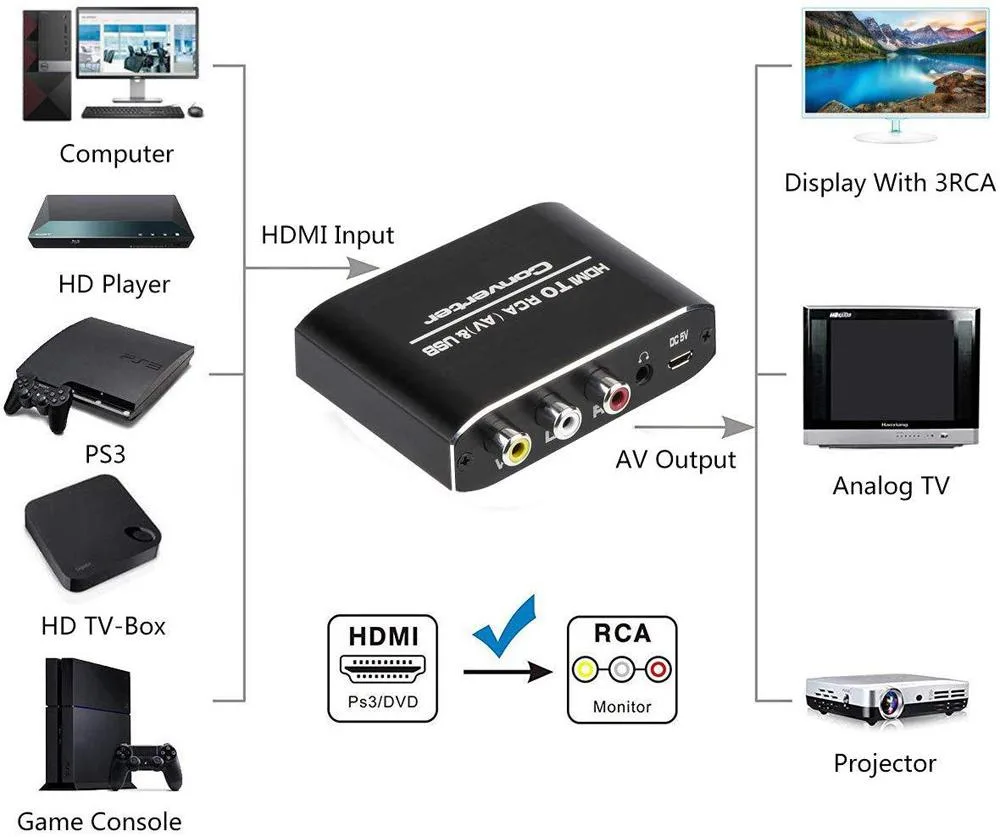

Fits between source and composite display

Place the converter between an HDMI output and a composite input; the USB power cable plugs into any 5 V port to run the unit and can also power a compatible streaming stick. A slide switch selects NTSC or PAL output to match the display region. The 3.5 mm jack frees up the RCA audio connectors for other uses or simpler cabling.

Highlights

  • Converts HDMI to composite CVBS 480i and 576i for legacy displays
  • Separate 3.5 mm stereo audio output alongside RCA connectors
  • Selectable NTSC or PAL output via built-in switch
  • Powered by 5 V USB so compatible streaming sticks stay powered
  • Aluminium housing weighs 150 g for portable plug-and-play use

Specifications

TypeHDMI to RCA Converter
Connector A1x HDMI
Connector B1 x 3RCA
AudioYes
Package Contents1 x HDMI to RCA Converter,
1 x USB Power Adapter and cable,
1 x User Manual

Questions about this item

What HDMI source resolution and version does the converter accept?

It accepts HDMI 1.3 input from 480i up to 1080P at 60Hz, but does not support 3D signals.

Can I keep using my NTSC or PAL composite display with this converter?

Yes, a selector switch chooses NTSC or PAL output; if the picture appears in black and white, flip the switch to the other format.

How do I confirm the converter is powered and passing video after I connect everything?

The unit draws 5 V from the included USB power adapter; once plugged in, the source image should appear on the composite display without driver installation.
