Black bi-directional DisplayPort splitter box with one input and two output ports, matte finish, compact rectangular shape

ESTONE

ESTONE A0201 Bi-Directional DisplayPort Splitter 16K@60Hz 40Gbps

SKU CH-DXJ7-K0PF5

Bi-directional DisplayPort 2.0 switch shares one display between two sources or toggles one source across two screens at up to 16K 60 Hz and 40 Gbps

  • TypeDisplayPort Splitters
  • Changer TypeDisplay Extenders
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications1. 16K DP 2.0 Switch: Support 16K@60Hz,8K@60Hz,4K@240Hz reso
  • Bi-directional switching lets two sources share one display or one source toggle between two screens
  • 16K@60Hz resolution support delivers ultra-high-definition visuals at 40Gbps bandwidth
  • 4K@240Hz and 1080p@240Hz capability provides smooth motion for fast-paced gaming
  • Included power cable ensures stable operation and prevents signal drop on dual-display setups
  • Compact 5.31 x 3.11 x .87-inch design fits neatly on any desk or entertainment unit

Bi-Directional DisplayPort Switch

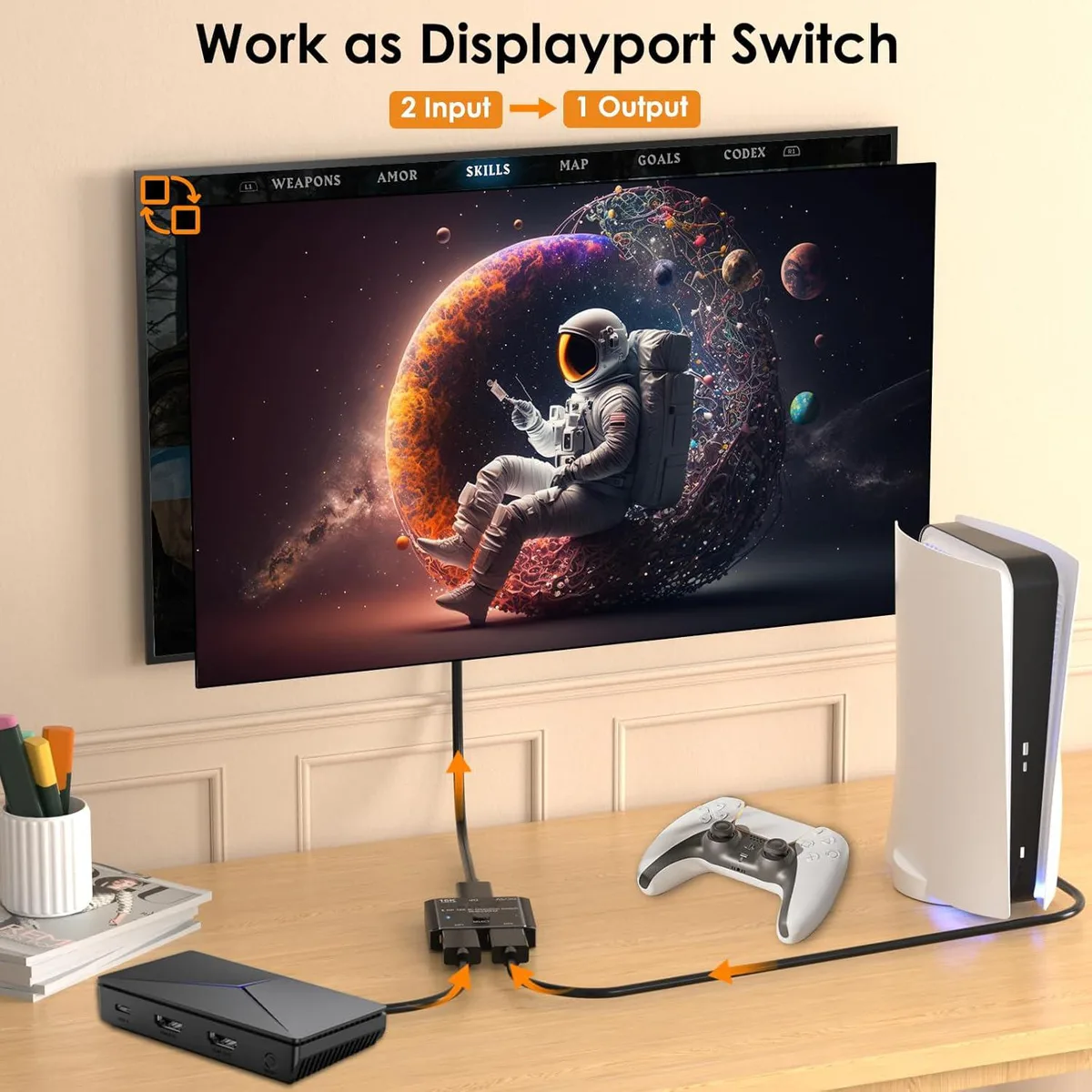

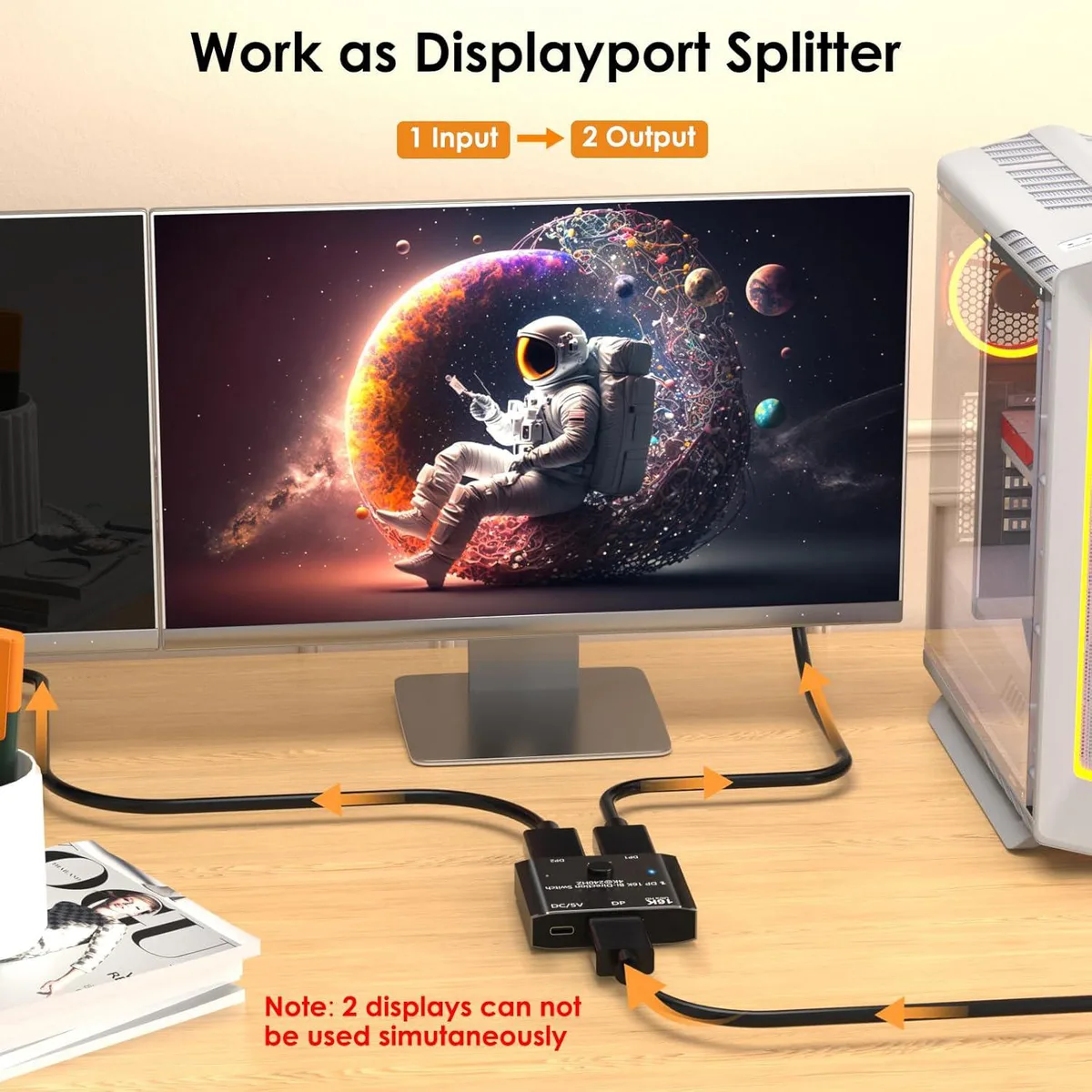

The ESTONE A0201 connects two DisplayPort sources to one display or one source to two displays. It operates in a bi-directional mode so you can toggle between a PC and a console or switch a single computer between two monitors. Only one output is active at a time.

Powered Female Ports and 40 Gbps Bandwidth

Two female DisplayPort connectors handle input and output while a USB power cable supplies extra current for stable switching. The 40 Gbps bandwidth supports 16K at 60 Hz, 8K at 60 Hz and 4K at up to 240 Hz with audio pass-through. Total cable length should stay within 2 metres for reliable signal.

Passive Cooling and Low Power Draw

The compact black enclosure measures 5.31 by 3.11 by 0.87 inches and weighs 2.12 ounces. With no moving parts it runs silently and draws minimal power from the attached USB source. Normal use produces no audible noise and negligible heat.

Highlights

  • Bi-directional switching lets two sources share one display or one source toggle between two screens
  • 16K@60Hz resolution support delivers ultra-high-definition visuals at 40Gbps bandwidth
  • 4K@240Hz and 1080p@240Hz capability provides smooth motion for fast-paced gaming
  • Included power cable ensures stable operation and prevents signal drop on dual-display setups
  • Compact 5.31 x 3.11 x .87-inch design fits neatly on any desk or entertainment unit

Specifications

BrandESTONE
SeriesA0201
ModelA0201
Part NumberA0201
TypeDisplayPort Splitters
Changer TypeDisplay Extenders
Ports2
AudioYes
ColorBlack
Specifications1. 16K DP 2.0 Switch: Support 16K@60Hz,8K@60Hz,4K@240Hz resolution, provide you with transfer rates up to 40Gbps and backward compatible with all previous DP standards.
?
2: The DisplayPort switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays.
?
3. External power required, the DP selector box is easy to setup and operate. Note: While using, press "select"Button to switch signal between two sources or displays, the indicator lights show the working status, two displays CANNOT display simultaneously.
?
4. This di
Input Connector1x DisplayPort female
Output Connector2x DisplayPort female
Connector StyleFemale
Maximum ResolutionsSupport 16K@60Hz,8K@60Hz,4K@240Hz,4K@144Hz,1080P@240Hz resolution,
Bandwidth40Gbps
FeaturesBi-Direction ***DP Switch:The DisplayPort Switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays. (Two displays CANNOT display simultaneously,Press"Select"button to switch between two displays.)(While connecting to Source or Display,you must use the usb cable to power the splitter,or your display can not show anything).Do not use too long cable(total 2m) for connection between the switcher and your devices.
16K DP 1.4 Splitter: Support 8K@120Hz,4K@240Hz,1080P@240Hz resolution, provide you with transfer rates up t
Dimensions5.31 x 3.11 x 0.87 inches
Weight2.12 Ounces
Package Quantity1
Package Contents1x Bi-Direction DP Switch, Power Charging Cable x1, User Manual x1.

Questions about this item

What DisplayPort standard does the A0201 splitter use and what bandwidth does it support?

The splitter uses DisplayPort 2.0 and supports up to 40Gbps bandwidth.

What are the physical dimensions and weight of the ESTONE A0201 splitter?

The splitter measures 5.31 x 3.11 x .87 inches and weighs 2.12 ounces.

How is the ESTONE A0201 installed and what step is commonly missed?

Connect sources and display with standard DP 2.0 cables under 6.6 feet total, then attach the included USB power cable; the step often missed is powering the unit.
