Black rectangular HDMI matrix switch, 195 by 70 by 23 mm, four inputs four outputs, IR remote included

ESTONE

ESTONE 4x4 HDMI Matrix Switch 4K 30Hz 10.2Gbps (OZJ7)

SKU CH-GYM7-QBKXS

Routes four HDMI sources to four displays at up to 4K 30 Hz with IR remote and front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Routes four sources to four displays independently
  • Supports 4K resolution at 30 Hz YUV 4:2:0
  • HDMI 1.4 bandwidth of 10.2 Gbps
  • IR remote and front-panel control included
  • Accepts 100-240 V AC input for worldwide use

4x4 HDMI Matrix Switch

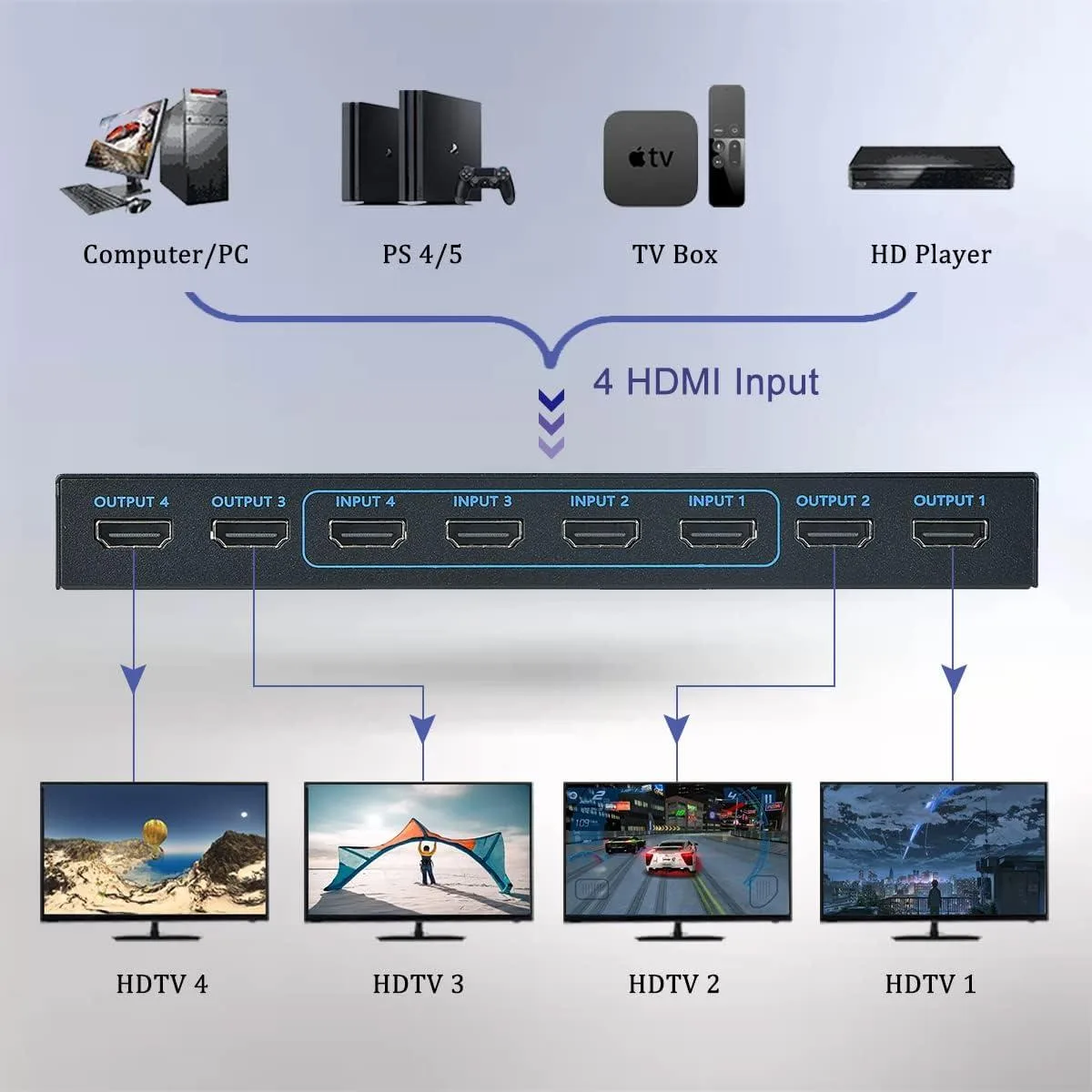

The ESTONE 4x4 HDMI Matrix Switch routes four HDMI sources to four displays simultaneously. It suits home theatres, conference rooms, retail signage and education spaces that need flexible source distribution. The unit handles switching and splitting in a single compact chassis with front-panel buttons and an IR remote. Installers can integrate it into IR-based control systems for automated operation.

4K 30Hz 10.2Gbps bandwidth

Maximum supported resolution is 4096 x 2160 at 30 Hz with YUV 4:2:0 colour sampling and 8/10-bit deep colour. The 10.2Gbps bandwidth and 400MHz pixel clock handle 4K 30Hz and 3D video formats without compression. Input and output cable runs are limited to 8 metres using AWG26 HDMI 1.4 standard cables. Longer runs or higher refresh rates such as 4K 60Hz exceed the available headroom.

Passive cooling 500mA draw

The metal enclosure dissipates heat passively with no fan, so acoustic output is zero in normal use. Maximum working current is 500mA at 5V DC supplied by the included 100-240V AC adapter. Operating temperature range spans -15 to +45 Celsius at 5-90% relative humidity non-condensing. Power consumption remains low enough for continuous operation in enclosed racks or ceiling voids.

Highlights

  • Routes four sources to four displays independently
  • Supports 4K resolution at 30 Hz YUV 4:2:0
  • HDMI 1.4 bandwidth of 10.2 Gbps
  • IR remote and front-panel control included
  • Accepts 100-240 V AC input for worldwide use

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
Maximum Resolutions4096 x 2160

Questions about this item

Will this matrix work with my older 1080p sources and displays?

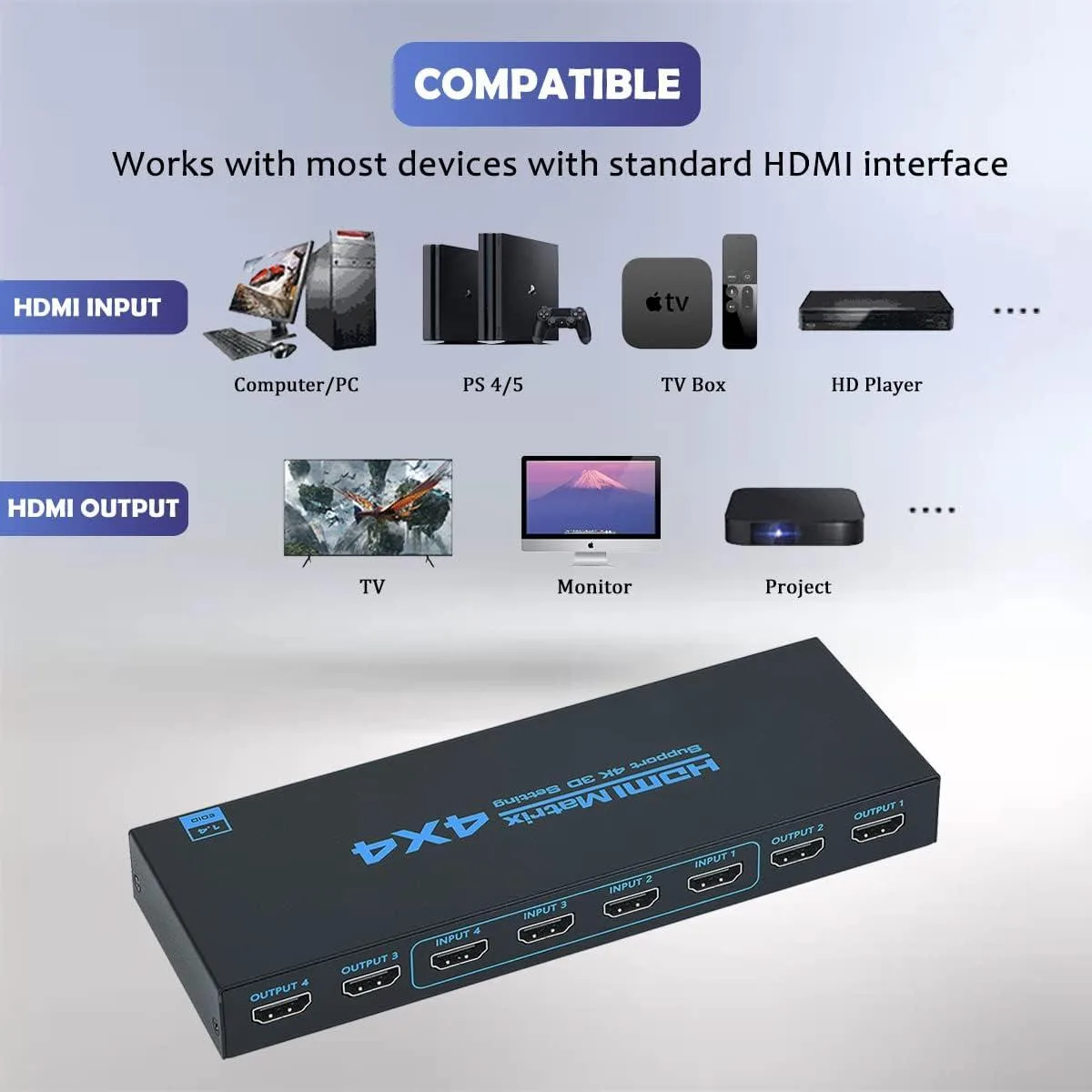

Yes, the switch supports HDMI 1.4 and handles resolutions up to 4096 x 2160, so 1080p devices connect and display normally through any of the four inputs or outputs.

How can I verify the 4K 30Hz signal is passing correctly after installation?

Connect a 4K source, select its input on the front panel or IR remote, and confirm the attached display shows 3840 x 2160 at 30 Hz with 8/10-bit deep colour and no dropouts.

Does the package include HDMI cables or only the matrix and remote?

The box contains the 4x4 matrix unit, an IR remote control and a DC 5 V 2 A power adapter; HDMI cables for the four inputs and four outputs must be purchased separately.
