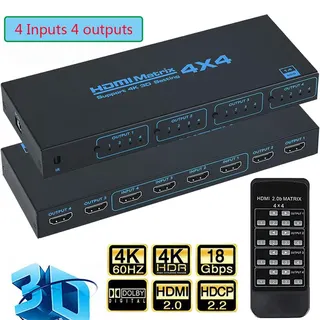

Black rectangular HDMI matrix switch with multiple ports and IR remote control

ESTONE

ESTONE 4x4 HDMI Matrix Switch 4K@30Hz 10.2Gbps IR Remote

SKU CH-EAG9-VT280

Routes four HDMI sources to four displays independently at up to 4K@30 Hz with IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Route four sources to four displays independently with 4x4 matrix switching
  • Enjoy 4K clarity at 3840×2160 resolution and 30 Hz refresh
  • Transmit up to 10.2 Gbps bandwidth over HDMI 1.4 links
  • Experience 3D video and 8/10-bit deep colour support
  • Control the matrix from a distance using the included IR remote

4×4 HDMI Matrix Switch

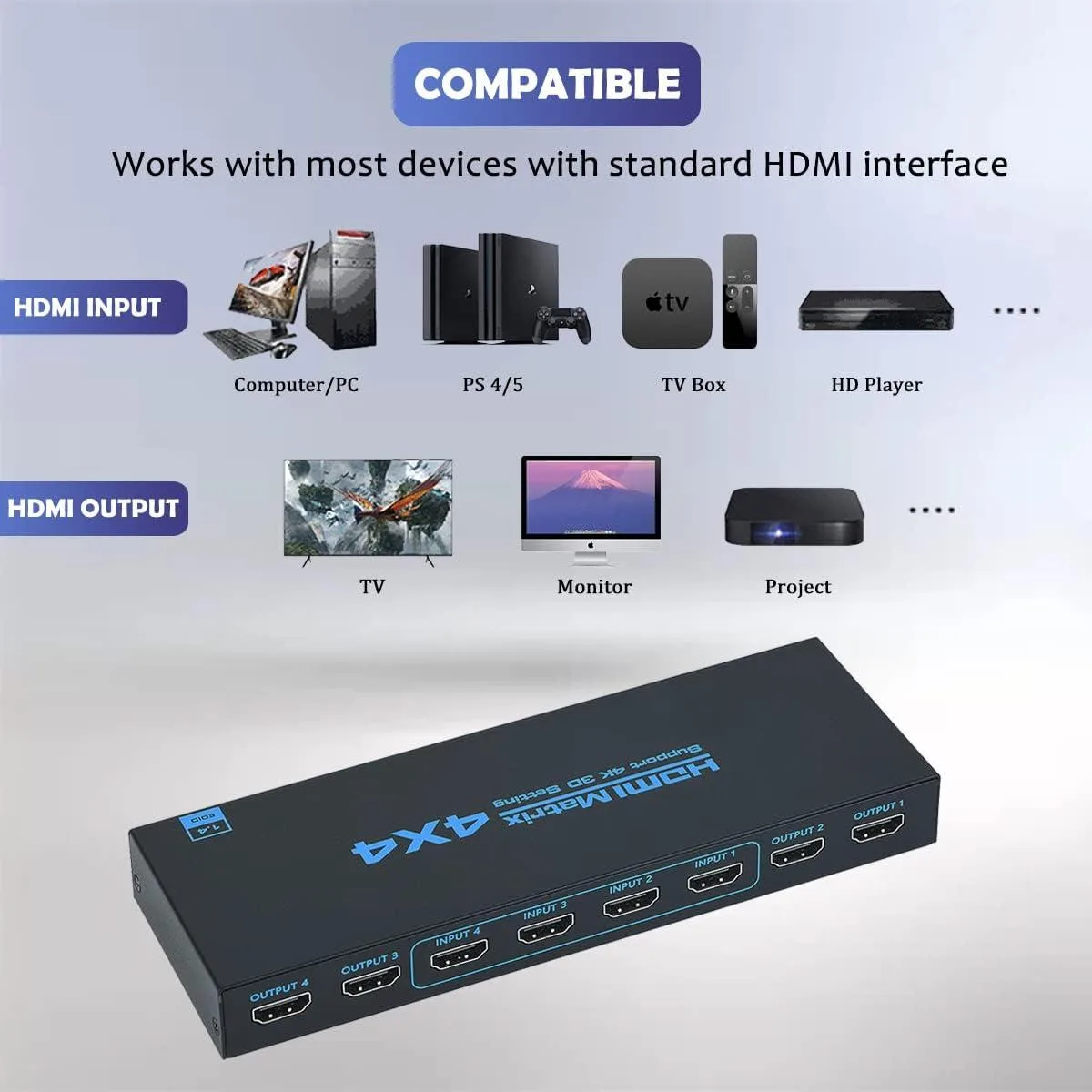

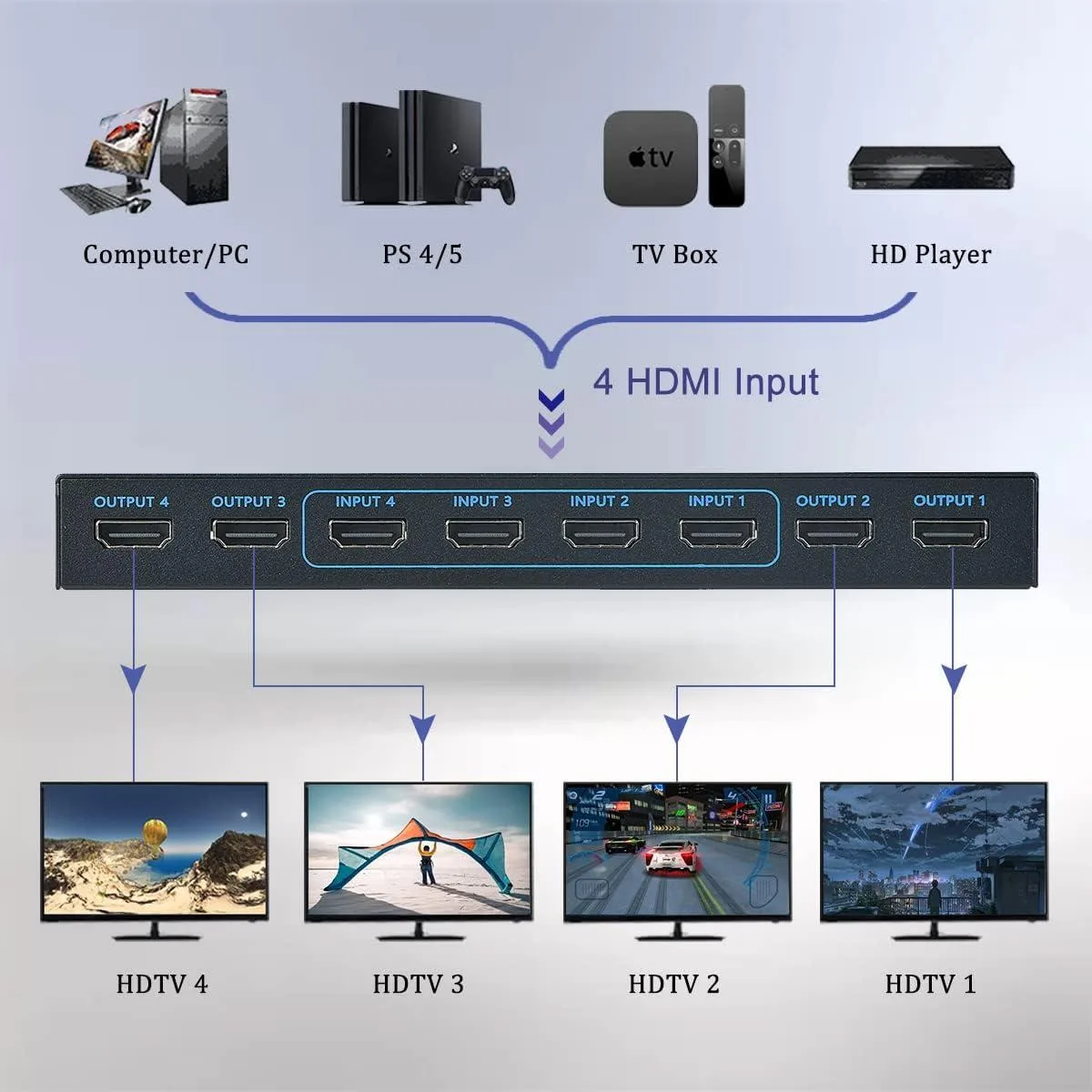

The ESTONE 4×4 HDMI matrix switch routes four HDMI sources to four displays independently. Each output can also extract audio through optical or stereo connections. It suits installations such as home theatres, conference rooms and digital-signage walls where multiple sources must reach multiple screens.

Thermals and power draw

The unit operates from a 5 V DC 2 A adapter that accepts 100 V to 240 V AC input. Maximum working current is 500 mA. Specified operating temperature ranges from minus 15 to plus 45 Celsius with humidity between 5 and 90 percent non-condensing. No active cooling is mentioned in the data.

IR remote and cabling limits

An IR remote control is included for source selection from a distance. Input and output cable runs are each limited to less than 8 metres using AWG26 HDMI 1.4 standard cables. The metal chassis measures 195 by 70 by 23 millimetres and weighs 300 grams.

Highlights

  • Route four sources to four displays independently with 4x4 matrix switching
  • Enjoy 4K clarity at 3840×2160 resolution and 30 Hz refresh
  • Transmit up to 10.2 Gbps bandwidth over HDMI 1.4 links
  • Experience 3D video and 8/10-bit deep colour support
  • Control the matrix from a distance using the included IR remote

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
Maximum Resolutions4096 x 2160

Questions about this item

How do I install the ESTONE 4x4 HDMI Matrix Switch and which step do people get wrong?

Connect up to four source devices to the HDMI inputs and up to four displays to the HDMI outputs using AWG26 cables no longer than 8 metres, then plug in the supplied 5 V/2 A DC adapter. The step most people miss is keeping every cable run under the 8-metre limit; longer cables cause signal loss at 10.2 Gbps.

What maintenance or replacement will the ESTONE 4x4 HDMI Matrix Switch need later?

The unit has no user-serviceable parts or filters. If the external 5 V/2 A power adapter fails, replace it with an equivalent 100–240 V AC to 5 V DC 2 A supply. Otherwise, keep ventilation clear and operate within -15 to +45 °C at 5–90 % RH non-condensing for maximum lifespan.

What limit appears first when the ESTONE 4x4 HDMI Matrix Switch runs continuously?

The 10.2 Gbps bandwidth ceiling and HDMI 1.4 spec cap sustained output at 4K 30 Hz YUV 4:2:0 or 1080p 60 Hz. Pushing higher refresh rates or deeper colour than 8/10-bit will hit this throughput limit before thermal throttling becomes a factor.
