Black rectangular box with four HDMI inputs and four outputs, IR remote included

ESTONE

ESTONE 4x4 HDMI Matrix Switch 4K@30Hz 10.2Gbps Black

SKU CH-G5JS-39SW7

A 4×4 HDMI matrix routes four sources to four displays at up to 4K 30 Hz with IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Routes four sources to four displays independently
  • Handles 4K at 30 Hz with 10.2 Gbps bandwidth
  • Auto-negotiates the lowest connected resolution without EDID setup
  • Includes IR remote for convenient switching

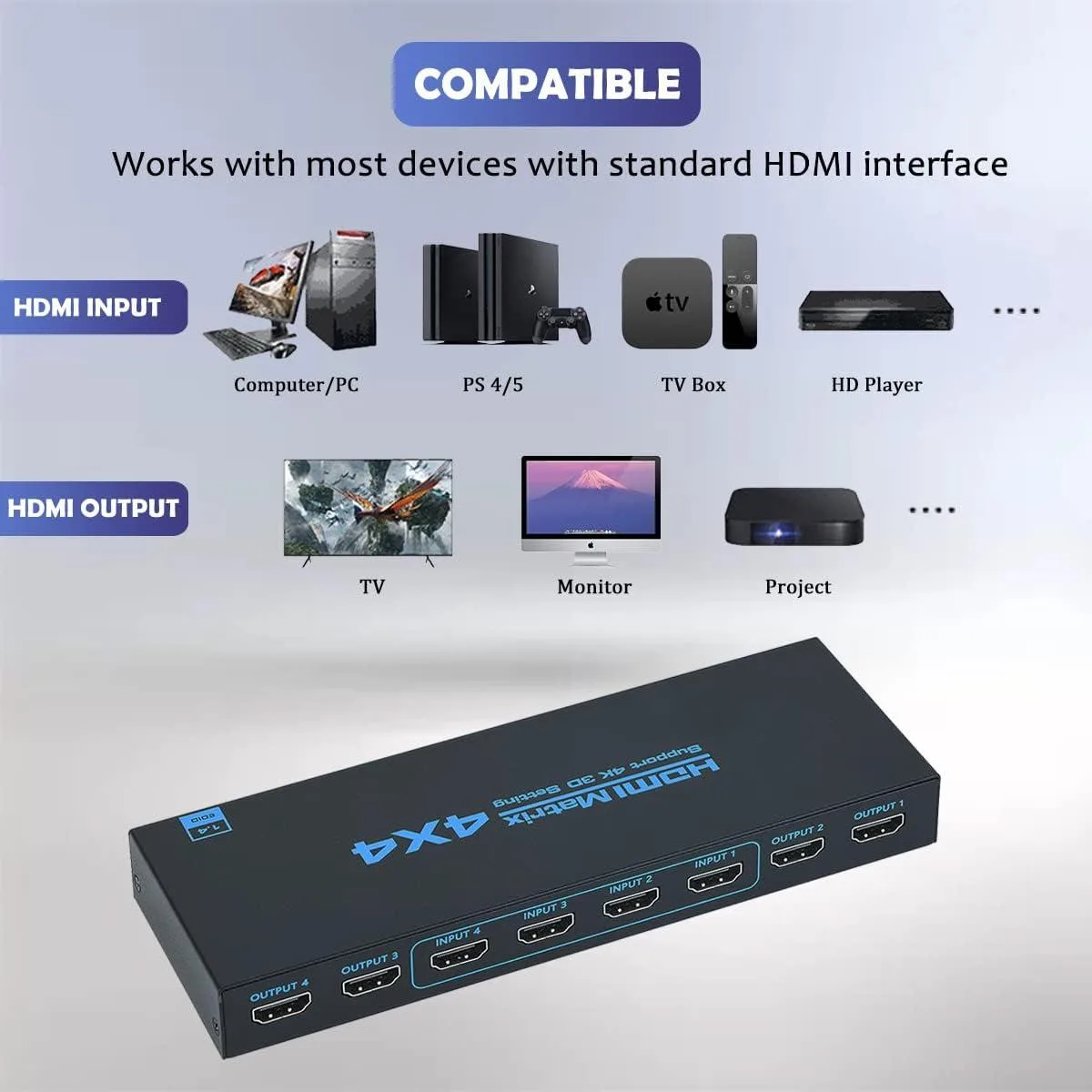

  • Works with consoles, PCs and streaming devices

4x4 HDMI Matrix for Multi-Display Setups

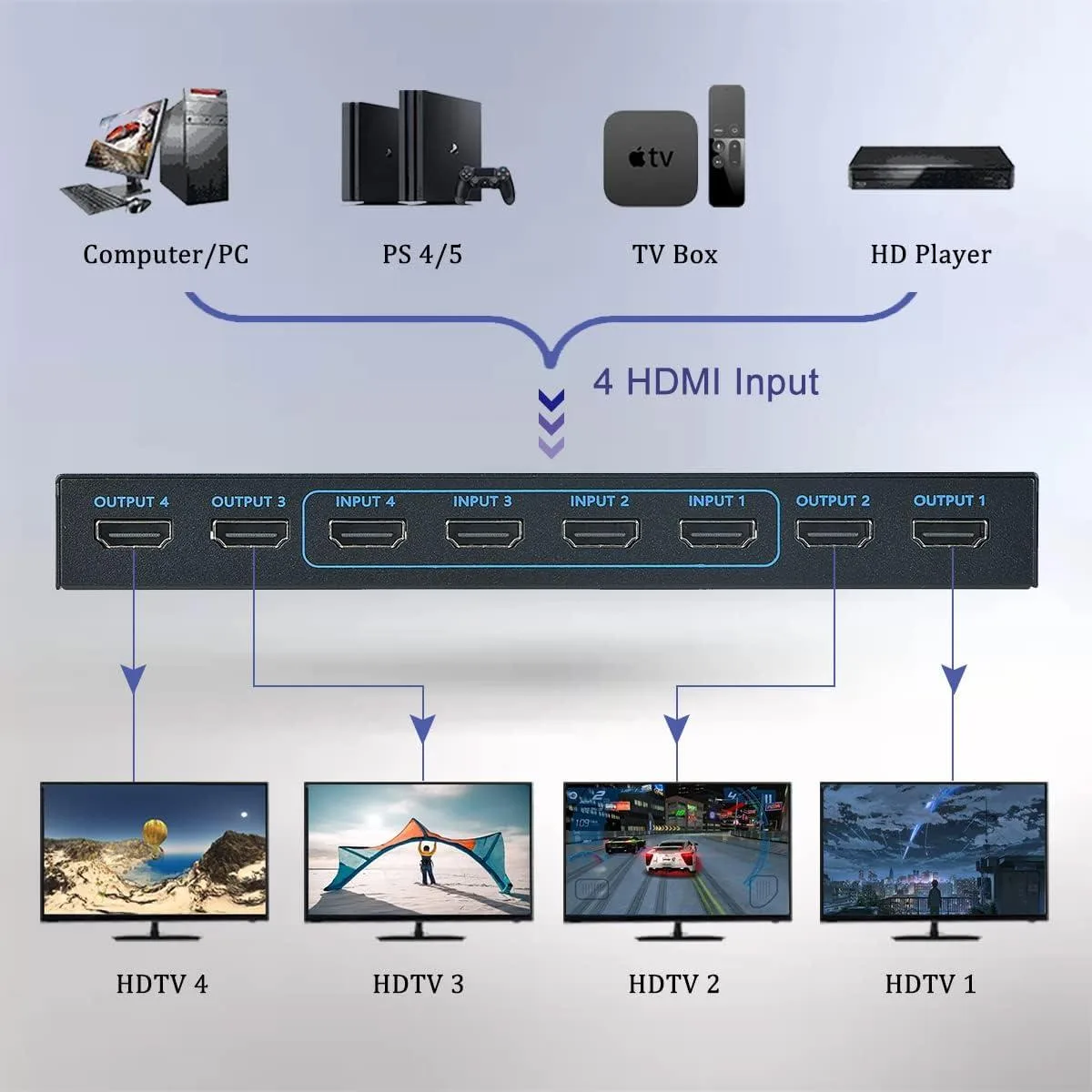

This ESTONE matrix routes four HDMI sources to four independent displays. It suits conference rooms, retail video walls, home theatres and training spaces where several screens must show the same or different content. Each output can mirror or split any input without re-cabling.

10.2 Gbps Bandwidth Handles Sustained 4K@30 Hz

The switch maintains a steady 10.2 Gbps data rate across all four paths, so 3840 x 2160 at 30 Hz video streams continuously without drop-outs. Deep-colour 8- or 10-bit signals pass through unchanged, and 3D formats remain intact during extended sessions.

Fanless Design Runs Silent at Up to 45 °C

With no moving parts the unit produces zero audible noise. It draws a maximum 500 mA from the supplied 5 V DC adapter and operates reliably between -15 °C and +45 °C in 5-90 % humidity. HDMI cable runs up to 8 metres on each side stay within spec.

Highlights

  • Routes four sources to four displays independently
  • Handles 4K at 30 Hz with 10.2 Gbps bandwidth
  • Auto-negotiates the lowest connected resolution without EDID setup
  • Includes IR remote for convenient switching
  • Works with consoles, PCs and streaming devices

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
Maximum Resolutions4096 x 2160

Questions about this item

Does the ESTONE 4x4 matrix switch run hot or draw much power when left on all day?

The unit operates from a 5 V 2 A adapter with a maximum working current of 500 mA, and is rated for continuous use between -15 °C and +45 °C.

What cables and power source must I already have to use this 4x4 HDMI matrix?

You need four HDMI 1.4 source devices, up to four HDMI displays, HDMI cables no longer than 8 m AWG26, and a mains outlet for the included 100–240 V AC to 5 V DC power adapter.

Will this matrix downscale 4K@60 Hz sources to match my older 1080p projectors?

Yes — the switch detects the lowest resolution among connected displays and forces all inputs to that resolution, so 4K@60 Hz sources will be limited to 1080p@60 Hz if any output is 1080p.
