Black rectangular HDMI matrix switch with multiple ports and IR remote

ESTONE

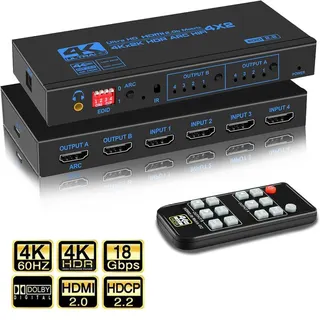

ESTONE 4x2 HDMI Matrix Switch 4K 60Hz EDID IR Remote (OZJ2-1)

SKU CH-VQK6-C062W

Routes four HDMI sources to two displays at 4K 60Hz with IR remote and EDID scaling

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four sources to two displays with 4K 60 Hz clarity
  • Automatic 4K-to-1080P downscale lets mixed monitors work together
  • Extracts audio to optical and 3.5 mm outputs simultaneously
  • Supports 8, 10, 12 bit deep colour and HDCP 2.2
  • Includes IR remote for convenient switching

4x2 HDMI Matrix Switch

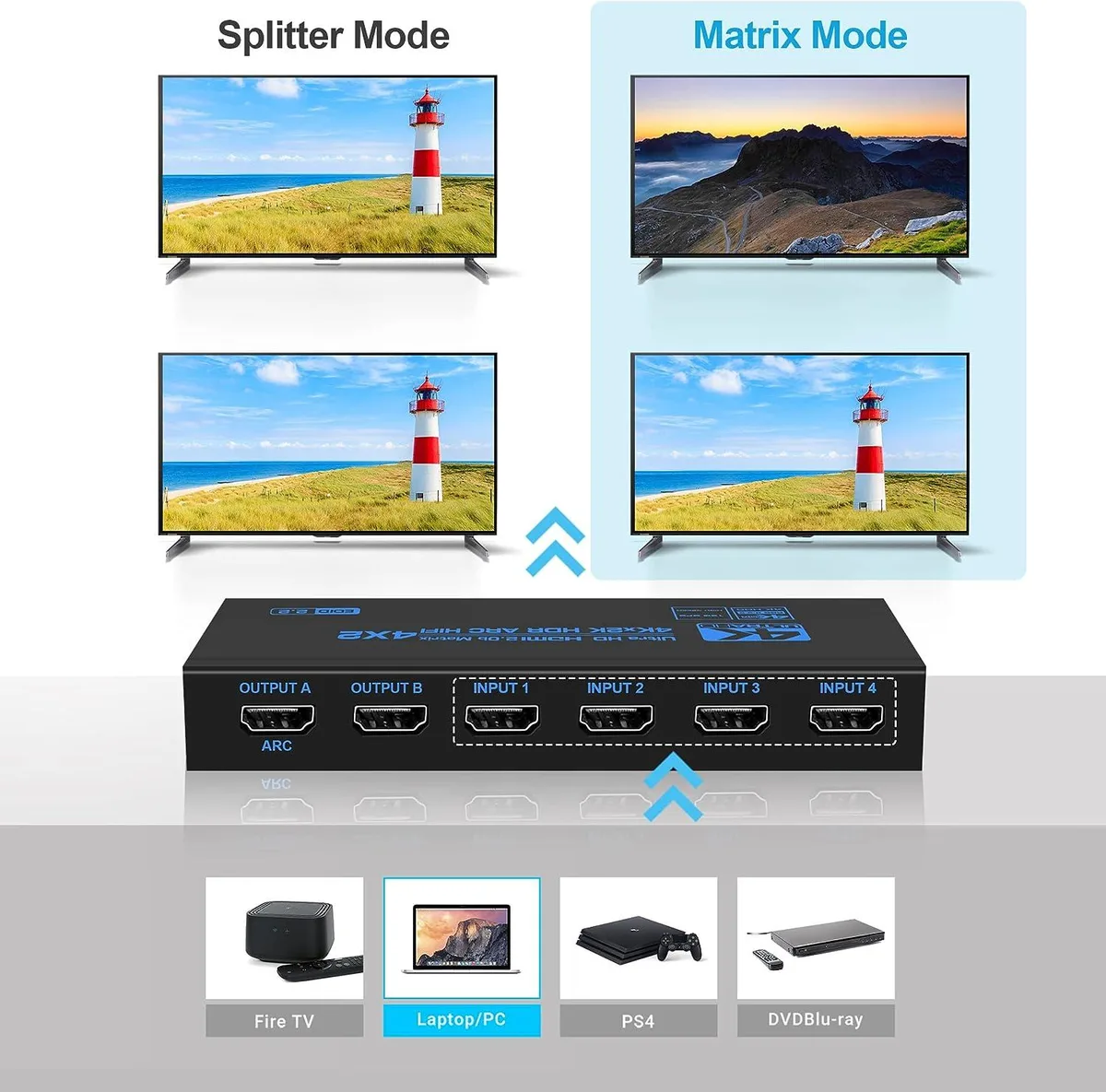

The ESTONE 4x2 HDMI Matrix Switch routes four HDMI sources to two independent displays at up to 4K@60Hz. It suits installers and home-theatre owners who need simultaneous distribution to a projector and a TV or to dual monitors in a presentation room.

HDMI 2.0b with EDID scaling and audio breakout

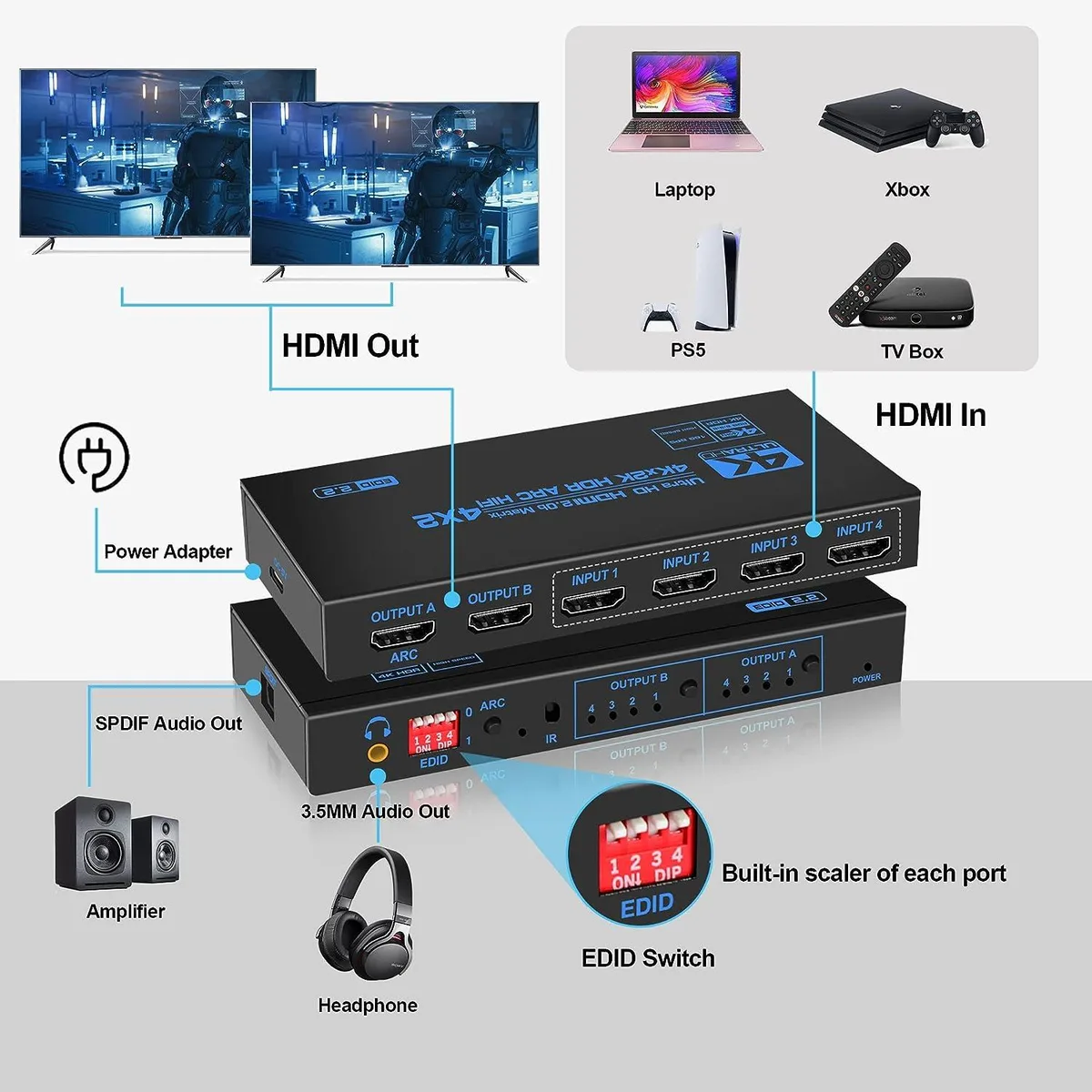

Four HDMI 2.0b inputs accept consoles, players and PCs while two HDMI outputs drive separate screens. Automatic downscaling converts a 4K signal to 1080P for the second display when EDID is set to 0000. Audio is extracted simultaneously to Toslink optical and 3.5mm stereo jacks, supporting LPCM 2.0 and 5.1 plus DTS and Dolby Digital formats.

Passive cooling with 18Gbps throughput

The unit operates without fans, so it adds no audible noise to a quiet room. HDMI 2.0b bandwidth of 18Gbps and 600MHz pixel clock handle 4K@60Hz 8/10/12-bit deep colour and HDCP 2.2 without signal degradation. A 5V power adapter is included for stable operation.

Highlights

  • Routes four sources to two displays with 4K 60 Hz clarity
  • Automatic 4K-to-1080P downscale lets mixed monitors work together
  • Extracts audio to optical and 3.5 mm outputs simultaneously
  • Supports 8, 10, 12 bit deep colour and HDCP 2.2
  • Includes IR remote for convenient switching

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes

Questions about this item

What HDMI version and bandwidth does the 4x2 matrix support for 4K 60Hz signals?

It uses HDMI 2.0b with 18Gbps bandwidth and 600MHz clock, enabling 4K 60Hz 8/10/12-bit colour and HDCP 2.2 compliance.

What physical connections are required for power and audio extraction?

A 5V DC power adapter is included; audio can be taken from the Toslink optical port and the 3.5mm stereo jack simultaneously.

How do I configure the EDID so a 4K and a 1080P display work together?

Set the EDID rotary switch to 0000; the scaler then down-converts 4K sources to 1080P for the second output while keeping 4K on the first.
