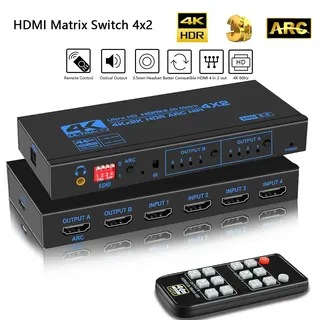

Black rectangular HDMI matrix switch with multiple ports

ESTONE

ESTONE 4x2 HDMI 2.0b Matrix Switch 18.5 Gbps 4K@60Hz HDR HDCP 2.2 3D (OZJ2-1)

SKU CH-0Z0J-BTTKB

Routes four HDMI sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth, HDR and HDCP 2.2, plus optical and 3.5 mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Switch four sources to two displays independently
  • 4K 60 Hz video with 18.5 Gbps bandwidth
  • HDCP 2.2 and 10/12-bit deep colour supported
  • Optical and 3.5 mm audio outputs included
  • Automatic 4K-to-1080p downscaling per output

Matrix Functionality

This ESTONE HDMI matrix switch routes four HDMI sources to two independent displays with simultaneous audio extraction. It supports HDMI 2.0b signals at 18.5 Gbps and handles 4K resolution at 60 Hz with HDR, HDCP 2.2 and 3D pass-through. Optical S/PDIF and 3.5 mm stereo outputs feed external audio systems.

Target Scenarios

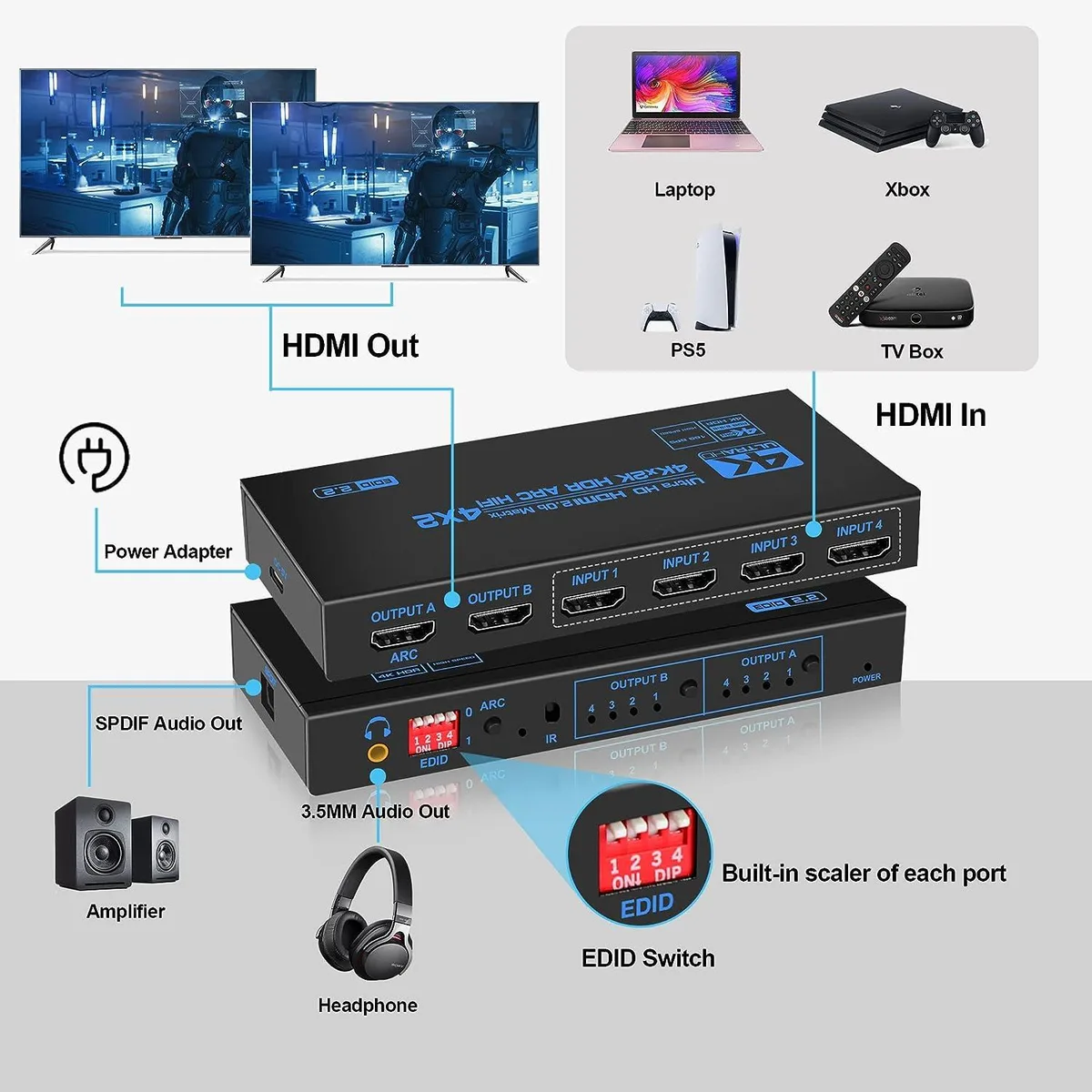

The unit suits installations needing two separate zones driven from a shared pool of four sources such as media players, consoles or PCs. Automatic downscaling converts 4K signals to 1080p for the display that cannot handle the higher resolution. Buyers who require more than two output zones or who need downscaling for resolutions other than 4K to 1080p should look at a different device.

Deciding Specification

The 4×2 matrix topology with 18.5 Gbps bandwidth and HDCP 2.2 compliance is the specification that determines fit. It defines the maximum number of simultaneous source-to-display paths and the highest protected 4K 60 Hz signal the switch can transport without degradation.

Highlights

  • Switch four sources to two displays independently
  • 4K 60 Hz video with 18.5 Gbps bandwidth
  • HDCP 2.2 and 10/12-bit deep colour supported
  • Optical and 3.5 mm audio outputs included
  • Automatic 4K-to-1080p downscaling per output

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes

Questions about this item

What cables and accessories come with the ESTONE 4x2 HDMI matrix switch?

The box contains the matrix switch, an IR remote control, a 5 V power adapter and a user manual. HDMI cables for the four inputs and two outputs are not included and must be purchased separately.

Should I choose this 4x2 matrix or a simpler 4x1 switch for my two displays?

Choose the 4x2 matrix when you need to route any of the four sources independently to two different screens at the same time. A 4x1 switch can only send one source to a single display.

What does the 18.5 Gbps bandwidth mean for 4K@60Hz HDR content on my TV?

The 18.5 Gbps link supports full 4K@60Hz with 8/10/12 bit deep colour and HDCP 2.2, so HDR video and 3D content pass through without compression or frame-rate loss.
