Small black aluminium box with SDI and HDMI ports

ESTONE

ESTONE 3G-SDI to HDMI Converter with Loopout (OZH5-1)

SKU CH-6SMK-9J9RR

Converts 3G-SDI, HD-SDI and SD-SDI signals to 1080p/60Hz HDMI with a loop-through SDI output for simultaneous monitoring

  • TypeSDI to HDMI Converter
  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Converts 3G-SDI to HDMI for 1080p60 display

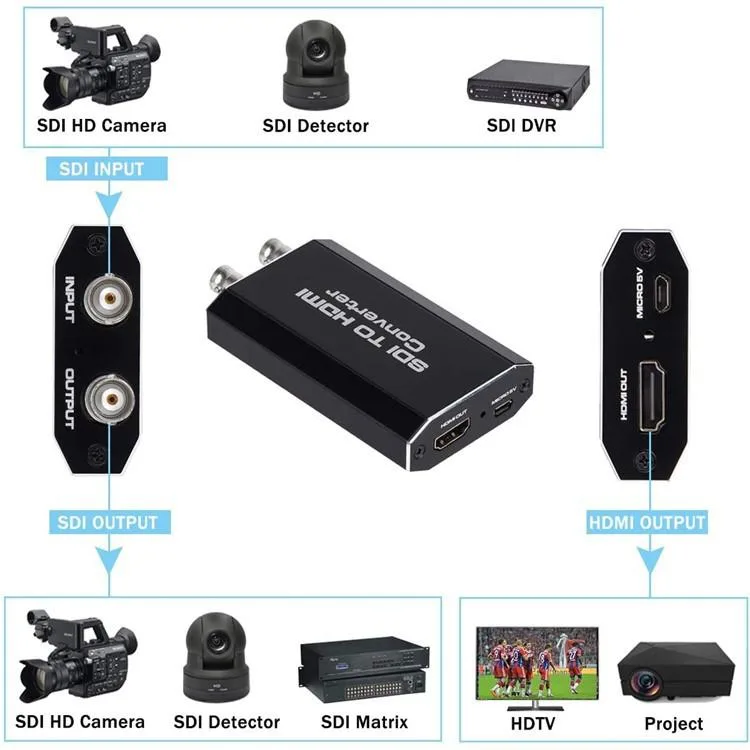

  • Loop-out sends original SDI signal to second monitor
  • Supports SD-SDI, HD-SDI and 3G-SDI standards
  • Aluminium alloy body measures 90 x 55 x 20 mm
  • Includes 5 V DC power adapter and USB cable

3G-SDI to HDMI Converter with Loopout

This converter bridges professional SDI sources to standard HDMI displays. It accepts SD-SDI, HD-SDI and 3G-SDI signals at bit rates up to 2.970 Gbps. The loop-through SDI output lets a second SDI monitor show the same feed simultaneously. Ideal for camera operators and studio setups needing a simple format change.

1080p60 input and output headroom

Both the SDI input and HDMI output handle resolutions up to 1080p at 60 Hz. The unit processes progressive and interlaced formats within the 3G-SDI specification without scaling. Signals above 1080p60 or higher frame rates are not supported, so 4K or high-frame-rate workflows will require different hardware.

Aluminium alloy enclosure and DC power

The black aluminium alloy chassis measures 90 by 55 by 20 mm and weighs 165 g. A single DC 5 V 1 A supply powers the device via the included micro-USB cable. One SDI input, one SDI loop output and one HDMI output provide the essential connections for dual-monitor monitoring in a compact desktop footprint.

Highlights

  • Converts 3G-SDI to HDMI for 1080p60 display
  • Loop-out sends original SDI signal to second monitor
  • Supports SD-SDI, HD-SDI and 3G-SDI standards
  • Aluminium alloy body measures 90 x 55 x 20 mm
  • Includes 5 V DC power adapter and USB cable

Specifications

TypeSDI to HDMI Converter

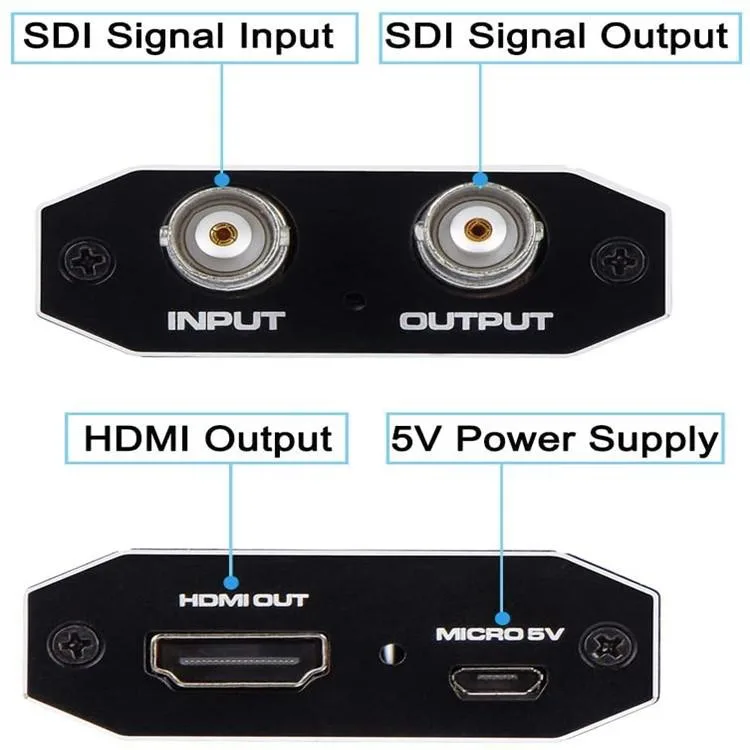

Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

Will the 3G-SDI loop-out let me keep my existing SDI monitor while adding an HDMI display?

Yes, the single SDI input feeds both the HDMI output and the SDI loop-out simultaneously, so your current SDI monitor and a new HDMI screen show the same 1080p60 signal at the same time.

How can I confirm the converter is passing a valid 1080p60 signal after I connect it?

Check that both the HDMI display and the SDI loop-out monitor show a stable picture at 1080p60 with no flicker; the aluminium casing runs cool when the DC5V1A adapter is supplying correct power.

What cables or accessories must I buy separately beyond the included power adapter and USB charge cable?

You need an SDI cable for the source, an HDMI cable for the display, and an optional second SDI cable if you want to use the loop-out to a second SDI monitor.
