Small black metal box with HDMI port and two BNC connectors

ESTONE

ESTONE 1080P HDMI to AHD Converter Adapter with AHD Loopout 500M Repeater audio video converter

SKU CH-D4J4-E8HKD

Converts HDMI to AHD with 500 m loop-out, 720p/1080p at 30 Hz, and built-in ESD protection

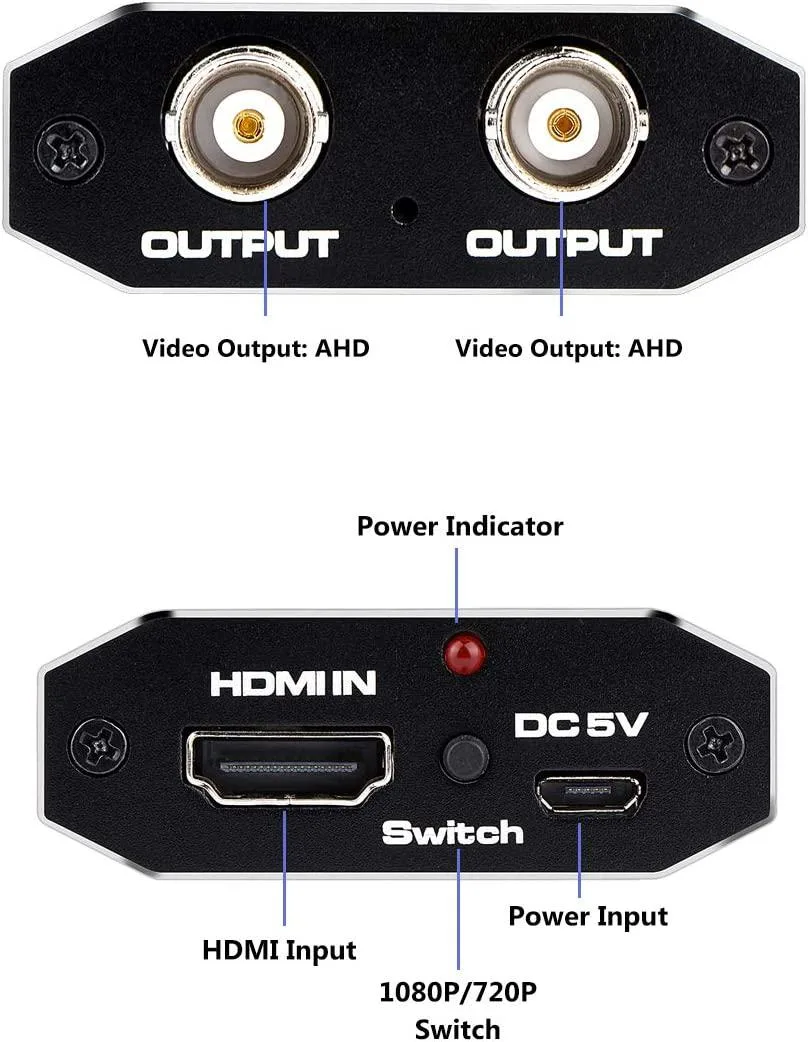

  • TypeHDMI to AHD Converter
  • Connector A1 x HDMI input
  • Connector B2 x AHD output
  • Package Contents1x HDMI to AHD Converter 1x 5V/1A Power Adapter and Cable 1x
  • Converts HDMI to AHD for CCTV systems
  • AHD loopout repeats signal up to 500M
  • Dual AHD outputs at 720p or 1080p@30Hz
  • HDMI input supports 480i to 1080p60 formats
  • Built-in ESD protection for reliable installation

HDMI to AHD Converter for CCTV Systems

This converter translates HDMI signals into AHD format for integration with analogue high-definition surveillance equipment. It accepts one HDMI input and delivers two AHD outputs, making it suitable for installers who need to feed a DVR or NVR from an HDMI source. A 5 V power adapter and user manual are included in the package.

HDMI 1.4 input with HDCP 1.2 support

The HDMI input follows the 1.4 standard and handles HDCP 1.2 protected content. Supported input timings cover SD at 480i and 576i, HD at 720p50/60 and 1080i50/60, plus 3G rates at 1080p25/30/50/60. Output is limited to 720p or 1080p at 30 Hz, selectable by a button on the unit.

500 metre AHD loop-out repeater

The second AHD output functions as a loop-out repeater, extending the signal up to 500 metres over coaxial cable. This provides headroom for long cable runs in outdoor or large-premises installations. The converter does not support higher output frame rates or resolutions beyond 1080p30, so sources requiring 50 or 60 Hz output will be down-converted.

Highlights

  • Converts HDMI to AHD for CCTV systems
  • AHD loopout repeats signal up to 500M
  • Dual AHD outputs at 720p or 1080p@30Hz
  • HDMI input supports 480i to 1080p60 formats
  • Built-in ESD protection for reliable installation

Specifications

TypeHDMI to AHD Converter
Connector A1 x HDMI input
Connector B2 x AHD output
Package Contents1x HDMI to AHD Converter
1x 5V/1A Power Adapter and Cable
1x 1x User Manual

Questions about this item

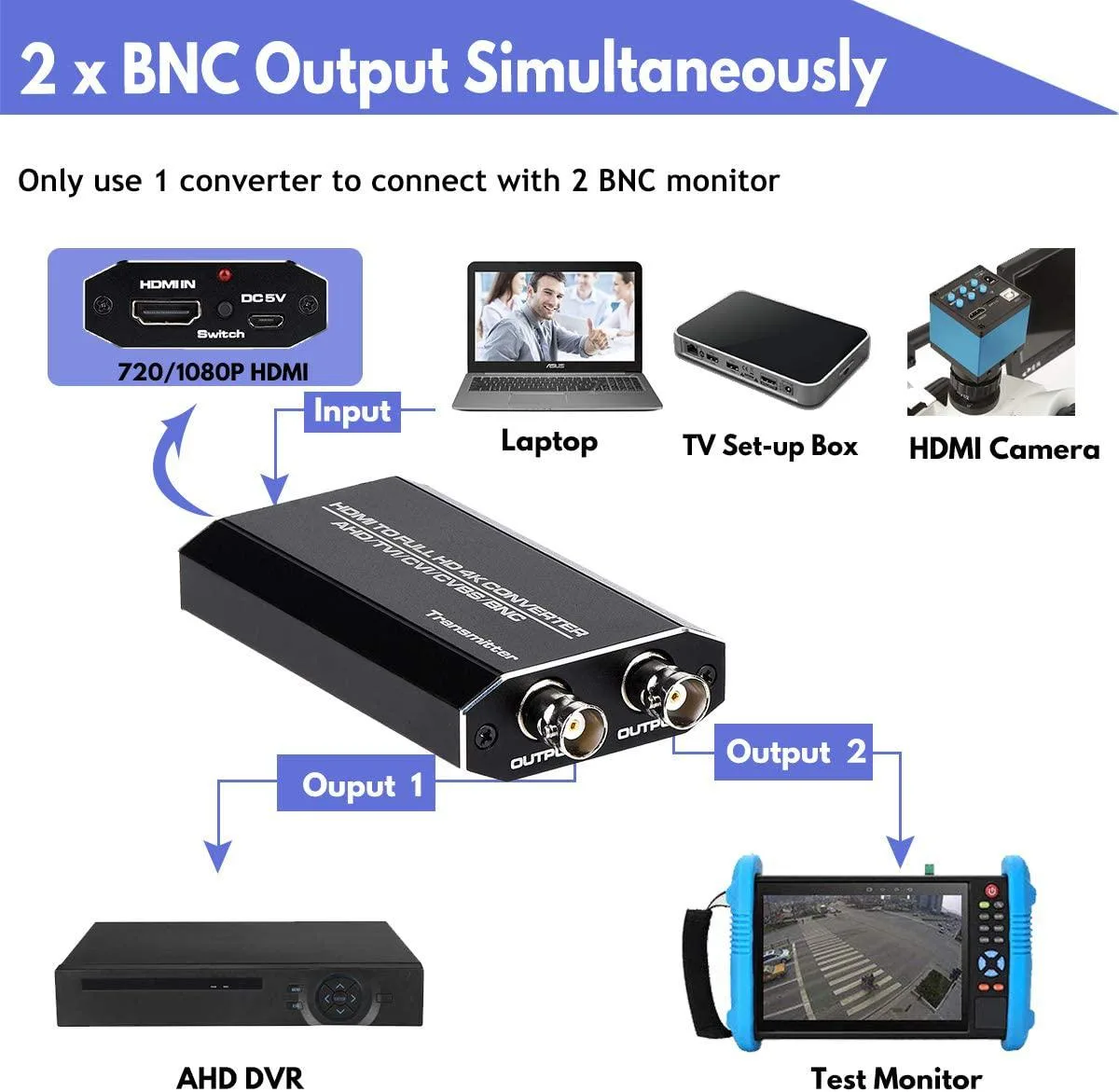

Does the converter provide a single AHD output or dual outputs for looping?

The unit has one HDMI input and two AHD BNC outputs so you can feed a local monitor and extend the same signal up to 500 metres over coaxial cable.

What does the 1080p@30Hz AHD output mean for my CCTV recorder?

The converter scales any accepted HDMI source — up to 1080p60 — down to a 1080p or 720p AHD stream at 25 or 30 frames per second, matching the recording rate of most AHD DVRs.

Which HDMI standard and HDCP version does the input support?

The HDMI input complies with the 1.4 specification and handles HDCP 1.2 protected content, accepting SD, 720p, 1080i and 1080p signals at 50 or 60 Hz.
