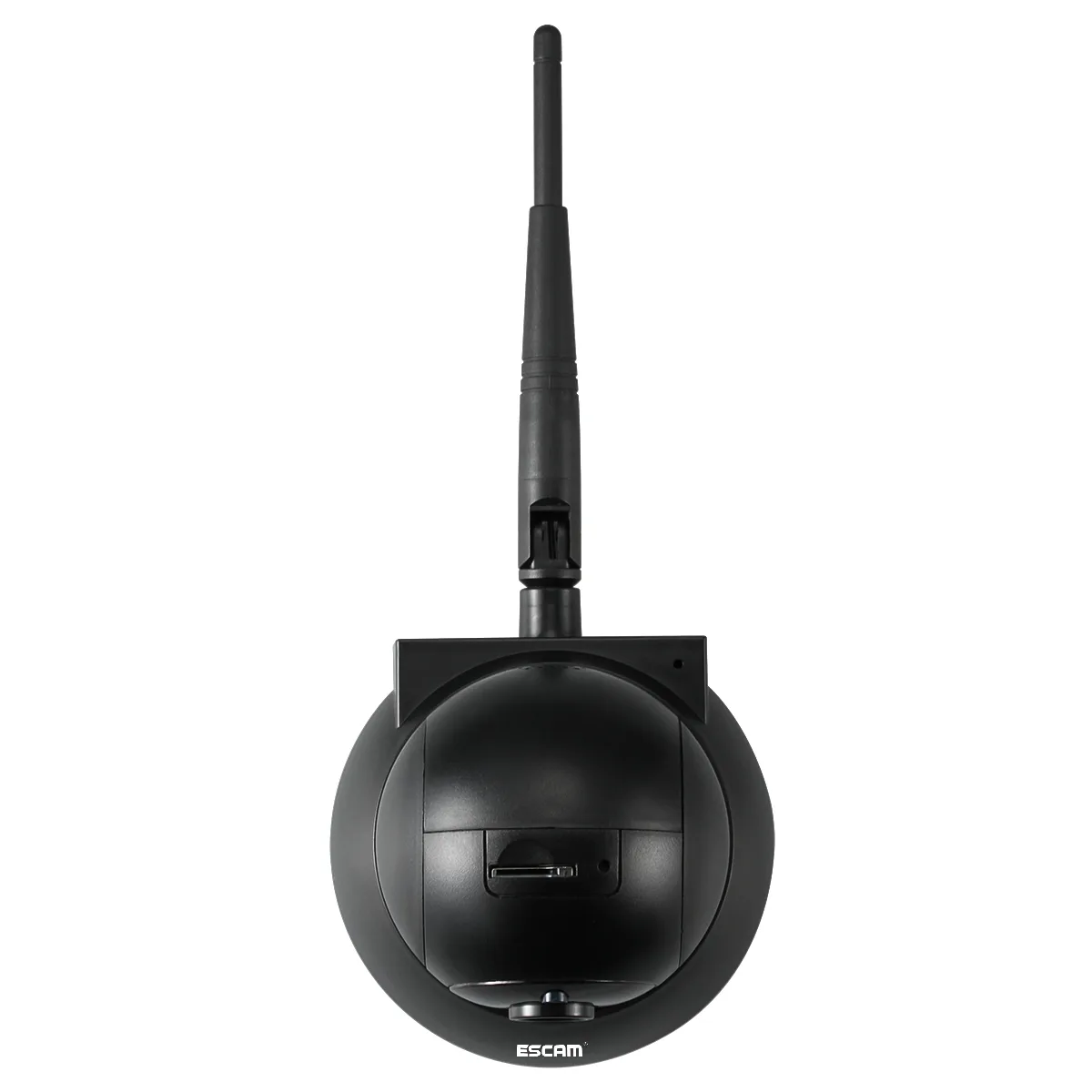

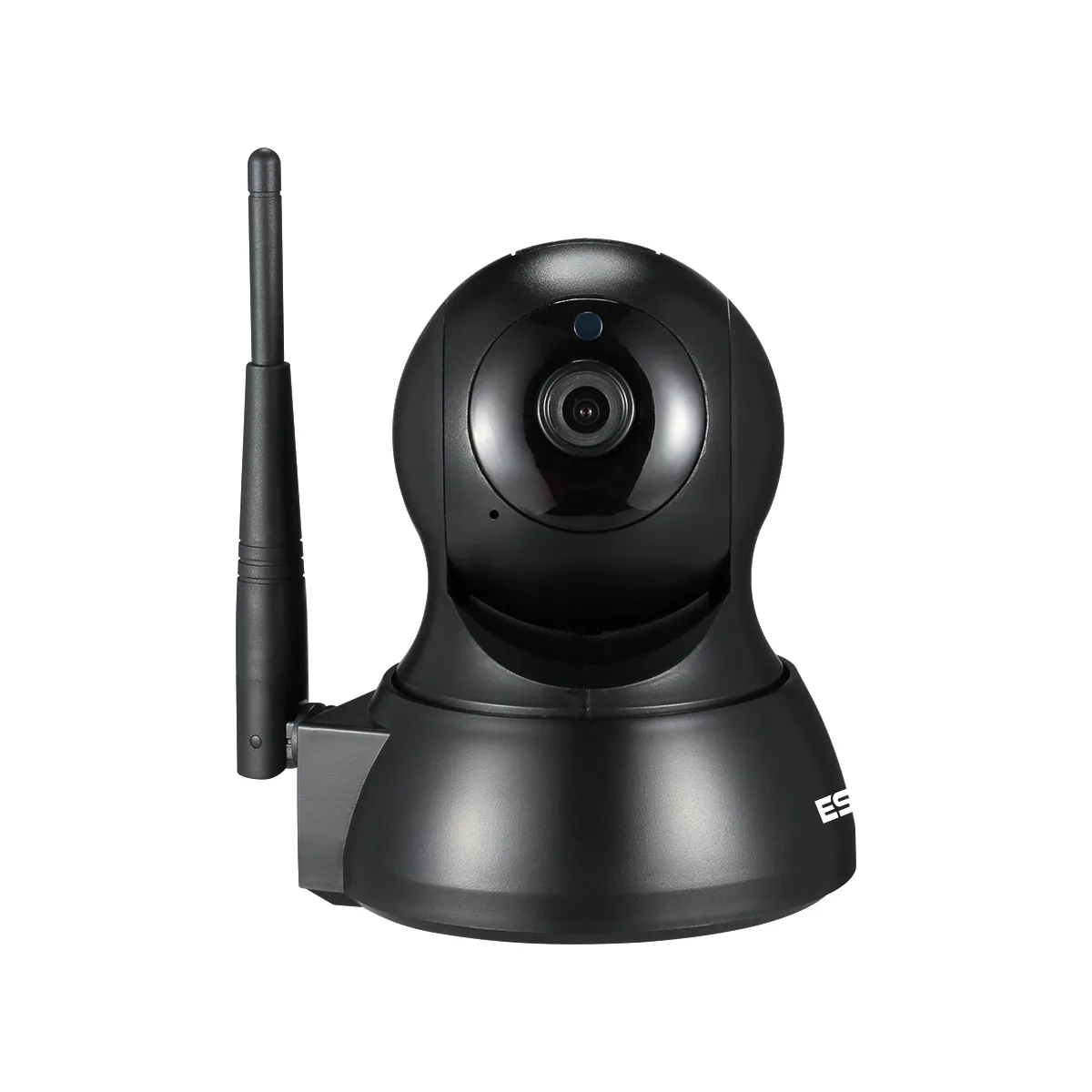

ESCAM QF007 720P 1MP network camera Black Color

Compact indoor PT camera

The ESCAM QF007 is a 1 MP network camera that streams 720P video at 30 fps (NTSC) or 25 fps (PAL) over 2.4 GHz 802.11 b/g/n Wi‑Fi. It offers 355° pan and 90° tilt, a 3.6 mm lens with a 62° viewing angle, and six IR LEDs that illuminate up to 10 m in darkness. A built‑in microphone and 1 W speaker provide two‑way audio, while motion detection can trigger email or app push alerts. Recordings store locally on a microSD card up to 64 GB, and the device runs on an embedded Linux OS with account‑based access control.

Power and network prerequisites

The unit requires a DC 5 V supply with a tolerance of ±0.3 V and draws 3.5 W with IR on or up to 7 W when the pan‑tilt mechanism is active. Your router must support 2.4 GHz 802.11 b/g/n; 5 GHz networks are not compatible. A microSD card is not included, so have one ready if you want local recording. The camera operates from −10 °C to 50 °C at 10 %–90 % humidity, making it unsuitable for outdoor or unheated spaces where temperatures fall below freezing.

Sustained operation profile

Under continuous use the camera maintains its rated frame rates and keeps the IR LEDs active for night viewing without throttling. The pan‑tilt motors are rated for the full 355°/90° range during extended tracking, and the H.264/H.264+ compression keeps bandwidth steady for up to four simultaneous viewers. Heat dissipation is passive; the 195 g chassis stays within the specified temperature envelope as long as ambient conditions remain inside the −10 °C to 50 °C window.
